Standby P4 Bedienungsanleitung
P4 - Manual
Thank you for choosing a product from Standby.

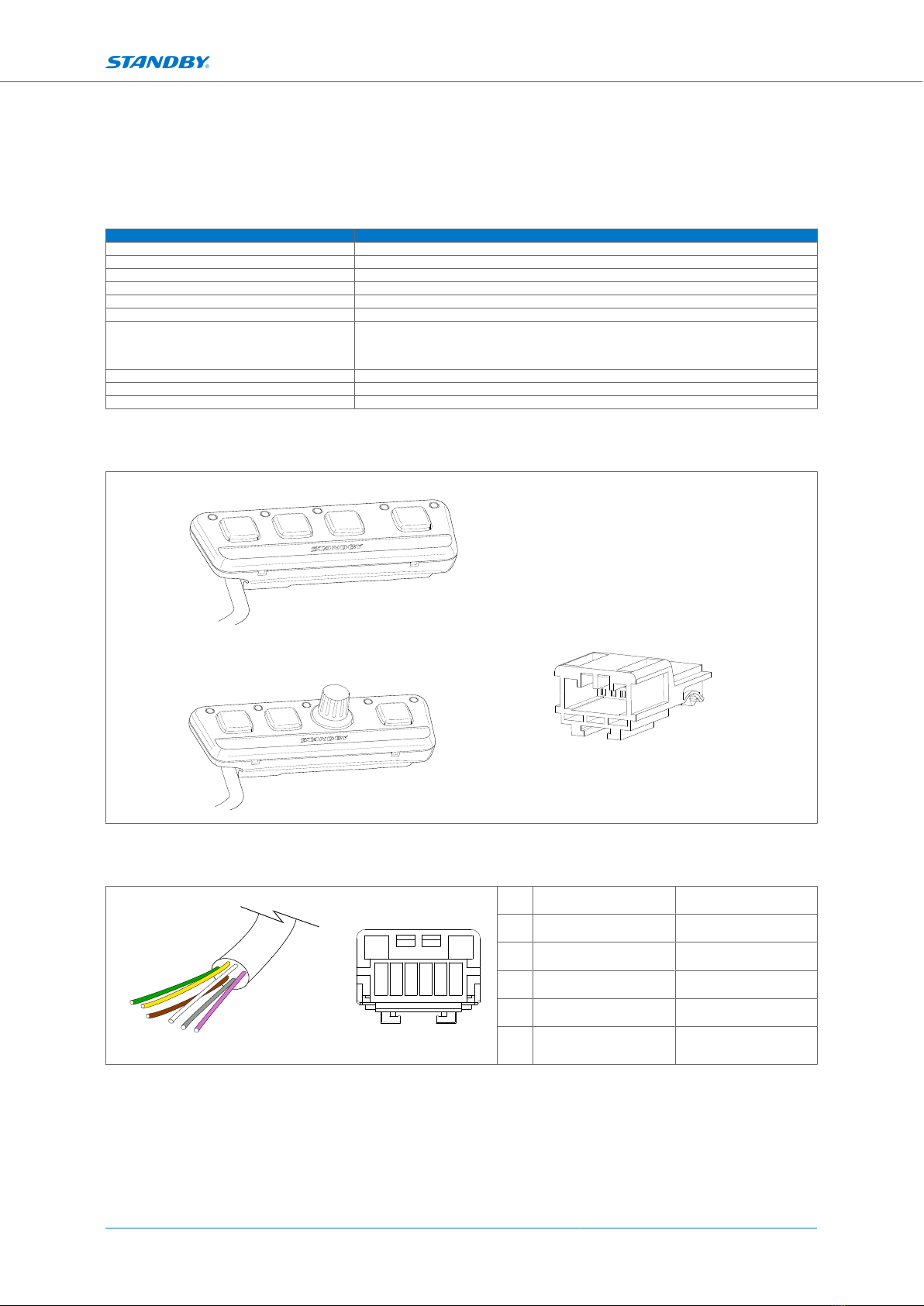

Technical Data
Attribute Units
Housing PC/ABS
Cable length 100 cm
Supply voltage +10-30VDC
Dimensions 98x33x19 mm
Recommended fuse 1A
Interface CAN
Ambient temperature
- Operating
- Storage/transport
-40 till +80
-40° till +85°
Current consumption max 100mA at operation (0,15mA at standby mode)
Tests performed Tested according to applicable parts of SS-ISO_16750-3 and SS-ISO_16750-4_2010
Approval ECE R10
Included
605303XX 4 Button version
Connector: JAE IL-AG5-6P-S3C1
Pin: JAE IL-AG5-PC1-5000
Mating connector: JAE IL-AG5-6S-S3C1 (Not included)
Mating sleeve: JAE IL-AG5-C1-5000 (Not included)
3 Button version
Connection
1.
2.
3.4.
5. 6.
1 2 3 4 5 6
1. Green CAN Low 1
2. Yellow CAN High 1
3. Brown CAN Low 2
4. White CAN High 2
5. Grey Ground
6. Pink +10-30VDC
P4 - Manual
AM605303XXA www.standby.eu © Standby AB

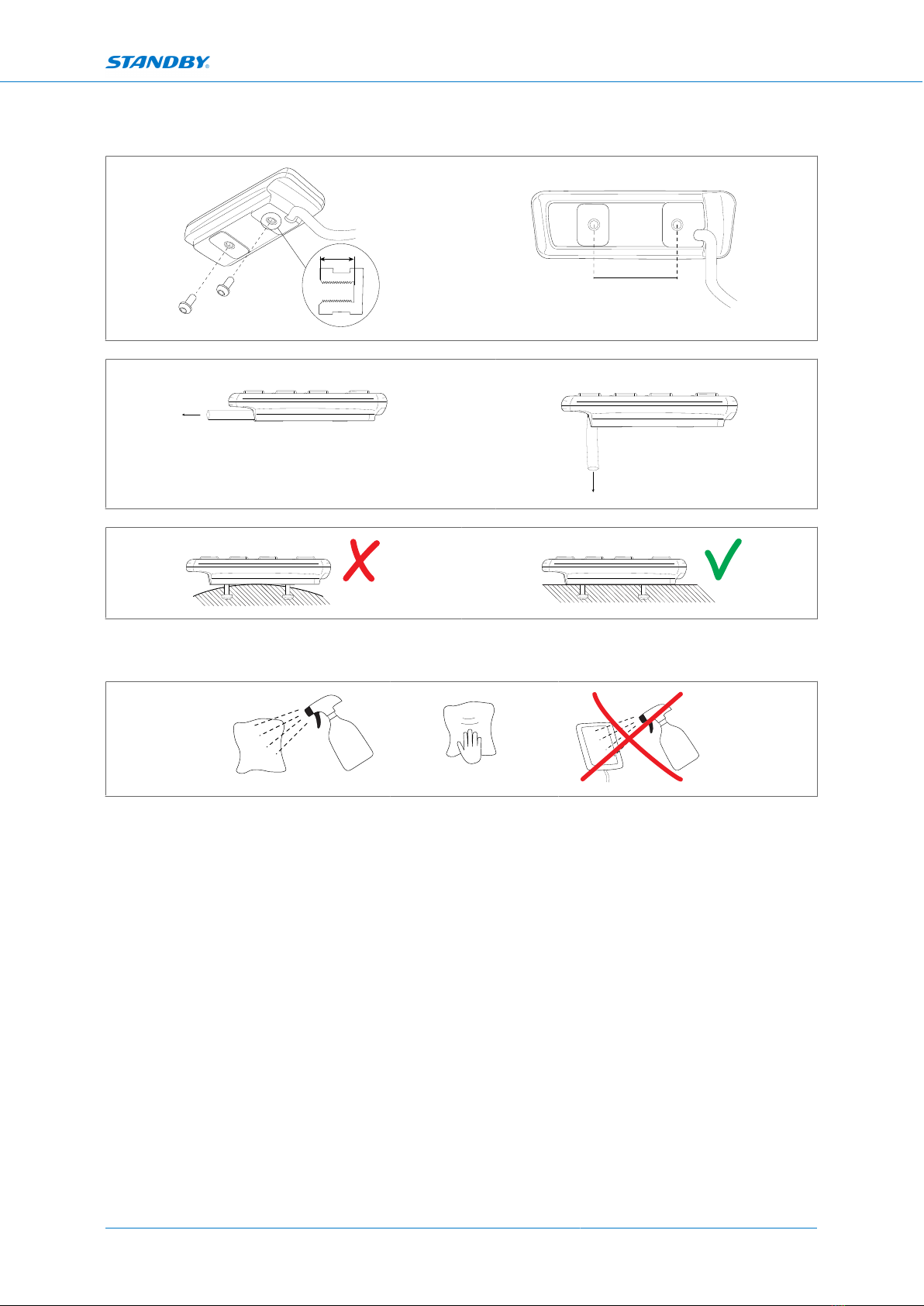

Installation
2XM4
7,5 mm
cc 40 mm
Cleaning instruction
•Switch o the screen / device and wait for it to cool down
•Use a clean microber cloth. Avoid rough cloths, towels, paper towels and similar items.
•Moisten the microber cloth with a little water, for stubborn stains a screen cleaner designed for computer screens
can be used.
•Wipe slow and gentle to avoid damage, wipe dry with a dry microber cloth.
•Do not spray water / screen cleaner directly on the unit. Never use a soaked cloth. This prevents moisture from entering
the unit.
Compatible Products
For more information regarding connection to compatible products see:
www.standby.eu/support/manuals
Standby will not be held liable for improper installation or use of this product. Please follow all instructions provided. Professional advice and proper installation of the
Standby products by an authorized Standby Partner are recommended to provide maximum safety and function
P4 - Manual
AM605303XXA www.standby.eu © Standby AB
