Please read these instructions before operating the product

CLLi

2 - Beam Self-Leveling Cross Line Laser

77-117

Self-Leveling

277-117 3

77-117

Carefully read the Safety Instructions and User Manual before using this product. The person

responsible for the instrument must ensure that all users understand and adhere to these

instructions.

Retain this manual for future reference.

IMPORTANT: The following labels are on your laser tool for your convenience and safety.

They indicate where the laser light is emitted by the level. ALWAYS BE AWARE of their

location when using the level.

DO NOT remove any warning label(s) on the housing. This instrument must only be used for

leveling and layout tasks as outlined in this manual.

ALWAYS make sure that any bystanders in the vicinity of use are made aware of the

dangers of looking directly into the laser tool.

DO NOT use in combination with other optical instruments. Do not modify the instrument, or

make manipulations or use in other applications than those described in the manual.

DO NOT look into the beam with optical aids, such as magniﬁers, binoculars or Telescopes.

DO NOT stare into the laser beam or direct it towards other persons. Make sure the

instrument is not set at eye level. Eye protection is normally afforded by natural aversion

responses such as the blink reﬂex.

DO NOT direct the laser beam at other persons.

ALWAYS turn the laser tool “OFF” when not in use. Leaving the laser tool “ON” increases

the risk of someone inadvertently staring into the laser beam.

DO NOT operate the laser tool in combustible areas such as in the presence of ﬂammable

liquids, gases or dust.

DO NOT disassemble the laser tool. There are no user serviceable parts inside.

Disassembling the laser will void all warranties on the product. Do not modify the product in

any way. Modifying the laser tool may result in hazardous laser radiation exposure.

DO NOT use this instrument in areas where a risk of explosion is present.

NOTE: Since the laser beam is of the focused type, ensure you check the beam’s path over

a relatively long distance and take all necessary precautions to ensure the beam cannot

interfere with other persons.

1. Safety

2. Product Description

3. Speciﬁcations

4. Operating Instructions

5. Calibration

6. Maintenance and Care

7. Warranty

User Safety

Safety

Contents

EN 60825-1

LASER RADIATION - DO NOT

STARE INTO BEAM OR VIEW

DIRECTLY WITH

OPTICAL INSTRUMENTS

CLASS 1 LASER PRODUCT

MAX OUT PUT ≤ 1 m W @ 630 - 670 nm

477-117 5

77-117

WARNING: Batteries can explode or leak and can cause injury or ﬁre. To reduce this risk:

ALWAYS follow all instructions and warnings on the battery label and package.

DO NOT short any battery terminals

DO NOT charge alkaline batteries.

DO NOT mix old and new batteries. Replace all of them at the same time with new batteries

of the same brand and type.

DO NOT mix battery chemistries.

DO NOT dispose of batteries in ﬁre.

ALWAYS keep batteries out of reach of children.

ALWAYS remove batteries if the device will not be used for several months.

NOTE: Ensure that the correct batteries as recommended are used.

NOTE: Ensure the batteries are inserted in the correct manner, with the correct polarity.

ROHS Compliant

EN 60825-1

DO NOT dispose of this product with household waste.

ALWAYS dispose of batteries per local code.

PLEASE RECYCLE in line with local provisions for the collection and disposal of electrical

and electronic waste under the WEEE Directive.

Battery Safety

The Stanley Works declares that the CE Mark has been applied to

this product in accordance with the CE Marking Directive 93/68/

EEC.

This product conforms with EN60825-1:2007.

For further details please refer to www.stanleyworks.com.

End of Life

Declaration of Conformity

Product Description

Package Contents

1. Laser Unit

2. Tripod

3. L-Type Bracket

4. Pole Clamp (attaches to L-Type Bracket)

5. Magnetic Mount (attaches to L-Type Bracket)

6. Laser Target

7. Carrying Case

8. Batteries (3 x AA)

9. User Manual

677-117 7

77-117

Product Overview

1. Window for Cross Beam Laser

2. Transport Lock

3. Keyboard

4. Laser Warning Label

5. Battery Compartment Cover

Laser Unit

6. 1/4 - 20 Threaded Mount

1. 1/4 - 20 Screw Mount

2. Elevator Column

3. Adjustable Legs

Tripod

L-Type Bracket

Pole Clamp

Magnetic Mount

1. Keyhole Slots

2. 1/4 - 20 Screw Mount

1. Clamp

2. 3 Pin Key

1. Magnetic Strip

2. 3 Pin Key

877-117 9

77-117

Leveling Accuracy:

Horizontal / Vertical Accurracy

Working Range:

Working Distance:

Laser Class:

Laser Wavelength:

Operating Time:

Power Voltage:

Power Supply:

IP Rating:

Operating Temperature Range:

Storage Temperature Range:

Weight (without Base and Batteries):

Size:

≤ 4 mm / 10 m (≤ 5/32 in / 30 ft)

≤ 1.5 mm / 3 m (≤ 1/16 in / 10 ft)

Self-Leveling to ± 4°

≤ 10 m (≤ 30 ft)

Class 1

635 nm ± 5 nm

16 h

4,5 V

3 x AA Batteries (Alkaline)

IP54

-10° C to +40° C (+14° F to +104° F)

-20° C to +60° C (-4° F to +140° F)

230 g (8 oz)

88 mm × 48 mm × 90 mm (3 1/2 in × 1 7/8 in × 3 1/2 in)

Operating Instructions

1. Turn laser unit to back. Open battery

compartment cover by bending tab out to

unlock.

Lift Out

+++

---

Battery Installation / Removal

Speciﬁcations

2. Install / Remove batteries. Orient batteries

correctly when placing into laser unit.

3. Close and lock battery compartment

cover. Be sure tab snaps back into locking

feature.

10 77-117 11

77-117

1. 1/4 - 20 screw mount to attach laser unit.

Laser Mode

2. Transport lock in unlocked position.

Self-leveling function is enabled.

3. Press power key to power laser ON / OFF.

Right LED lights green when laser power is

on.

5. Press laser mode key to toggle through

available laser modes - horizontal only,

vertical only, both horizontal and vertical.

6. Laser power and laser mode keys are always

functional. Can be used when self-leveling

function is both enabled or disabled.

Laser Unit

Locked

Unlocked

1. Transport lock in locked position.

Self-leveling function is disabled.

Laser ON / OFF

7. Laser beam(s) blink to indicate the laser unit

is out of the working range. Reposition laser

unit to be more level.

8. Laser beam(s) will dim when battery power

is low. Replace batteries.

Tripod

2. Foldable for easier transport.

3. Legs are adjustable for uneven ground.

4. Elevator column adjustable for different

heights.

Self-leveling

Enabled Disabled

4. Left LED lights blue when laser power is on

with self-leveling function disabled. LED is

off when self-leveling function enabled.

12 77-117 13

77-117

L-Type Bracket, Pole Clamp, and Magnet Mount Applications

1. 1/4 - 20 screw mount to attach laser unit.

Allows for full 360° placement of the laser

unit.

360° Placement

2. Fasten pole clamp to L-type bracket to allow

use with tripod or other optional accessories.

3. Fasten magnetic mount to L-type bracket to

allow connection to stable and supportive

magnetic objects.

3. Square:

Using both the vertical and horizontal laser

beams, establish a point where the vertical

and horizontal beams cross. Position the

desired object(s) until they are aligned with

both the vertical and horizontal laser beams

to ensure object(s) are square.

1. Plumb:

Using the vertical laser beam, establish a

vertical reference plane. Position the desired

object(s) until they are aligned with the

vertical reference plane to ensure object(s)

are plumb.

2. Level:

Using the horizontal laser beam, establish

a horizontal reference plane. Position the

desired object(s) until they are aligned with

the horizontal reference plane to ensure

object(s) are level.

4. Self-Leveling Disabled:

Disabling self-leveling function allows laser

unit to project a rigid laser beam in any

orientation.

14 77-117 15

77-117

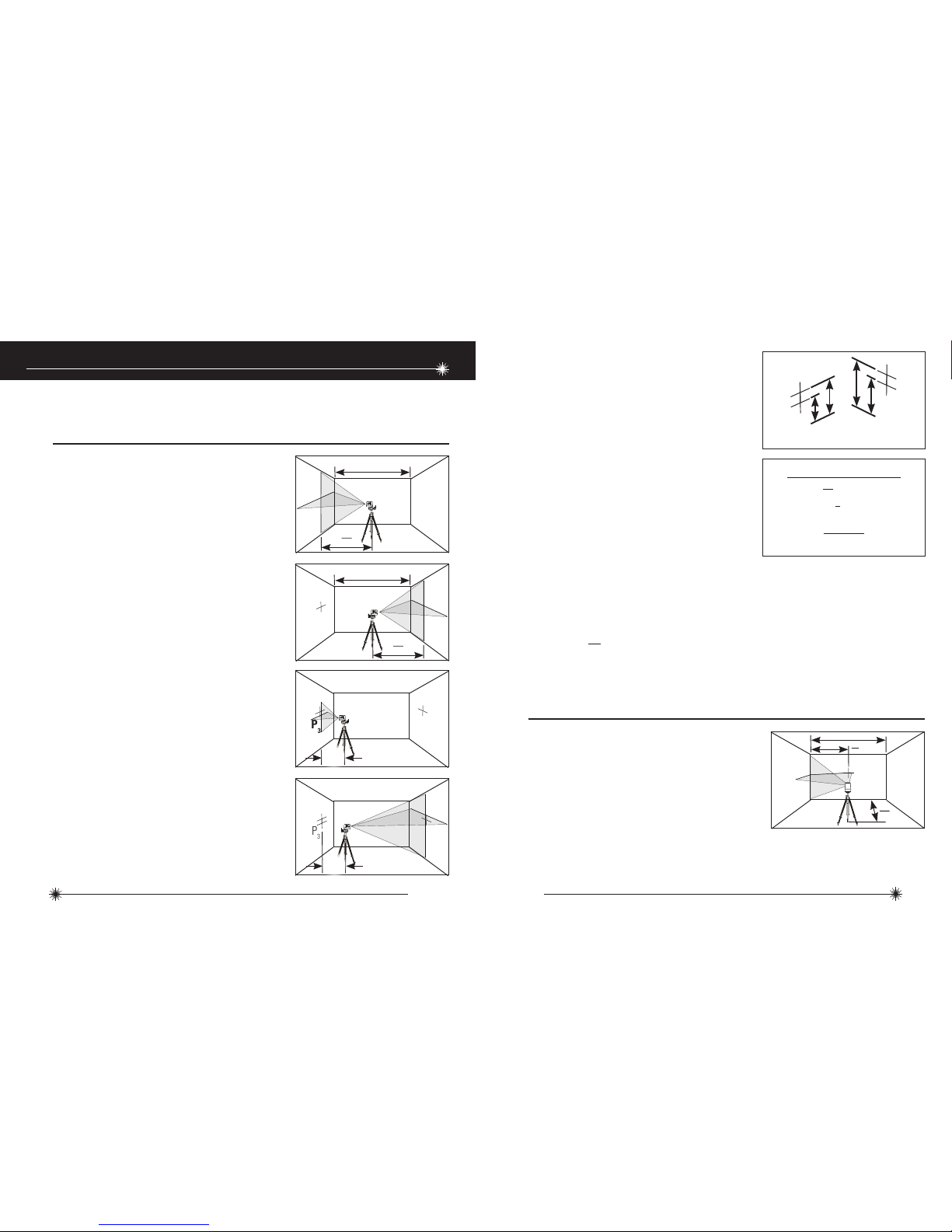

Calibration

NOTE: The laser unit has been calibrated at the time of manufacturing. Periodically check

the accuracy of the laser unit to ensure that the calibrated speciﬁcations are maintained.

1. Place laser unit as shown with laser ON.

Mark point P1at cross.

Level Beam Accuracy

2. Rotate laser unit 180° and mark point P2

at cross.

3. Move laser unit close to wall and mark

point P3at cross.

4. Rotate laser unit 180° and mark point P4

at cross.

5. Measure the vertical distance from

the ﬂoor to each point. Calculate the

difference between distances DP1 and DP3

to get D3and distances DP2 and DP4 to get

D4.

6. Calculate the maximum allowed offset

distance and compare to the difference

of D3and D4as shown in the equation. If

the sum is not less than or equal to the

calculated maximum offset distance the

unit must be returned to your Stanley

Distributor.

1. Place laser unit as shown with laser

ON. Aim vertical beam to ﬁrst corner or

reference point. Measure out half of the

distance D1and mark point P1.

Horizontal Beam Accuracy

Example: D1 = 10 m, D2 = 0,5 m

DP1 = 30,75 mm, DP2 = 29 mm, DP3 = 30 mm, DP4 = 29,75 mm

D3= (30,75 mm - 30 mm) = 0,75 mm

D4= (29 mm - 29,75 mm) = - 0,75 mm

0,4 x (10 m - (2 x 0,5 m) = 3,6 mm (maximum allowed offset distance)

(0,75 mm) - (- 0,75 mm) = 1,5 mm

1,5 mm ≤ 3,6 mm (TRUE, unit is within calibration)

DP3

DP1

(DP1 - DP3 ) = D3P4

DP2

DP4

(DP2 - DP4 ) = D4

Compare:

D3- D4≤ ± Max

Maximum Offset Distance:

Max in

= 0,0048 x (D1ft - (2 x D2ft))

= 0,4 x (D1m - (2 x D2m))

16 77-117 17

77-117

2. Rotate laser unit to other corner or

reference point.

3. Measure the vertical distances between

P1and the horizontal beam from the 2nd

location.

4. Calculate the maximum allowed offset

distance and compare to D2. If D2is

not less than or equal to the calculated

maximum offset distance the unit must be

returned to your Stanley Distributor.

Vertical Beam Accuracy

D1P2P3

2 x D1

P2P3

2 x D1

1. Measure the height of a door jamb or

reference point to get distance D1. Place

laser unit as shown with laser ON. Aim

vertical beam towards door jamb or

reference point. Mark points P1, P2, and

P3as shown.

2. Move laser unit to opposite side of door

jamb or reference point and align vertical

beam with P1and P2.

3. Measure the horizontal distances between

P1and the vertical beam from the 2nd

location.

4. Calculate the maximum allowed offset

distance and compare to D2. If D2is

not less than or equal to the calculated

maximum offset distance the unit must be

returned to your Stanley Distributor.

Example: D1 = 5 m, D2= 1 mm

0,5 x 5 m = 2,5 mm (maximum allowed offset distance)

1 mm ≤ 2,5 mm (TRUE, unit is within calibration)

Compare:

D2≤ Max

Maximum Offset Distance:

Max in

= 0,006 x D1ft

= 0,5 x D1m

Example: D1 = 2 m, D2= 1 mm

1 x 2 m = 2 mm (maximum allowed offset distance)

1 mm ≤ 2 mm (TRUE, unit is within calibration)

Compare:

D2≤ Max

Maximum Offset Distance:

Max in

= 0,012 x D1ft

= 1 x D1m

18 77-117 19

77-117

Laser unit is not waterproof. DO NOT allow to get wet. Damage to internal circuits may

result.

DO NOT leave laser unit in direct sunlight or expose it to high temperatures. The housing

and some internal parts are made of plastic and may become deformed at high temperatures.

DO NOT store the laser unit in a cold environment. Moisture may form on interior parts

when warming up. This moisture could fog up laser windows and cause corrosion of internal

circuit boards.

When working in dusty locations, some dirt may collect on the laser window. Remove any

moisture or dirt with a soft, dry cloth.

DO NOT use aggressive cleaning agents or solvents.

Store the laser unit in its case when not in use. If storing for extended time, remove batteries

before storage to prevent possible damage to the instrument.

Maintenance and Care

One Year Warranty

Stanley Tools warrants its electronic measuring tools against deﬁciencies in materials and/or

workmanship for one year from date of purchase.

Deﬁcient products will be repaired or replaced, at Stanley Tools’ option, if sent together with

proof of purchase to:

Stanley UK Sales Limited

Gowerton Road

Brackmills, Northampton NN4 7BW

This Warranty does not cover deﬁciencies caused by accidental damage, wear and tear, use

other than in accordance with the manufacturer’s instructions or repair or alteration of this

product not authorised by Stanley Tools.

Repair or replacement under this Warranty does not affect the expiry date of the Warranty.

To the extent permitted by law, Stanley Tools shall not be liable under this Warranty for

indirect or consequential loss resulting from deﬁciencies in this product.

This Warranty may not be varied without the authorisation of Stanley Tools.

This Warranty does not affect the statutory rights of consumer purchasers of this product.

This Warranty shall be governed by and construed in accordance with the laws of England

and Stanley Tools and the purchaser each irrevocably agrees to submit to the exclusive

jurisdiction of the courts of England over any claim or matter arising under or in connection

with this Warranty.

IMPORTANT NOTE: The customer is responsible for the correct use and care of the

instrument. Moreover, the customer is completely responsible for periodically checking the

accuracy of the laser unit, and therefore for the calibration of the instrument.

Calibration and care are not covered by warranty.

Subject to change without notice

Warranty

Inhaltsverzeichnis

Andere Stanley Laser-Nivelliergerät Handbücher

Stanley

Stanley SPL3 Bedienungsanleitung

Stanley

Stanley FATMAX FMHT1-77356 Bedienungsanleitung

Stanley

Stanley STHT77498-1 Bedienungsanleitung

Stanley

Stanley Fat Max S2 Bedienungsanleitung

Stanley

Stanley FatMax AL32 Bedienungsanleitung

Stanley

Stanley FatMax PB2 Bedienungsanleitung

Stanley

Stanley CROSS 90 Bedienungsanleitung

Stanley

Stanley Fatmax FMHT77617 Bedienungsanleitung

Stanley

Stanley FatMax FMHT1-77413 Bedienungsanleitung

Stanley

Stanley CL2XTi Bedienungsanleitung

Stanley

Stanley STHT77149 Bedienungsanleitung

Stanley

Stanley FATMAX FMHT1-77416 Bedienungsanleitung

Stanley

Stanley Fatmax FMHT77617 Bedienungsanleitung

Stanley

Stanley STHT77504-1 Bedienungsanleitung

Stanley

Stanley MultiLine 1-77-122 Bedienungsanleitung

Stanley

Stanley Fatmax FMHT1-77415 Bedienungsanleitung

Stanley

Stanley FatMax FMHT1-77414 Bedienungsanleitung

Stanley

Stanley SCL-D Bedienungsanleitung

Stanley

Stanley FatMax FMHT77598 Bedienungsanleitung

Stanley

Stanley FatMax-CL2 Bedienungsanleitung

Stanley

Stanley STHT77502-1 Bedienungsanleitung

Stanley

Stanley RL HW Bedienungsanleitung

Stanley

Stanley STHT77504-1 Bedienungsanleitung

Stanley

Stanley FCL-G Bedienungsanleitung

Beliebte Laser-Nivelliergerät Handbücher anderer Marken

Nedo

Nedo ET-5 Bedienungsanleitung

geo-FENNEL

geo-FENNEL Maxi-Liner FL 65 HP Bedienungsanleitung

LaserLiner

LaserLiner X2-Laser Bedienungsanleitung

Spectra

Spectra LL300N Bedienungsanleitung

geo-FENNEL

geo-FENNEL Selection PRO FLG 40-PowerCross GREEN SP Bedienungsanleitung

Nedo

Nedo Crossliner 4 Bedienungsanleitung

Lasertec

Lasertec FX360G Bedienungsanleitung

Flex

Flex ALC 8 Bedienungsanleitung

Black & Decker

Black & Decker LZR5 Bedienungsanleitung

Johnson

Johnson 40-6692 Bedienungsanleitung

Cocraft

Cocraft HL 20-SG Bedienungsanleitung

Zircon

Zircon iLine Bedienungsanleitung

HWH

HWH 310 SERIES Bedienungsanleitung

Leica

Leica iCON robot 60 Bedienungsanleitung

LaserLiner

LaserLiner SuperCross-Laser SCL 2 Bedienungsanleitung

LaserLiner

LaserLiner ActiveFinder XP Bedienungsanleitung

DeWalt

DeWalt DW082 Bedienungsanleitung

imex

imex EL20 Bedienungsanleitung
