InfoSafe Mobile Drive Enclosure

IDECASE35U2B Instruction Manual

Actual product may vary from photo

External USB 2.0 3.5” Hard Drive Enclosure with One-Button Backup

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aanndd

ootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

TTaabblleeooffCCoonntteennttss

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installing a Hard Drive in the Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installing Drivers (Windows 98SE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Connecting the Enclosure to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Disconnecting the Enclosure from a Computer . . . . . . . . . . . . . . . . . . . . . . .4

Installing and Using the One-Button Backup Software . . . . . . . . . . . . . . . . .4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Configuration and Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Instruction Manual

IInnttrroodduuccttiioonn

Thank you for purchasing a StarTech.com InfoSafe external hard drive enclosure. This

product allows you to turn virtually any standard 3.5” desktop computer hard drive into a

portable storage solution. Perfect for multimedia, digital imaging, audio, and other

demanding applications, this product also has an innovative One-Button Backup feature

that allows you to move critical files from your computer to the hard drive effortlessly.

FFeeaattuurreess

• Supports almost any 3.5” form factor IDE hard drive

• Pocket-sized enclosure in a lightweight, durable aluminum finish

• Can be completely powered through your USB ports for ultimate portability

• Unique One-Button Backup feature automates routine file transfer tasks

• Backwards compatible with the USB 1.1 standard (USB 2.0 computer interface

required to achieve maximum data transfer speeds)

BBeeffoorreeYYoouuBBeeggiinn

System Requirements

• A computer with an available USB 2.0 port

• An operating system that supports removable hard drives: Windows

98SE/ME/2000/XP/2003 Server, Mac OS 9.0.x, 9.2.x, 10.x or higher (other

operating systems may also support this product; consult your documentation for

specific details)

Contents

This package should contain:

• 1 x IDECASE35U2B

• 1 x USB 2.0 data cable

• 1 x Power adapter

• 1 x Installation CD

• 1 x Instruction Manual

Instruction Manual

IInnssttaallllaattiioonn

Installing a Hard Drive in the Enclosure

Use caution when installing a hard drive in the enclosure. Excessive shock or force

could damage the drive and/or the enclosure, resulting in data loss.

CAUTION: Always ensure that you are properly grounded when handling a hard drive or

the enclosure tray, since electronic components can be damaged by static electricity. If

an anti-static mat or similar product is not available, ground yourself by touching a

computer case or other metal surface for several seconds before handling any

components.

1. Using a small Phillips screwdriver, remove the screws holding the tray in the

enclosure, marked with an “x” in the picture above. Use care when removing the

screws, as they are extremely small. After you have removed them, place them in a

safe location until you are ready to re-insert the tray into the enclosure.

2. Gently slide the tray out of the enclosure in the direction noted above. Insert the hard

drive in the tray and line up the screw holes on the hard drive with the corresponding

gaps in the tray.

3. Connect the IDE ribbon cable in the tray so that the red stripe faces pin 1 on the hard

drive.

4. Connect the LP4-type power connector from the tray to the hard drive.

5. When you have finished connecting the drive to the tray, use standard desktop hard

drive screws to secure the drive in the tray. The drive should be screwed snugly to the

tray so it does not move.

6. Gently insert the tray into the enclosure, ensuring that the top of the tray matches the

top of the enclosure and the rail on the tray fits into the corresponding groove in the

enclosure.

7. Before completely inserting the tray in the enclosure, ensure that the cable that

Instruction Manual

connects to the LED indicator on the front of the enclosure is not pinched. Thread the

cable through the back of the enclosure when the drive is three-quarters of the way

inserted. Connect the LED to the connector on the tray. Ensure the cable sits below

the rear of the enclosure after it is connected. Slide the tray into the enclosure until

the rear panel is flush with the enclosure.

8. Using the screws you removed in step 1, re-secure the tray inside the enclosure. The

2 screws should be tightened snugly.

Installing Drivers (Windows 98SE)

Windows ME/2000/XP/2003 Server and supported versions of Mac OS all support

removable hard drives without additional software. Ensure you have the most current

updates installed. Computers running Windows 98SE need to install support for USB

removable mass storage devices before using the enclosure:

1. Insert the installation CD into your computer’s CD-ROM or other compatible optical

drive.

2. Double click the My Computer icon on the desktop. Double click the icon for the

computer’s CD-ROM drive.

3. Double click folders in the following order: VT6204 > WIN98DRV.

4. Right click once on the UMSS.INF file. Choose Install from the menu.

5. You can now connect the enclosure to your computer.

Connecting the Enclosure to a Computer

This product has been tested with Windows 98/98SE, ME, 2000, XP, 2003 Server, and

Mac OS 9.0.x, 9.2.x, and X. Other operating systems may also support this device;

consult your documentation or a computer service professional for details on whether this

product will work with your operating system and configuration.

When used with the Windows operating systems noted above, the drive enclosure is

“hot-swappable” which means the drive can be connected and disconnected while the

computer is running and will be immediately accessible to the user like any other hard

drive.

1. Place the enclosure near the computer you wish to use.

2. Using the provided USB 2.0 data cable, connect one end to the USB connector

on the rear panel of the enclosure. Connect the opposite end of the cable to an

available USB port on the back of the computer or a powered USB hub. The LED

indicator on the rear panel of the enclosure should light to indicate power.

3. Connect the power adapter (provided) to the connection marked Power on the rear

panel of the enclosure. Move the power switch to the on (I) position.

5. The drive should be ready to use and will be visible under My Computer (Windows)

or on the desktop (Mac OS).

Instruction Manual

Disconnecting the Enclosure from a Computer

1. Ensure that any programs that have accessed the drive are closed.

2. You may wish to use your operating system’s “safe removal”

feature to be absolutely sure that no data is being written to or

read from the hard drive in the enclosure when you disconnect it from the computer.

In Windows, you can click the Safe Remove icon (see above) and choose the

enclosure from the menu. In Mac OS, you can drag the icon for the drive to the trash

to “eject” it and stop it safely.

3. You can now safely remove the USB 2.0 data cable from the enclosure.

Installing and Using the One-Button Backup Software

The drive enclosure includes a software package that allows the button on the front panel

of the enclosure to activate a configurable, pre-determined schedule of file transfers

between a computer and the drive enclosure. This allows you to automate routine

backups for added convenience.

This software is designed for use with Microsoft Windows 98SE, ME, 2000 and XP

operating systems only. When the software is not installed, the One-Button Backup

button on the enclosure cannot be used.

Installation

1. Ensure the enclosure is connected to the computer, has been recognized by

Windows, and is accessible through My Computer.

2. Insert the installation CD into your CD-ROM or other optical drive. Go to My

Computer. Double click the icon for your CD-ROM.

3. Double click these folders in the following order: VT6204 > VBTUCOPY.

4. Double click the setup.exe file. When prompted, click Next to begin the installation

process.

5. On the page showing the license agreement, read the terms and conditions and select

the I Agree option. Click Next.

6. Click Next on the following two screens to begin the file copying process.

7. When the install program has finished copying files to the computer, it will present you

a summary of the software components installed. Click Next and then click Finish on

the next screen to complete the installation. You can now configure the One-Button

Backup software. (Note: The installation program will automatically launch the

backup software as it completes the installation. You may need to click the icon for

the installation software in the taskbar to activate the setup window and complete the

installation program.)

Instruction Manual

Configuration and Use

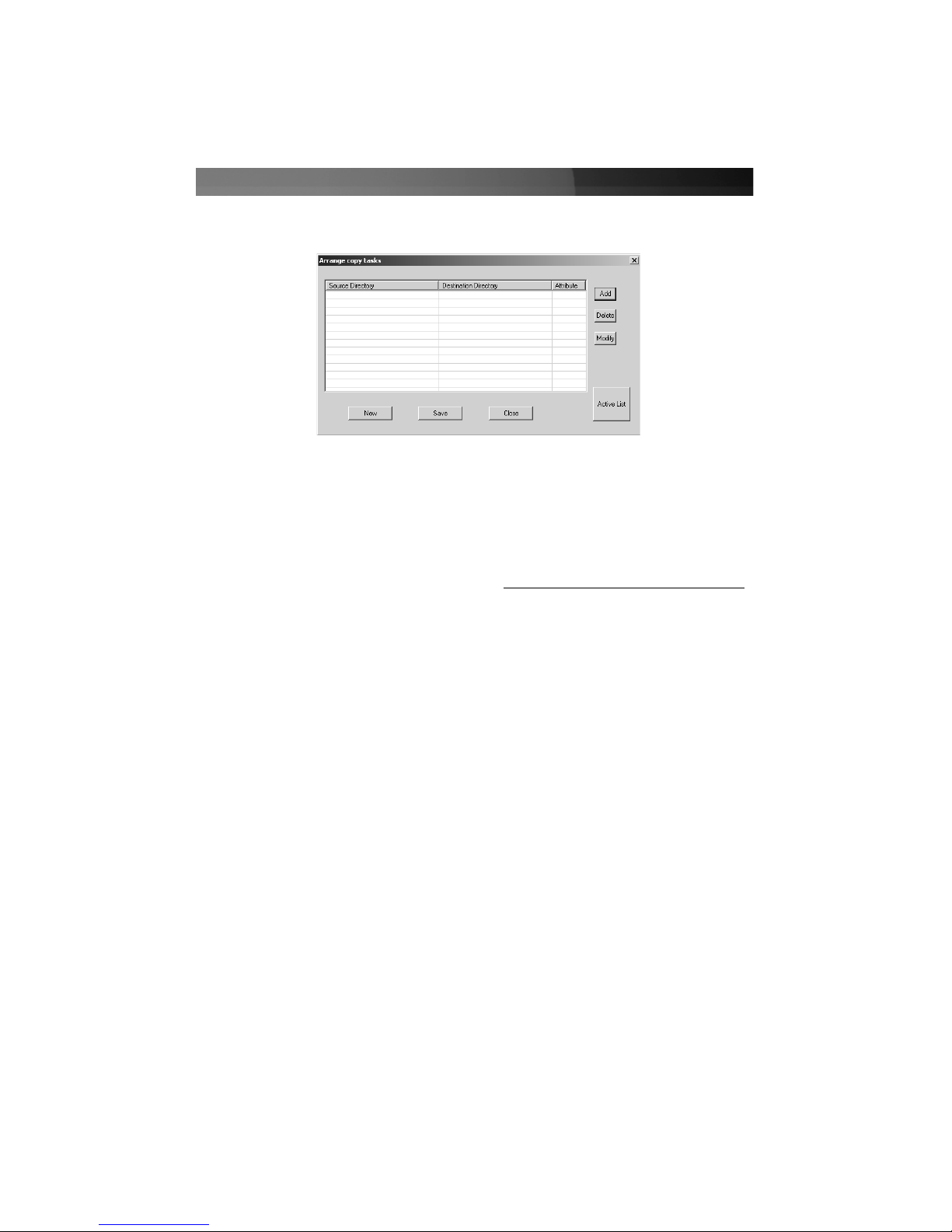

The backup software uses separate “tasks” that dictate what folders will be copied

between the computer and the enclosure when the One-Button Backup button is

pressed. Multiple tasks can be set as “active” and will be carried out in sequence. Tasks

set as “inactive” will be ignored until they are added to the active task list.

The backup software is launched automatically by the setup program and automatically

starts every time Windows is loaded. You can access

the software at any time by double-clicking its icon in

the taskbar, located next to the clock.

The main window of the backup software consists of a list of drives and three buttons.

The name and drive letter assigned to your drive may vary from this example, but will

always be marked by the “usbstor” indicator in the drive description. To access the

options for the drive enclosure, highlight it on the list. You can then use one of the three

buttons to configure your options.

Execute

This button will start any tasks that have been configured. This has the same

function as pressing the One-Button Backup button on the rear panel of the

enclosure. If you use this option or press the One-Button Backup button on the

enclosure without having any active tasks configured, you will receive a warning

that states Can’t find any copy task to execute!

Task

This window allows you to configure one or more tasks that that the enclosure

will run when the One-Button Button is pressed on the enclosure. A task is

simply a selection of folders that will be copied from the computer to the

enclosure. See below for more details on how to configure tasks using the Task

window. (If you receive a warning the first time you attempt to configure a task,

simply click OK. It means the backup software has not found an existing task

configuration file.)

This closes the backup software window. You can still use the One-Button

backup button; you can access the software again by double clicking the icon in

the taskbar (see above).

Instruction Manual

The Task Window

The Task window is where you can add, delete, or modify tasks, as well as select which

tasks are active at any one time. Every task is a source folder on the computer with a

corresponding destination folder on the enclosure. The task also defines other attributes

as to whether subdirectories will be copied, whether the enclosure should restore files to

the computer, and so on.

New

Creates a new, blank task list. This option erases all existing tasks.

Save

Saves any changes you have made to the task list.

Closes the task window and returns you to the main screen.

Task options:

Add

Adds a new task to the existing task list. Opens the Task Detail

window.

Delete

Deletes the highlighted task from the task list.

Modify

Changes the details of the highlighted task. Opens the Task Detail

window.

Active List

Allows you set existing tasks as active or inactive. Opens the Task

Status window.

Instruction Manual

Task Detail Window

You will be presented with this menu when adding a new task or modifying an existing

task.

You can manually enter the path (i.e. C:\Directory) in the Source and Destination

Directory boxes, if you know them. Otherwise, click Browse and select the directories

from the Browse Directory window (see above). Once you have selected the source

(from the computer) and destination (to the enclosure) directories for the task, you can

modify the attributes and options below.

Attributes:

Active

The task is active and will be run when the backup button is

pushed. This setting can also be managed from the Task Status

window (see below).

Subdirectory

When checked, includes any subdirectories contained inside the

selected directories. When unchecked, copies the selected directories

only and ignores any subdirectories.

Overwrite

When selected, read-only files will be copied over without prompting

you for permission.

Newer

Compares the dates on the files in the directories and copies only the

files on the computer that have been modified.

Instruction Manual

The Task Detail Window

The Browse Directory Window

Inhaltsverzeichnis

Andere StarTech.com Gehäuse Handbücher

StarTech.com

StarTech.com SAT3540U3ER Bedienungsanleitung

StarTech.com

StarTech.com S2510BU3ISO Bedienungsanleitung

StarTech.com

StarTech.com RK1019SIDEM Bedienungsanleitung

StarTech.com

StarTech.com DRW115SAT Bedienungsanleitung

StarTech.com

StarTech.com S352BU33RER Bedienungsanleitung

StarTech.com

StarTech.com SAT3510BU3 Bedienungsanleitung

StarTech.com

StarTech.com SATBP125VP Bedienungsanleitung

StarTech.com

StarTech.com S2510U33RUSM Bedienungsanleitung

StarTech.com

StarTech.com S2510BU33PW Bedienungsanleitung

StarTech.com

StarTech.com S2510BMU33CB Bedienungsanleitung

StarTech.com

StarTech.com IDECASE525U2 Bedienungsanleitung

StarTech.com

StarTech.com IDECASE18U2B Bedienungsanleitung

StarTech.com

StarTech.com InfoSafe IDECASE25OTG Bedienungsanleitung

StarTech.com

StarTech.com S251BU31C3CB Bedienungsanleitung

StarTech.com

StarTech.com RK1232WALHM Bedienungsanleitung

StarTech.com

StarTech.com SAT3510U3VP Bedienungsanleitung

StarTech.com

StarTech.com 8STS25SLOTR Bedienungsanleitung

StarTech.com

StarTech.com S355BU33ERM Bedienungsanleitung

StarTech.com

StarTech.com S352BMU3N Bedienungsanleitung

StarTech.com

StarTech.com UNI3510U2 Bedienungsanleitung

StarTech.com

StarTech.com INFOSAFE SAT3540ER Bedienungsanleitung

StarTech.com

StarTech.com S2510BPU337 Bedienungsanleitung

StarTech.com

StarTech.com SAT2510U2F Bedienungsanleitung

StarTech.com

StarTech.com S251BMU313 Bedienungsanleitung

Beliebte Gehäuse Handbücher anderer Marken

SilentiumPC

SilentiumPC Armis AR5 Handbuch

Pulsar

Pulsar 17/TRP80/DSPR Bedienungsanleitung

Thermaltake

Thermaltake V150 TG Bedienungsanleitung

MSI

MSI MPG SEKIRA 500X Bedienungsanleitung

Antec

Antec Dark fleet DF-10 Bedienungsanleitung

Nexans

Nexans WTC05 Bedienungsanleitung

Peavey

Peavey DS 1502 Bedienungsanleitung

D-Link

D-Link ShareCenter Pro DNS-1550-04 Bedienungsanleitung

Rosewill

Rosewill RX82-U(JBOD) Bedienungsanleitung

QNAP

QNAP SAS JBOD CLI 1.0 Bedienungsanleitung

GAMDIAS

GAMDIAS Talos P1 Bedienungsanleitung

Auvs

Auvs KR615 Bedienungsanleitung

Digitus

Digitus DA-71114 Bedienungsanleitung

CommScope

CommScope FDH 3000 Bedienungsanleitung

FS FHD-FWME4 Bedienungsanleitung

JBL

JBL CS1215T Bedienungsanleitung

Pulsar

Pulsar ARAD-S4 Bedienungsanleitung

Pulsar

Pulsar AWO454 Bedienungsanleitung
