StarTech.com SAT1810U2 Bedienungsanleitung

SATA Hard Drive Enclosure

1.8” USB 2.0 to Micro SATA

External Hard Drive Enclosure

SAT1810U2

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the•

receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes

only and do not represent an endorsement of a product or service by StarTech.

com, or an endorsement of the product(s) to which this manual applies by the

third-party company in question. Regardless of any direct acknowledgement

elsewhere in the body of this document, StarTech.com hereby acknowledges that

all trademarks, registered trademarks, service marks, and other protected names

and/or symbols contained in this manual and related documents are the property

of their respective holders.

Table of Contents

Introduction ............................................................... 1

Packaging Contents.............................................................. 1

System Requirements .......................................................... 1

Installation................................................................. 2

Hardware Installation............................................................ 2

Driver Installation.................................................................. 3

Using the Enclosure ................................................. 4

Speciﬁcations............................................................ 6

Technical Support..................................................... 7

Warranty Information ................................................ 7

Introduction

The StarTech.com 1.8” USB 2.0 to Micro SATA external hard drive

enclosure allows you to turn a 1.8” Micro SATA hard drive or SSD into a

portable external storage solution. Connected through USB 2.0, this sturdy

yet lightweight enclosure offers a cost-effective way to create an ultra

portable storage solution that is powered by USB, eliminating the need for

additional power adapters.

Packaging Contents

1 x SAT1810U2 enclosure•

1 x USB cable•

2 x Foam Pads for 5mm drives•

1 x Carrying Pouch•

1 x Instruction Manual•

System Requirements

USB enabled computer system with available USB port•

USB enabled operating system•

1.8” Micro SATA hard drive/SSD (5mm or 8mm height)•

Installation

WARNING: Hard drives require careful handling, especially when being

transported. If you are not careful with your hard disk, lost data may result.

Always handle your hard drive and storage device with caution.

Hardware Installation

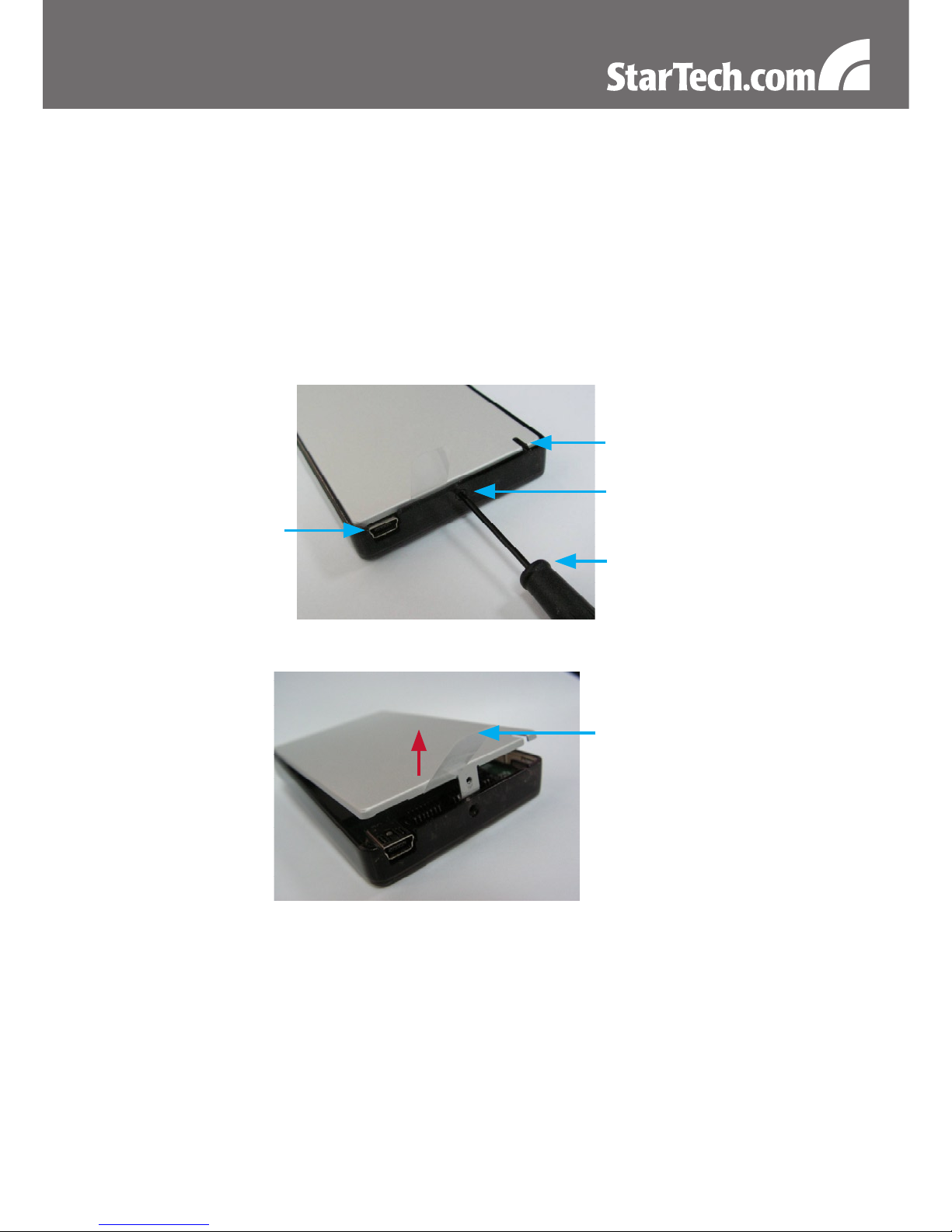

Remove the small screw from the rear panel of the enclosure.1.

Open the top panel of the enclosure by pulling the plastic pull tab.2.

Pull Tab

Screw Driver

(not included)

Rear Panel screw

Power/Activity LED

USB mini-B

connector

If using a 5mm drive, place the two foam pads on the bottom of the drive3.

tray. The foam pads are not required if using an 8mm drive.

Place the drive into the tray and then slide the drive onto the connector.4.

Replace the top cover. The plastic pull tab may be removed, if desired.5.

Replace the screw in the rear panel.6.

Connect the USB cable from the enclosure to the computer system.7.

Driver Installation

No driver installation is required for any operating system that supports

USB, as this enclosure uses native drivers that are already installed.

Pull Tab

Foam Pads

Using the Enclosure

Windows 2000/XP/Server 2003Vista/Server 2008 R2/7

If you are using a brand new hard drive that does not contain any data,

then you will ﬁrst need to prepare the hard drive for use. From the main

desktop, right-click on “My Computer” (“Computer” in Vista/7), then

select Manage. In the new Computer Management window, select Disk

Management from the left window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity to

conﬁrm it’s the correct hard drive) and then right-click in the section that

says “Unallocated” and select “New Partition”.

The New Partition Wizard will appear. Follow the instructions in the wizard

to complete setting up the drive. Once complete, the Disk should show up

as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should

now appear within My Computer.

If you are installing a hard drive that already has data on it, then after

plugging it in, the drive should automatically show up with a drive letter

assigned within My Computer.

Specications

Bus Interface USB 2.0

Chipset ID Sunplus SPIF301

Connectors 1 x USB mini-B

LEDs 1 x Power/Activity

Maximum Data Transfer Rate USB 2.0: 480Mbps

Hard Drive Compatibility 1.8” Micro SATA HDD/SSD, with

height up to 8mm

Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)

Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F)

Humidity 5 ~ 90% RH

Dimensions (LxWxH) 96.0mm x 60.0mm x 12.0mm

Weight 30g

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.

com USA LLP (or their ofﬁcers, directors, employees or agents) for

any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of proﬁts, loss of business, or any

pecuniary loss, arising out of or related to the use of the product exceed

the actual price paid for the product. Some states do not allow the

exclusion or limitation of incidental or consequential damages. If such

laws apply, the limitations or exclusions contained in this statement

may not apply to you.
