StarTech.com S251BU31REM Bedienungsanleitung

Manual Revision: 03/07/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/S251BU31REM.

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

S251BU31REM

2.5” SSD / HDD Mobile Rack for 3.5 / 5.25” Bay with

Removable Enclosure - USB 3.1 (10Gbps)

*actual product may vary from photos

Instruction manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction manual

Table of Contents

Introduction............................................................................................1

Product diagram........................................................................................................................................ 1

Package contents...................................................................................................................................... 3

Requirements ............................................................................................................................................. 3

Install a drive in the enclosure.............................................................4

Attach the drive bay to the bracket ....................................................4

Install the drive bay into a computer..................................................5

Install the enclosure into the drive bay..............................................6

About the LED indicators......................................................................6

Technical support...................................................................................7

Warranty information............................................................................7

Instruction manual

Introduction

The S251BU31REM combines the benets of a portable drive enclosure with the

features of a drive bay, enabling you to swap, replace, or transport a drive, as well

as store your drive in a xed location. The portable drive enclosure features USB 3.1

(10Gbps) connectivity, providing fast performance and quick access to data.

Product diagram

Power LED

Activity LED

SATA power connector

SATA data connector

USB 3.1 Micro-B port

Housing assembly

screw

Housing assembly

screw

Drive enclosure

Instruction manual

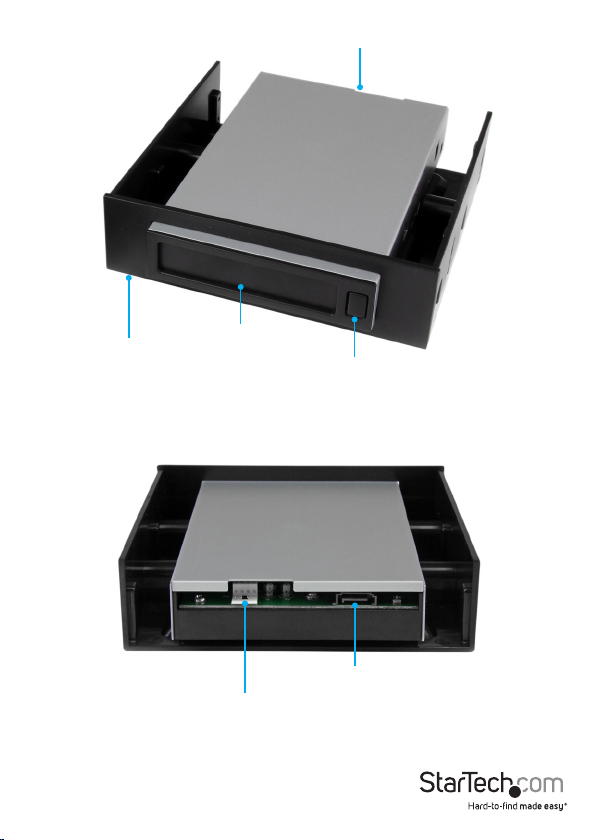

Drive bay

Adapter bracket

Slot

Eject button

SP4 Molex connector

Front

Back

SATA data connector

Instruction manual

Package contents

• 1 x 2.5” SATA enclosure

• 1 x 3.5” front-panel drive bay

• 1 x 3.5” to 5.25” front bay adapter bracket

• 1 x SATA data cable

• 1 x SATA to SP4 Molex power cable

• 1 x LP4 Molex to SP4 Molex power cable

• 1 x USB-C to Micro-B cable

• 1 x USB-A to Micro-B cable

• 4 x drive-mounting screws

• 4 x bay-mounting screws

• 4 x bracket-mounting screws

• 1 x quick-start guide

Requirements

• 2.5” SSD or HDD

• Computer or server chassis with 5.25” or 3.5” front bay

• Internal SATA port on motherboard or SATA controller card

• Power supply with a Molex or SATA connector

• Screwdriver

The S251BU31REM is OS independent and doesn’t require any additional drivers or

software.

If you require additional drive enclosures, visit www.StarTech.com/S251BU31REMD to

purchase more enclosures.

Requirements are subject to change. For the latest requirements, please visit

www.StarTech.com/S251BU31REM.

Instruction manual

Attach the drive bay to the bracket

Note: If you’re installing the Drive bay into a 3.5”bay, you don’t need to use the

Adapter bracket.

1. Slide the Drive bay into the Adapter bracket.

2. Make sure that the holes on the Drive bay are aligned with the holes in the sides of

the Adapter bracket.

3. Insert two of the bracket-mounting screws into each side of the Adapter bracket

and the Drive bay, and tighten the screws in place.

Install a drive in the enclosure

Warning! Drives should be handled carefully, especially when you transport them. If

you’re not careful with your drives, you may experience lost or corrupted data. Make

sure that you’re properly grounded by wearing an anti-static strap when you install

any computer component. If an anti-static strap isn’t available, touch a large, grounded

metal surface for several seconds to discharge any built-up static electricity.

1. If the cover plate is installed, use a screwdriver (not provided) to remove the

Housing assembly screws from the end of the Drive enclosure and take o the

cover plate.

2. Carefully pull the circuit board out of the Drive enclosure.

3. Gently slide the connector on your drive into the corresponding connectors on the

circuit board.

4. Use the drive-mounting screws to attach the drive to the circuit board.

5. Carefully slide the circuit board back into the Drive enclosure.

6. Replace the cover plate on the Drive enclosure, insert the Housing assembly

screws, and tighten them in place.

7. If you want to use the enclosure without the drive bay, connect one of the provided

USB Micro-B cables to the USB 3.1 Micro-B port on the enclosure and to your

computer.

Instruction manual

Install the drive bay into a computer

Warning! Make sure that you’re properly grounded by wearing an anti-static strap

when you install any computer component. If an anti-static strap isn’t available, touch

a large, grounded metal surface for several seconds to discharge any built-up static

electricity.

1. Turn o your computer and any devices or peripherals that are connected to it.

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your computer.

4. Open your computer case and remove the cover from an empty front bay.

For more information about how to do this, consult the documentation that came

with your computer system.

5. Insert the Drive bay or Adapter bracket into the front bay slot, making sure that

the screw holes on the Drive bay or Adapter bracket are aligned with the holes

in the computer chassis.

6. If necessary, use the bay-mounting screws to secure the Drive bay or Adapter

bracket to the computer.

7. Connect the Drive bay to the computer’s power supply. If necessary, use either

the SATA to SP4 Molex power cable or the LP4 Molex to SP4 Molex

power cable.

8. Connect the SATA data cable to the SATA data connector on the Drive bay and

to a SATA port on the computer motherboard or a SATA controller card.

9. Place the cover back onto your computer case.

10. Reconnect the power cable to the back of your computer.

11. Reconnect any devices or peripherals that were connected to your computer.

12. Turn on your computer.

Instruction manual

About the LED indicators

The Drive enclosure features a green Power LED and a red Activity LED.

LED behavior Signicance

The Power LED is illuminated The enclosure is receiving power

The Activity LED is blinking Drive is being accessed

Install the enclosure into the drive bay

• After the Drive bay is installed in your computer, carefully slide the Drive enclosure

into the Slot on the front of the Drive bay.

To remove the Drive enclosure, press the Eject button on the Drive bay and pull out

the Enclosure.

Instruction manual

Technical support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship

for the periods noted, following the initial date of purchase. During this period,

the products may be returned for repair, or replacement with equivalent

products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere StarTech.com Gehäuse Handbücher

StarTech.com

StarTech.com S352BU33RER Bedienungsanleitung

StarTech.com

StarTech.com SAT2510BU2E Bedienungsanleitung

StarTech.com

StarTech.com SAT3510U3V Bedienungsanleitung

StarTech.com

StarTech.com INFOSAFE IDE2510U2 Bedienungsanleitung

StarTech.com

StarTech.com RK1520WALHM Bedienungsanleitung

StarTech.com

StarTech.com SAT2520U2ER Bedienungsanleitung

StarTech.com

StarTech.com S3520BU33ER Bedienungsanleitung

StarTech.com

StarTech.com SW-3023 Bedienungsanleitung

StarTech.com

StarTech.com 8STS251BPU31C3 Bedienungsanleitung

StarTech.com

StarTech.com S354UFER Bedienungsanleitung

StarTech.com

StarTech.com INFOSAFE IDE2510U2 Bedienungsanleitung

StarTech.com

StarTech.com RK2537BKM Bedienungsanleitung

StarTech.com

StarTech.com InfoSafe SAT2510BU2B Bedienungsanleitung

StarTech.com

StarTech.com SAT35401U Bedienungsanleitung

StarTech.com

StarTech.com HSB13SATSASB Bedienungsanleitung

StarTech.com

StarTech.com SAT3510U2V Bedienungsanleitung

StarTech.com

StarTech.com RK1820WALHM Bedienungsanleitung

StarTech.com

StarTech.com SAT2510BU32 Bedienungsanleitung

StarTech.com

StarTech.com SMS2BU31C3R Bedienungsanleitung

StarTech.com

StarTech.com S251BU31C3CB Bedienungsanleitung

StarTech.com

StarTech.com M2E1BMU31C Bedienungsanleitung

StarTech.com

StarTech.com S2510BU3ISO Bedienungsanleitung

StarTech.com

StarTech.com RK1224WALHM Bedienungsanleitung

StarTech.com

StarTech.com SAT2510BU3 Bedienungsanleitung

Beliebte Gehäuse Handbücher anderer Marken

SilentiumPC

SilentiumPC Armis AR5 Handbuch

Pulsar

Pulsar 17/TRP80/DSPR Bedienungsanleitung

Thermaltake

Thermaltake V150 TG Bedienungsanleitung

MSI

MSI MPG SEKIRA 500X Bedienungsanleitung

Antec

Antec Dark fleet DF-10 Bedienungsanleitung

Nexans

Nexans WTC05 Bedienungsanleitung

Peavey

Peavey DS 1502 Bedienungsanleitung

D-Link

D-Link ShareCenter Pro DNS-1550-04 Bedienungsanleitung

Rosewill

Rosewill RX82-U(JBOD) Bedienungsanleitung

QNAP

QNAP SAS JBOD CLI 1.0 Bedienungsanleitung

GAMDIAS

GAMDIAS Talos P1 Bedienungsanleitung

Auvs

Auvs KR615 Bedienungsanleitung

Digitus

Digitus DA-71114 Bedienungsanleitung

CommScope

CommScope FDH 3000 Bedienungsanleitung

FS FHD-FWME4 Bedienungsanleitung

JBL

JBL CS1215T Bedienungsanleitung

Pulsar

Pulsar ARAD-S4 Bedienungsanleitung

Pulsar

Pulsar AWO454 Bedienungsanleitung
