StarTech.com SAT2510U2F Bedienungsanleitung

Manual Revision: 11/16/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

*actual product may vary from photos

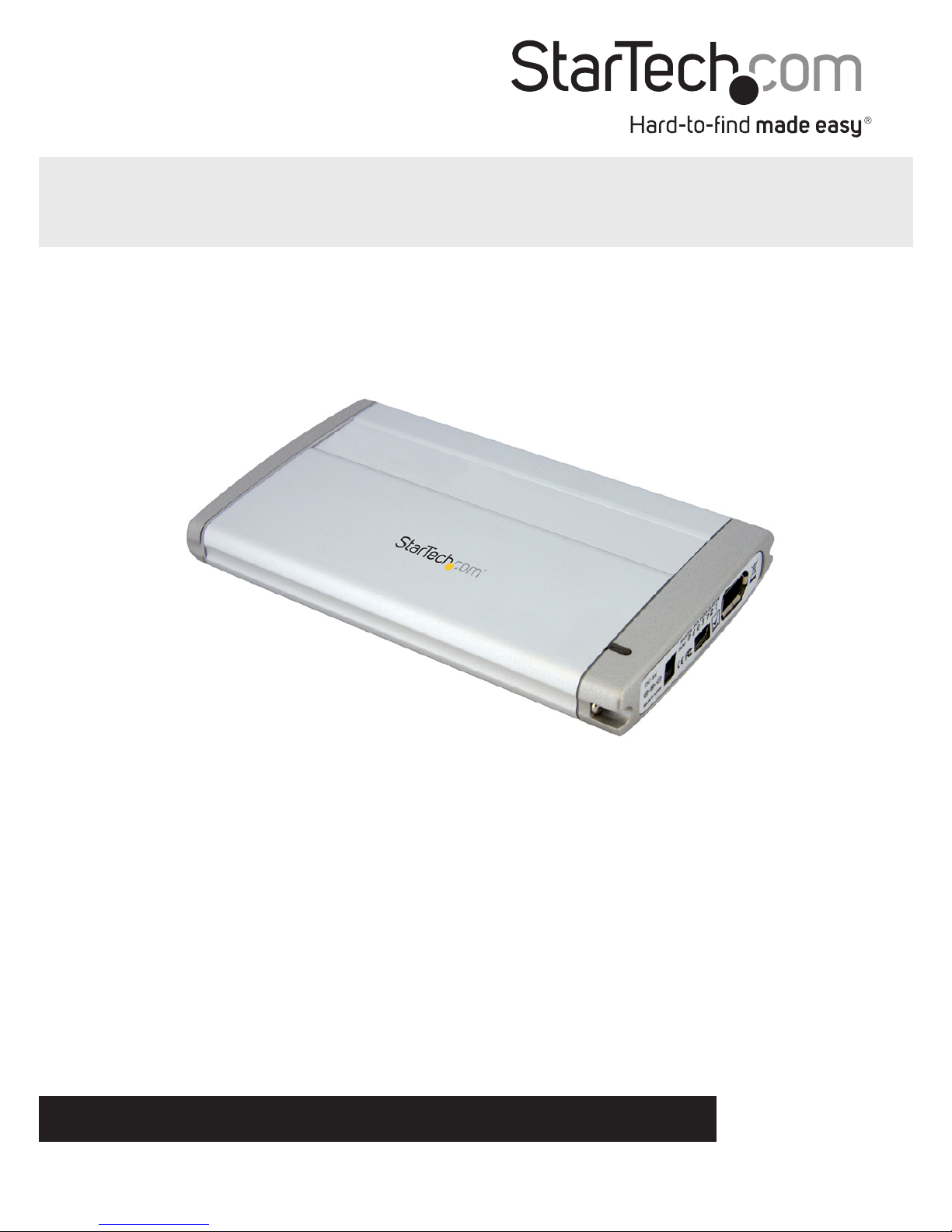

SAT2510U2F

2.5in USB 2.0 FireWire SATA External

Hard Drive Enclosure

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements .............................................................................................................................. 1

Installation ..............................................................................................2

Hardware Installation .............................................................................................................................. 2

Driver Installation ...................................................................................................................................... 3

Using the Enclosure ...............................................................................3

Specications ..........................................................................................5

Technical Support ..................................................................................6

Warranty Information ............................................................................6

Instruction Manual

Introduction

The SAT2510U2F External Hard Drive Enclosure supports both USB 2.0 and FireWire

400 (IEEE1394a) host connections in a slim, lightweight aluminum design.

Packaging Contents

• 1 x 2.5” SATA drive enclosure

• 1 x USB “Y” split cable

• 1 x USB power cable

• 1 x 6-pin FireWire cable

• 1 x Screw kit

• 1 x User Manual

System Requirements

• USB and/or FireWire enabled computer system with available port

• Microsoft® Windows® XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista

(32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit), or Apple® Mac OS® X, or Linux®

Instruction Manual

Installation

WARNING! Hard drives require careful handling, especially when being transported. If

you are not careful with your hard disk, lost data may result. Always handle your hard

drive and storage device with caution.

Hardware Installation

1. Remove the two small screws from either side of the rear panel of the enclosure and

then pull the rear panel out.

Slide a 2.5” SATA hard drive into the 7+15 SATA connector on the inside of the rear panel.

3. Fasten the hard drive to the rear panel from the bottom, with the supplied screws.

4. Slide the hard drive and rear panel back into the enclosure and reinstall the two side

screws for the rear panel.

Instruction Manual

5. Connect the enclosure to the host computer system via FireWire or USB cable. If

using the USB Y-cable, make sure to connect the primary connector on the cable to

the host computer. The secondary connector is optional (extra power only).

OPTIONAL: If the SATA drive/enclosure does not power up or is intermittent,

additional power may need to be supplied. If using the USB Y-cable, connect the

secondary connector on the cable to an available USB port on the host computer. If

connecting via FireWire, a USB power cable is supplied that connects from the DC jack

on the enclosure to an available USB port on the host computer.

Driver Installation

Windows 2000/XP/Vista/7/8, Mac OS 9.2/10.x, or Linux/Unix

No driver installation is required for these operating systems, as this enclosure is

natively supported, so the drivers are already installed.

Using the Enclosure

Windows 2000/XP/Vista/7/8

If you are using a brand new hard drive that does not contain any data, then you

will rst need to prepare the hard drive for use. From the main desktop, right-click

on “My Computer” (“Computer” in Vista), then select Manage. In the new Computer

Management window, select Disk Management from the left window panel.

Instruction Manual

Locate the Disk that says it is “Unallocated” (check hard drive capacity to conrm it’s the

correct hard drive) and then right-click in the section that says “Unallocated” and select

“New Partition”.

The New Partition Wizard will appear. Follow the instructions in the wizard to complete

setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive

letter assigned (ie. E:). This drive letter should now appear within My Computer.

If you are installing a hard drive that already has data on it, then after plugging it in, the

drive should automatically show up with a drive letter assigned within My Computer.

Instruction Manual

Specications

Bus Interface USB 2.0

FireWire400 (IEEE1394a)

Connectors

1 x USB mini-B

1 x 6-pin FireWire

1 x DC power connector

LEDs 1 x Power/Activity

Chipset Initio INIC-1615 FW802C

Compatible Hard Drives 2.5” SATA hard drive/solid state drive, up

to 9.5mm height

Maximum Data Transfer Rate USB: 480Mb/s

FireWire: 400Mb/s

Power Adapter (optional) 5VDC, 500mA or more, center positive,

type H plug

Dimensions 137.0mm x 80.0mm x 17.0mm

Weight 115g

Compatible Operating Systems

Windows XP/ Server 2003/ Server 2008

R2/ Vista/ 7/ 8 (32/64-bit), Mac OS X,

Linux

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
