SW-3023 Manual

Introduction：

SW-3023 is a USB 3.0 to dual-SATA hard drive enclosure. It supports simultaneous access of two 2.5” or

3.5” SATA hard disk for both data read and data write. It is also backward compatible with USB 2.0 and USB

1.1. The maximum transfer speed of USB 3.0 can reach 5Gbps. The actual transfer speed of SW-3023 is

depends on HDD/SSD.

SW-3023 supports Flash Copy, Offline Clone, Online Clone, Security Erase, which is able to copy data

and system files from Source HDD to Target HDD twice faster than other similar product. SW-3023 provides

high storage capacity, high data transfer rate, and best data protection.

Function Chart：

1、Power indicator.

2、Bay ‘1’ HDD read/write access indicator.

3、Bay ‘2’ HDD read/write access indicator.

4、Clone processing 25%, 50%, 75%, 100% indicator.

5、Clone button.

6、Bay ‘1

7、Bay ‘2’

8、USB3.0 input

9、Power switch (ON/OFF)

10、DC input

Function：

•Complies with Gen2i/Gen2m of SerialATAII Electrical Specification 2.6

•Supports SATA IIAsynchronous Signal Recovery (Hot Plug) feature

•Complies with USB 3.0 Specification, USB Mass Storage Class, Bulk-Only Transport Specification

•Supports USB Super-Speed/High-Speed/Full-Speed Operation

•Supports USB2.0/USB3.0 power saving mode

•Support auto-spin down after idle for 5 mins

•Supports Dual LUN for USB2.0/USB3.0

•One Touch clone function.

•Easy to Install and Set-up

•Design for Win2000, WinXP, WinVista, Win7, Win8, MAC 9.2 or later version.

For more detail SPEC and Operation video please check our Web site at http://www.sunnywill.com.tw

Offline CLONE:

Warning: all the data in the TARGET HDD will be erased after the clone operation.

Please note the below conditions before clone:

-Bay ‘1’= SOURCE HDD,

-Bay ’2’ = TARGET HDD

-TARGET HDD‘s capacity MUST be larger than or equal to SOURCE HDD, otherwise the CLONE cannot

be started.

-Before CLONE function starts, make sure the information in TARGET HDD is not important; once

CLONE started, all information from the SOURCE HDD will be covered into TARGET HDD..

-Once the docking is connected to USB interface, the offline Clone will be invalid. Clone can only process

via software “CloneDrive”

a、Insert source HDD to Bay ‘1’; target HDD to Bay ‘2’, and then turn on the power

b、Once the Bays indicators are on, that means SW-3023 is ready for clone.

c、Press and hold the clone button for 3 seconds until the indicator light is blinking, press the button once more

for Clone confirmation while all LEDs are still blinking blue. Offline clone is starting to process and 25% light

will start blinking alone to show its progress.

d、Clone progress indicator flashes and shows the progress (25%, 50%, 75%, 100%).

e、Once clone is finished, all progress indicators will light up.

f、Turn off power and take out the HDD carefully

g、Please note that after the clone operation, if the target and the source HDD is connected to PC at the same

time, only one HDD will be placed online. Because after the HDD clone, the partition ID of the 2 HDD is

identical.

Online Clone

Warning: all the data in the TARGET HDD will be erased after the CloneDrive clone operation

Youtube

Transfer System from HDD to SSD

https://www.youtube.com/watch?v=kV9QP9RMo2A

SW3023 transfer notebook system to external SSD

https://www.youtube.com/watch?v=22Bg4xToP1g

Software “CloneDrive” Installation

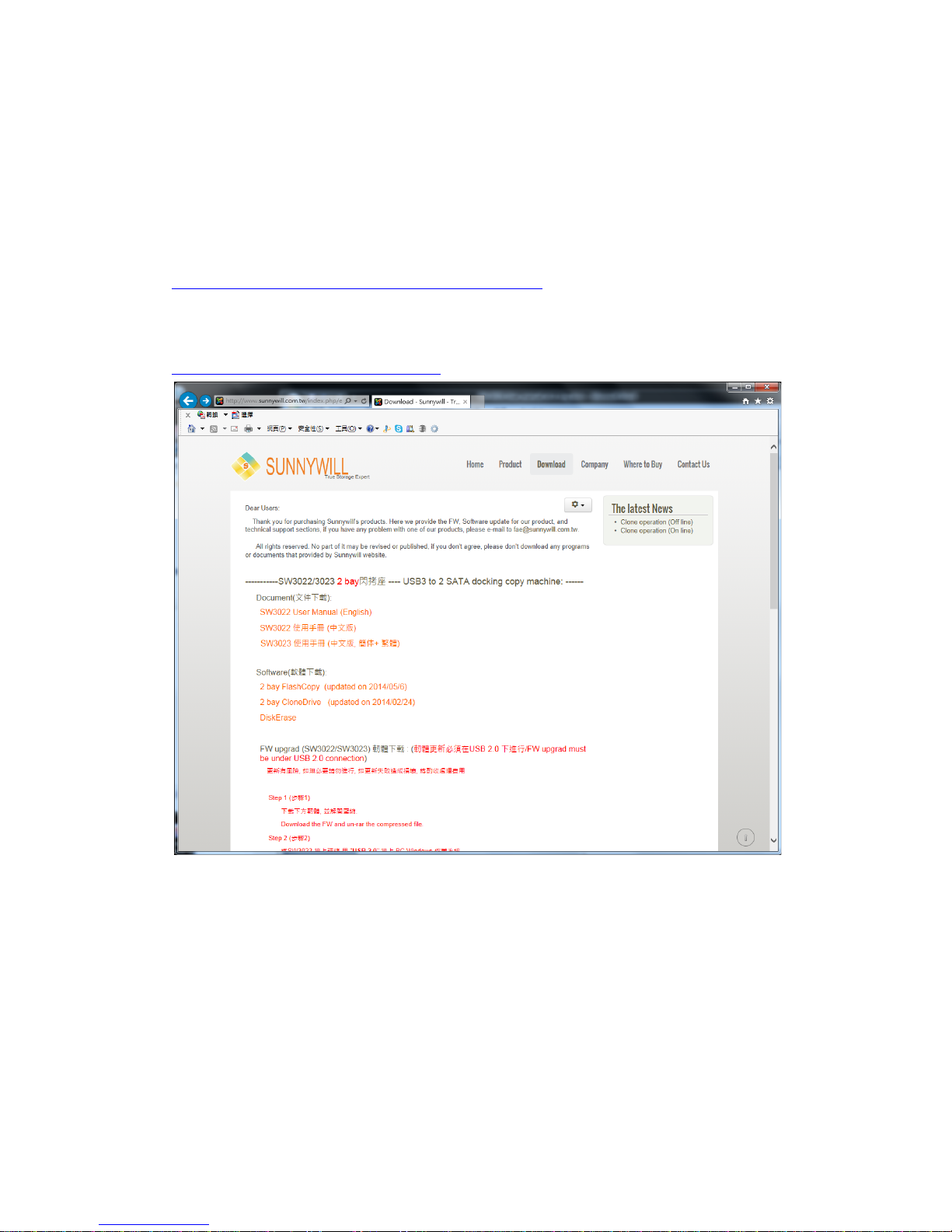

a、Please download the latest version “CloneDrive” from the download page of our official web site

http://www.sunnywill.com.tw/index.php/download

b、Please use the “WinRAR” to uncompress the download file and run the “CloneDrivePlus_Setup.exe” to

install the CloneDrivePlus, you can get the winrar from the official download web site at

http://www.rarlab.com/download.htm

c、Please follow the instruction to complete the software installation

d、After the “CloneDrive” is installed, you can find the icon in the right-down corner of win7 task bar.

Please double click the icon.

e、For the first time installation, you will need to fill in the S/N # accordingly (you can find the S/N# on the

license sticker)

f、Please insert Source HDD and Target HDD well to the docking, connect SW-3023 to PC via USB cable.

Turn on the power,

g、The “CloneDrive” will show the HDD info of each bay.

h、User can choose to “clone the external Disk”, which means the HDD in bay 1 will be the source HDD, and

HDD in bay2 are the target HDD.

i、User can choose to “Clone system disk to external disk”, which means the system disk inside the PC would

be the source HDD, and all the HDD in bay 1,2will be the target HDD.

Warning: all the data in the TARGET HDD will be erased after the CloneDrive clone operation. Please make

sure the data in TARGET HDD is backuped.

j、Just click the “Start” on the right-down side of the program. Or just push the button on the docking station

twice to start the operation.

Note1: With the CloneDrive, as long as the content in the source HDD is smaller than the target HDD, the

clone operation could be operated. The software will resize the partition if the target HDD is smaller than

the source HDD.

Note2: With the CloneDrive, the empty space will not be copy to save the operation time.

FlashCopy Operation

The flash copy is the unique advance technology from Sunnywill Tech. Co.. User can enjoy twice fast

transfer speed than other vendor USB3.0 device while copy data between HDDs on the 2 bay docking even

your PC only have USB 2.0.

You can see the video demo on our web site at

http://www.sunnywill.com.tw/index.php/en/product/2-bay-sata-docking-2

a、Please download the latest version “FlashCopy” from the download page of our official web site

http://www.sunnywill.com.tw/index.php/en/download

b、Please use the “WinRAR” to uncompress the download file and run the “FlashCopy_Setup.exe” to

install the “FlashCopy”, you can get the winrar from the official download web site at

http://www.rarlab.com/download.htm

c、Please follow the instruction to complete the software installation

d、Please insert Source HDD and Target HDD well to the docking, connect SW-3023 to PC via USB cable.

Turn on the power. You can find the FlashCopy icon on your desktop. Then double click the FlashCopy Icon to

start the program.

e、For the first time install, you will need to fill in the S/N # accordingly (you can find the S/N# on the license

sticker)

f、After the program start, user can see content in bay1 and bay2 HDD, select the folder to be copied and

draw the folder from the source HDD to the destination HDD.

g、After finishing the file selection, press the start button to activate the FlashCopy function.

h、The process window pop up and detail copy information is showed on the window..

i、After the FlashCopy finish operation the report windows shows above.
