StarTech.com SAT3510U2V Bedienungsanleitung

SAT3510U2V

SAT3510BU2V

3.5” USB 2.0 SATA Aluminum HD Enclosure

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital de-

vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com. Where

they occur these references are for illustrative purposes only and do not represent an endorse-

ment of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. Regardless of any direct acknowl-

edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols

contained in this manual and related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction.................................................................................... 1

Features ......................................................................................1

System requirements...................................................................1

Package contents ........................................................................1

Hardware Guide ............................................................................. 2

Installation...................................................................................... 3

Technical Speciﬁcations............................................................... 6

Technical Support........................................................................7

Warranty Information ...................................................................7

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com SAT3510U2V / SAT3510BU2V

InfoSafe 3.5” USB 2.0 SATA Aluminum Hard Drive Enclosure. This cost-

effective storage solution suits a wide variety of applications including

ﬁle and application sharing between desktop and notebook computers,

data archiving, or simply backing up existing hard drives to preserve data

security.

Features

LED indicators provide easy monitoring of power status and hard drive•

activity

Power On/Off switch - allows you to conserve energy while the drive is•

not in use.

Supports 3.5” SATA 3.0Gb/s and SATA 1.5Gb/s hard drives•

System requirements

3.5” SATA (SATA 1.5Gb/s and 3.0Gb/s) hard drive•

An available (nearby) power outlet•

A host PC or Mac computer system with an available USB port•

Package contents

1 x Aluminum HD Enclosure•

1 x Instruction Manual•

1 x Screw Kit•

1 x Plastic Stand•

1 x USB (A-B) Cable•

1x Power Adapter•

Instruction Manual

Hardware Guide

Rear Panel View

Front Panel View

Power/Activity LED1.

Power/Activity LED2.

DC 12V Power Adapter Port3.

On/Off Switch4.

USB type B Port5.

Screw Kit Power Adapter

Plastic Stand

USB A-B Cable

Instruction Manual

WARNING: Hard drives, like all computer equipment can also be severely

damaged by static electricity. Be sure that you are properly grounded

before opening your computer case or touching any components.

Installation

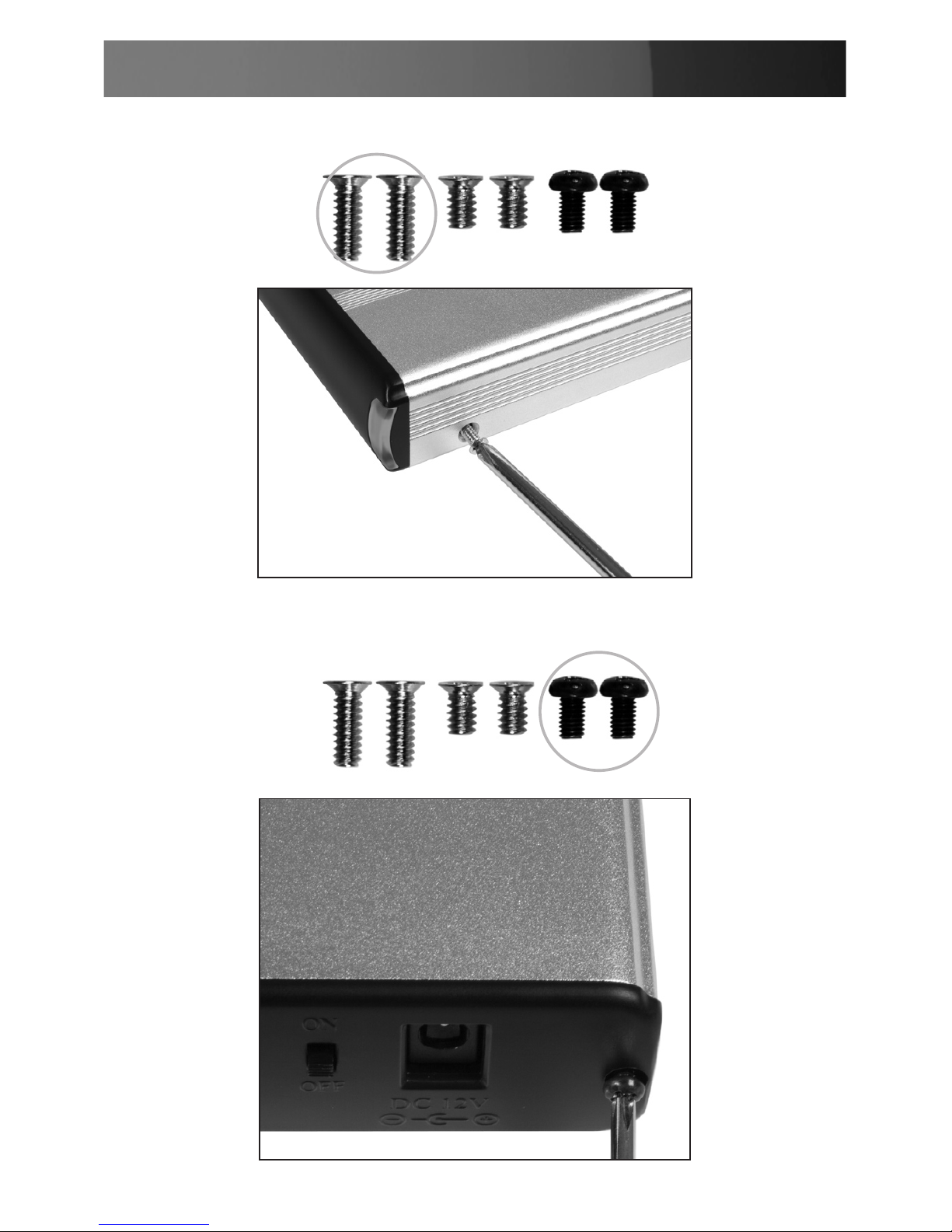

Remove the Rear Panel, to expose the internal SATA connections:1.

Position the hard drive you wish to install such that the SATA2.

connection is facing towards the SATA interface connector provided by

the Enclosure’s front panel:

Instruction Manual

With the hard drive connected to the front panel, turn the drive over3.

to expose it’s base. Fasten the hard drive to the front panel rails on

both sides, using the screws provided (2):

Fasten the front panel (with drive attached) to the body of the4.

Enclosure; be cautious that the drive and front panel are properly

aligned with the body of the Enclosure, to prevent damage to the LEDs.

Instruction Manual

Fasten both sides of the case to lock the hard drive in place:5.

Fasten the rear panel to the Drive Enclosure on both sides using the6.

screws (2) provided.

Instruction Manual

Once the drive has been secured within the Enclosure, connect the DC7.

12V power adapter to the power adapter port. Connect the remaining

end of the power adapter to an available power outlet.

Connect the USB A-B cable to the USB B port on the rear panel of the8.

Enclosure, then connect the remaining end of the cable to the host

computer.

With the host computer powered on, power on the Drive Enclosure9.

using the On/Off switch. The operating system will detect the presence

of the added drive, following which you will be able to properly format/

partition the installed drive from within the operating system.

Technical Specications

Bus Type USB 2.0

Maximum Date Transfer Rate 480 Mb/s

Enclosure Casing Material Aluminum

Power Adapter 12VDC, 2A

LED Indicators

Solid Green -Power status

Blinking Green - Read/Write Drive

Activity

Drive Capacity Maximum Up to 1.5 Terabyte

Chipset SunPlus SPIF301

OS Support Window 2000/XP/Vista,

Mac OS 9.0 and up, Linux

Product Dimensions (L x W x H) 193 mm x 113 mm x 31 mm

(7.6” x 4.45” x 1.22”)

Product Weight 325 g (11.47 oz )

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commit-

ment to provide industry-leading solutions. If you ever need help with your

product, visit www.startech.com/support and access our comprehensive

selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty. In addition, StarTech.com

warrants its products against defects in materials and workmanship for the

periods noted, following the initial date of purchase. During this period,

the products may be returned for repair, or replacement with equivalent

products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages aris-

ing from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid for

the product. Some states do not allow the exclusion or limitation of inciden-

tal or consequential damages. If such laws apply, the limitations or exclu-

sions contained in this statement may not apply to you.
