StarTech.com UNI3510U2 Bedienungsanleitung

Manual Revision: 02/03/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

UNI3510U2

UNI3510U2EB

UNI3510UEBGB

3.5in Black USB 2.0 IDE SATA External Hard

Drive Enclosure

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Hardware Guide .....................................................................................2

Installation and Usage...........................................................................3

Connecting the Drive Enclosure to a Computer............................................................................ 5

Disconnecting the Enclosure from the Computer ............................6

Windows XP/2000/2003 Server/Vista™/7......................................................................................... 6

Mac OS .......................................................................................................................................................... 7

Troubleshooting.....................................................................................8

Specications..........................................................................................9

Technical Support ..................................................................................10

Warranty Information............................................................................10

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com 3.5” USB 2.0 to IDE/SATA Hard Drive

Enclosure. Now, you can turn almost any 3.5” hard drive into a portable storage device!

This hybrid, 3.5” USB 2.0 to IDE/SATA Hard Drive Enclosure provides broad compatibility

with IDE (66/100/133) or SATA I/II (SATA 150/SATA 300) hard drives, making it the wise

choice for a variety of uses including data backups, digital image storage, multimedia

storage, or simply putting an “outdated” drive to good use.

Packaging Contents

• 1 x AC Power Adapter

• 1 x IDE Cable (Internal)

• 1 x Instruction Manual

• 1 x LP4 Power Adapter Cable (Internal)

• 1 x Mounting Screw Kit

• 1 x SATA Data Cable (Internal)

• 1 x SATA Power Adapter Cable (Internal)

• 1 x SATA/IDE to USB 2.0 External HDD Enclosure

• 1 x USB 2.0 Cable

System Requirements

• A USB enabled computer with an available USB port (USB 2.0 for peak performance)

• Operating System: Windows® 2000, Server 2003, XP and Vista™,7, Linux, Mac OS 9.0

and higher

Instruction Manual

Hardware Guide

2 3

1 Disk Mounting Tray

2 SATA Power Cable

3 SATA Data Cable

4 IDE Data Cable

5 IDE Power Cable

Instruction Manual

Installation and Usage

WARNING: Hard drives require careful handling, especially when being transported.

If you are not careful with your hard disk, lost data may result. Always handle your

hard drive and storage device with caution.

Hard Drive Installation

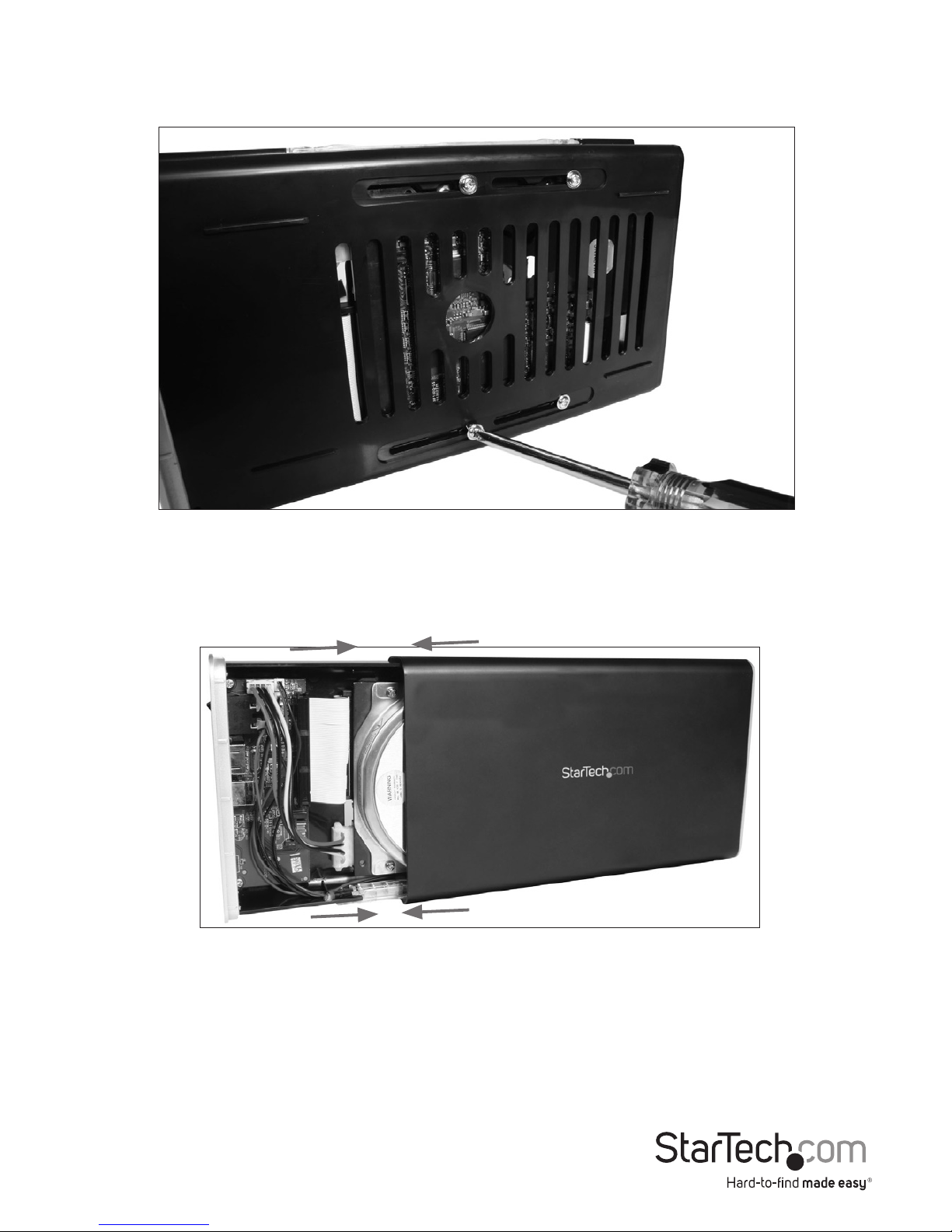

1. Remove the screws holding the Base Stand to the enclosure, and separate it from

the Enclosure, then slide the Disk Mounting Tray out of the Enclosure:

2. Gently place the hard drive, label side up, into the enclosure. Connect the IDE

or SATA Power and Data cables to the hard drive and to the controller board as

appropriate. Please note that the IDE Data cable comes pre-installed, so if installing

a SATA drive, this cable will likely need to be removed.

Instruction Manual

3. Fasten the hard drive to the Disk Mounting Tray, using the provided screws.

4. Slide the Disk Mounting Tray (with drive attached) back into the Enclosure, so that

the Enclosure is sealed.

Instruction Manual

5. Re-fasten the Base Stand to the base of the Enclosure and replace the screw

removed in Step #1. Drive installation is now complete.

Connecting the Drive Enclosure to a Computer

1 Power Switch

2 Power Port

3 USB Type ‘B’ Port

Instruction Manual

1. Connect the AC Adapter cord to the DC Power Port on the rear panel of the drive

enclosure. Connect the remaining end of the adapter to an available electrical outlet.

2. Insert the Type ‘B’ connector provided by the USB cable into the USB Type ‘B’ port on.

3. The rear panel of the enclosure. Connect the remaining end to an available USB port

on the host computer.

4. Press the Power Switch to the ON position.

Disconnecting the Enclosure

from the Computer

Windows XP/2000/2003 Server/Vista™/7

1. Double-click on the Safely Remove Hardware icon, located in the System Tray

(typically located on the bottom right corner of the desktop).

2. Select USB Mass Storage Device from the list, and click on Stop.

3. Select the drive to be disconnected, and click OK.

4. Click on Close and turn the Power Switch on the enclosure to the OFF position.

It is now safe to disconnect the Enclosure from the computer, by removing the USB cable.

WARNING: Do not disconnect any cables or power sources while the hard drive is

active. This can result in data loss and possible damage to the hard drive.

WARNING: To prevent data loss, please ensure that all active applications are closed,

prior to shutting down power to the drive.

Instruction Manual

Mac OS

1. Locate the Removable Disk icon associated with the drive you wish to disconnect,

and drag it to the Trash icon on your desktop.

2. When the disk icon disappears from the desktop, move the Power Switch to the

OFF position. You can now safely disconnect the USB or FireWire cable from your

computer and the power cord from the electrical outlet.
