Stealth Cam STC-I590 Bedienungsanleitung

Stealth Cam

STC-I590

User’s Manual

www.stealthcam.net

Version 1.0 04/08

STC-I590

www.stealthcam.net Toll Free 877-269-8490 2

For Customer Service or Warranty In ormation Call Toll Free

877-269-8490

Stealth Cam, LLC

P. . Box 539504

Grand Prairie, TX 75053-9504

www.stealthcam.net

Stealth Cam Limited Warranty

Your Stealth Cam scouting camera is covered by a 90 day Limited Warranty on

parts and labor from the date of original purchase, and purchases must be

made through an authorized dealer. The warranty covers defects in

workmanship and materials. The warranty does not apply to units, which have

been damaged or abused intentionally or unintentionally. A purchase from

individuals or unauthorized internet sites voids the warranty.

Tampering with or altering the unit will void the warranty. Any unauthorized

service will void warranty. riginal sales receipt must be produced for any

warranty service and a Return Authorization (RA) number must be obtained

from customer service at 877-269-8490 prior to returning product.

STC-I590

www.stealthcam.net Toll Free 877-269-8490 3

Introduction

Thank you for purchasing the Stealth Cam STC-I590 digital video scout

camera. Your Stealth Cam is designed to provide many years of

service. The STC-I590 is a flash based camera with an industry leading

flash range of up to 90 feet. Special Burst Mode technology allows

multiple exposures of up to 9 sequential still pictures or a

programmable video segment between 10 to 180 seconds, when the

PIR sensor is triggered.

STC-I590

www.stealthcam.net Toll Free 877-269-8490 4

Contents

• STC-I590 Digital Video Scouting Camera

• User Manual

• USB cable

• Tree Mounting Strap

STC-I590

www.stealthcam.net Toll Free 877-269-8490 5

Table o Contents

Warranty 2

Introduction 3

Camera Kit Contents 4

Table of Contents 5

verview 6-8

Battery Power ptions 9-10

Built-in Memory & SD Card Installation 11-13

Description of Features 14-16

Programming Your Scout Camera 17-23

Using your Camera 24-29

Manual Shooting Mode 30

Viewing Images and Deleting Images 32-36

Formatting memory 37

Using External Power Source 38

Technical Specifications 39

Camera Features 40-41

General Information

42-43

Moon Phase Chart 44

STC-I590

www.stealthcam.net Toll Free 877-269-8490 6

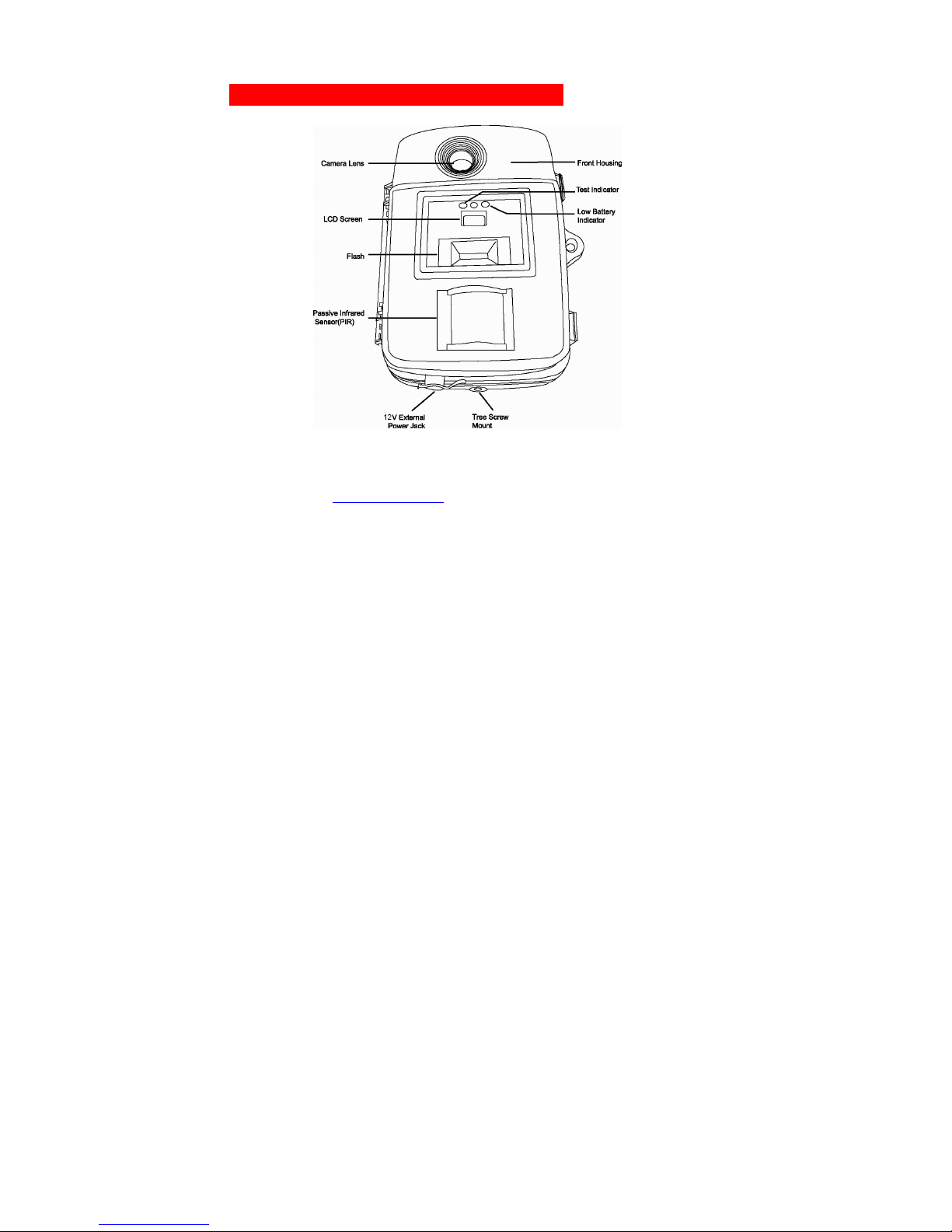

Camera Overview - Front Cover Panel

STC-I590

www.stealthcam.net Toll Free 877-269-8490 7

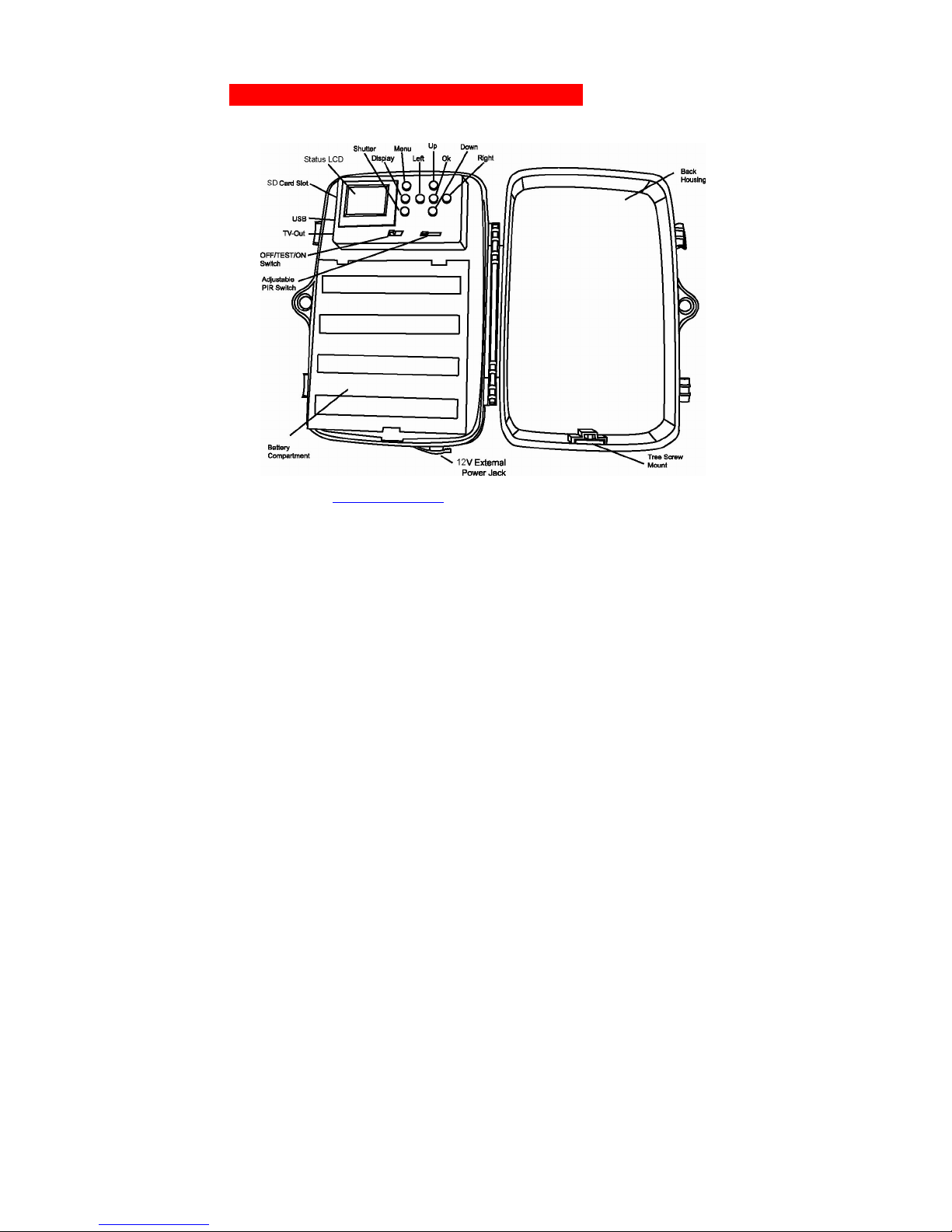

Camera Overview - Inside Control Panel

STC-I590

www.stealthcam.net Toll Free 877-269-8490 8

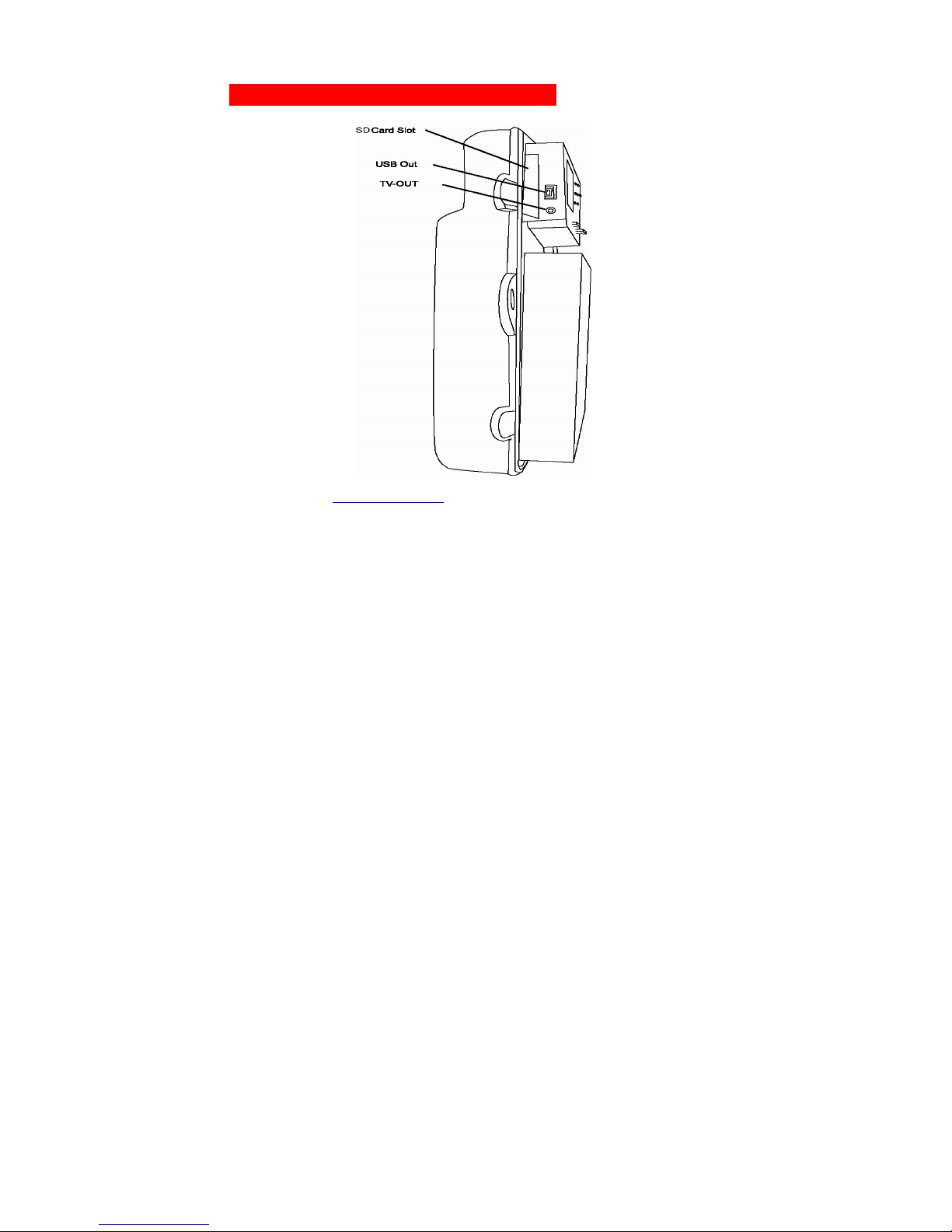

Camera Overview - Inside Side Panel

STC-I590

www.stealthcam.net Toll Free 877-269-8490 9

Battery Power Options

The Stealth Cam STC-I590 is designed to operate using two different

battery power options. The camera must be in the FF position when

installing or removing batteries. Use of batteries other than those

specified in this section may damage the camera and void your

warranty.

Using “C” Cell Batteries

The internal battery compartment accepts 8 “C” cell batteries. Pull up

on the bottom clip of the battery cover to open. Use fresh, high quality

alkaline batteries. Install batteries in the correct polarity (+/-) referring

to the illustration inside the battery compartment. Secure battery cover.

Precaution: When replacing batteries, replace all the batteries within

10 minutes. therwise, this will result in the loss of date / time setting

STC-I590

www.stealthcam.net Toll Free 877-269-8490 10

12V Lead Acid Battery (Recommended or extended ield li e)

To avoid replacing batteries when out in the field, the STC-I590 is

equipped with an external power jack designed to accept a barrel plug

cable that attaches to an optional lead acid battery (Stealth Cam STC-

12VBB). Complete 12V Lead Acid battery kits offer significantly more

usage than standard alkaline batteries. They are available at your

Stealth Cam dealer, or call toll free (877) 269-8490. nly Stealth Cam

external battery accessories are recommended.
