Strong SRT 5005 Bedienungsanleitung
SRT 5005
Digital Terrestrial Television Receiver
INSTRUCTION MANUAL
This symbol is intended to alert
the user to the presence of
insulated ‘dangerous voltage’
within the products enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock
This symbol is intended to alert
the user to the presence of
important operating and
maintence instructions
accompanying this product.
2
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK PANEL)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
Important Safety Instructions
• Power pack to mains power DC 12/24 V.
• All safety and operating instructions should be read before the product is operated.
• All warnings on the product and in the operating instructions should be adhered to.
• Earthing: The antenna cable must be earthed.
• Do not use attachments not recommended by the product manufacturer as they may cause hazards or damage
to the equipment.
• Do not overload adaptors , wall sockets , extension cables as these can result in fore or electrical shock.
• For cleaning, use only a dry cloth (lightly dampened) Do not use liquid cleaners or aerosol cleaning products.
• Servicing can only be preformed by qualified Service Personnel.
• Do not place this product in unstable position.
The information in this document and the menu structure and the specifications is subject to changed without notice
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
3
Contents
4 Overview
4 Main Features
5 Control Functions – Front Panel
6 Rear Panel Connections
7 Navigating the On Screen Menu – The Important Buttons
8 Remote Control Functions
9 Remote Control – Battery Replacement
10 & 11 Connection Examples
12 & 13 How to Connect
14 & 15 Power ON & Automatic Scan
16 & 17 Selecting the Correct A/V Mode
18 Dolby Digital Audio
19 Time Setting – Automatic
19 Time Setting - Manual Input
20 & 21 Checking Your Aerial Signal – Level & Quality
22 Connector 1 – TV Loop Out
23 Selecting and Changing Channels
23 Quick Return to Last Channel Watched – RCL Button
23 Volume Control
23 Volume Mute
23 Picture Pause
23 TV or Radio Selection
24 EPG Button
25 Setting Aspect Ratio – Menu & Hot Key Selection
26 Captions
26 Teletext
27 Favourite Channel Listing
28 Deleting Channels from Favourites
28 Renaming the 4 Default Favourite Headings
29 & 30 Service Set Up – Delete channels / Lock Channels / Rename Channels
31 Program List and Order - Browse Button
31 Language Setting
32 Event Timer
33 Sleep Timer
34 Selecting New Password
35 Parental Guidance
36 Colour Set Up
37 Manual Scan
38 Factory Reset
39 Information Menu
40 Troubleshooting
41 Specifications
Thank you for purchasing the Strong Digital Terrestrial
Television Receiver.
This product has been manufactured in accordance
with strict Quality Control Procedures and is fully
compliant to Australian Specifications.
Your new receiver will enable you to experience
superior picture and sound quality, widescreen
images, extra channels plus a variety of new features.
4
Overview
• Component - YPbPr
• Dolby Digital: SPDIF Coaxial
• Super Video Output: 4 Pin Mini Din
• RCA/Cinch – CVBS + L + R Audio
• 16:9 Full screen, 4:3 Letterbox & Full screen
• Auto & Manual Search Mode
• Favourite Channel List Editing
• Fully Adjustable MENU Interface
• Picture In Menu
• 6 Timer Event Settings
• Sleep Timer
• EPG - Electronic Program Guide
• Closed Captions & Teletext
• Parental Guidance
• Full Function Infra Red Remote Control
• Signal/Quality Level Indicator
• RS232 Port for Software Upgrade
• DVB/T Compliant
• Dimensions W280mm X H40mm X D195mm (case)/ 206mm (end of connectors)
Main Features
Front Panel
5
Control Functions
1. Power and Standby Mode Button
To switch the Receiver On/OFF and to switch to
‘Standby’ Mode.
2. ON Indicator
3. Signal Received indicator
4. Standby indicator
5. Channel UP/DOWN selector buttons
12 453
Name Connector Function
1 RF OUT To TV Loop Out IEC 169-2 male Aerial Signal Pass Through
2 RS-232C DB-9 Serial Port
3 TV ANT IN Aerial IEC 169-2 female Input from Antenna to Receiver
4 Coaxial SPDIF RCA cinch Digital Audio Output
5 Component RCA Video Video Output
6 Audio R/L (Red/White) RCA cinch R/L Audio Output
7 Video (Yellow) RCA cinch CVBS (Composite) Output
8 Audio R/L (Red/White) RCA cinch R/L Audio Output
9 S-Video Video Y/C S-Video Ouput
10 Main Power Input Mains Power
6
Connections
Back Panel
1234 5 67 8910
On Screen Menu
7
The Important Buttons
Within this Instruction Manual will be References to
various Buttons on the Remote Control to access
various menus.
These important Buttons are:
1. MENU
To Access the Main Menu
2. EXIT
To move back to previous Menu and Exit Menu
3. SCROLL LEFT Button / SCROLL RIGHT Button
/ SCROLL UP Button/ SCROLL DOWN Button
To access, highlight and select each topic and mode,
within each menu.
The colour buttons provide quick access through the
menu system.
23 33 3 1
1. POWER-STANBY ON/OFF - Switches the Receiver in or out of
Standby Mode
2. SUB - To select Captions Subtitles (when broadcast)
3. TEXT - Enables / Disables Teletext.
4. TV/RAD - Switches between TV and Radio mode
5. BROWSE - Displays the list of programs in memory.
6. MUTE - Sound ON / OFF
7. RCL- Recall Button - Switch between current and previous program
8. CHANNEL - Navigating within the On Screen Display Menus
(OSD) or stepping through the channels
9. OK - To confirm actions in the menu systems.
10. VOL+ & VOL - Navigating within the OSD Menus (left / right)
or for adjusting the volume.
11. MENU - The main menu for setting up the receiver.
12. EXIT - Exits the current On Screen Display page.
13. I INFORMATION - Shows program information
14. AV - Selects TV or Digital TV by changing the status of Pin 8
in the Scart connector
15. EPG–Program Information - Display the EPG (Electronic
Program Guide)
16. PAGE+ & PAGE- for Aspect Ratio - Change the aspect ratio to
your preference: 4:3, 16:9
17. PAUSE - Pauses the picture.
18. AUDIO - Displays all available audio channels
19. FUNCTION - The four coloured buttons are used for
functions in the menus.
20. 0 - 9 NUMERIC - Direct entry of numerical functions for
menus or channel selection
8
2
5
6
9
10
11
14
17
1
3
4
7
8
10
8
12
13
15
16
18
19
20
Remote Control Functions
Remote Control
9
Battery Replacement
How to insert Battery
• Open the cover at the top of the rear side of the
remote control.
• Insert Two AAA type batteries (1.5V) to be aligned
with appropriate +/- polarity.
Accident prevention
• Do not recharge heat or dissemble the battery.
• Do not cross +/- polarities.
• If Remote control is not going to be used for long
periods, remove the batteries.
Range of operation
• The remote control can be detected by the receiver
within an angle of 30 degrees to the left or right.
• The transmission distance of the remote control is
7m in direct line of sight.
• If remote control is not operating correctly,
replace batteries
• Disturbances from peripheral devises might occur.
Ensure that other product which might cause
interference are placed further away from the receiver.

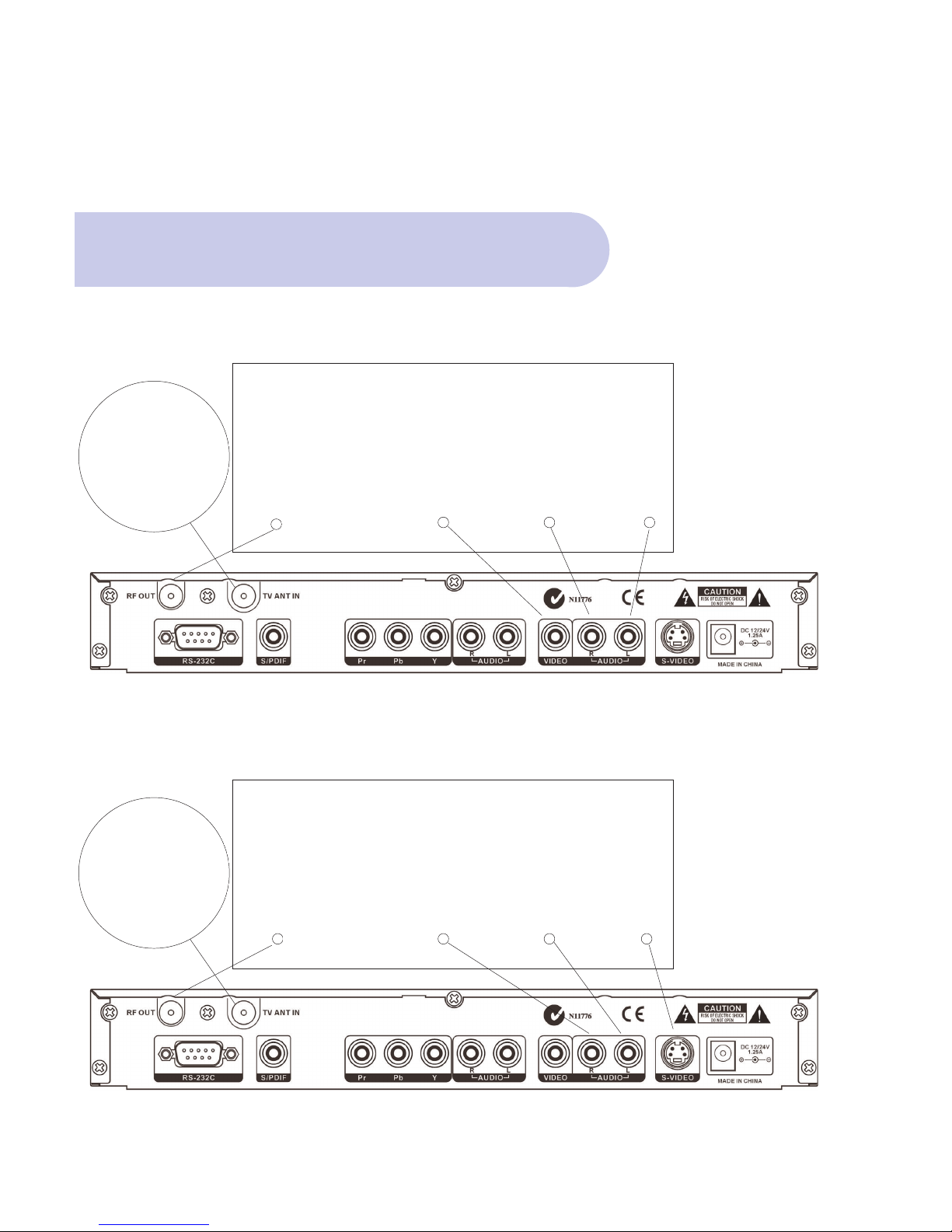

TV
A. CVBS (Composite) via the supplied RCA Lead
10
Connection Examples
RF IN Video R Audio L Audio
B. Separate S-Video (Y/C) Connector
TV Antenna
TV
RF IN R Audio L Audio S Video
TV Antenna
(Yellow)
(Red) (White)
(Red) (White)
Optional Refer
to PG 22
Optional Refer
to PG 22
