Summer 07970C Bedienungsanleitung
Multi-Use Extra Tall
Walk-Thru Gate
INSTRUCTION MANUAL
Please read the following instructions carefully.
Keep this instruction manual and save for future reference.
For technical support, contact us at 1-401-671-6551
or www.summerinfant.com/contact
Tools required: Phillips-head screwdriver,
measuring tape (not included),
and wrench (included).
For use with children from 6 - 24 months.
Keep small parts away from children.
Adult assembly required.
Fits openings from 29" - 48" wide.
07060EZ/07970C/07060F
Thank you for purchasing the Multi-Use Extra Tall Walk-Thru Gate from Summer Infant.
This gate allows you to create and maintain a secure environment for your child just about anywhere in
your home. It has a hinged swinging door that opens easily in either direction with one hand,
as well as hold-open and auto-close features for added convenience.
Text "Extra Tall" to 38344 for a demo & install video.
Have questions? We're here to help. For technical support please
contact us at 1-401-671-6551 or www.summerinfant.com/contact.
components
Children have died or been seriously injured when gates are not securely installed.
• ALWAYS install and use gate as directed using all required parts. Install according to
manufacturer’s instructions.
• Stop using when a child can climb over or dislodge the gate.
• Use only with the locking/latching mechanism securely engaged.
• To prevent falls, never use at top of stairs without wall mounting cups and door stopper.
•NEVER use a gate to keep child away from pool.
• NEVER leave child unattended.
• ALWAYS close and lock the gate behind you.
• This product will not necessarily prevent all accidents. Proper adult supervision is required
at all times.
• Do not use if any components are missing or damaged.
• Adult assembly required. Exercise care when unpacking and assembling product.
CAUTION KEEP SMALL PARTS OUT OF CHILD’S REACH.
Gate Door
Gate Frame
A
A
B
B
Small Extension Frame
Large Extension Frame
C
C
D
D
Door Stop
Top Latch
E
E
F
F
Tension Bolts with Tension Nuts (4)
I
Wall Cups (4)
Adhesive Mounting Pads (4)
J
K
Wall Anchors (4)
L
Lower Latch
Pins (4)
G
H
Screws (4)
M
Wrench
N
hardware
H
x4 x4
I
2
J K
L M
x4 x4
x4x4
N
x1
WARNING
G
IMPORTANT: Gate includes a door stop
(part F in components) which prevents the
the gate from swinging open in one direction.
When installing the gate at the top of
stairs, be sure that the door stop is on the
stairway side of the gate so the door cannot
open over the stairs.
While the door stop comes fully assembled
on gate, it can be removed and installed on
either side of gate frame.
When gate is not used at top of stairs, door
stop may be removed to allow the gate door
to open in either direction.
gate configurations (choose which best fits your scenario)
Measure the width of the opening where you intend to install the gate.
• Refer to the following illustrations to determine the correct installation
configuration.
• Baseboard molding may change which configuration is appropriate.
• If mounting the gate at
top of the stairs, begin
with installation step .
• When not used at top
of stairs, begin with
installation step .
4
AB
D
(29"- 33") without extension frames (34"- 38") with small extension frame
(39"- 43") with large extension frame (44"- 48") with small and large extension frames
WARNING
NEVER install two extension
frames on the same side of the
gate.
!
!
Note: This instruction book
illustrates installation of gate
configuration D.
!
3
C
If choosing gate configuration A,
skip ahead to step 2 .
Otherwise, follow step , using
the appropriate extension frames
that best fit your scenario.
2
1
1
4

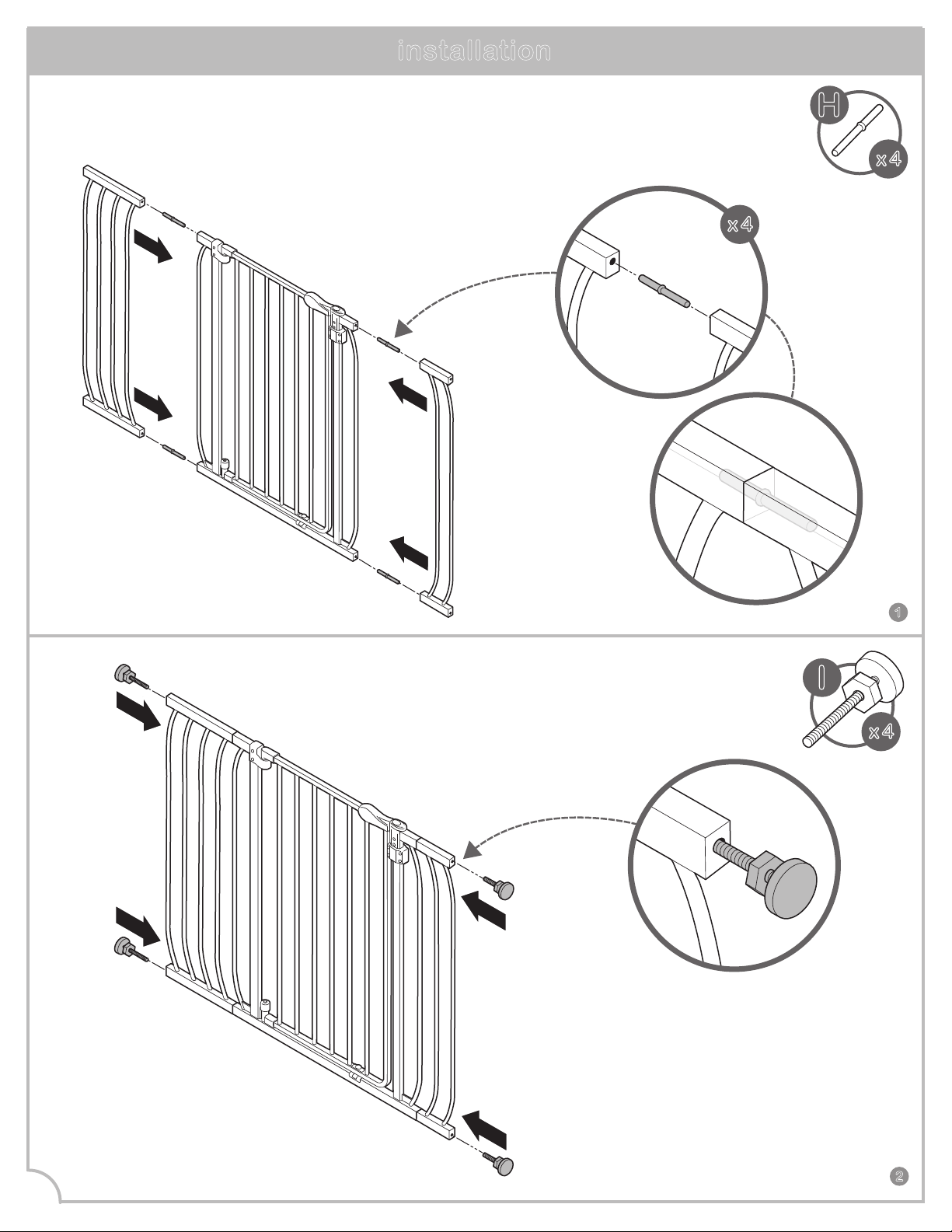

installation
2
Slide tension bolts
into upper and lower holes
on both sides of
extension frames
(or into the gate frame if no extensions
are being used).
I
x 4
1
Connect the extension
frames to the gate frame by
inserting the extension pins into the holes.
H
x 4
x 4
tighten!
tighten!
A B
installation (continued)
4
3
5
5
Note: If mounting at top of stairs, proceed to
step 6. . Otherwise, follow the directions in
step to tighten the tension nuts.
!
Use the tension nuts
to tighten both of the
bottom tension bolts.
Use the tension nuts
to tighten both of the
top tension bolts.
Check locations A and B.
The distance between
the gate and the wall
should never exceed
2.75”.
IMPORTANT
Stand the gate
in the center of the opening.
tighten!
tighten!
Make sure door stop is facing desired direction.
For top of stair use, door stop must be on
stair side of gate.
Gate door must open away from stairs.
!
Make sure the bottom
of the gate
is completely flush
to the floor.
Slide tension bolts out
until they contact
the door frame or wall
on both sides.
6
14
7
6
6
STOP! wall cup/top of stairs installation
WARNING
For use at top of stairs, wall cup
installation is MANDATORY.
Follow these wall cup installation instructions when using gate at TOP OF STAIRS
(MANDATORY), or if using wall cups for a standard opening (optional).
If opting not to use wall cups for a standard opening, skip ahead to step .
With a pencil, trace
the entire outline
of each tension bolt
directly onto the wall.
x 4
Loosen the
lower and upper
tension nuts and
remove gate.
loosen!
loosen!
x 2
x 2
Door stop must be
on stair side of gate.
Gate door must
open away from
stairs.
!
At the top of the
landing, position the
gate a minimum of
3-6 inches (8-15cm)
away from the top
step.
IMPORTANT
14
8
x 4

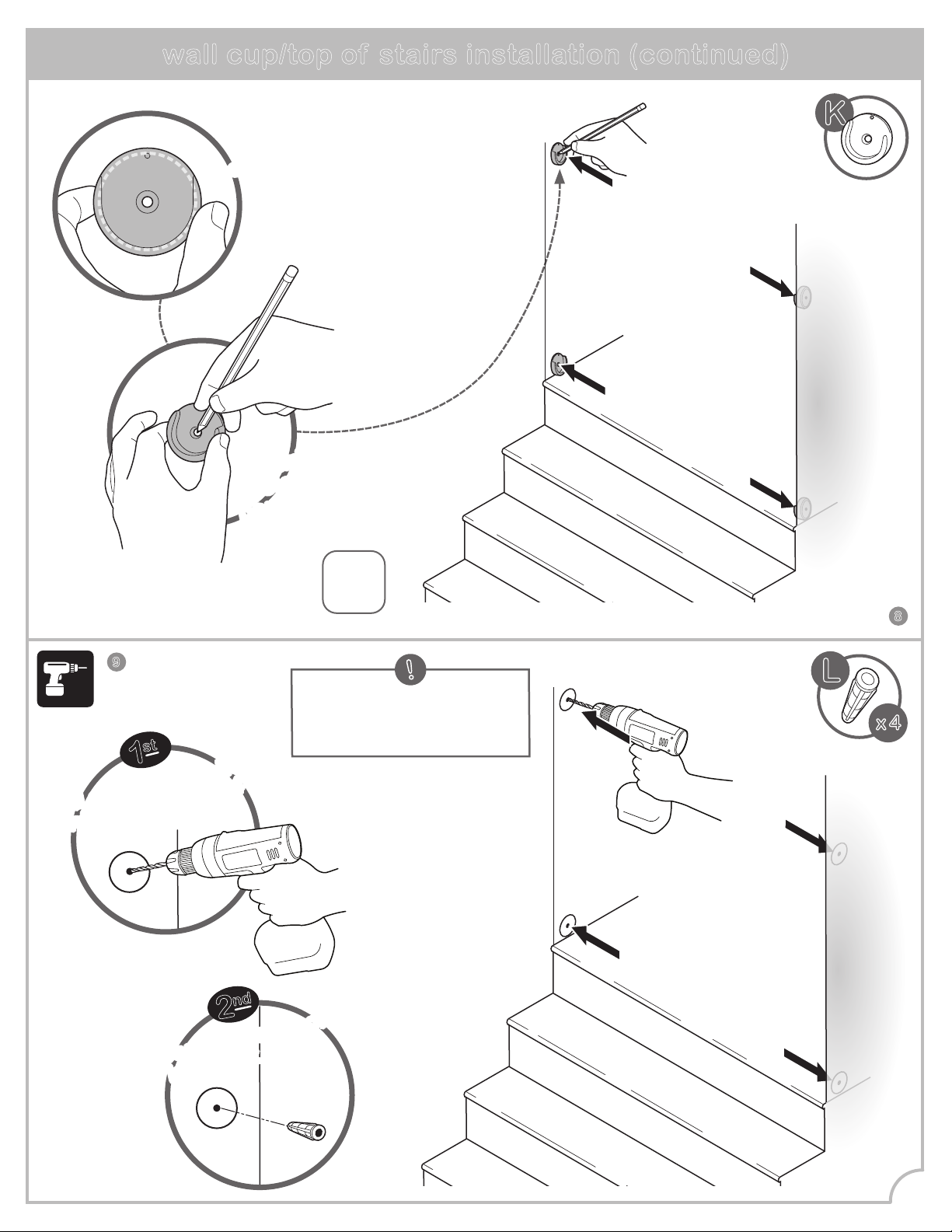

Mark drill
holes with a
pencil through
the center
of each wall cup.
Mark drill
holes with a
pencil through
the center
of each wall cup.
x4
Place a wall cup over
the center of each circular
outline on the wall.
Place a wall cup over
the center of each circular
outline on the wall.
wall cup/top of stairs installation (continued)
1
st
Drill a 7/32'' pilot hole
into each of the 4
center marks.
Drill a 7/32'' pilot hole
into each of the 4
center marks.
2
nd
Insert wall anchors
into pilot holes.
Insert wall anchors
into pilot holes.
7
9L
K
Note: If mounting into plaster or
drywall, follow this step and use
the wall anchors provided.
!
Attach one pad to
the back of each
wall cup.
peel
peel
2
nd
3
rd
Remove backing
from one side of each
adhesive mounting pad.
Remove
backing.
1
st
10
wall cup/top of stairs installation (continued)
press
press
press
press
11
8
x 4
J
x 4
K
Align the wall cups so
the center hole is placed
directly over the wall anchor.
Stick wall cups to the wall.
Make sure
all wall cups
are facing up.
Make sure
all wall cups
are facing up.
!
!
Note: The bottom wall cups
should rest on the floor.
Repeat "installation"
steps on page 5.
The 4 tension bolts
will rest within
each wall cup.
x4
Screw
wall cups
into wall.
x 4
wall cup/top of stairs installation (continued)
12
13
9
M
NEVER open gate door over stairs.
IMPORTANT
x 4
wall cup/top of stairs installation (continued)
10
N
Tighten all 4
tension nuts
with the provided
wrench.
x 4
14
FINISHED!
Tighten top
tension nuts
so that the upper
latch/handle goes below
the release button
completely.
