Sune Technology NTG6 Bedienungsanleitung
Manual Date
Firmware Date
Main
Sub
Tw8823
2019, 04, 24
2019, 04, 23
2019, 04, 23
2019, 04, 23
Installation Manual
NTG6
SUNE TECH

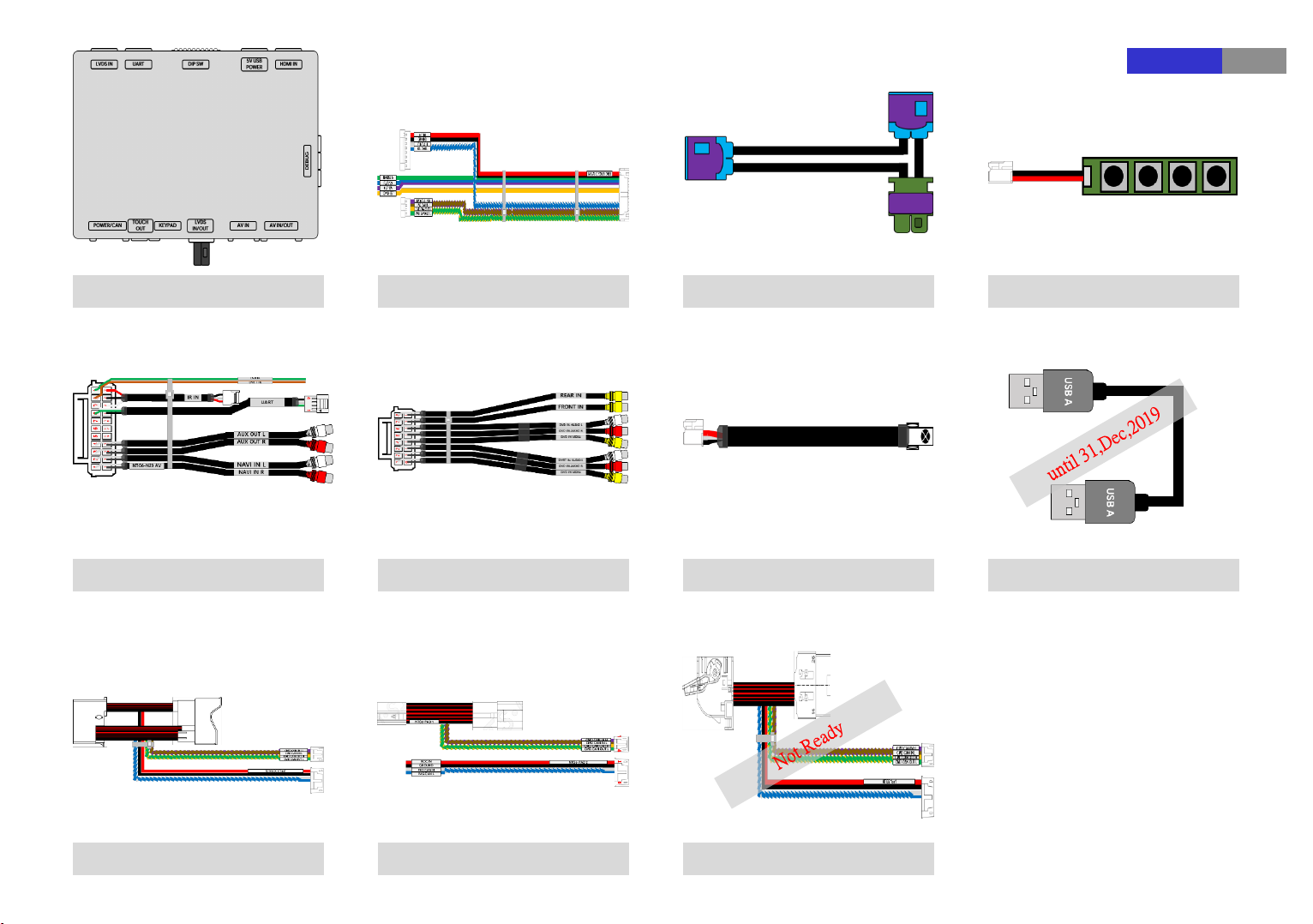

COMPONENTS
NTG55 Power 1on1 option NTG6 Power Touch option
HD-NTG6 NTG6 Default-Power NTG6 LVDS-Cable Key-Pad
NTG6 Universal NTG6 AV-Cable IR - Cable
NTG6 Power 1on1 option
USB Cable option
SUNE TECH
PIN ASSIGNMENT
POWER / CAN
1 ACC IN 2 Ground
3 4
5 12V output 6
7 Reverse input 8 Rear 12V output
9 10 Omni Key
11 ECU CAN High Input 12 ECU CAN Low Input
13 MON CAN High Input 14 MON CAN Low Input
15 MON CAN High Output 16 MON CAN Low Output
1
6
1
5
1
4
1
3
1
2
1
1
1
0
9
8 7 6 5 4 3 2 1 15 1
2 16
2
2
2
1
2
0
1
9
1
8
1
7
1
6
1
5
1
4
1
3
1
2
1
1
1
0
9 8 7 6 5 4 3 2 1 21 1
2 22
AV IN
1, 2 DVB-T Video
3, 4 DVB-T Audio R
5, 6 DVB-T Audio L
7, 8 DVD Video
9, 10 DVD Audio R
11, 12 DVD Audio L
13, 14 Front Camera
15, 16 Rear Camera
AV IN/OUT
1 Navi Audio In R 2 Ground
3 Navi Audio In L 4 Ground
5 Audio Out R 6 Ground
7 Audio Out L 8 Ground
9 10
11 12
13 14
15 UART Rx ( Interface ) 16 UART – Ground
17 UART Tx ( Interface ) 18 IR Receive – Signal
19 IR – DVB-T 20 IR Receive – Ground
21 IR - DVD 22 IR Receive – Power
1
6
1
5
1
4
1
3
1
2
1
1
1
0
9
8 7 6 5 4 3 2 1 15 1
2 16
SUNE TECH
ON1 2 3 4 5 6 7 8 9 10 ON1 ON1
OFF ON
DIP SWITCH SETTINGS
Switch OFF ON
SW1 Used HDMI Input
SW2 Used LVDS Input
SW3 Used Rear Camera Input
SW4 Used Front Camera Input
SW5 Used DVB-T (CVBS) Input
SW6 Used DVD (CVBS) Input
SW7
List of Car Model
SW8
SW9
SW10
7 8 9 10 Model Inch
OFF OFF OFF OFF A-Class W177 / V177 10.25
OFF OFF ON OFF A-Class W177 / V177 7
OFF OFF OFF ON C-Class C200 10.25
E-Class W213 12.25
E-Class W213 8.4
S-Class W222 12.25
C-Class W205
GLC X253
V-Class W447
8.4
C-Class W205
GLC X253
V-Class W447
7
This interface is upgrading to include car model for NTG5.5
SUNE TECH
HOW TO OPEN THE TOUCHPAD
Press three places using some tools.
And remove the plastic cover.
Remove #1 plastic and unscrew 2 screws.
Take off #2 cover and unscrew 3 screws.
Connect cable behind the TouchPad to supplied power cable.
Pin count of supplied power cable is not matched with cable behind the
TouchPad.
Please cut red rectangle of connector
In order to make easy to connect OEM-connector and supplied connector.
Connect opposite cable of supplied power cable to the connector behind
the TouchPad.
1
2
1
1
2
SUNE TECH
NTG6-PAD 2
INSTALLATION DIAGRAM A-Class 10.25inch
BATTERY 14 Red / gray
GROUND 1 Brown
PAS CAN H 7 Purple / white
PAS CAN L 20 Purple
CMD CAN IN H
CMD CAN IN L
CMD CAN OUT H
CMD CAN OUT L
REAR 12V
REV ERSE IN
OUT 12V
OMNI KEY
NTG6- PAD 1
PAS CAN H
PAS CAN L
ACC IN
GROUND
HDMI DEVICE NAVIGATION
AUX REAR / FRONT
DVB-T DVD
Please cut red rectangle of connector
In order to make easy to connect OEM-connector and
supplied connector.
Please connect 4 wires to OEM cable
behind of the headunit.
A-Class 10.25inch HEADUNIT
SUNE TECH
NTG6-PAD 2
INSTALLATION DIAGRAM A-Class 7 inch
BATTERY 1 Red / gray
GROUND 6 Brown
PAS CAN H 15 Purple / white
PAS CAN L 22 Purple
CMD CAN IN H
CMD CAN IN L
CMD CAN OUT H
CMD CAN OUT L
REAR 12V
REV ERSE IN
OUT 12V
OMNI KEY
NTG6- PAD 1
PAS CAN H
PAS CAN L
ACC IN
GROUND
HDMI DEVICE NAVIGATION
AUX REAR / FRONT
DVB-T DVD
Please cut red rectangle of connector
In order to make easy to connect OEM-connector and
supplied connector.
Please connect 4 wires to OEM cable
behind of the headunit.
A-Class 7inch HEADUNIT
1 2 3 4 5
6 7 8 9 10
11 17
18 24
25 31
15
22
SUNE TECH
INSTALLATION DIAGRAM C-Class 10.25 inch
REAR 12V
REV ERSE IN
OUT 12V
OMNI KEY
HDMI DEVICE NAVIGATION
AUX REAR / FRONT
DVB-T DVD
Please take off Optical Audio Line for External AMP. And
then connect to Connector provided.
C-Class 10.25inch HEADUNIT
SUNE TECH
OEM BUTTON A-Class 10.25 / 7 inch
1
2
2
1
Steer Remote How to press Description of operation
1, Back Press button for short time Return back to OEM Screen form Front
Screen
Press button for 1 second screen is switched to Front Screen
2, Hang Up Press button for short time Return back to OEM Screen form Interface
Screen
Press button for 1 second Screen is switched in that order switches are
activated.
TouchPad How to press Description of operation
1, Navi/Map Press button for short time Return back to OEM Screen form Interface
Screen
Press button for 1 second Screen is switched in that order switches are
activated.
2. All Buttons Press button for short time Return back to OEM Screen form Interface
Screen
3. Arrow Press button for short time In DVB-T mode,
Change channel to up, down
2
2 2
2
2 3
SUNE TECH
OEM BUTTON C-Class 10.25inch
1
2
Steer Remote How to press Description of operation
1, Back Press button for short time Return back to OEM Screen form Front
Screen
Press button for 1 second screen is switched to Front Screen
2, Hang Up Press button for short time Return back to OEM Screen form Interface
Screen
Press button for 1 second Screen is switched in that order switches are
activated.
TouchPad How to press Description of operation
1, BACK Press button for short time Return back to OEM Screen form Interface
Screen
Press button for 1 second Screen is switched in that order switches are
activated.
2. All Buttons Press button for short time Return back to OEM Screen form Interface
Screen
3. TouchPad TouchPad is working as Mouse.
1 1 2 2 2
Button
in Front How to press Description of operation
1, NAVI/CAR Press button for short time Return back to OEM Screen form Interface
Screen
Press button for 1 second Screen is switched in that order switches are
activated.
2. All Buttons Press button for short time Return back to OEM Screen form Interface
Screen
1 2
2
2 3
