Sune Technology SUNE10 PLUS-NTG5 Bedienungsanleitung

Manual Date

Firmware Date

Main

Sub

Tw8823

2019, 10, 21

2019, 10, 18

InstallationManual

SUNE10 PLUS-NTG5

COMPONENTS

SUNE10-NTG50 Power 1on1

SUNE10-NTG5 SUNE10-NTG5 Default-Power SUNE10-NTG5LVDS-Cable Key-Pad

SUNE10-NTG5 Universal Cable SUNE10-NTG5AV-Cable IR - Cable Capacitive Touch Cable

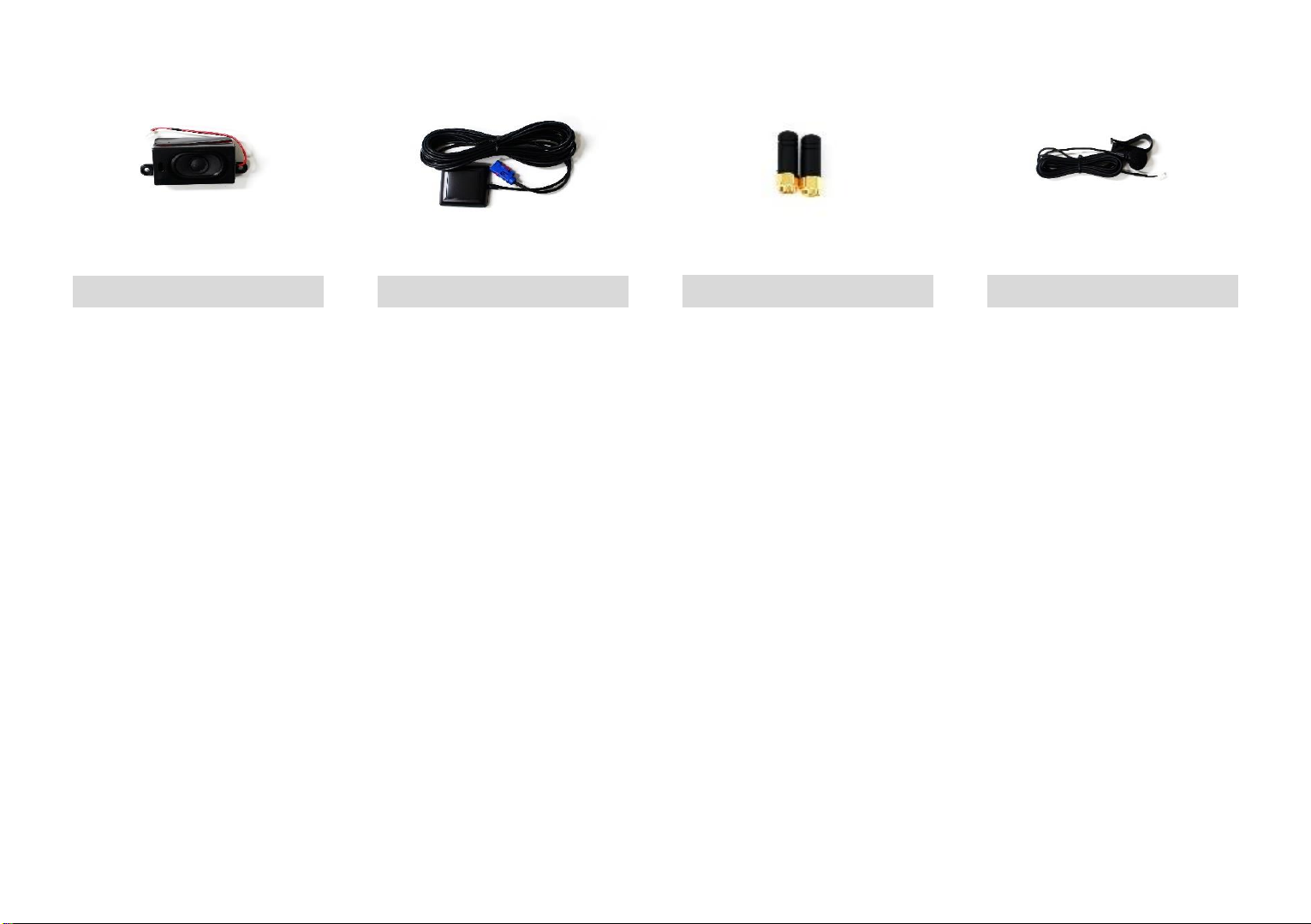

COMPONENTS

Speaker GLONASS GPS WIFI/BT Antenna x 2 MIC

PIN ASSIGNMENT

POWER / CAN

1 ACC IN 2 Ground

3 4 IR –DVD-T

5 12V output 6

7 Reverse input 8 Rear 12V output

9 10 Omni Key

11 ECU CAN High Input 12 ECU CAN Low Input

13 MON CAN High Input 14 MON CAN Low Input

15 MON CAN High Output 16 MON CAN Low Output

87654321 151

2 16

987654321 211

2 22

AV IN

1, 2 DVB-T Video

3, 4 DVB-T Audio R

5, 6 DVB-T Audio L

7, 8 DVD Video

9, 10 DVD Audio R

11, 12 DVD Audio L

13, 14 Front Camera

15, 16 Rear Camera

87654321 151

2 16

AV IN/OUT

1 Speaker P 2 Speaker N

3 Audio Out R 4 Ground

5 Audio Out L 6 Ground

7 Mic P 8 Mic N

9 CapTouch-I2C-SCL 10 CapTouch-Ground

11 CapTouch-I2C-SDA 12 CapTouch-Power 3.3V

13 CapTouch-Interrupt 14 CapTouch-Reset

15 Resistive Touch X- 16 IR –DVB-T

17 Resistive Touch Y- 18 IR Receive –Signal

19 Resistive Touch X+ 20 IR Receive –Ground

21 Resistive Touch Y+ 22 IR Receive –Power

ON1 2 3 4 5 6 7 8 9 10 ON1 ON1

OFF ON

DIP SWITCH SETTINGS

Switch OFF ON

SW1 Used HDMI Input

SW2 Used Rear Camera Input

SW3 Used Front Camera Input

SW4 Used DVB-T (CVBS) Input

SW5 Used DVD (CVBS) Input

SW6

SW7

List of Car Model

SW8

SW9

SW10

7 8 9 10

Model Inch

OFF OFF OFF OFF GLE (C292), E (W212), CLS (W218),

B (W246), CLA (C117) 7

OFF OFF OFF ON C (W205), GLC (x253), V (W447) 8.4

OFF OFF ON OFF S (W222) 12.25

OFF OFF ON ON C (W205), GLC (X253), V (W447) 7

This interface is upgrading to include car model for NTG5

INSTALLATION DIAGRAM

C MD CAN IN H

C MD CAN IN L

C MD CAN OUT H

C MD CAN OUT L

HDMI DEVICE

AUX REAR / FRONT

DVB-T DVD

Please connect ‘C’ housing of OEM with

supplied housing.

Ground

Battery

From Headunit

1 2 V OUT

DV D IR

R E VERSE

R E AR 12V

OM NI KEY

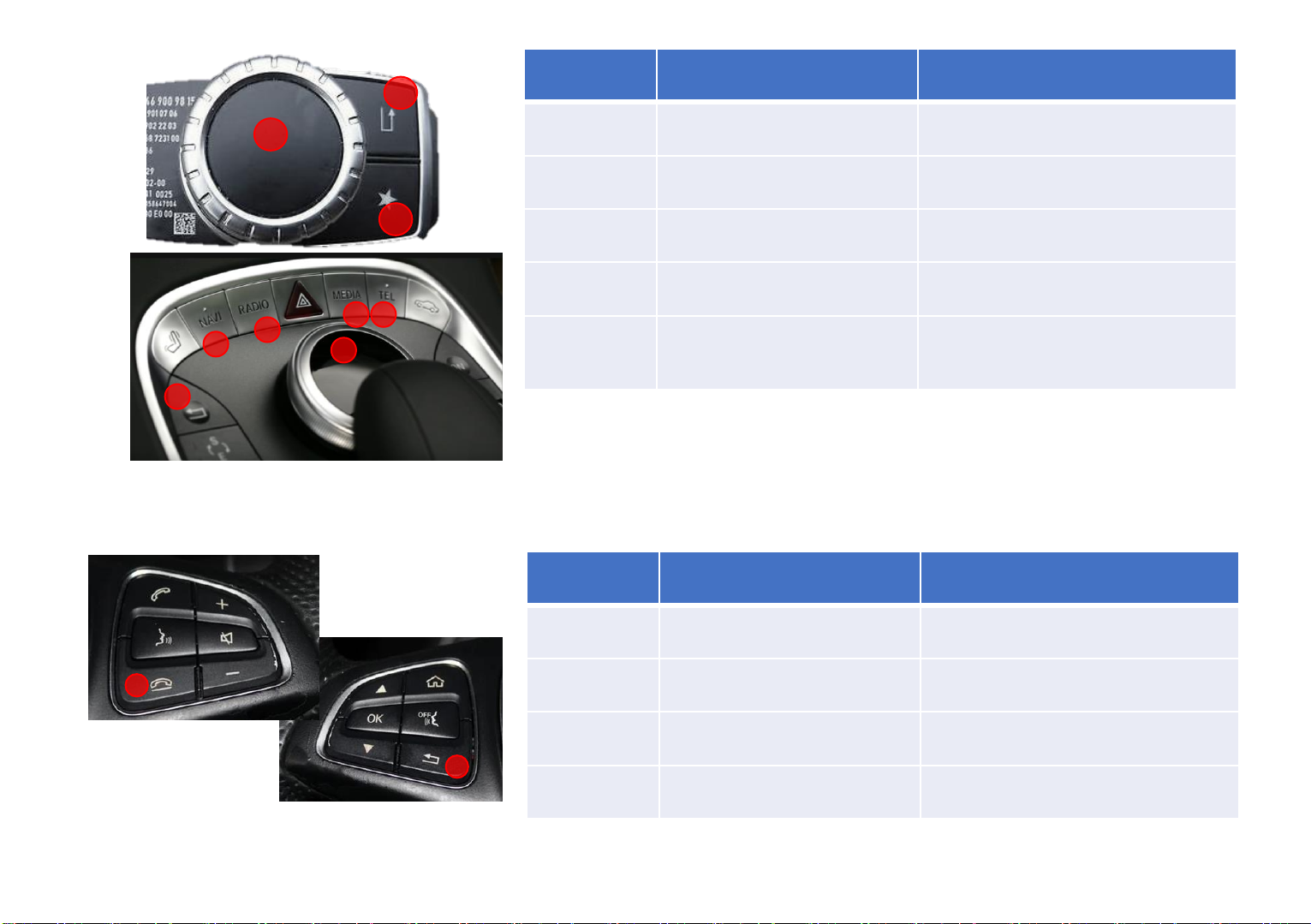

OEM BUTTON

COMAND

Controller How to press Description of operation

1, Back Press button for short time Return back to OEM Screen form Interface

Screen

Press button for 1 second Screen is switched in that order switches are

activated.

Press button for 10 second System would be reset.

2, Favorite Press button for short time Return back to OEM Screen form Interface

Screen

3 Up of Dial Press Up for 1 second

Switch Rear screen between OEM and

Interface screen during gear ‘R’.

* This function is saved.

Steer Remote How to press Description of operation

1, Back Press button for short time Return back to OEM Screen form Front

Screen

Press button for 1 second screen is switched to Front Screen

2, Hang Up Press button for short time Return back to OEM Screen form Interface

Screen

Press button for 1 second Screen is switched in that order switches are

activated.

2 2 2 2

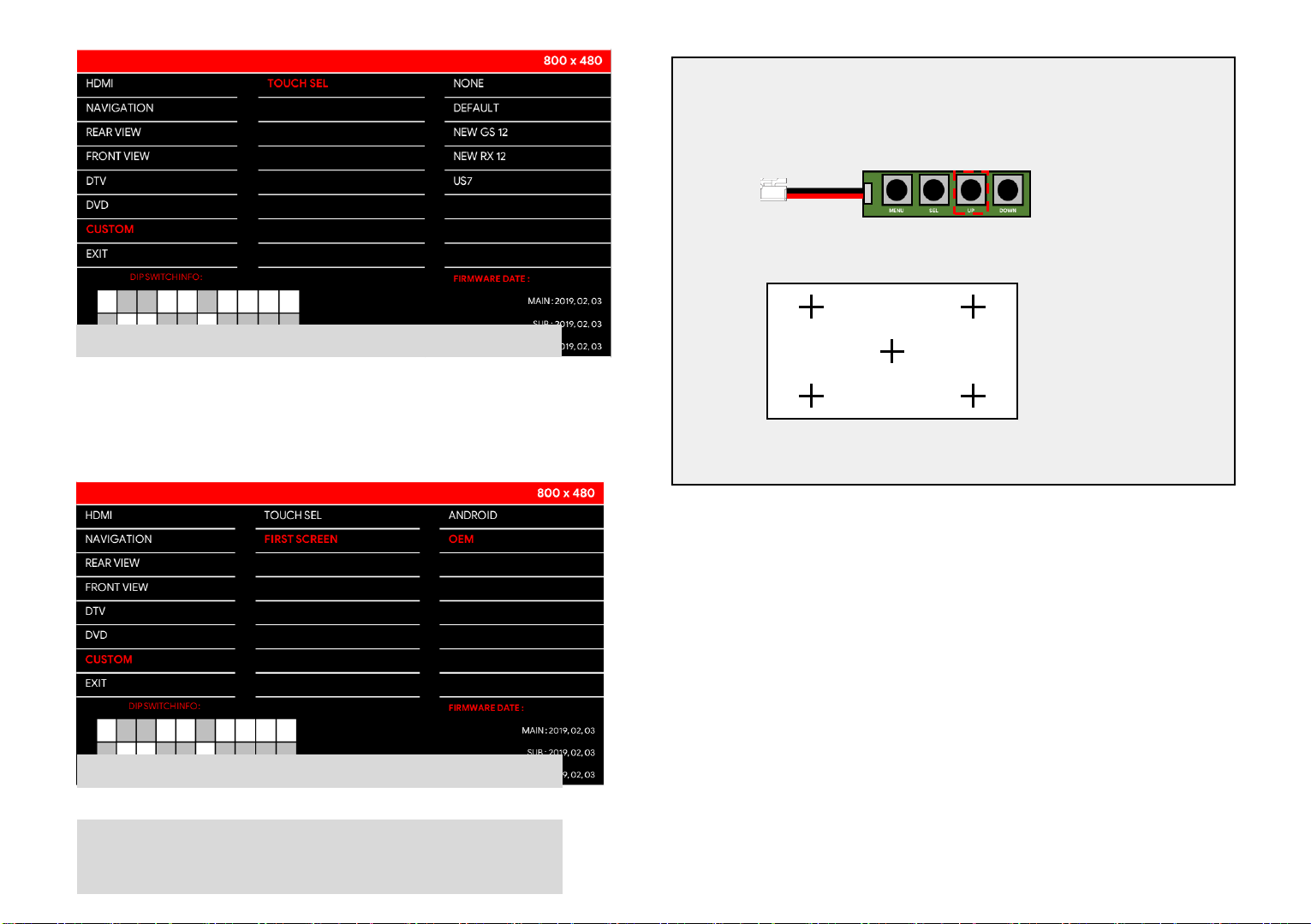

CONNECTION Touch Panel / Screen for Booting

SELECT TOUCH PANEL

When need to set touch panel settings.

Select touch panel which you want to use.

* Most panel types do not need to be selected.

* Panel has default settings value for each panel.

1. Enter settings mode.

2. Press up button of k-pad for 3 sec.

3. Press the 5 cross in order to make

calibration for touch.

4. Press screen to save value of calibration.

5. System would be reset.

How to make calibration for touch:

SELECT Screen for booting.

If you selectandroid screen as booting screen.

Turn acc on and then screen would be changed to android screen in 5

sec automatically.

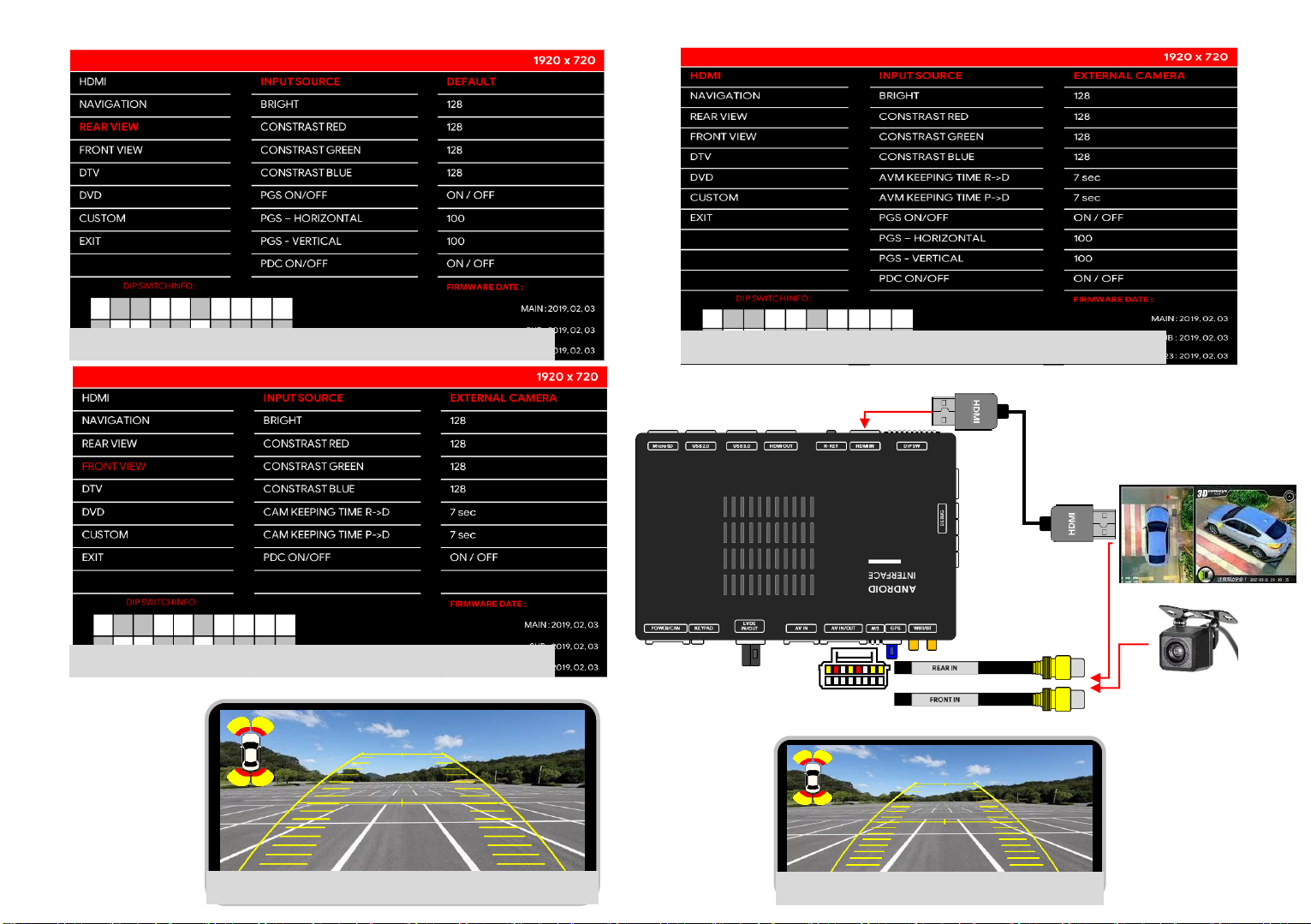

CONNECTION REAR CAM / FRONT CAM / 360 AVM

87654321

REAR CAMERA / OEM / 360 AVM

FRONT CAMERA / OEM

HDMI AVM

Monitor resolution : 960 x 540 Monitor resolution : 800 x 480

INTERFACE SETTINGS

1920 x 720

HDMI INPUT SOURCE DEFAULT

NAVIGATION BRIGHT 128

REAR VIEW CONSTRAST RED 128

FRONT VIEW CONSTRAST GREEN 128

DTV CONSTRAST BLUE 128

DVD

CUSTOM

EXIT

DIP SWITCH INFO : FIRMWARE DATE :

MAIN : 2019, 02, 03

SUB : 2019, 02, 03

TW23 : 2019, 02, 03

How to press In not settings menu. In settings menu.

MENU Press button for 1 sec

Screen is switched in that order switches

are activated. Return back to the previous menu.

SEL Press button for short time Enter into the settings menu. Select the settings menu, and values

Move the menu or Increase values

Press button for 5 sec Enter Calibration Mode For Touch.

DOWN Move the menu or decrease values
