IMPORTANT!

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE.

For Customer Service, please contact: support@sunnyhealthfitness.com.

Important Safety Information

Please keep this manual for future reference.

1. It is important to read this entire manual before assembling and using the

equipment. Safe and effective use can only be achieved if the equipment is

assembled, maintained and used properly. It is your responsibility to ensure

that all users of the equipment are informed of all warnings and precautions.

2. Before starting any exercise program you should consult your doctor to

determine if you have any medical or physical conditions that could put your

health and safety at risk, or prevent you from using the equipment properly.

Your doctor’s advice is essential if you are taking medication that affects

your heart rate, blood pressure or cholesterol level.

3. Be aware of your body’s signals. Incorrect or excessive exercise can

damage your health. Stop exercising if you experience any of the following

symptoms: pain, tightness in your chest, irregular heartbeat, extreme

shortness of breath, lightheadedness, dizziness or feelings of nausea. You

should consult your doctor before continuing with your exercise program. If

you do experience any of these conditions.

4. Keep children and pets away from the equipment. The equipment is

designed for adult use only.

5. Use the equipment on a solid, flat level surface with a protective cover for

your floor or carpet. The equipment should have at least 0.5 meters of free

space all around to ensure the safety.

6. Check all the nuts and bolts securely tightened before using the equipment.

7. The safety of the equipment can only be maintained if it is regularly

examined.

8. Always use the equipment as indicated. If you find any defective

components while assembling or checking the equipment, or if you hear any

unusual noises coming from the equipment during exercise, stop using the

equipment immediately and don’t use the equipment until the problem has

been repaired.

9. Wear suitable clothing while using the equipment. Avoid wearing loose

clothing that may get caught in the equipment

10. The maximum weight capacity of this unit is 275 pounds.

11. The equipment is not suitable for therapeutic use.

12. You must take care of yourself when lifting and moving the equipment so as

not to injure your back. Always use proper lifting technique and seek

assistance if necessary.

13. This equipment is designed for indoor and home use only, not intended for

commercial use.

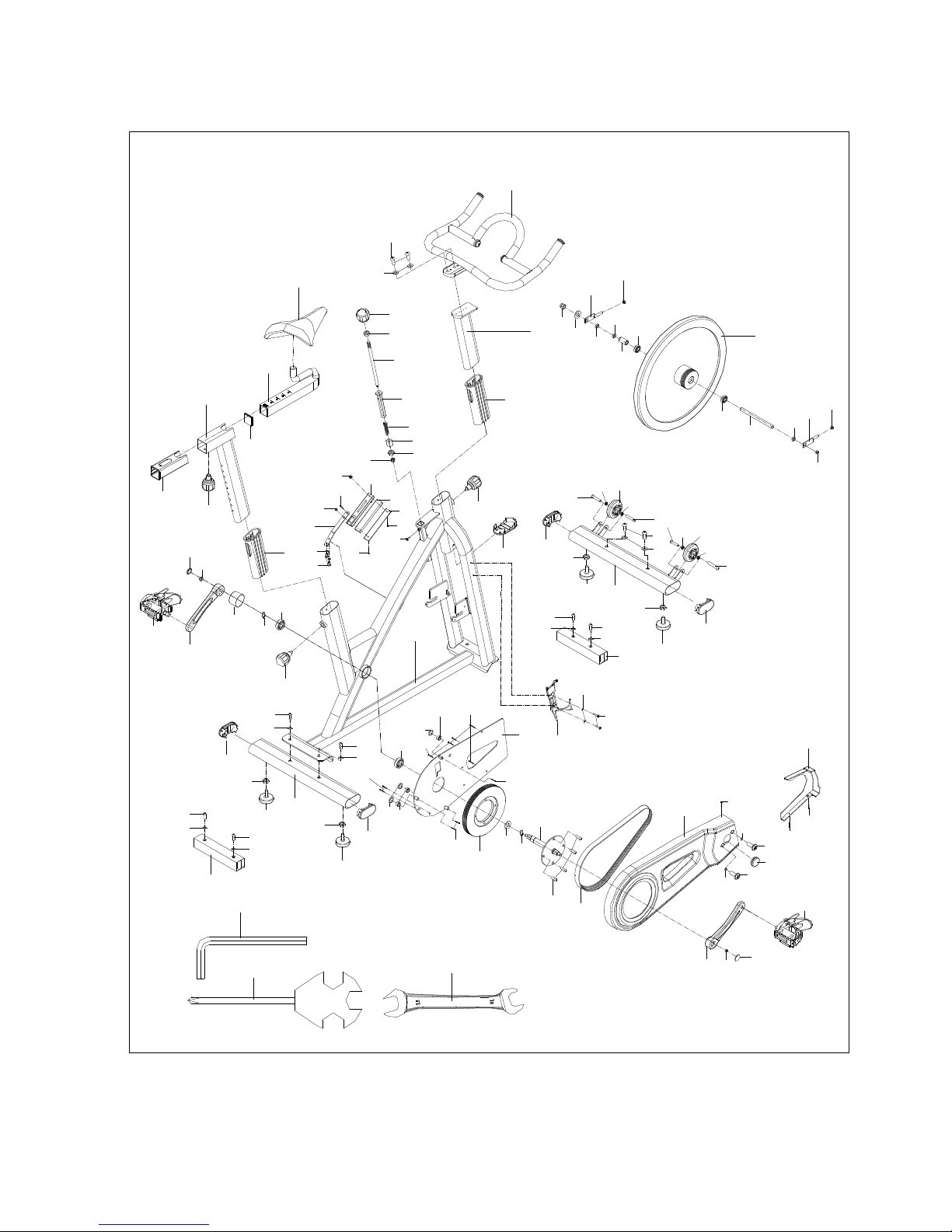

EXPLODED VIEW

3233

36R

36L

41L

73 71

41R

10 74

48 62

S14-15-17

PARTS LIST

DESCRIPTION

QTY

DESCRIPTION

QTY

Main frame

41L/R

Pedal YH-76X 9/16

Saddle post

Bearing 6004-2RS NBK

Handlebar

Jump ring d20

Handlebar post

Wave washer d20*Φ26*0.3

Adjustable bolt

Nut M10*1.25*H7.5*S14

Front stabilizer

Cover for middle axle Φ50*Φ32*33

Rear stabilizer

Knob M10*φ49*46

Seat slider

Nut M10*H7*S17

Screw M10*25*S6

Brake rod

Φ10*240*M10*15*M6*7*M10*95

Washer d10*φ20*2.0

Spacer 20*20*120

End cap PT80*40*20

Spring Φ2.0*Φ15*54*N12

Transport wheel φ71*φ19*24 red

Square nut 16*16*25*M10

Screw Φ7.8*30*M6*15*S5

Nut M6*H14*S10

Screw M6*12*S5

Spring piece t2.0*15.8*153

Adjustable pad M10*30*φ52*49

Brake block 12*25*138

Knob M16*1.5*15*Φ49

EVA pad

Screw M5*20*Φ8.5

Cow leather pad t5*25*138

Bushing PT80*40*PT70*30*175

Screw M6*8*Φ12

Screw M10*25*S6

Bearing 608ZZ Φ8

Washer d10*φ20*1.5

Screw M5*12*Φ10

Water bottle holder

Nut M5*H4*S8

Screw M5*12*Φ8.5

Washer d6*Φ12*1.2

Washer d5*Φ13*1

Bolt M6*12*S10

Bushing F45*F38*153

Screw M6*12*Φ12

End cap F38*38*14

Nut M5*H9*S8

Saddle

Nut M8*H7.5*S13

Inertial wheel 22*Φ460*74*28*Φ74*PK

Inner chain cover

Inertial axle Φ12*165*M12*1.0*26*50

Outer chain cover

Bearing 6001-2RZ NBK

Front cover

Spacer Φ18*Φ12.2*34

Cap Φ38*14

Nut M12*1*H6*S19

Screw ST4.8*16*Φ10

Nut M12*1*H19.5*S19

Washer Φ6.5*Φ25*6

Washer d12*Φ24*2

Washer Φ30*Φ10.1*3

Nut M12*1.0*H11*S18

Bolt M10*16*S6

Middle axle

Shipping rear tube

36L/R

Crank 170 “L” “R”9/16

Shipping front tube

Belt wheel Φ204*20*5PK

Allen wrench S6

Belt 5PK530

Spanner S14-15-17

Screw M10*16*S6 tape A grade 8.8

Open end wrench S13 S15

Crank cap Φ25*7

HARDWARE PACKAGE

#10 (d10*Φ20*2.0) 4PCS

#9 (M10*25*S6) 4PCS

#20 (d10*Φ20*1.5) 2PCS

#19 (M10*25*S6) 2PCS

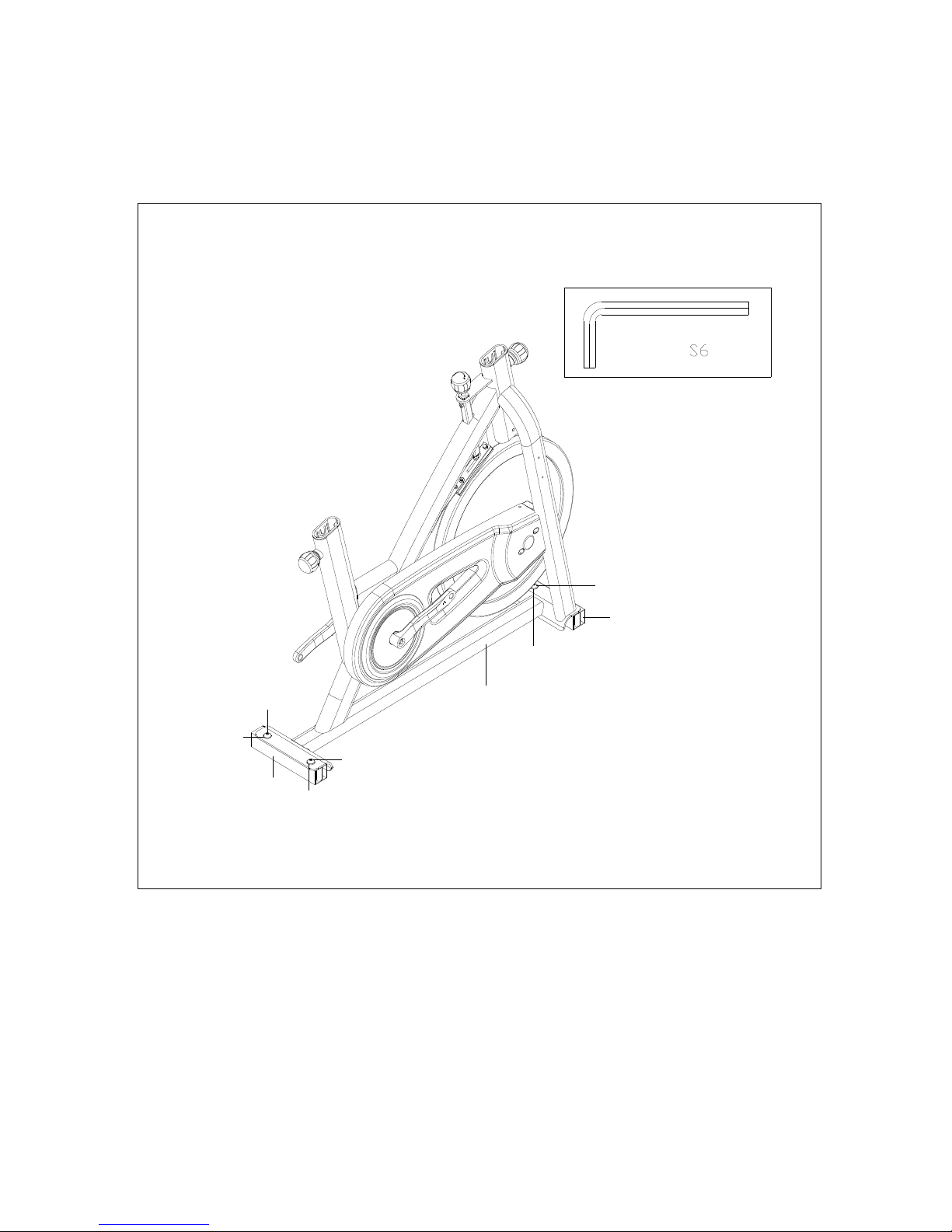

ASSEMBLY INSTRUCTIONS

STEP 1:

10 74

A. Unscrew the screws (74) with Allen wrench (77), then remove and discard

the shipping rear tube (75) and the shipping front tube (76).

B. You can save these parts for future packaging and transportation of the bike

if desired. {screws (74), washers (10), shipping rear tube (75) and the

shipping front tube (76)}

STEP 2:

#9 M10*25*S6 4PCS

#10 d10*Φ20*2.0 4PCS

10 1

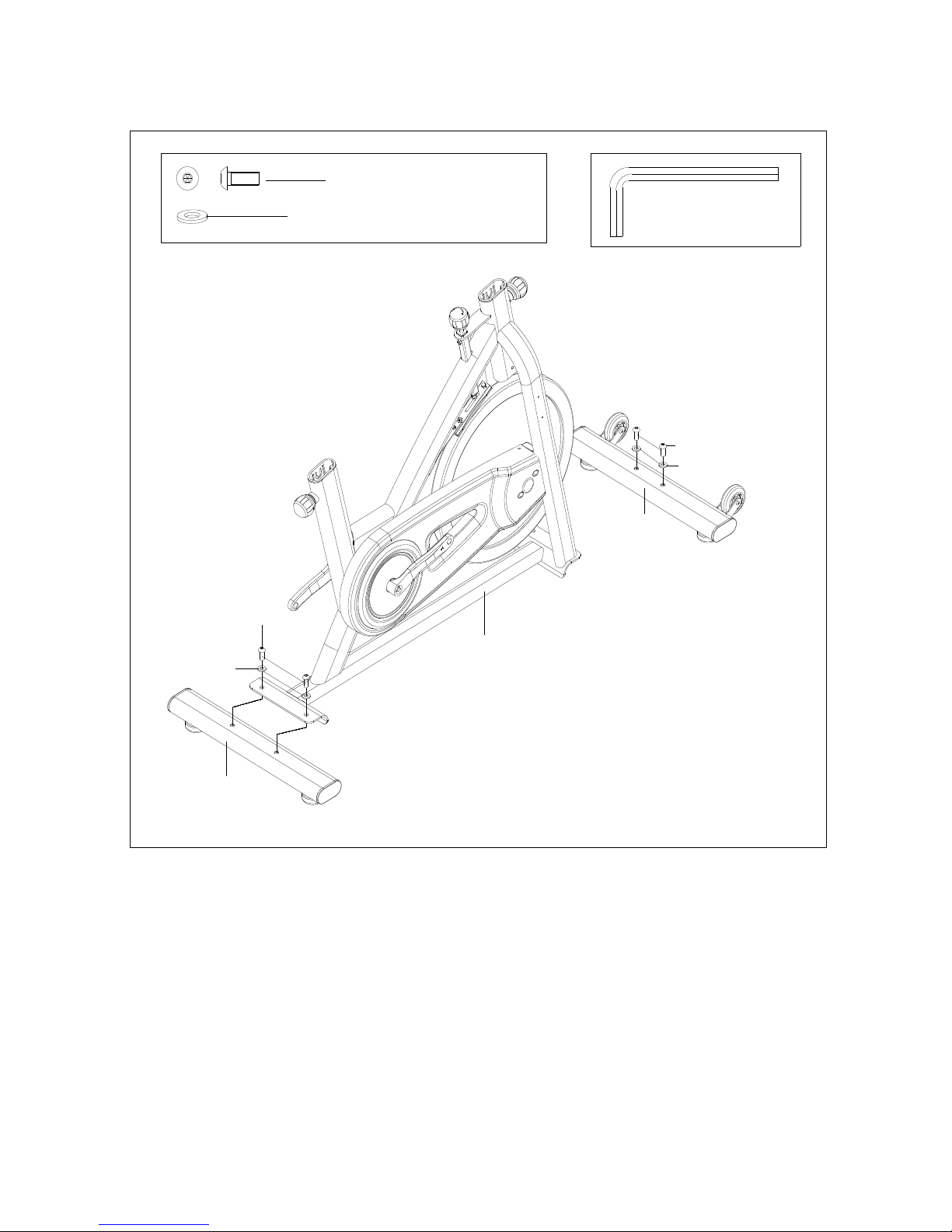

A. Secure front stabilizer (6) and rear stabilizer (7) to main frame (1) with

screws (9) and washers (10).

STEP 3:

41R

41L

#22 M5*12*Φ2PCS

#23 d5*Φ2PCS

36L 36R

A. Secure water bottle holder (21) to main frame (1) with screws (22) and

washers (23).

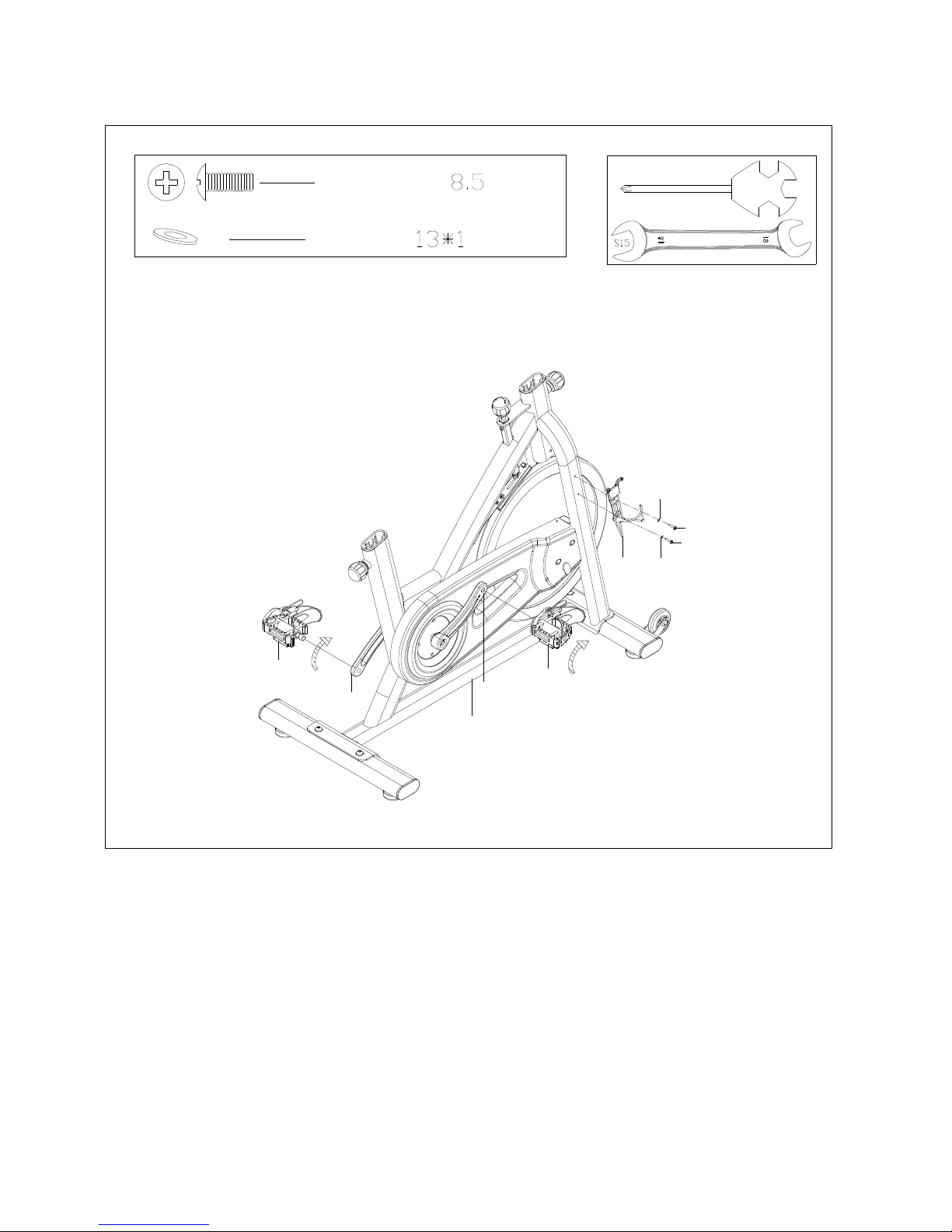

B. Secure pedals (41L/R) to the crank (36L/R). The Left pedal has reversed

threading, and must be screwed counter-clockwise to tighten; the right

pedal has normal threading and can be screwed clockwise to tighten.

STEP 4:

A. Insert saddle post (2) into main frame (1), and adjust it to desired position,

then tighten it with knob (16).

B. Insert seat slider (8) into saddle post (2), and adjust it to desired position,

then tighten it with knob (16).

C. Secure saddle (26) to the seat slider (8). Note: Adjust the saddle, so the

front of the seat is higher or lower to meet your comfort needs.

STEP 5:

19 19

#19 M10*25*S6 2PCS

#20 d10*Φ20*1.5 2PCS

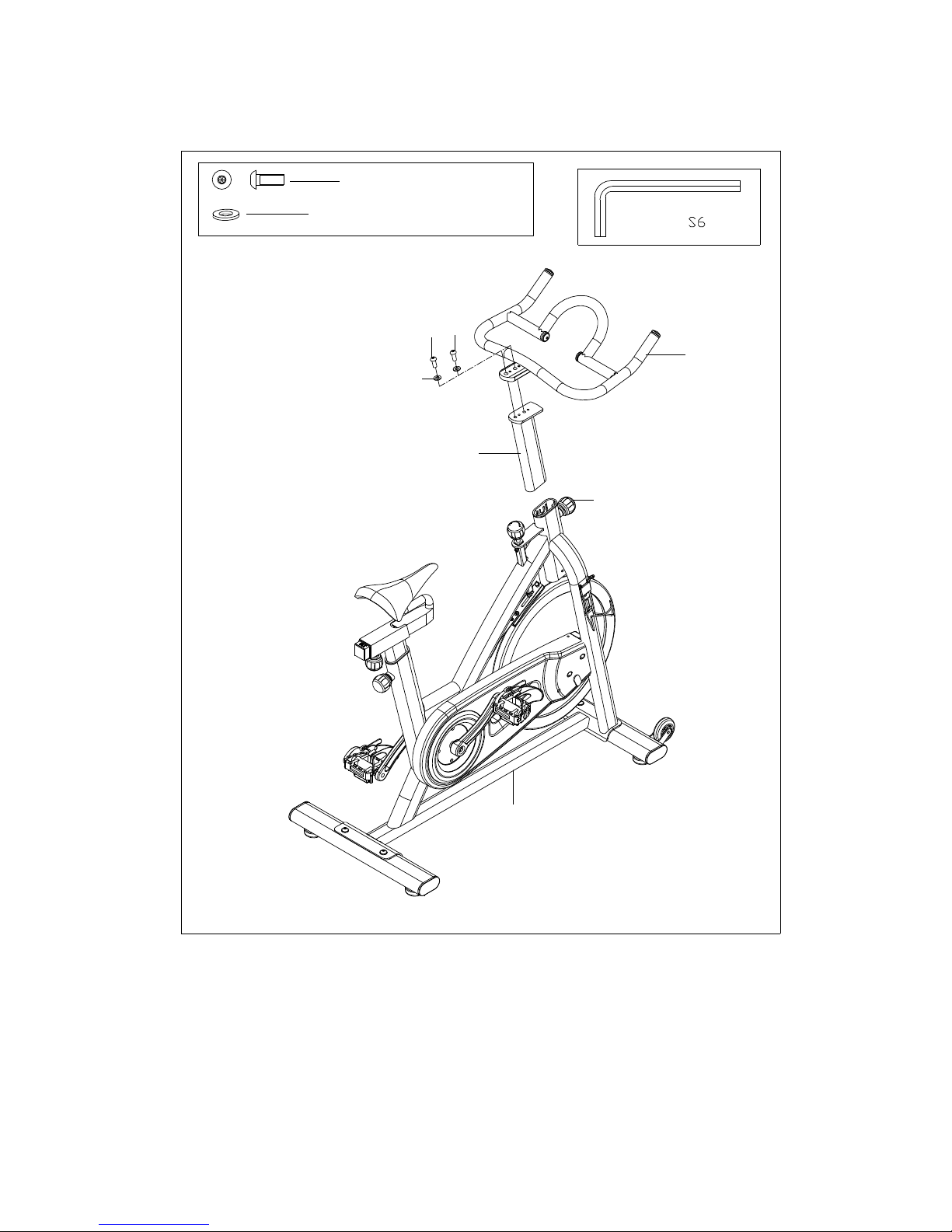

A. Insert handlebar post (4) into main frame (1), and adjust it to desired

position, then tighten it with knob (16).

B. Secure handlebar (3) to handlebar post (4) with screws (19) and washers

(20).
