SF-T7610 TREADMILL

USER MANUAL

IMPORTANT: Read all instructions carefully before using this product.

Retain owner’s manual for future reference. For customer service, please

contact: support@sunnyhealthfitness.com

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including

the following:

Read all instructions before using this treadmill.

DANGER –To reduce the risk of electrical shock:

1. Always unplug this appliance from the electrical outlet immediately after using and before

cleaning.

WARNING–To reduce the risk of burns, fire, electric shock, or injury to persons:

1. The treadmill should never be left unattended when plugged in. Unplug from outlet

when not in use and before putting on or taking off parts.

2. Use this treadmill only for its intended use as described in this manual. Do not use

attachments not recommended by the manufacturer.

3. Never operate this treadmill if it has a damaged cord or plug, is not working properly,

has been dropped or damaged.

4. Keep the cord away from heated surfaces.

5. Never operate the treadmill with the air openings blocked. Keep the air openings free of

lint, hair, and the like.

6. Never drop or insert any object into any opening.

7. Do not use outdoors.

8. Do not operate where aerosol (spray) products are being used or where oxygen is being

administered.

9. To disconnect, turn the treadmill off, then remove plug from outlet.

10.Connect this treadmill to a properly grounded outlet only. See grounding instructions.

CAUTION:Risk of Injury to Persons:

To Avoid Injury, use extreme caution when stepping onto or off of a moving belt. Read

Instruction Manual Before Using.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

We thank you for choosing our product. It is important to read this entire manual before

assembling and using the equipment. It is your responsibility to ensure that all users of the

equipment are informed of all warnings and precautions.

1. Before starting any exercise program you should consult your physician to determine if

you have any medical or physical conditions that could put your health and safety at risk

or prevent you from using the equipment properly. Your physician‟s advice is essential if

you are taking any medication that may affect your heart rate, blood pressure, or

cholesterol level.

2. Be aware of your body‟s signals. Incorrect or excessive exercise can damage your health.

Stop exercising if you experience any of the following symptoms: pain, tightness in your

chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or nausea. If

you do experience any of these conditions, consult your physician before continuing with

your exercise program.

3. Keep children and pets away from the equipment. The equipment is designed for adult

use only.

4. Use the equipment on a solid, flat level surface with a protective cover for your floor or

carpet. To ensure safety, the equipment should have at least 2 feet of free space all

around it.

5. Ensure that all nuts and bolts are securely tightened before using the equipment. Check

equipment regularly for damage and/or wear and tear.

6. We recommend that you lubricate all moving parts monthly.

7. Always use the equipment as indicated. If you find any defective components while

assembling or checking the equipment, or if you hear any unusual noises coming from the

equipment during exercise, stop using the equipment immediately and don‟t use the

equipment until the problem has been rectified.

8. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may

become entangled in the equipment.

9. Do not place fingers or objects into the moving parts of the equipment.

10.The maximum weight capacity of this unit is 220 pounds.

11.This equipment is not suitable for therapeutic use.

12.Move with caution when lifting and moving the equipment. Always use proper lifting

technique and seek assistance if necessary.

13.Your product is intended for use in cool, dry conditions. You should avoid storage in

extreme cold, hot, or damp areas as this may lead to corrosion and other related

problems.

14.This equipment is designed for indoor household use only! It is not intended for

commercial use!

IMPORTANT OPERATING INSTRUCTIONS

1. Insert the power plug directly into the socket.

2. Read the manual before operating the equipment.

3. Changes in speed do not occur immediately. Set your desired speed using the

adjustment keys on the main console. The speed will increase gradually.

4. While on the treadmill, move with caution as distractions may cause you to lose

balance and stray from walking in the center of the belt which may result in serious

injury.

5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand

on the side rails while it starts up, then step onto the belt once it‟s in motion.

6. Always hold the handrail when making changing settings.

7. A safety key is provided for emergency use. The machine will function only if the

safety key is inserted into the computer console. In case of emergency, remove the

safety key to immediately stop the belt and shut off the treadmill. The display screen

will reset once the safety key is reinserted.

8. The console control keys are precisely set and require very little finger pressure to

use. To avoid damaging these keys, do not use excessive pressure when operating

these controls.

9. This equipment is designed for adult use only! Children should not be allowed to use

or play near this equipment. When present, children should be supervised at all

times by an adult.

10. Women who are pregnant or nursing should consult a physician before attempting to

begin any exercise program.

11.Always stay hydrated during and after exercise.

IMPORTANT NOTE:

The belt must be lubricated before the first use! Please see Page 12 for

instructions on how to properly apply lubricant.

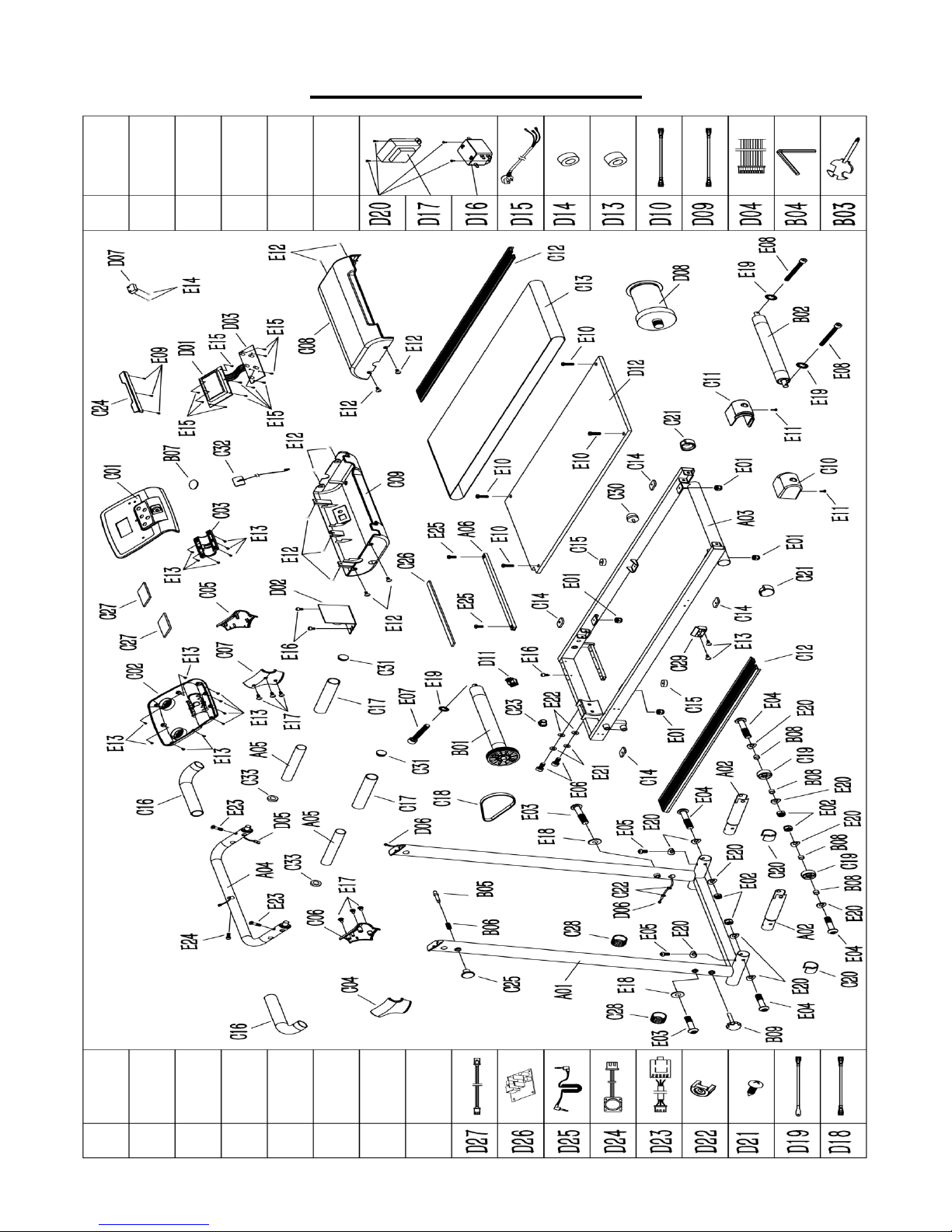

EXPLODED DRAWING

PARTS LIST

A01

Base frame

D03

Keyboard

A02

Base support tube

D04

Connection line

100mm

A03

Main frame

D05

Console upper wire

650mm

A04

Handrail connecting

bracket

D06

Console lower wire

1600mm

A05

Handrail bracket

D07

Speed sensor

200mm

A06

Running board strengthen

tube

D08

DC motor

B01

Front roller

D09

AC single line

Blue 200mm

B02

Rear roller

D10

AC single line

Blown 200mm

B03

Spanner w/ screw driver

S=13、14、15

D11

Power switch

B04

5#Allen wrench

5mm

D12

Running deck

B05

Locking pin iron

D13

Magnetic ring

B06

Pressure spring

φ10.5*30

D14

Magnetic core

B07

Safety key plate

φ20*0.3

D15

Power wire

2150mm

B08

Transport wheel bushing

φ11*φ8.5*7

D16

Filter

optional

B09

Lock knob

φ45*62*M10

D17

Inductance

C01

Console top cover

D18

Single wire 2

350mm

C02

Console bottom cover

D19

Grounding wire

350mm

C03

Console rotate cover

D20

Bolt

M5*8

C04

Left upright tube cover

D21

Screw

ST2.9*6

optional

C05

Right upright tube cover

D22

Audio fixed cap

C06

Left upright tube inside

cover

D23

Audio socket

connections

100mm

C07

Right upright tube inside

cover

D24

Speaker

300mm

8Ù2W

C08

Motor top cover

D25

MP3 wire

C09

Motor bottom cover

D26

Power amplifiers

C10

Left rear cover

D27

Power amplifier wire

100mm

C11

Right rear cover

E01

Nut

C12

Side rail

E02

Nut

C13

Running belt

E03

Bolt

M10*60

C14

Rubber cushion

E04

Bolt

M8*50

C15

Blue cushion

E05

Bolt

M8*15

C16

Foam

E06

Bolt

M8*15

C17

Foam

E07

Bolt

M6*45

C18

Motor belt

E08

Bolt

M6*55

C19

Transport wheel

E09

Bolt

ST2.6*8

C20

C shape foot pad

E10

Bolt

M6*35

C21

C shape foot pad

E11

Bolt

M5*12(including

washer)

C22

Ring Protecting Wire Plug

E12

Bolt

M5*8(including washer)

C23

Power wire buckle

E13

Screw

ST4.2*12

C24

Plastic holder

E14

Screw

ST2.9*8

C25

Locking pin

E15

Screw

ST2.9*6

C26

EVA cushion 1

E16

Screw

ST4.2*12

C27

EVA cushion 2

E17

Screw

ST3.5*10

C28

Tube plug

E18

Big washer C

ö26*ö10*2.0

C29

Fixed block

E19

Washer

C30

Cushion

E20

Washer

C31

Inner cap

E21

Spring washer

C32

Safety key

E22

Flat washer C

C33

Rubber cushion

E23

Bolt

M8*40

D01

console display

E24

Bolt

M6*15

D02

Control board

ASSEMBLY HARDWARE

CARTON CONTENTS:

Parts List:

NO.

DES.

Specification

Nos.

NO.

DES.

Specification

Nos.

Main Frame

C32

Safety key

A02

Base support tube

E02

Nut

A05

Handrail bracket

E04

Bolt

M8*50

B03

Spanner w/ Screw Driver

S=13、14、15

E05

Bolt

M8*15

B04

Allen wrench

5mm

E20

Arc Washer

B09

Lock knob

ASSEMBLY TOOLS

Allen Wrench (5mm) –1PC

Spanner with Screw Driver (S=13, 14, 15) –1PC

ASSEMBLY INSTRUCTIONS

STEP 1:

STEP 2:

Notice: We recommend having

two people do the assembly.

Open the carton box, take out

the contents, and place the

Main Frame (A) on level

ground.

Notice: Support Main frame

(A03) at position “F” with one

hand to prevent it from falling

down during assembly.

Attach the 2 Base support

tubes (A02) to Base frame

(A01). Use 5#Allen wrench

(B04) to screw the M8*50

bolt (E04) and Arc Washer

(E20) into the Base frame

(A01).

Screw the Bolt (E05) and Arc

Washer (E20) into both side

of the Base frame (A01).

STEP 3:

STEP 4:

Notice: To avoid any possible

injury, please hold on the Main

frame (A03) at position “F”

before you pull the Locking

pin (C25) and ensure that the

space directly underneath it is

clear of any objects. Once the

Main frame (A03) is released,

please continue to hold on until

it reaches the floor.

Pull the Locking pin (C25) and

lower the Main frame (A03) to

the floor.

Note: The Locking pin (C25)

will snap back into the

machine. It does not detach

from the machine.

Attach the Handrail brackets

(A05) into Handrail connecting

tube (A04) by turning clockwise.

Andere Handbücher für SF-T7610

Inhaltsverzeichnis

Andere Sunny Tretmühle Handbücher

Sunny

Sunny SF-T7514 Bedienungsanleitung

Sunny

Sunny SF-T7512 Bedienungsanleitung

Sunny

Sunny SF-T7603 Bedienungsanleitung

Sunny

Sunny SF-T7635 Bedienungsanleitung

Sunny

Sunny SF-T7971 Bedienungsanleitung

Sunny

Sunny SF-T1415 Bedienungsanleitung

Sunny

Sunny SF-T722021 Bedienungsanleitung

Sunny

Sunny TreadPad SF-T7970 Bedienungsanleitung

Sunny

Sunny SF-T722022 Bedienungsanleitung

Sunny

Sunny SF-TD7884 Bedienungsanleitung

Sunny

Sunny SF-T4400 Bedienungsanleitung

Sunny

Sunny SF-T7955 Bedienungsanleitung

Sunny

Sunny SF-T7946 Bedienungsanleitung

Sunny

Sunny SF-T808M Bedienungsanleitung

Sunny

Sunny SF-T1413 Bedienungsanleitung

Sunny

Sunny SF-T723007 Bedienungsanleitung

Sunny

Sunny SF-T808M Bedienungsanleitung

Sunny

Sunny SF-T1408M Bedienungsanleitung

Sunny

Sunny SF-T7610 Bedienungsanleitung

Sunny

Sunny SF-T7604 Installations- und Betriebshandbuch

Sunny

Sunny SF-T722052 Bedienungsanleitung

Sunny

Sunny SF-T7857 Bedienungsanleitung

Sunny

Sunny SF-T7917 Bedienungsanleitung

Sunny

Sunny SF-T1409M Bedienungsanleitung

Beliebte Tretmühle Handbücher anderer Marken

Treadly

Treadly TREADLY 2 Bedienungsanleitung

HEALTH ONE

HEALTH ONE Walk Ro Bedienungsanleitung

NordicTrack

NordicTrack NTL12941 Bedienungsanleitung

NordicTrack

NordicTrack T7.5 S Bedienungsanleitung

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Bedienungsanleitung

Merax

Merax MS282992 Bedienungsanleitung

FYTTER

FYTTER RU-2SX Bedienungsanleitung

Precor

Precor 903 Bedienungsanleitung

FitLogic

FitLogic freewill d225 Bedienungsanleitung

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Bedienungsanleitung

Horizon Fitness

Horizon Fitness Adventure 5 Plus Bedienungsanleitung

Stamia

Stamia InMotion II Bedienungsanleitung

Smooth Fitness

Smooth Fitness EVO 3i Bedienungsanleitung

NordicTrack

NordicTrack NETL81810.0 Bedienungsanleitung

Schwinn

Schwinn 830/Journey 8.0 Bedienungsanleitung

Keys Fitness

Keys Fitness HealthTrainer HT-740T Bedienungsanleitung

Spirit

Spirit XT8 Bedienungsanleitung

NordicTrack

NordicTrack T 14.0 Treadmill Bedienungsanleitung
