Superbrightleds STN-1-TW Bedienungsanleitung

Power

Supply

Power

Supply

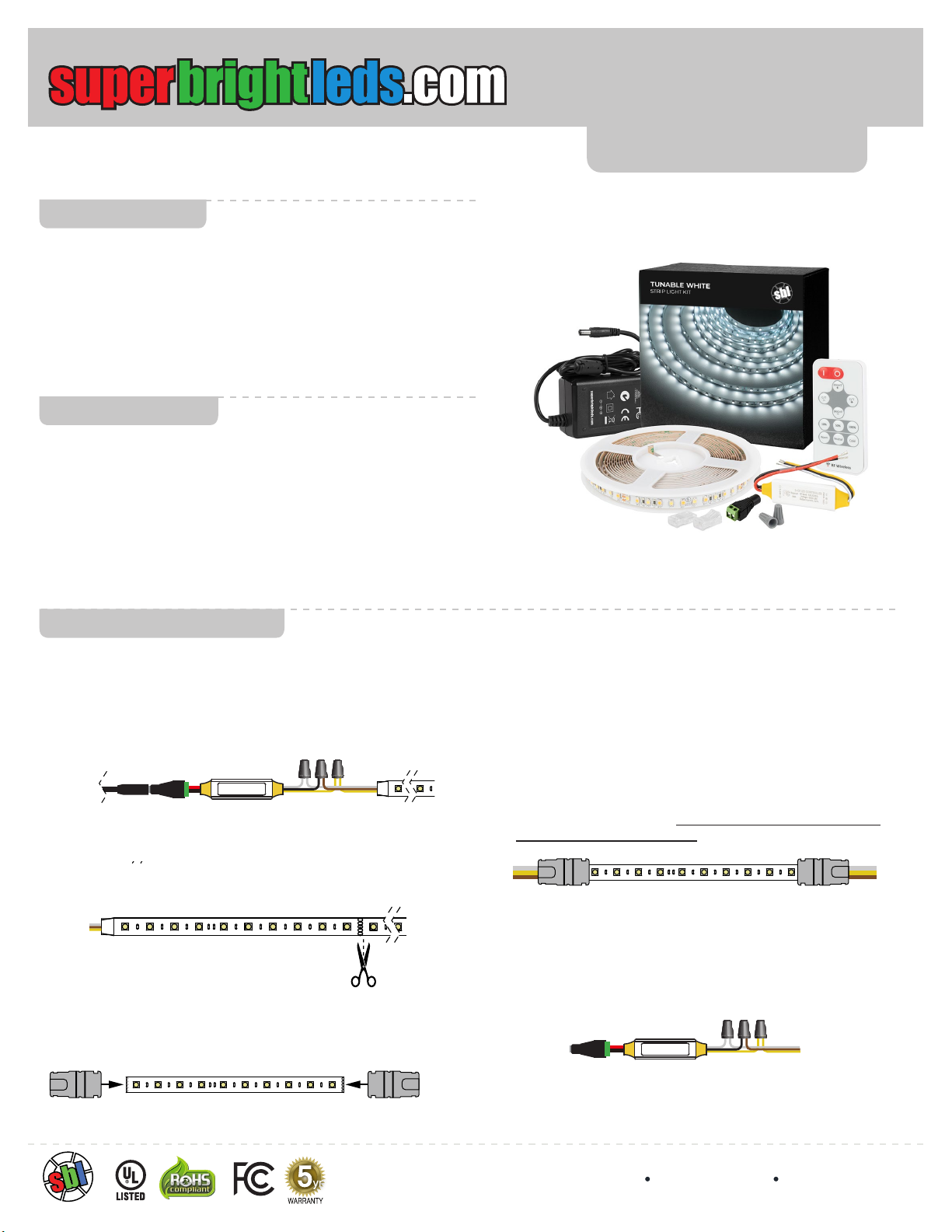

Under Cabinet LED Flexible Light Strip Kit

Important: Read all instructions prior to installation. STN-1-TW

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V0.2 04/21/2022

User Manual

Included Parts

Installation Process

Safety and Notes

• Product should be installed in accordance with applicable national,

state, and local electrical codes.

• To reduce the risk of electric shock, ensure that the main power

source is switched o󰀨 and the power supply is disconnected

before performing any installation or wiring procedures.

• Product is for use in dry, indoor locations only.

• Do not connect strip or controller directly to AC power.

• Do not connect components other than those included to the

power supply.

• Ensure the polarity of all connections is correct during installation.

¹UL certification only applies to the included strip and power supply

1 - LED Strip

1 - Controller with Wireless RF Remote(MCBRF-VCT7)

1 - Power Supply (CPS-24V-60W)

1 - CPS Connector (CPS-F2ST)

1 - 10 ft Section of 3 Conductor 22 AWG Wire (WP22-3)

8 - Wire Nuts (WN-2216)

14 - Clamp-On Solderless Connectors (SBL-MA3P-10)

4 - Double-Sided Adhesive Foam Pads (3M-FTP)

Power

Supply

Power

Supply

Power

Supply

Power

Supply

Power

Supply

Power

Supply

Power

Supply

Power

Supply

Preinstall Check

Remove strip from reel and make connections to power supply

and controller. Briey turn on strip using controller power button

to ensure proper operation of the strip, power supply, controller,

and remote. After successful test, disconnect power supply and

disconnect components.

Layout

Layout strip on counter below cabinets. Hold strips up under

cabinets or measure to determine lengths of strip segments

needed for installation. Cut strip to desired lengths ensuring all

cuts are made only on marked cut lines.

Strip Installation

Attach solderless connectors (STN10-3PC) to strip ends by

placing the connector fully over the strip and pushing down cap

until it locks in place.

Next, ensure all installation surfaces are clean and dry.

Begin to remove strip’s backing while adhering to bottom front

edge of cabinets for optimal illumination. Press rmly to secure

strips to surface.

Route wire (WP22-3) for strip-to-strip connections under cabinet

seams, windows, and other spaces between cabinets. Cut wire

to length and attach wire ends to solderless connectors by

placing the wire fully into the connector and pushing the cap

down until it locks in place. Ensure the wires are connected to

the correct polarity on the strip.

Controller and Power Connection

Use the double-sided foam adhesive pads (3M-FTP) to mount

the controller. Connect lead wires at the end of the strip run

to the controller (MCBRF-VCT7) with wire nuts (WN-2216).

Connect opposite end of the controller to the CPS Connector

(CPS-F2ST).

Connect the power supply (CPS-24V-60W) to the CPS

connector and apply power to check for proper operation .

Note: Wiring may vary based on cabinet conguration and outlet availability.

Power Supply

(CPS-24V-60W)

Double-Sided

Adhesive Foam Pads

(3M-FTP)

Wire Nuts

(WN-2216)

CPS Connector

(CPS-F2ST)

Controller

(MCBRF-VCT7)

Clamp-On

Solderless

Connector

(STN10-3PC)

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V0.2 04/21/2022

Cabinet Seam

Bridging Cabinet Seams

Do not install strips over cabinet seams.

Use interconnect sections to connect strips over seams.

Under Cabinet LED Flexible Light Strip Kit

Important: Read all instructions prior to installation. STN-1-TW

User Manual

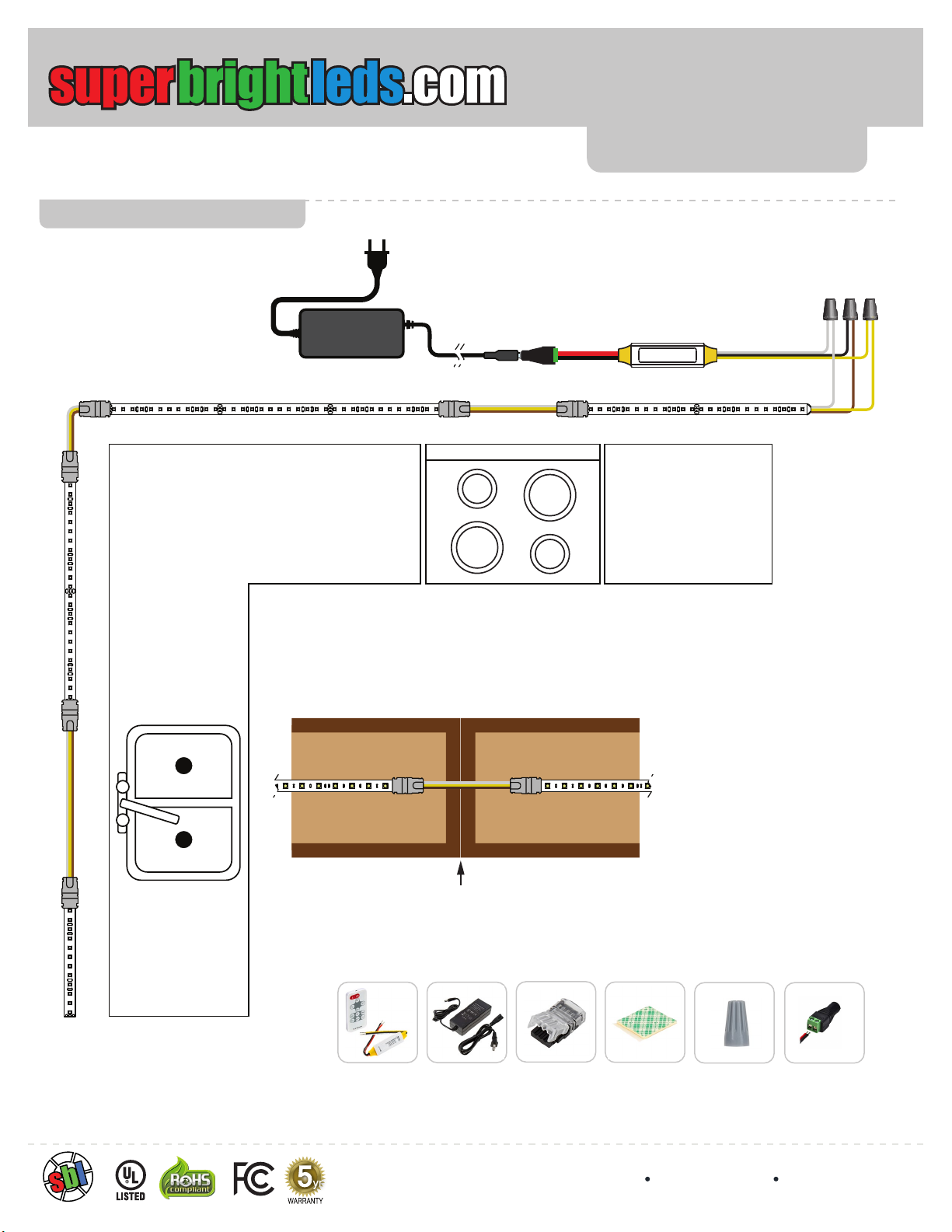

General Installation Diagram

Installation Components

Power Supply

(CPS-24V-60W)

Bluetooth Controller

(MCBRF-VCT7)

CPS Connector

(CPS-F2ST)

¹UL certification only applies to the included strip and power supply
