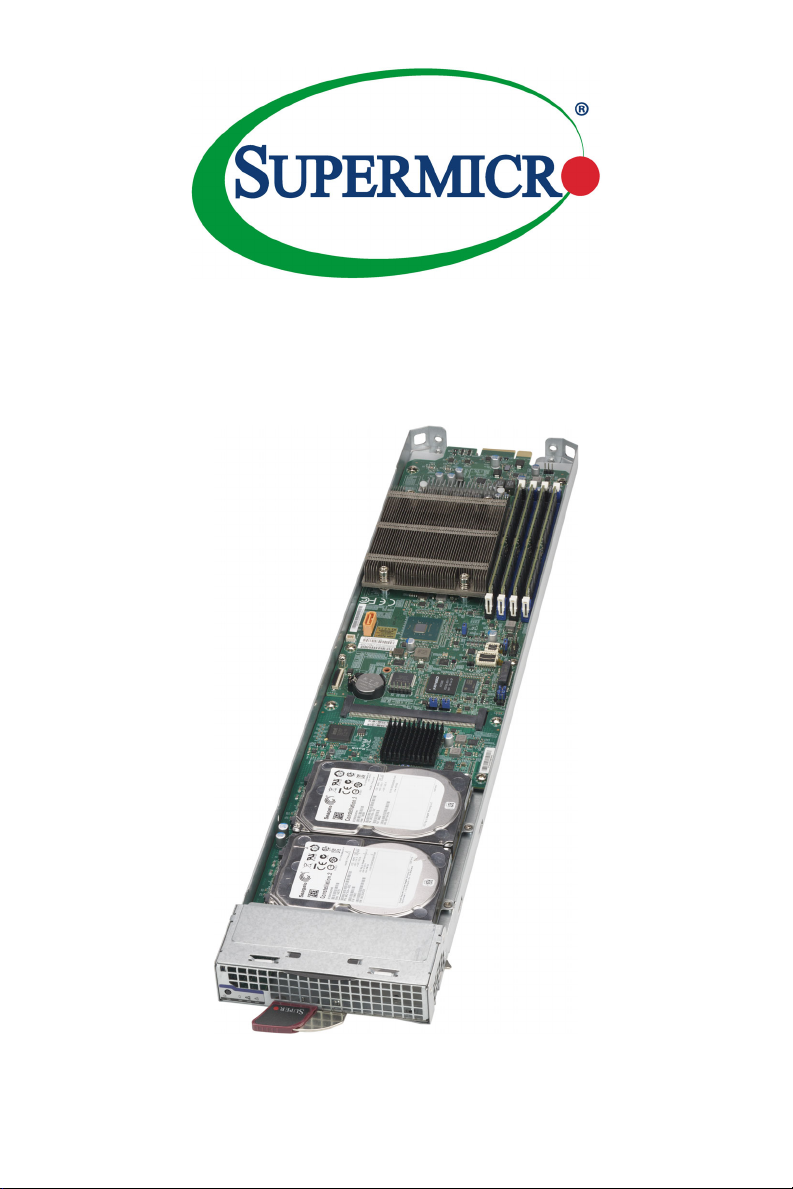

Supermicro MicroBlade MBI-6119M-C2 Bedienungsanleitung

MBI-6119M-C2

MicroBlade™ Module

User’s Manual

Revison 1.0b

MBI-6119M-C2 MicroBlade Modules User’s Manual

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The

vendor assumes no responsibility for any inaccuracies that may be contained in this document, and

makes no commitment to update or to keep current the information in this manual, or to notify any person

or organization of the updates. Please Note: For the most up-to-date version of this manual, please

see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described

in this manual at any time and without notice. This product, including software and documentation, is the

property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction

of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,

INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR

INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY

OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE

LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT,

INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR

RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara

County in the State of California, USA. The State of California, County of Santa Clara shall be the

exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not

exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in industrial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with

the manufacturer’s instruction manual, may cause harmful interference with radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which case you

will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning

applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”.

Manual Revison 1.0b

Release Date: June 25, 2020

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy

any part of this document. Information in this document is subject to change without notice. Other

products and companies referred to herein are trademarks or registered trademarks of their respective

companies or mark holders.

Printed in the United States of America

WARNING: This product can expose you to chemicals including

lead, known to the State of California to cause cancer and birth

defects or other reproductive harm. For more information, go

to www.P65Warnings.ca.gov.

iii

Preface

About this Manual

This manual is written for professional system integrators, Information Technology

professionals, service personnel and technicians. It provides information for the

installation and use of the Supermicro MBI-6119M-C2 MicroBlade module. Installation

and maintenance should be performed by experienced professionals only.

Manual Organization

Chapter 1: Introduction

The first chapter provides a checklist of the main components included with the

MicroBlade modules and describes their main features.

Chapter 2: System Safety

You should familiarize yourself with this chapter for a general overview of safety

precautions that should be followed when installing and servicing the MicroBlade

modules.

Chapter 3: Setup and Installation

Refer to this chapter for details on installing the MicroBlade modules into the MicroBlade

chassis. Other sections cover the installation and placement of memory modules and

the installation of hard disk drives into the blade module.

Chapter 4: Blade Module Features

This chapter coves features and component information about the MicroBlade modules.

Included here are descriptions and information for mainboard components, connectors,

LEDs and other features of the blade module.

Chapter 5: BIOS

BIOS setup is covered in this chapter for the MicroBlade modules.

Appendix A: BIOS POST Codes

BIOS POST Codes for the MicroBlade modules are explained in this appendix.

Secure Data Deletion

A secure data deletion tool designed to fully erase all data from storage devices can be

found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/

wftp/utility/Log9_Secure_Data_Deletion_Utility/

MBI-6119M-C2 MicroBlade Modules User’s Manual

Table of Contents

Chapter 1 Introduction.......................................................................1-1

1-1 Overview.............................................................................................1-1

1-2 Blade Module Features ....................................................................1-2

Processors ..............................................................................................1-2

Memory ................................................................................................... 1-2

Storage ...................................................................................................1-3

RAID .......................................................................................................1-3

Density ....................................................................................................1-3

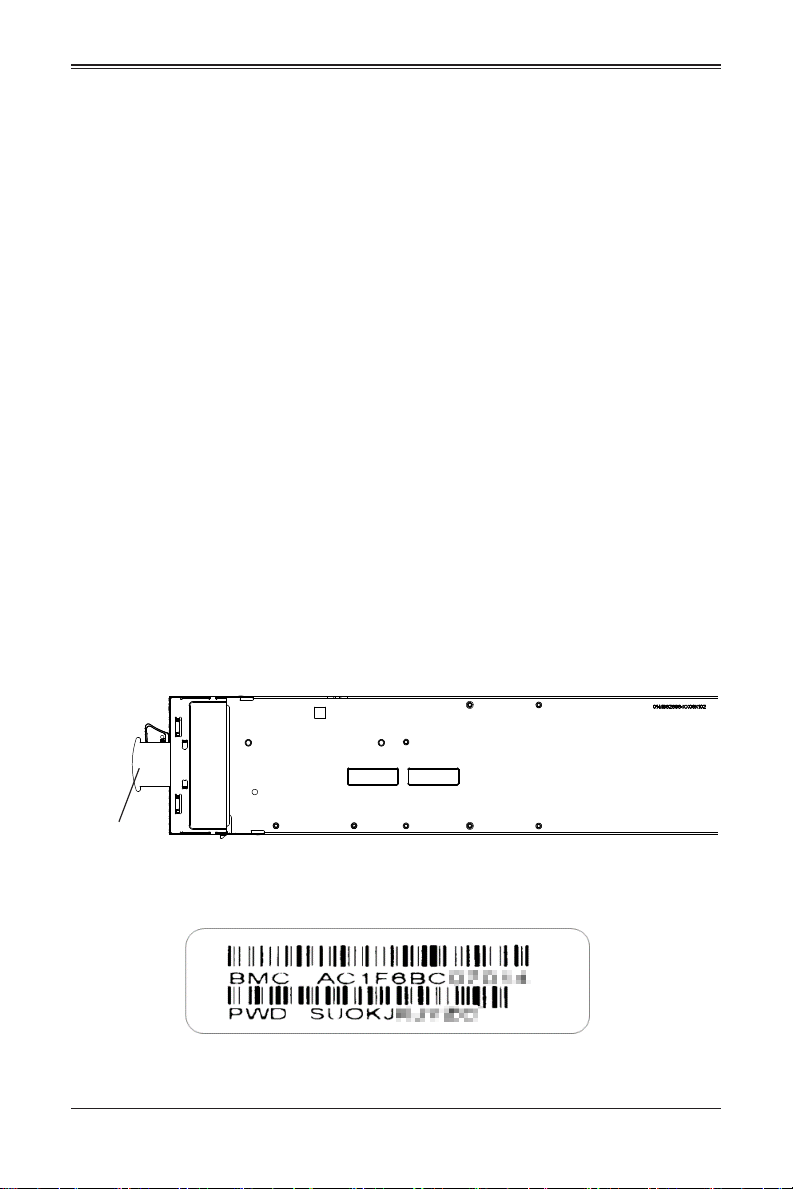

BMC Password .......................................................................................1-3

1-3 Contacting Supermicro.....................................................................1-4

Chapter 2 Standardized Warning Statements.....................2-1

2-1 About Standardized Warning Statements .....................................2-1

Warning Definition...................................................................................2-1

Installation Instructions ...........................................................................2-3

Circuit Breaker ........................................................................................2-4

Power Disconnection Warning................................................................2-5

Equipment Installation.............................................................................2-6

Restricted Area .......................................................................................2-7

Battery Handling .....................................................................................2-9

Redundant Power Supplies ..................................................................2-10

Backplane Voltage ................................................................................2-11

Comply with Local and National Electrical Codes.................................2-12

Product Disposal...................................................................................2-13

Hot Swap Fan Warning .........................................................................2-14

Power Cable and AC Adapter ..............................................................2-15

Chapter 3 Setup and Installation.................................................3-1

3-1 Overview.............................................................................................3-1

3-2 Installing MicroBlade Modules ........................................................3-1

Powering Up a MicroBlade Module Unit .................................................3-1

Powering Down a MicroBlade Module Unit.............................................3-1

Removing a MicroBlade Module Unit from the Enclosure ......................3-2

Installing a Blade Unit into the Enclosure ...............................................3-2

3-3 Onboard Battery Installation............................................................3-3

3-4 Processor and Heatsink Installation...............................................3-4

MBI-6119M-C2 MicroBlade Modules User’s Manual

Installing the Processor(s) ......................................................................3-4

Installing a Heatsink................................................................................3-6

Removing a Heatsink..............................................................................3-7

3-5 Memory Installation...........................................................................3-8

Populating Memory Slots ........................................................................3-8

DIMM Installation ....................................................................................3-9

3-6 Hard Disk Drive Installation ...........................................................3-10

3-7 Installing the Operating System....................................................3-10

Installing via PXE Boot..........................................................................3-10

Installing via Virtual Media (Drive Redirection) .....................................3-10

Chapter 4 MicroBlade Module Features .................................4-1

4-1 Control Panel .....................................................................................4-2

Power Button ..........................................................................................4-3

LED Indicators ........................................................................................4-3

4-2 Motherboard.......................................................................................4-4

Jumpers ..................................................................................................4-6

CMOS Clear............................................................................................4-6

4-3 Blade Unit Components ...................................................................4-7

Memory Support .....................................................................................4-8

Hard Disk Drives .....................................................................................4-8

Chapter 5 BIOS.......................................................................................5-1

5-1 Introduction.........................................................................................5-1

System BIOS ..........................................................................................5-1

How To Change the Configuration Data .................................................5-1

Starting the Setup Utility .........................................................................5-1

5-2 BIOS Updates....................................................................................5-2

5-3 Running Setup ...................................................................................5-3

5-4 Main BIOS Setup...............................................................................5-4

5-5 Advanced Setup ................................................................................5-5

5-6 Event Logs Setup............................................................................5-18

5-7 IPMI Setup........................................................................................5-19

5-8 Security .............................................................................................5-21

5-9 Boot ...................................................................................................5-23

5-10 Save & Exit.....................................................................................5-24

vii

Appendix A AMI UEFI BIOS POST Codes..............................A-1

A-1 Checkpoint Ranges ..........................................................................A-1

A-2 Standard Checkpoints......................................................................A-2

A-3 OEM-Reserved Checkpoint Ranges .............................................A-8

1-1

Chapter 1

Introduction

1-1 Overview

This user’s manual covers the MBI-6119M-C2 MicroBlade module. These MicroBlade

module are compact self-contained servers that connect into pre-cabled enclosures that

provide power, cooling, management and networking functions. One enclosure for these

MicroBlade module can hold twenty-eight blade units. These MicroBlade module use

the Intel®Xeon®Processor E-2100 series processor.

In this manual, “blade system” refers to the entire system (including the enclosure and

blades units), “blade”, “MicroBlade” or “blade unit” refers to a single MicroBlade module

and “blade enclosure” is the chassis that the MicroBlades, power supplies and

MicroBlade modules are housed within.

Please refer to our web site for information on operating systems that have been

certified for use with the MicroBlade (http://www.supermicro.com/products/nfo/

microblade.cfm).

Note: For your system to work properly, please follow the links below to download all

necessary drivers/utilities and the user’s manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/

• Product drivers and utilities: ftp://ftp.supermicro.com

• If you have any questions, please contact our support team at:

support@supermicro.com

Note: A complete list of safety warnings is provided on the Supermicro web site at

http://www.supermicro.com/about/policies/safety_information.cfm.

MBI-6119M-C2 MicroBlade Modules User’s Manual

1-2

1-2 Blade Module Features

Table 1-1 lists the main features of the MicroBlade module. See the proceeding section

for components typically included in a blade system and other optional components.

Specific details for the MBI-6119M-C2 MicroBlade module are found in Chapter 4:

MicroBlade Module Features" on page 4-1.

Processors

The MBI-6119M-C2 MicroBlade module supports a single H4 (LGA 1151) Intel Xeon

Processor E-2100 series series processor in a H4 (LGA 1151) socket embedded in the

motherboard. This system uses the Intel C236 chipset.

Refer to the Supermicro web site for a complete listing of supported processors (http://

www.supermicro.com/products/microblade). Please note that you will need to check the

detailed specifications of a particular blade module for a list of the CPUs it supports.

Details on installation of the processor into the MBI-6119M-C2 MicroBlade module is

found in Chapter 3: Setup and Installation" on page 3-1.

Memory

The MBI-6119M-C2 MicroBlade module has four (4) 288-pin DIMM sockets that can

support up to 64 GB of DDR4 2666 MHz speed, 16 GB size, 1.2 V voltage 2RX8 ECC

VLP UDIMM memory. Memory is interleaved, which requires modules to be of the same

size and speed.

Please refer to the Supermicro web site for a list of supported memory http://

www.supermicro.com/products/microblade The detailed specifications for a blade

module will contain a link to a list of recommended memory sizes and manufacturers.

Details on installation of memory modules into the MBI-6119M-C2 MicroBlade module is

found in Chapter 3: Setup and Installation" on page 3-1.

Table 1-1. MBI-6119M-C2 MicroBlade Module Specification Features

Motherboard B2SC1-CPU (proprietary form factor)

Enclosures MBE-628E-xxx and MBE-314E-xxx

Chassis Specifications Chassis Dimensions (HxWxD): 1.2" x 4.94" x 23.2" (30.48-mm x

125.476-mm x 589.28-mm), Gross Weight: 5.01 lbs (2.27 kg)

Processors One Intel Xeon Processor E-2100 series embedded in a H4 (LGA 1151)

socket on the motherboard

BIOS 128 Mb SPI Flash EEPROM with AMI® BIOS

Memory Capacity Supports up to 64 GB of DDR4 2666 MHz speed and 16 GB size, 1.2 V

voltage 2RX8 ECC VLP UDIMM memory in four (4) 288-pin DIMM sockets

Hard Drive Bays Supports up to two SSD or two SAS3/SATA3 Spindle HDD 2.5" drives

1-3

Chapter 1: Introduction

Storage

The MBI-6218G-T81X MicroBlade module has two 2.5" SATA3 HDD/SSD drives

internally mounted for storage or for installation of the blade’s operating system (one per

node). See Chapter 3: " Setup and Installation" on page 3-1 for storage installation

details.

RAID

The MBI-6218G-T81X MicroBlade module supports up to two drives, but only one per

node, so RAID is NOT supported.

Density

A maximum of twenty-eight dual-node blade modules may be installed into a single

blade enclosure. Each blade enclosure is a 6U form factor, so a standard 42U rack may

accommodate up to seven enclosures with 196 dual-node blade modules or the

equivalent of 392 1U servers. With the inclusion of up to fourteen CMM modules and up

to twenty-eight Gigabit Ethernet switches this would occupy up to 434U space in a

conventional 1U server configuration.

BMC Password

For security, each blade unit is assigned a unique default BMC password for the ADMIN

user. It can be found on a sticker on the blade service tab, and a sticker on the

motherboard. The sticker also displays the BMC MAC address. For more information,

refer to our website at https://www.supermicro.com/en/support/

BMC_Unique_Password. The service tab and an example sticker are illustrated below.

Service Tab

Password

Sticker
