C9Z590-CG/-CGW QUICK REFERENCE GUIDE Product Safety Information

Standardized Warning Statements

Motherboards

About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which can potentially

cause a bodily injury. Should you have questions or experience difculty, contact Supermicro's Technical Support De-

partment for assistance. Only certied technicians should attempt to install or congure components.

Read this section in its entirety before installing or conguring components in the Supermicro chassis.

WARNING: This product can expose you to chemicals including

lead, known to the State of California to cause cancer and birth

defects or other reproductive harm. For more information, go

to www.P65Warnings.ca.gov.

Battery Handling

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or an equiva-

lent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

警告

電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商的說明指示處理

廢棄舊電池。

警告

电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电池。请按制造商的说明处理

废旧电池。

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメーカーが推奨する型、または同等のもの

を使用下さい。使用済電池は製造元の指示に従って処分して下さい。

경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제조사에서 권장하는 동등한

종류의 배터리로만 교체해야 합니다. 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.









Note: For complete product safety information, refer to http://www.supermicro.com/about/policies/safety_information.cfm.

C9Z590-CG/-CGW QUICK REFERENCE GUIDE 限用物質含有情況標示聲明

限

用

物

質

含

有

情

況

標

示

聲

明

書

設備名稱：主機板 /

Motherboard

型號（型式）：C9Z590-CG, C9Z590-CGW

單元Ｕnit

限用物質及其化學符號

鉛Lead

(Pb) 汞Mercury

(Hg) 鎘Cadmium

(Cd)

六價鉻

Hexavalent

chromium

(Cr+6)

多溴聯苯

Polybrominated

biphenyls

(PBB)

多溴二苯醚

Polybrominated

diphenyl ethers

(PBDE)

主機板

(Motherboard)

－○○○○○

備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準

值。

備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。

備考3.〝－〞係指該項限用物質為排除項目。

Equipment name

Type designation (Type)

Restricted substances and its chemical symbols

Declaration of the Presence Condition of the Restricted Substances Marking

Note 1

：

“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the

reference percentage value of presence condition.

Note 2

：

“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.

Note 3

：

The “−” indicates that the restricted substance corresponds to the exemption.

AMI BIOS POST Codes

About AMI BIOS POST Codes

The table below lists some of AMI BIOS POST codes for C9Z490-PG/-PGW. For more information, refer to https://www.

supermicro.com/manuals/other/AMI_AptioV_BIOS_POST_Codes_for_SM_Motherboards.pdf.

Code Description

0x32 CPU post-memory initialization is started

0x55 No Memory detected or memory failed

0x63 CPU DXE initialization is started

0x69 North Bridge DXE initialization is started

0x70 South Bridge DXE initialization is started

0x92 PCI Bus initialization is started

0x99 Super IO Initialization

0x9A USB initialization is started

0xA0 IDE initialization is started

0xA9 Boot into BIOS setup menu

0xAE Legacy Boot event

0xB2 Legacy Option ROM Initialization

0xB4 USB hot plug

0xD6 No console output devices are found

0xD7 No console input devices are found

0xF2 Recovery process started

0xF9 Recovery capsule is not found

C9Z590-CG/-CGW QUICK REFERENCE GUIDE AMI BIOS POST Codes

M.2 Device Installation Instructions

Installation with Pre-installed Stando󰀨s

Notes:

1. The graphics shown above are examples of the M.2 installation. The motherboard you received may or may

not look exactly the same.

2. DO NOT install the bounded M.2 heatsink (refer to images 3 and 4) if the M.2 device has a heatsink installed.

3. Please assemble the M.2 heatsink back to the motherboard once the M.2 device has been removed.

4. Beware of the direction when assembling the heatsink (refer to image 4).

5. Refer to the user's manual for more detailed descriptions.

C9Z590-CG/-CGW QUICK REFERENCE GUIDE M.2 Device Installation Instructions

1 2

C9Z590-CG/-CGW QUICK REFERENCE GUIDE M.2 Device Installation Instructions

Installation without Pre-installed Stando󰀨s

Notes:

1. The graphics shown above are examples of the M.2 installation. The motherboard you received may or may

not look exactly the same.

2. To install an M.2 22110 device, please refer to the instructions of Installation with Pre-installed Standoffs on

the previous page.

3. DO NOT install the bounded M.2 heatsink (refer to images 4 and 5) if the M.2 device has a heatsink installed.

4. Please assemble the M.2 heatsink back to the motherboard once the M.2 device has been removed.

5. Beware of the direction when assembling the heatsink (refer to image 5).

6. Refer to the user's manual for more detailed descriptions.

Audio Conguration

1 3

Audio Conguration

2 Channel 4.1 Channel 5.1 Channel 7.1 Channel

1Orange

(Center/LFE Out) Center/Subwoofer Center/Subwoofer

2Black

(Surround) Rear Speaker Out Rear Speaker Out Rear Speaker Out

3Light Blue

(Line In/Side Speaker Out) Line In Line In Line In Side Speaker Out

4Lime

(Line Out/Front Speaker Out) Line Out Front Speaker Out Front Speaker Out Front Speaker Out

5Pink

(Mic In) Mic In Mic In Mic In Mic In

C9Z590-CG/-CGW QUICK REFERENCE GUIDE Audio Conguration

C9Z590-CG/-CGW QUICK REFERENCE GUIDE Notes

Notes

SUPERMICR R

C9Z590-CG/-CGW

QuiCk RefeRenCe Guide Rev. 1.00

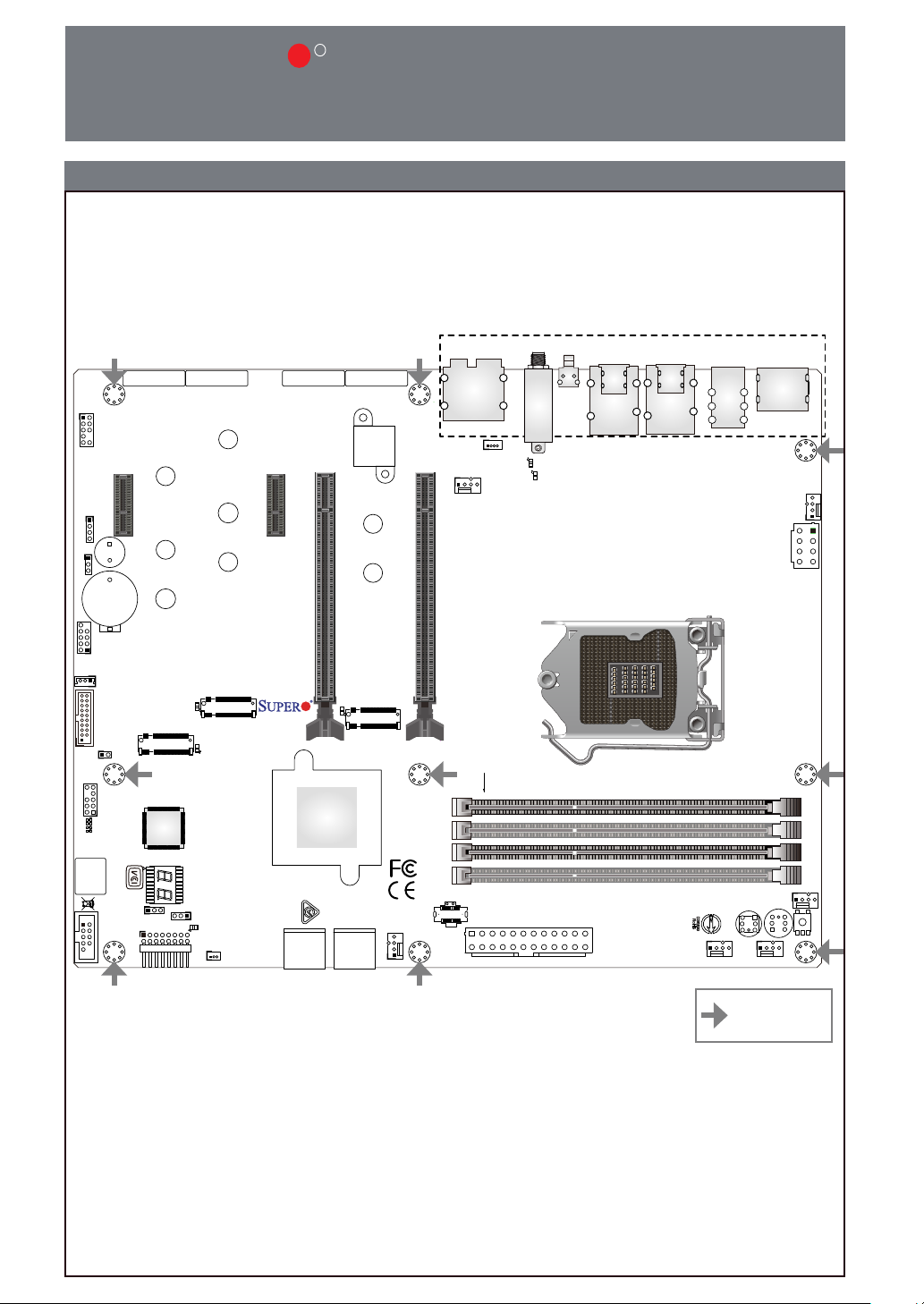

Motherboard Layout and Features

= mounting hole

I/O BACK PANEL

DESIGNED IN USA

C9Z590-CGW

REV:1.01

BIOS

LICENSE

MAC CODEMAC CODE BAR CODE BAR CODE

iuqP

JRLED1

JSTBY1

JTPM1

SP1

JD1

JSD1

JPW1

LED17

LED18

LED1

LED4801

LED2

LED3

JPW2

JL1

LED4

JLED1 JWD1

JPME2

PCH

2260

2280

PCH SLOT1 PCI-E 3.0 X1

USB 12(3.2(20Gb))

12V_PUMP_PWR1

JF1

22110

2280

2260

2280

22110

BOOT LED

VGA LED

DIMM LED

CPU LED

AUDIO FP

COM1

USB4/5

USB 10/11(3.2(5Gb))

PCH SLOT4 PCI-E 3.0 X1

I-SATA3

I-SATA2

CPU SLOT5 PCI-E 4.0 X8 (IN X 16)

I-SATA1

I-SATA0

CPU SLOT7 PCI-E 4.0 X16

SYS_FAN2

SYS_FAN3

USB 0/1/2/3

POWER

BUTTON

DIMMB1

DIMMB2

DIMMA1

DIMMA2

RESET

BUTTON

SYS_FAN1

CPU_FAN1

CLEAR CMOS

CPU_FAN2

USB 6 (3.2, 10Gb)

USB 7 (3.2, 20Gb)

LAN1

USB 9 (3.2, 20Gb)

USB 8 (3.2, 10Gb)

LAN2

DP/HDMI

SW1

HD AUDIO

PCIE M.2-M2

PCIE M.2-M3

PCIE M.2-M1

PCIE M.2-E1
