Supermicro SuperServer SYS-121H-TNR Montageanleitung

Abstract

This document provides clear guidance for end-of-life recyclers on how to identify

and disassemble reportable materials in compliance with the Waste Electrical and

Electronic Equipment (WEEE) directive.

WEEE DISASSEMBLY INSTRUCTIONS

SUPERMICRO SYS-121H-TNR ENCLOSURE




Table of Contents
Product Views............................................................................................................................................1
Reportable Materials on SYS-121H-TNR...................................................................................................2
Disassemble Instructions ..........................................................................................................................3
1 Recommended Disassembly Tools......................................................................................................3
2 Disassembled flowchart......................................................................................................................3
3 Step-by-Step Disassembly Instructions ..............................................................................................6
Removing Cable and Chassis Top Cover ...........................................................................................6
Removing Hard Disk Drive ................................................................................................................7
Removing Power Supply ...................................................................................................................8
Removing Backplane.........................................................................................................................9
Removing Fan ....................................................................................................................................9
Removing the Air shroud and Riser Bracket...................................................................................10
Removing the Riser Card.................................................................................................................10
Removing Processor........................................................................................................................10
Removing DIMM..............................................................................................................................12
Removing M.2..............................................................................................................................13
Removing Motherboard..............................................................................................................13



1. Product Views

Front view

Rear view

Product construct view

2. Reportable Materials on SYS-121H-TNR

According to Article 8(2) and Annex VII of WEEE directive 2012/19/EU, Below materials and components

should be selectively treated.

Description

Notes

No.

Quantity

Printed Circuit Boards (PCB) or

Printed Circuit Assemblies (PCA)

With a surface greater than 10 sq cm

(Depending on the product

configuration)

2.4, 3.5, 4.2, 4.1, 7.1,8.2,

9.1, 10.1, 11.1

Batteries

All types, including standard alkaline

and lithium coin or button style

batteries

11.2

Mercury-containing components

For example, mercury in lamps,

display backlights, scanner lamps,

switches, batteries

Liquid Crystal Displays (LCD) with

a surface greater than 100 sq cm

Includes background illuminated

displays with gas discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers

(Containing PCB/PCT)

Electrolytic Capacitors /

Condensers measuring greater

than 2.5 cm in diameter or height

Depending on the power supply

model

3.6

External electrical cables and

cords

1.1

Gas Discharge Lamps

Plastics containing Brominated

Flame Retardants weighing > 25

grams (not including PCBs or PCAs

already listed as a separate item

above)

Components and parts containing

toner and ink, including liquids,

semi-liquids (gel/paste), and toner

Include the cartridges, print heads,

tubes, vent chambers, and service

stations.

Components and waste containing

asbestos

Components, parts, and materials

containing refractory ceramic

fibers

Components, parts, and materials

containing radioactive substances

3. Disassemble Instructions

The intent of this document is to provide guidance to recyclers on the presence of materials and

components at the product / family level, as required by the EU WEEE Directive 2012/10/EU. This

document should also help direct recyclers to proper methods for removing parts and general

product disassembly instructions.

This chapter consists of three subsections:

Recommended disassembly tools, disassembled flowchart, and step-by-step disassembly

instructions to direct recycler proper methods to treat.

3.1 Recommended Disassembly Tools

Disassembly tool

Cross screwdriver

Flathead screwdriver

3.2 Disassembled flowchart

Server

Chassis

Power Supply

Storage Card and CPU

Chassis

Chassis Enclosure

Screw

Air Shroud

Motherboard/ Backplane/

Riser Card

Cable

Battery

Fan

Power Supply

Power Enclosure

Screw and Standoff

Power Supply Module

Power Cable

Storage Card and CPU

Heat Sink

Processor

Solid State Drive

TPM Module

DIMM

3.3 Step-by-Step Disassembly Instructions

1. Removing Cable and Chassis Top Cover

1. Use the operating system to power down the system.

2. After the system has completely shut down, disconnect the power cords from the power supply

modules.

4. Remove all cables/ unit from the server IO port.

5. Remove the top cover

No.

Description

No.

Description

1.1

Power Cable

1.6

1G LAN Ports

1.2

COM Port

1.7

VGA Port

1.3

Dedicated BMC LAN Port

1.8

Chassis

1.4

USB 2.0 Port

1.9

Top Cover

1.5

USB 3.2 Gen 1 Ports

1.8

1.9

1.1

1.2

1.3

1.4

1.5

1.6

1.7

2. Removing Hard Disk Drive

1. Push the release button on the drive carrier, which will extend the drive bay handle

2. Use the drive bay handle to pull the drive carrier out of the chassis

3. Release clasps and post, then pull out the dummy tray

5. Use a cross screwdriver to remove the drive enclosure

6. Use a cross screwdriver to remove the screws and lift off the PCB

2.1

2.4

2.2

2.3

No.

Description

2.1

Dummy Tray

2.2

Hard Drive

2.3

Hard Drive Enclosure

2.4

Hard Drive PCB

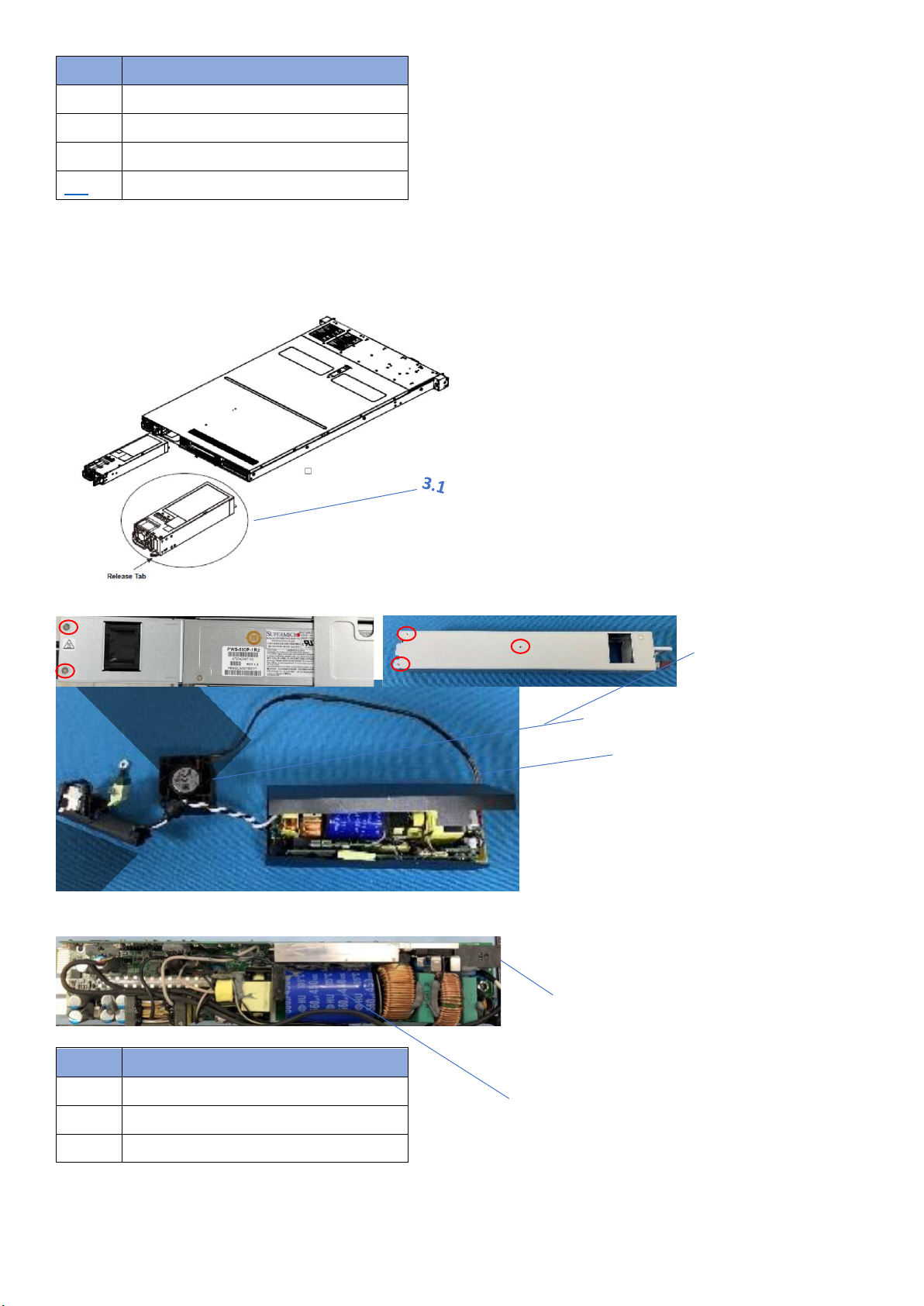

3. Removing Power Supply

1. Press the release tab on the failed power supply.

2. Use the handle to gently slide the power supply out the back of the chassis.

3. Remove the screw from the enclosure

4. Cut the power leads connected to the fan and lift the main board from the chassis

No.

Description

3.1

Power Supply

3.2

Power Enclosure

3.3

Fan

3.2

3.6

3.5

3.3

3.4
