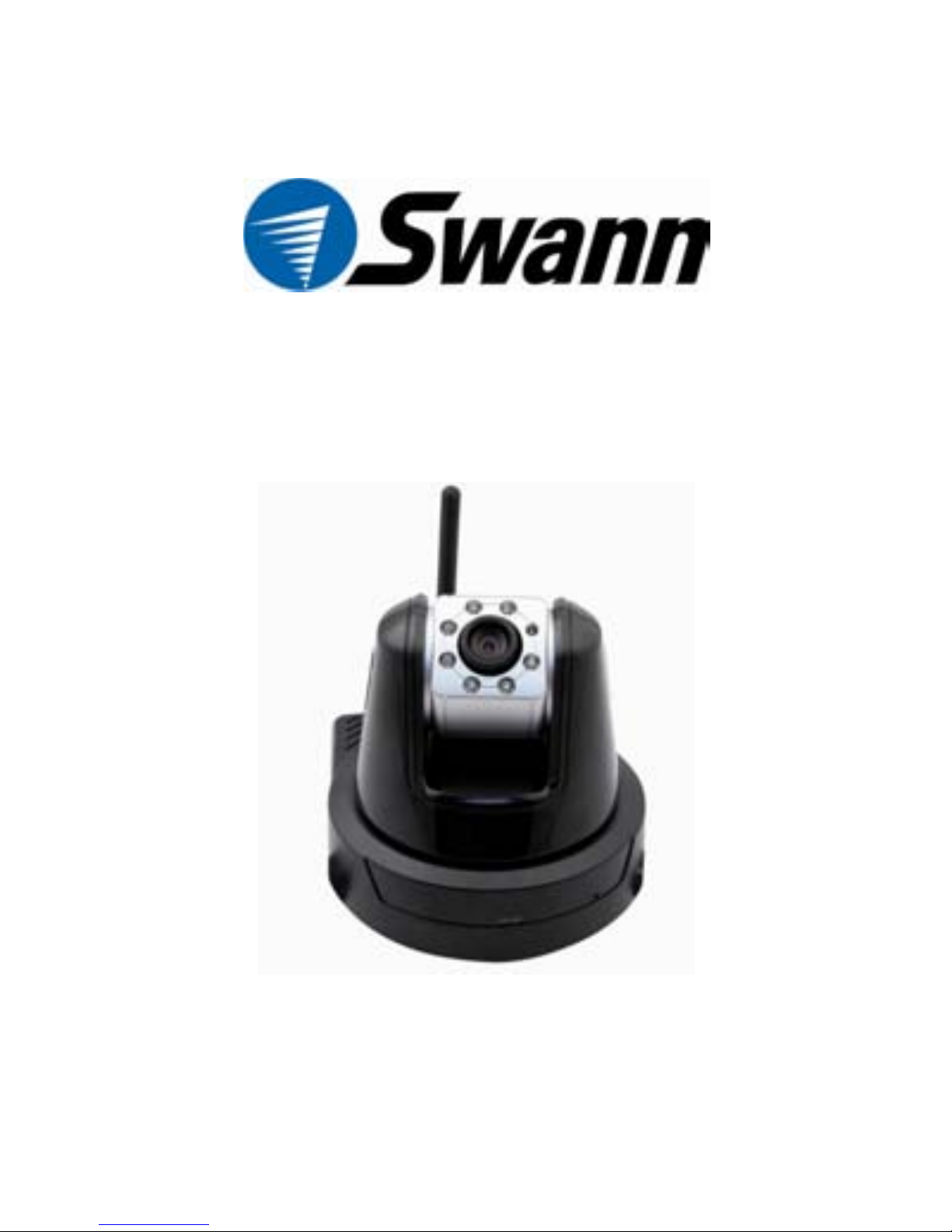

IP-3G ConnectCam™ 3000
Quick Installation Guide
ENGLISH
www.swannsecurity.com
- 1 -
1 Getting Started
Package Contents
Check the items contained in the package carefully. You should
have the following items. Once any item contained is damaged or
missing, contact the authorized dealer of your locale.
5One Pan-Tilt MPEG4/MJPEG Network Camera
5One AC Power Adapter
5One External Antenna (for wireless model)
5One Wall Mount Kit
5One GPIO Connector
5One Ethernet Cable (RJ-45 type)
5One Installation CD-ROM
5One Quick Installation Guide
System Requirement
Networking
LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet
WLAN: IEEE 802.11b/g (for wireless model)
Accessing the Camera using Web Browser
Platform: Microsoft® Windows® 2000/XP/Vista
CPU: Intel Pentium III 800MHz or above
RAM: 512MB
Resolution: 800x600 or above
User Interface: Microsoft® Internet Explorer 6.0 or above
Mozilla Firefox 2.00 or above
Apple Safari 2 or above
- 2 -
2 Setting Up the Camera
Installing the Wall Mount Kit
The camera comes with a Wall Mount Kit, which allows you to
place your camera anywhere by mounting the camera through the
three screw holes located in the base of the Wall Mount Kit.
Wall Mount Kit
Screw
Screw
Screw
- 3 -
Connecting the Camera to LAN
Use the provided Ethernet cable to connect the camera to your
local area network (LAN).
When you connect the AC power adapter, the camera is powered
on automatically. You can verify the power status from the Power
LED on the front panel of the camera.
Once connected, the Link LED starts flashing green light and the
camera is on standby and ready for use now.
Connecting the Ethernet Cable
- 4 -
Connecting the Camera to WLAN
If you use a wireless network in your application environment, you
need to attach the included external antenna to the camera.
When the camera is powered on, the camera will automatically
search any access point with “default” SSID.
NOTE If the camera cannot to your wireless network,
you need to install the camera in LAN and proceed
with WLAN settings.
Connecting the External Antenna
- 5 -
3 Accessing the Camera
Using IPFinder
1. Insert the Installation CD-ROM into your computer’s CD-ROM
drive to initiate the Auto-Run program.
2. Click the IPFinder item to launch the utility. The control panel
will appear as below.
3. Once you get the IP address of the camera, launch the Web
browser or UltraView to access your camera.
TIP The Installation CD-ROM provides a setup program that
allows you to install IPFinder on your computer. To install
IPFinder, click Install Software then select IPFinder on
the Auto-Run screen.
Display the connected
camera(s).
Double click to link the
Camera.
Click About to get the Version information of IPFinder.
Click Link to connect the selected camera.
Click Change IP to modify the IP address of the selected camera.
Click Search to find the IP address of the connected camera(s).
Click Exit to close the utility.
- 6 -
Accessing to the Camera
1. Connect your camera to the network (or the PC directly).
2. Since the default configuration of the camera is DHCP mode
enabled, you are recommended to launch IPFinder to search
the IP address that is assigned to the camera by the DHCP
server, and then click Link to access the camera via the
Web browser.
3. When the login window appears, enter the default User name
(admin) and password (admin) and press OK to access to the
main screen of the camera’s Web Configuration.
Enter the User name
and Password.
- 7 -
4. Click Setup and then Smart Wizard to set up your camera
quickly. The Smart Wizard will guide you through the
necessary settings with detailed instructions on each step.
- 8 -
4 Tips
For more information, please refer to the Advanced Installation
Guide on the provided Installation CD-ROM.
For details of operating UltraView, please refer to the Software
User Guide on the provided Installation CD-ROM.
FCC WARNING STATEMENT
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause
undesired operation
Important Notice
All jurisdictions have specific laws and regulations regarding the
use of cameras. Before using any camera for any purpose, it is
the buyer’s responsibility to be aware of all applicable laws and
regulations that prohibit or limit the use of cameras and to comply
with the applicable laws and regulations. The legality of watching
people other than you changes from country to country and even
state to state. Contact your local government’s privacy
information body or your local Police for more information on what
if any restrictions you may face.
Important notice about correct usage of the power adapter
The correct orientation for the enclosed power adapter is in a
vertical or floor mount position.
