Swann SC1111 Bedienungsanleitung

VACUUM CLEANER

SC1111

USER INSTRUCTIONS

GUARANTEE

This product is guaranteed for 2 years from the date of original purchase.

If any defect arises due to faulty materials or workmanship, the unit will, either

be repaired, replaced or refunded at our discretion.

The following conditions apply:

The product must be returned to the retailer with original proof of

purchase.

The product must be installed and used in accordance with the

instructions contained in this user instruction guide.

It must be used only for domestic purposes.

It does not cover wear and tear, damage, misuse or consumable parts.

The supplier has no responsibility for incidental or consequential loss or

damage.

Valid in the UK & Eire only.

Valid only if purchased from the LWSD Group

Technical Specification:

Powersupply: 220V-240VAC.50Hz

Power Consumption: 1800 W Max

Model number: SC1111

Protection: ClassII

LWSD Group

L701AB

Box MPRC8

Swan Vacuum Helpline. Please Call 01733 404703

Swan Vacuum Spare Parts. Please Call 01733 404709

Calling from outside the UK Please Call - 00 44 1733 404703

SAFETY INSTRUCTIONS

Read all warning & safety instructions before using this vacuum cleaner.

WARNING

1. Never vacuum wet surfaces, pick up wet objects or use in wet conditions.

2. Always disconnect the vacuum from the electrical supply before attempting any

maintenance.

3. Do not vacuum anything that is burning or smoking, such as cigarettes matches, or hot

ashes.

4. Do not use the vacuum cleaner to pick-up large objects that could, damage or cause a

blockage.

5. Do not use the vacuum to pick up builders rubble, sand, plaster dust etc.

6. This vacuum cleaner is for domestic use only. Industrial or commercial use invalidates

the warranty.

7. Do not let children use the vacuum cleaner unattended.

8. Do not use without a dust bag/bin and filter in place.

9. Use extra care when cleaning on stairs.

10. Keep hair, loose clothing, fingers and all parts of the body away from openings and

moving parts.

Safety Alerts:

To reduce the risk of fire, electric shock, or injury

1. Do not leave the vacuum unattended when plugged in, unplug from the outlet when not

in use and before servicing.

2. To reduce the risk of electric shock, do not use outdoors or on wet surfaces.

3. Use only as described in this manual.

4. Do not use with a damaged cord or plug.

5. Do not run the vacuum cleaner over the cord. Keep the cord away from heated

surfaces.

6. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

7. Do not handle the plug or the vacuum cleaner with wet hands.

8. Turn off all controls before unplugging.

9. This vacuum cleaner is equipped with a plug and a cable, which rolls up automatically.

If either becomes damaged, a qualified service agent must repair both the plug and

cable.

Electrical Safety

Before switching on, make sure that the voltage of your electricity supply is the same as that

indicated on the rating plate. This product is designed to operate on 220 – 240V AC, 50Hz.

Connection to any other power source may damage the unit.

This product may be fitted with a non – rewireable plug. If it is necessary to change the fuse

in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the

plug must not be used until a suitable replacement obtained.

If the plug has to be changed because it is not suitable for your socket, or becomes

damaged in any way, it should be cut off and an appropriate plug fitted following the wiring

instructions below. This should be carried out by a qualified electrician. The plug removed

must be disposed of safely, as insertion into a 13 Amp socket is likely to cause an electrical

hazard.

IMPORTANT – THIS IS A CLASS II APPLIANCE AND DOES NOT REQUIRE AN

EARTH CONNECTION.

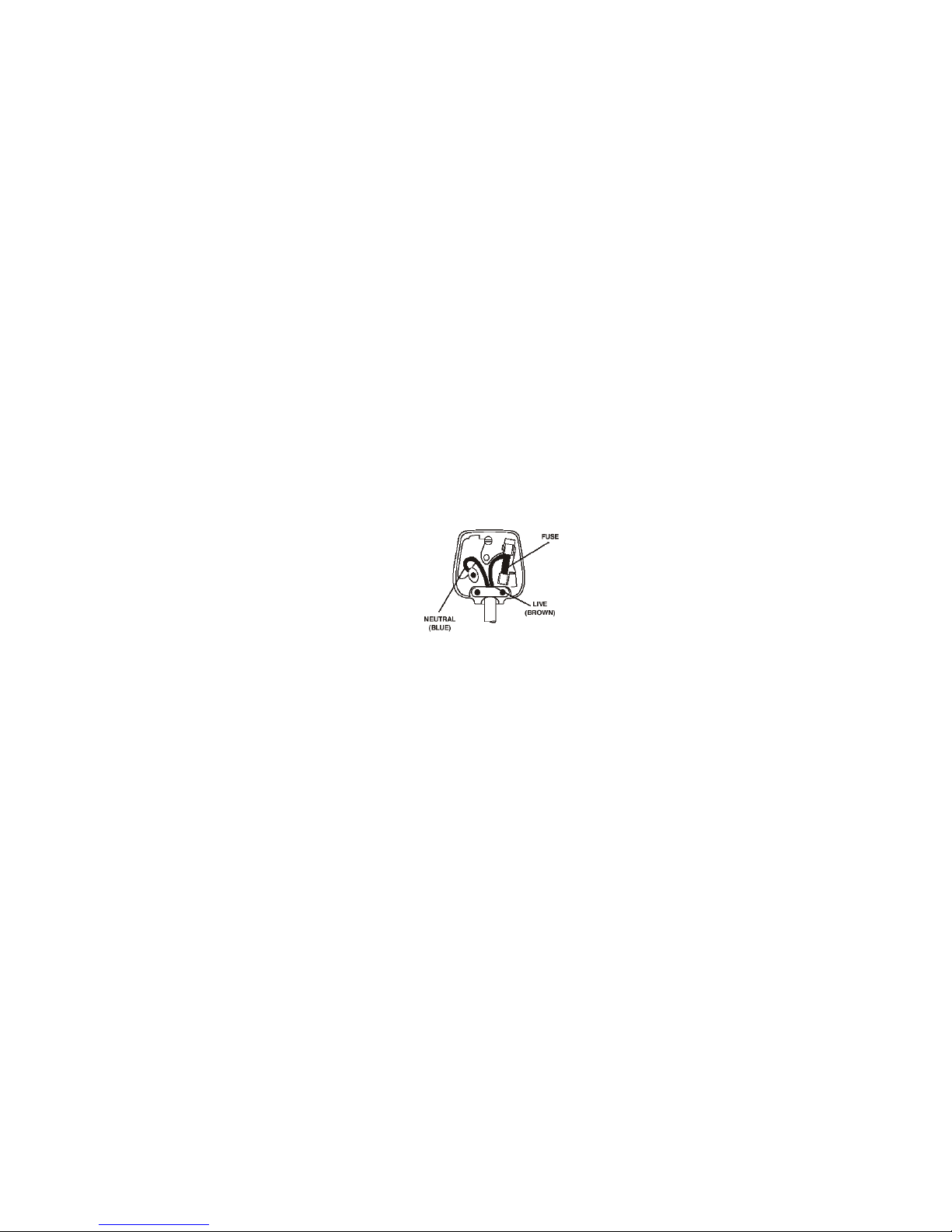

Wiring Instructions

The wires in this mains lead are colored in accordance with the following code:

Blue = Neutral Brown = Live

As the colours of the wires in the mains lead of this appliance may not correspond with the

coloured markings identifying the terminals in your plug, proceed as follows (refer to the

plug wiring diagram).

yThe wire which is coloured BLUE must be connected to the terminal which is marked

with the letter Nor coloured Black.

yThe wire which is coloured BROWN must be connected to the terminal which is

marked with the letter L or coloured Red.

If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other

type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the

Distribution Board.

Description:

Swan Vacuum Helpline. Please Call 01733 404703

Swan Vacuum Spare Parts. Please Call 01733 404709

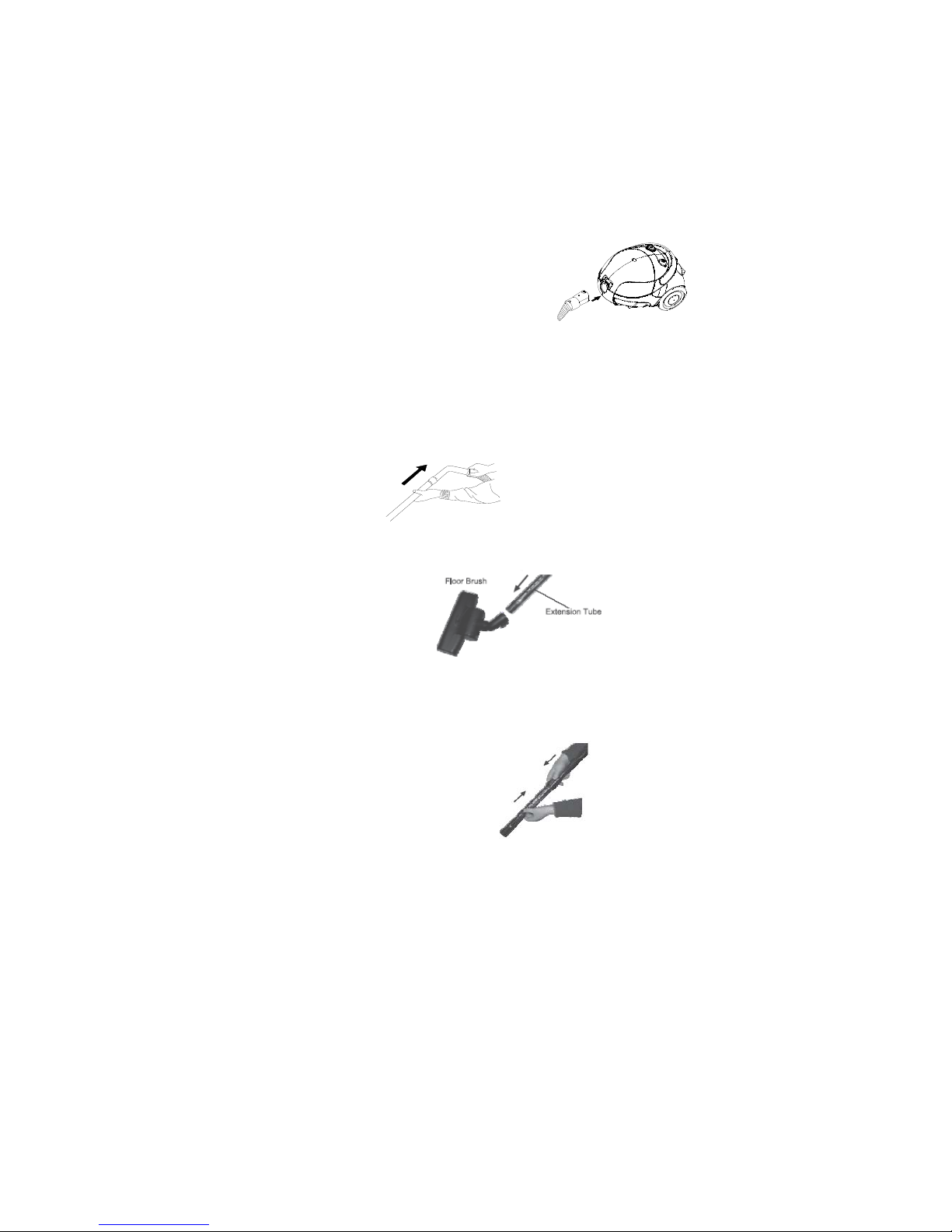

ASSEMBLY INSTRUCTION:

Always remove the plug from the power socket before fitting or removing

accessories!

1.Fittingandremovingtheflexiblehose.

Fitting:

Insert the flexible hose into the suction hole. Push until it clicks and locks into

position.

Removing:

Press the button to release and pull the hose from the suction inlet.

2. Fitting the extension tubes, floor head and accessories.

a. Fit the extension tube to the hose nozzle.

b. Fit the floor brush or turbo brush to the chrome telescopic tube.

c. The chrome telescopic tube can be extended by pushing the release

button

and pulling the tube.

d. Floor head - ideal for the daily cleaning on carpets and hard floors.

For use on hard floors ensure the floor head bristles are extended.

e. Crevice tool - for radiators, corners, baseboards and between

cushions.

f. Soft brush attachment - for fabrics, picture frames and lampshades

Swan Vacuum Help-line. Please Call 01733 404703

Swan Vacuum Spare Parts. Please Call 01733 404709

Calling from outside the UK Please Call - 00 44 1733 404703

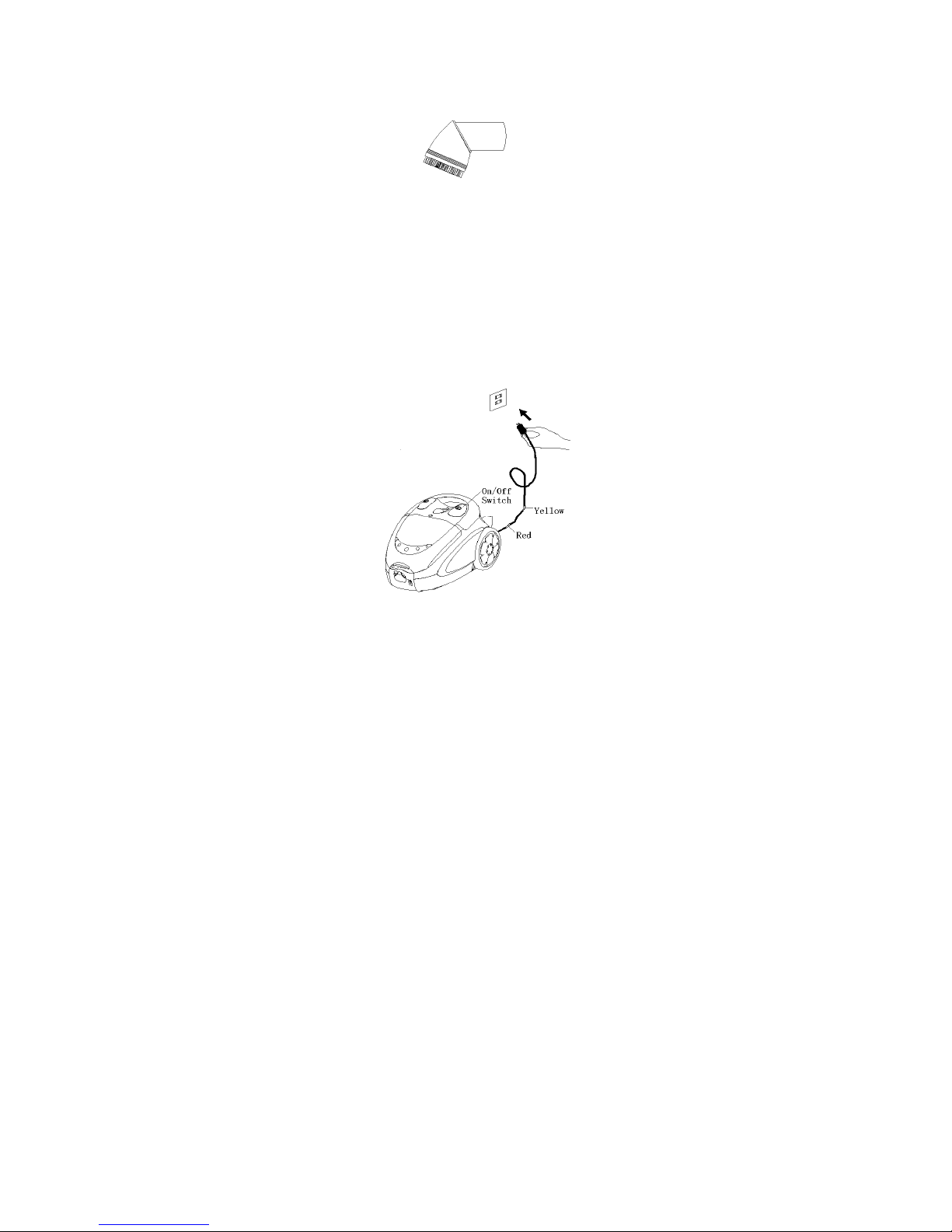

INSTRUCTIONS FOR USE

1. Unwind a sufficient length of cable. A yellow mark on the power cable

shows the ideal cable length. Do not extend the cable beyond the red mark.

2. You should plug the appliance into a 220V-240V SUPPLY ONLY.

**Before connecting to the power source, make sure the paper bag; filter and

accessories are fitted correctly. Do not operate without dust-bag or filters in place.

3. Press the ON/OFF power switch to start vacuuming.

4. Thermal cut out:

This vacuum is fitted with a thermal cut out device, which protects the

vacuum if the motor should overheat. If the cleaner suddenly stops, please

check the following:

a. Switch off the cleaner and unplug from the power supply.

b. Check the cause of overheating; blocked hose, clogged filter, full

dust-bag etc.

c. Clear the blockage, clean / replace the filter or empty the dust-bag as

necessary.

d. Wait 30 – 60 minutes, the thermal device will reset automatically

Cord Rewind: to rewind the power cord, press the rewind button with one

hand and guide the cord with the other hand to ensure that it doesn’t whip

causing damage.

MAINTENANCE

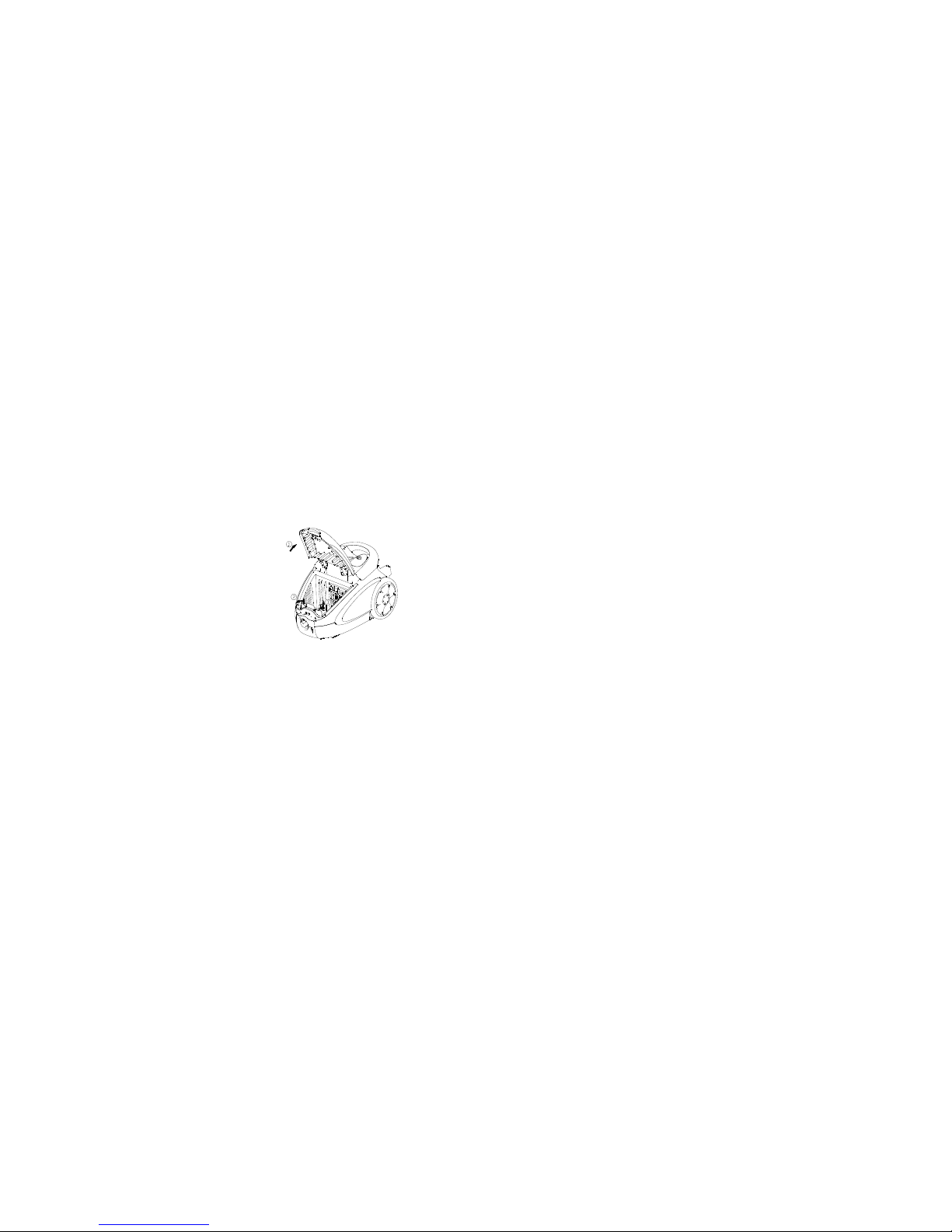

1. Changing of the dust bag

zAlways operate the cleaner with dust bag installed.

zIf you forget to attach the dust bag or attach it in the wrong manner,

the

dust cover may not close completely.

1. After removing the flexible tube, open the front cover .

2. Remove the dust bag from the Bag Support.

3. Replace the paper bag when it is full of dirt and put in a new one.

4. Close the cover by passing down until it is locked.

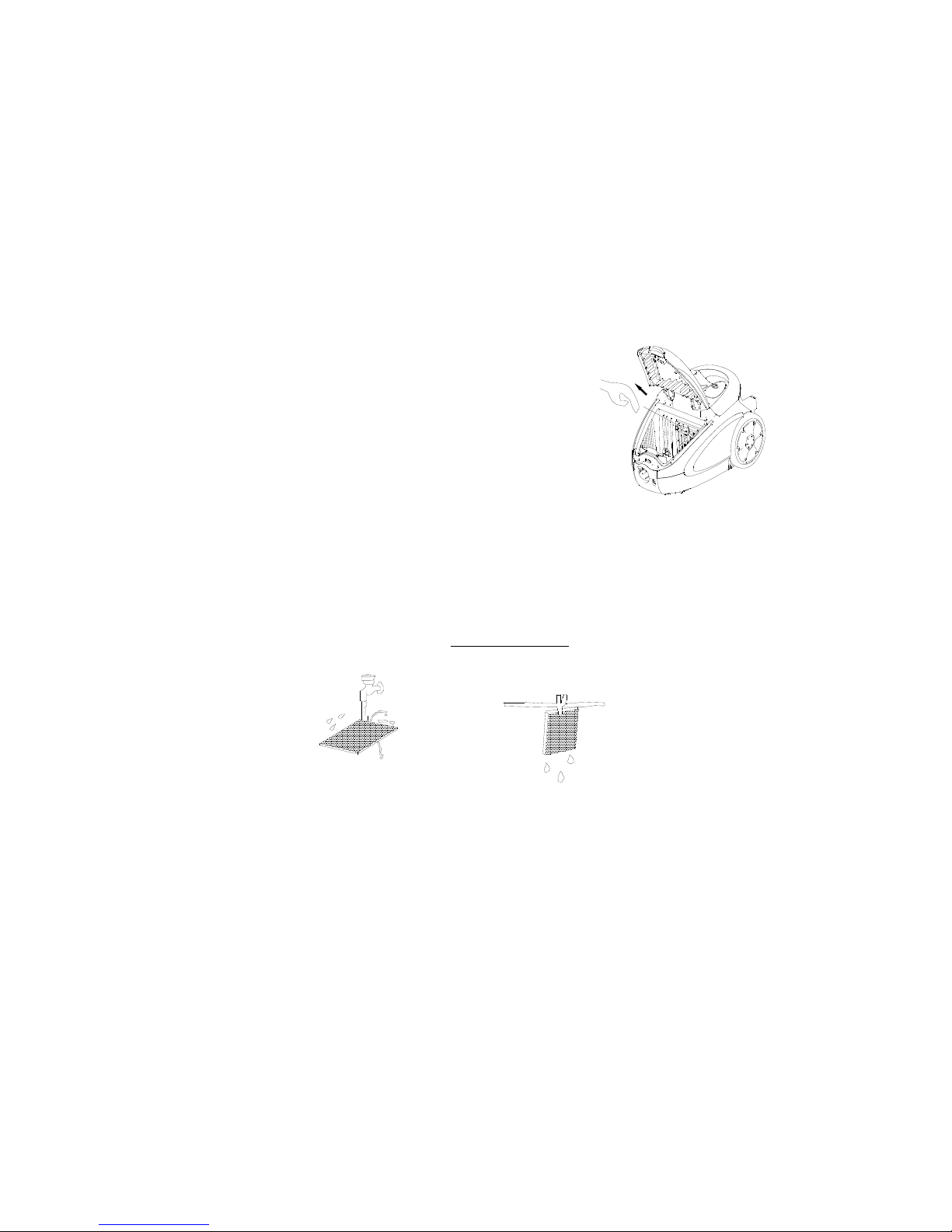

2. Cleaning / Changing the inlet filter:

zThe filter should be cleaned at least twice a year or when it becomes

visibly solid.

zAlways operate the cleaner with the filter installed, otherwise reduced

suction or motor damage may occur.

zDisconnect from the electrical outlet, before cleaning the filter.

zDo not use a washing machine to wash / rinse the filter.

zDo not use a hair drier to dry it.

zAllow 24 hrs to air dry before refitting the filter.

1. Remove the dust bag as described in the previous section.

2. The filter is located behind the dust bag. Lift out the filter.

3. Either rinse or replace the filter. If you decide to rinse, wash in luke-warm

water and allow the filter to air dry completely before refitting.

4. Refit the filter and bag ensuring the bag is correctly located.
