Tait TB7200 Bedienungsanleitung

TB7200 base station

Installation and

Operation Manual

MBA-00005-04

Issue 4

December 2004

All manuals and user guides at all-guides.com

2TB7200 InstallationandOperation Manual

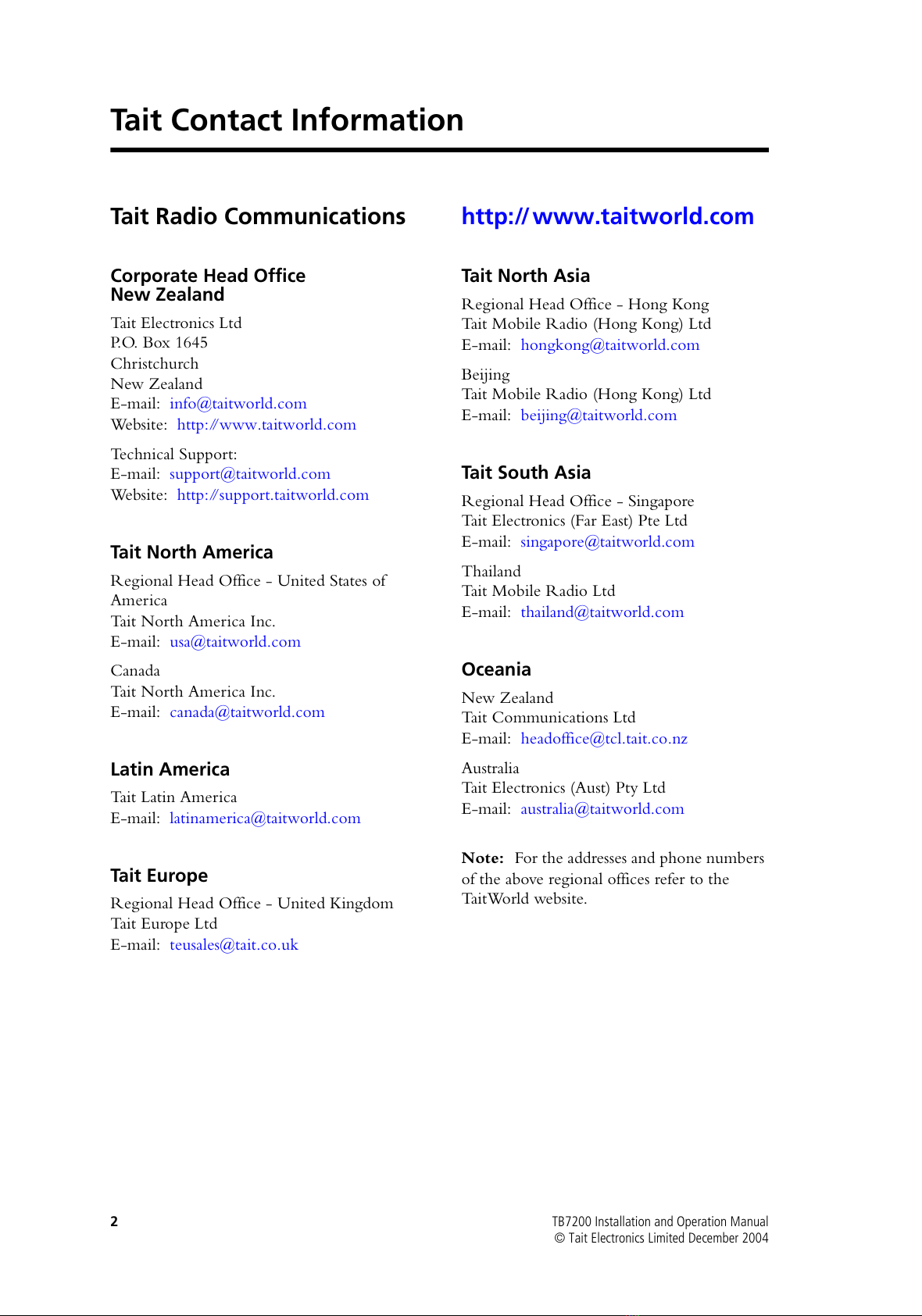

Tait Contact Information

Tait Radio Communications http://www.taitworld.com

Corporate Head Office

New Zealand

Tait Electronics Ltd

P.O. Box 1645

Christchurch

New Zealand

E-mail: info@taitworld.com

We b s i t e : http://www.taitworld.com

Technical Support:

E-mail: support@taitworld.com

We b s i t e : http://support.taitworld.com

Tait North America

Regional Head Office - United States of

America

Tait North America Inc.

E-mail: usa@taitworld.com

Canada

Tait North America Inc.

E-mail: canada@taitworld.com

Latin America

Tait Latin America

E-mail: latinamerica@taitworld.com

Tait Europe

Regional Head Office - United Kingdom

Ta i t E u ro p e L t d

E-mail: teusales@tait.co.uk

Tait North Asia

Regional Head Office - Hong Kong

Tait Mobile Radio (Hong Kong) Ltd

E-mail: hongkong@taitworld.com

Beijing

Tait Mobile Radio (Hong Kong) Ltd

E-mail: beijing@taitworld.com

Tait South Asia

Regional Head Office - Singapore

Tait Electronics (Far East) Pte Ltd

E-mail: singapore@taitworld.com

Thailand

Tait Mobile Radio Ltd

E-mail: thailand@taitworld.com

Oceania

New Zealand

Tait Communications Ltd

E-mail: headof[email protected].co.nz

Australia

Tait Electronics (Aust) Pty Ltd

E-mail: australia@taitworld.com

Note: For the addresses and phone numbers

of the above regional offices refer to the

TaitWorld website.

All manuals and user guides at all-guides.com

TB7200 Installation and Operation Manual 3

Contents

Preface

1 Description

2 Controls

3Configuration

4 Installation

5 Connection

6 Functional Description

7 Circuit Description

All manuals and user guides at all-guides.com

4TB7200 InstallationandOperation Manual

Preface

Scope of Manual

Welcome to the TB7200 base station Installation and Operation Manual.

This manual provides information on installing and operating the TB7200

hardware.

Enquiries and Comments

If you have any enquiries regarding this manual, or any comments,

suggestions and notifications of errors, please contact Technical Support

(refer to “Tait Contact Information” on page 2).

Updates of Manual and Equipment

In the interests of improving the performance, reliability or servicing of the

equipment, Tait Electronics Ltd reserves the right to update the equipment

or this manual or both without prior notice.

All information contained in this manual is the property of Tait Electronics

Ltd. All rights are reserved. This manual may not, in whole or in part, be

copied, photocopied, reproduced, translated, stored, or reduced to any

electronic medium or machine-readable form, without prior written

permission from Tait Electronics Ltd. All trade names referenced are the

service mark, trademark or registered trademark of the respective

manufacturers.

Disclaimer

There are no warranties extended or granted by this manual. Tait

Electronics Ltd accepts no responsibility for damage arising from use of the

information contained in the manual or of the equipment and software it

describes. It is the responsibility of the user to ensure that use of such

information, equipment and software complies with the laws, rules and

regulations of the applicable jurisdictions.

All manuals and user guides at all-guides.com

TB7200 Installation and Operation Manual Installation 5

Installation

This chapter describes how toinstall the TB7200 base station in astandard

19 inch rack or cabinet. It also provides some general information on safety

precautions and site requirements. We recommend that you read the entire

chapter before beginning the installation.

1.1 Personal Safety

1.1.1 Explosive Environments

Warning!! Do not operate TB7200 base station equipment

near electrical blasting caps or in an explosive

atmosphere. Operating the equipment in these

environments is a definite safety hazard.

1.1.2 Proximity to RF Transmissions

Do not operate the transmitter when someone is standing within 90cm (3ft)

of the antenna. Do not operate the transmitter unless you have checked that

all RF connectors are secure.

1.2 Equipment Safety

1.2.1 ESD Precautions

Important This equipment contains devices which are susceptible to

damage from static charges. You must handle these devices

carefully and according to the procedures described in the

manufacturers’ data books.

We recommend you purchase an antistatic bench kit from a reputable

manufacturer and install and test it according to the manufacturer’s

instructions. Figure 1.1 shows a typical antistatic bench set-up.

You can obtain further information on antistatic precautions and the dangers

of electrostatic discharge (ESD) from standards such as ANSI/ESD

S20.20-1999 or BS EN 100015-4 1994.

All manuals and user guides at all-guides.com

6InstallationTB7200 InstallationandOperation Manual

1.2.2 Antenna Load

The TB7200 base station equipment has been designed to operate safely

under a wide range of antenna loading conditions. However, we strongly

recommend that the transmitter should always be operated with a suitable

load to prevent damage to the transmitter output power stage.

1.2.3 Equipment Grounding

Toensuresafe operation the TB7200 base station equipment must be

correctly grounded as described in these installation instructions.

1.2.4 Installation and Servicing Personnel

The TB7200 base station should be installed and serviced only by qualified

personnel.

1.3 Regulatory Information

1.3.1 Distress Frequencies

The 406 to 406.1MHz frequency range is reserved worldwide for use by

Distress Beacons. Do not program transmitters to operate in this frequency

range.

Figure 1.1 Typical antistatic bench set-up

common point ground

(building ground or

mains ground via 1M

ohm series resistor)

conductive wrist strap dissipative rubber

bench mat

All manuals and user guides at all-guides.com

TB7200 Installation and Operation Manual Installation 7

1.3.2 FCC Compliance

This device complies with part 15 of the FCC Rules. Operation is subject

to the condition that this device does not cause harmful interference.

1.3.3 Unauthorised Modifications

Any modifications you make to this equipment which are not authorised by

Tait Electronics Ltd may invalidate your compliance authority’s approval to

operate the equipment.

1.4 Environmental Conditions

1.4.1 Operating Temperature Range

The operating temperature range of the TB7200 base station is –30°Cto

+60°C (–22°F to +140°F) ambient temperature. Ambient temperature is

defined as the temperature of the air at the intake to the cooling fans.

1.4.2 Humidity

The humidity should not exceed 95% relative humidity through the

specified operating temperature range.

1.4.3 Dust and Dirt

For uncontrolled environments, the level of airborne particulates must not

exceed 100µg/m3.

All manuals and user guides at all-guides.com

8InstallationTB7200 InstallationandOperation Manual

All manuals and user guides at all-guides.com

TB7200 Installation and Operation Manual Controls and Connections 9

Controls and Connections

Figure2.1 TB7200 basestation controls and connections

cooling fans programming port Tx/Rx programming

selector switch

indicator LEDs function buttons speaker volume speaker

DC input system interface

connector

audio level set-up

pots

RS-232

serial port RF input (without internal duplexer) RF output (without internal duplexer)

RF input/output (with internal duplexer)

tuning holes for optional duplexer

Front View

Rear View

Side View

All manuals and user guides at all-guides.com

10 Controls and Connections TB7200 Installation and Operation Manual
