User Manual

TDS3TMT

Telecom Mask Test

Application Module

071-0648-02

*P071064802*

071064802

products are owned by Tektronix or its subsidiaries or suppliers,

and are protected by national copyright laws and international

treaty provisions.

Tektronix products are covered by U.S. and foreign patents,

issued and pending. Information in this publication supercedes

that in all previously published material. Specifications and

price change privileges reserved.

TEKTRONIX, TEK, TEKPROBE, and TekSecure are registered

trademarks of Tektronix, Inc.

DPX, WaveAlert, and e*Scope are trademarks of

Tektronix, Inc.

Contacting Tektronix

Tektronix, Inc.

14200 SW Karl Braun Drive

P.O. Box 500

Beaverton, OR 97077

USA

For product information, sales, service, and technical support:

HIn North America, call 1-800-833-9200.

HWorldwide, visit www.tektronix.com to find contacts in

your area.

Contents

Safety Summary 2.............................

Installing the TDS3TMT Application Module 5........

Telecom Mask Test Features 5...................

Accessing TDS3TMT: QuickMenu 6................

Accessing TDS3TMT: Utility Menu 7...............

Conventions 8...............................

TDS3TMT Menu 9.............................

Telecom Pass/Fail Mask Test Example 24............

Safety Summary

To avoid potential hazards, use this product only as

specified. While using this product, you may need to

access other parts of the system. Read the General Safety

Summary in other system manuals for warnings and

cautions related to operating the system.

Preventing Electrostatic Damage

CAUTION. Electrostatic discharge (ESD) can

damage components in the oscilloscope and its

accessories. To prevent ESD, observe these

precautions when directed to do so.

Use a Ground Strap. Wear a grounded antistatic wrist strap

to discharge the static voltage from your body while

installing or removing sensitive components.

UseaSafeWorkArea.Do not use any devices capable of

generating or holding a static charge in the work area

where you install or remove sensitive components.

Avoid handling sensitive components in areas that have a

floor or benchtop surface capable of generating a static

charge.

Handle Components Carefully. Do not slide sensitive

components over any surface. Do not touch exposed

connector pins. Handle sensitive components as little as

possible.

Transport and Store Carefully. Transport and store sensitive

components in a static-protected bag or container.

Manual Storage

The oscilloscope front cover has a convenient place to

store this manual.

Installing the TDS3TMT Application Module

Refer to the TDS3000, TDS3000B, and TDS3000C

Series Application Module Installation manual for

instructions on installing and testing the application

module.

Telecom Mask Test Features

The TDS3TMT application module adds waveform

mask testing capabilities to your oscilloscope. This

section provides an overview of these additional features.

Telecom Mask Test QuickMenu

Use the telecom mask test QuickMenu function to

display bottom and side menus that provide access to all

key mask test functions from one screen.

Predefined Telecom Industry Masks

The TDS3TMT application module provides compliance

masks for testing to ITU-G.703 and ANSI T1.102

telecommunications standards, up to STS-1 (52 Mb/s)

line rates.

Multiple Channel Testing

The TDS3TMT application module enables you to

perform multiple simultaneous testing on all active

oscilloscope channels.

Test Automation

You can connect the oscilloscope to do automated mask

testing by using the RS--232, GPIB, or LAN commu-

nication ports.

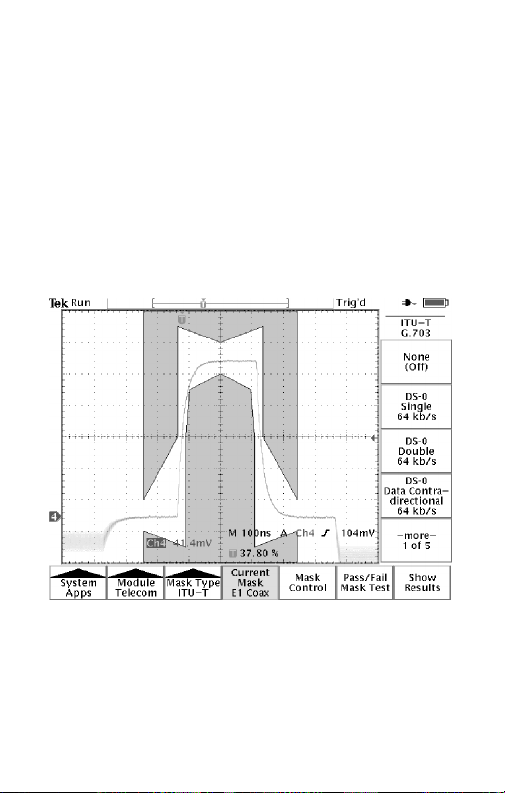

Accessing TDS3TMT: QuickMenu

1. Push the QuickMenu front-panel button to display

the quick menu items.

2. Push the Menu bottom screen button to select and

display the Telecom bottom and side menu items.

3. Push bottom and side menu buttons to select a mask,

set test control parameters, and test pass/fail

responses.

Accessing TDS3TMT: Utility Menu

1. Push the UTILITY front-panel button to display the

utility menu items.

2. Push the System bottom screen button to display

Apps.

3. Push the Module bottom screen button to select

Telecom. The screen displays the telecom bottom and

side menu items.

4. Push bottom and side menu buttons to select a mask,

set test control parameters, and test pass/fail

responses.

Conventions

The following conventions apply to all TDS3TMT

functions:

HYou can perform multiple waveform mask testing by

connecting signals to all oscilloscope input channels.

HWhile in Telecom Mask test mode, the AUTOSET

front-panel button automatically sets the oscilloscope

horizontal, vertical, and trigger parameters, and

positions the waveform in the selected mask.

HMask testing only works with live channels. It is

recommended that you turn off math and reference

waveforms while doing mask testing.
