Teldat C/S/G/A Routers Family Installation Manual

Teldat-Dm 274-I

Teldat S.A. Manual

Teldat C/S/G/A Routers Family Installation Manual 1

Legal Notice

Warranty

This publication is subject to change.

Teldat S.A. offers no warranty whatsoever for information contained in this manual.

Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv-

ery, supply or use of this manual.

Manual Teldat S.A.

2Teldat C/S/G/A Routers Family Installation Manual

Table of Contents

I ImportantInformation................................ 1

Chapter1 RouterInstallation ................................. 2

1.1 Introduction...................................... 2

1.1.1 Recycling and the Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2 Connections...................................... 3

1.2.1 PowerSourceConnection................................ 3

1.2.2 DataConnections.................................... 4

1.3 InstallingtheSIMcard................................. 10

1.4 Installationinrack .................................. 11

1.5 MeaningoftheLEDs................................. 12

1.6 Microswitches programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

1.6.1 Procedure for ignoring the configuration . . . . . . . . . . . . . . . . . . . . . . . . . 17

Chapter2 Appendix..................................... 19

2.1 Troubleshooting................................... 19

2.2 Softwareupdating .................................. 19

2.3 Connectors ..................................... 19

2.3.1 LANConnector.................................... 20

2.3.2 DSLConnector.................................... 20

2.3.3 ISDNConnector................................... 20

2.3.4 DTE/DCEConnector................................. 20

2.3.5 POSConnector ................................... 21

2.3.6 ANTConnector.................................... 21

2.3.7 ConfigurationConnector................................ 22

2.3.8 PSTNConnector................................... 22

2.4 TechnicalSpecifications................................ 22

2.5 Translated safety warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Teldat S.A. Table of Contents

Teldat C/S/G/A Routers Family Installation Manual i

Table of Contents Teldat S.A.

ii Teldat C/S/G/A Routers Family Installation Manual

I Important Information

Caution

The manufacturer reserves the right to make changes and improvements to the appropriate features in

both the software and hardware of this product, modifying the specifications of this manual without prior

notice.

The images presented on the front and back panels of the devices are provided as information

guideline only. Some small modifications may exist in the actual device.

Warning

The equipment is intended to be installed by Service Personnel and only handled by qualified person-

nel. If not, the device may be damaged and malfunction.

This device contains elements that are sensitive to electrostatic surges and shocks. Therefore, it is es-

sential when handling the equipment that an antistatic wriststrap is connected to the device chassis and

that this is placed on an antistatic mat. Furthermore, it is crucial to avoid any kind of contact between

the device components and necklaces, bracelets, rings, ties, etc.

Teldat S.A. Important Information

Teldat C/S/G/A Routers Family Installation Manual 1

Chapter 1 Router Installation

1.1 Introduction

The Teldat C/S/G/A is a general purpose IP router family suitable for a wide range of applications (personal, SOHO/

SME and corporate environments). These devices adapt to plenty of IP scenarios: providing simultaneous access to

Internet for private LAN users, accommodating teleprocessing networks and supporting both SNA and POS (Point of

Sale terminals – dataphones).

The Teldat C/S/G/A models cover the access needs for ADSL (both over PSTN and ISDN), SHDSL, GSM/

GPRS/EDGE/CDMA, ISDN, internal dial-up modem and serial line (connected to an external telephone modem,

Frame Relay, X.25 etc.).

This manual shows you how to install and connect these routers.

Fig. 1: Teldat C/S/G/A routers (except for C6): External aspect

Fig. 2: Teldat C6 routers(with rack adaptors): External aspects

1.1.1 Recycling and the Environment

Please do not, under any circumstances, throw away any Teldat C/S/G/A routers with normal domestic waste. Ask

your local town hall for information on how to correctly dispose of them in order to protect the environment against e-

waste. Always respect the current laws regarding waste material. Anyone found violating the environmental laws will

be subject to fines and any additional steps established by law.

All the packing materials, i.e. the cardboard box, plastic and any other packaging, together with the pieces making up

aTeldat C/S/G/A , must be recycled complying with the current applicable law.

The above symbol, with a cross over the rubbish container, can be seen on the device. This means that, when a

1 Router Installation Teldat S.A.

2Teldat C/S/G/A Routers Family Installation Manual

device reaches the end of its life, it must be taken to the official recycling/disposal centers where it must be disposed

of in an environmentally responsible manner and separate from normal domestic waste.

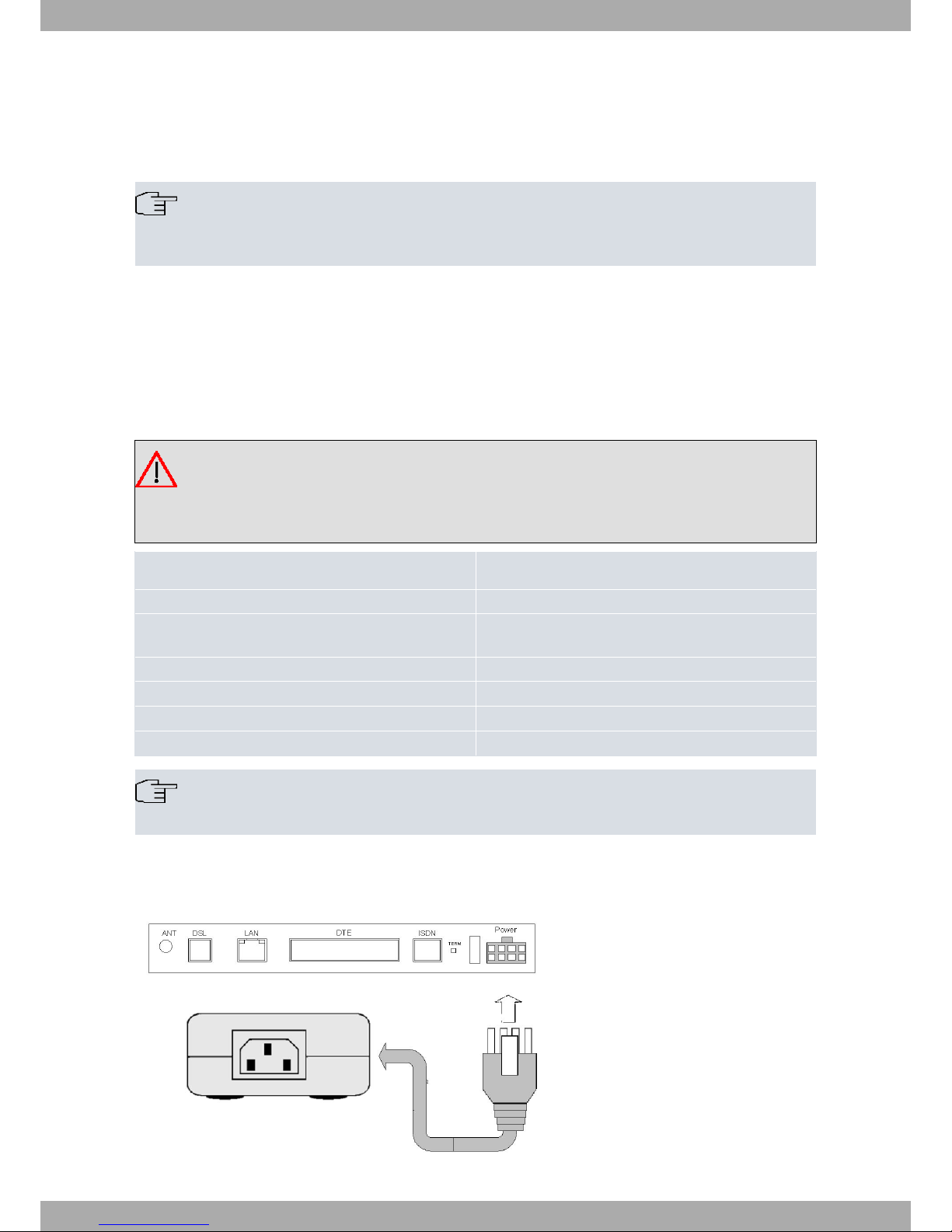

1.2 Connections

Note

BEFORE INSTALLING THE ROUTER, PLEASE READ THE FOLLOWING INSTRUCTIONS CARE-

FULLY

Workplace Conditions. Main Characteristics

• Excessive cold and heat should be avoided, as should humidity and dust.

• Avoid direct exposure to sunlight and any other heat sources. Do not place the device between papers, magazines

or other elements that could hinder natural air circulation.

• Do not place the device near strong electromagnetic fields such as those produced by speakers, motors, etc.

• Avoid knocks and/or strong vibrations during operation, storage and transport.

Warning

The electric current in power cables, telephone lines and communication cables is dangerous. To pre-

vent electric shocks, before installing, handling or opening the equipment covers, connect and discon-

nect the cables following the steps set forth in the following section.

To Connect To Disconnect

Make sure that the power switch is in the OFF position. Turn the power switch OFF.

Check that the power supply is not connected to the

mains or to the device.

Disconnect the power supply from the mains.

Connect all data cables. Disconnect the power supply from the device.

Connect the power supply to the device. Disconnect the data cables.

Connect the power supply to the mains.

Turn the power switch ON.

Note

Some models are equipped with an internal power supply, making the above steps redundant.

1.2.1 Power Source Connection

Fig. 3: Connection to the power supply

Teldat S.A. 1 Router Installation

Teldat C/S/G/A Routers Family Installation Manual 3

The Teldat C/S/G/A models (except for the Teldat C6) are powered through an external AC/DC source. For further

details, please see the Appendix.

To connect the power source to the router, follow the steps listed in the earlier table: make sure the switch is OFF (0)

and the power supply is NOT connected to the mains; find the POWER plug (on the rear panel) and plug it into the

power source. Both the connector and the receptacle have grooves that are specifically designed so that the con-

nector can only be installed properly.

Use the grounded cable (supplied) to connect the power source to the mains.

1.2.1.1 Devices with internal power supply source

To connect the power source to the device: check that the power switch is in the OFF position (0) and that the device

is NOT connected to the mains. Find the power connector plug (on the rear panel) and insert the grounded power

cable (supplied). The shape of the connector ensures it’s correctly inserted.

Fig. 4: Connecting the power with the internal source

To avoid electric shocks, residual current circulation and any other unwanted effects that may disrupt communica-

tion, the following is recommended:

Warning

All interconnected communication devices should be plugged to THE SAME GROUNDED POWER

OUTLET, which should, at the same time, be of good quality (lower than 10 ohms).

Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated supply,

or it is independent from the rest (such as lighting, etc.), it is highly recommended that all data devices

should be connected to the same power source. This will avoid operating and premature aging prob-

lems of drivers and other components..

1.2.2 Data Connections

The Teldat C/S/G/A routers are equipped with the following connectors (some models may not have all):

LAN:

Ethernet Interface 10BaseT for LAN connection: the LNK LED indicates when the physical layer is established and

the RxD LED signals frame reception (except in the Teldat C6).

Available in all models (except those equipped with a switch).

Fig. 5: LAN Connector, LNK LED and RxD LED

Fig. 6: LED LINK and LAN connector in the Teldat C6 model

1 Router Installation Teldat S.A.

4Teldat C/S/G/A Routers Family Installation Manual

SWITCH:

4 port switch 10/100BaseT with automatic MDI/MDIX to connect to the LAN (local area network). Routers with a

switch have two connection LEDs: one for connections at 100 Mbps and the other for connections at 10 Mbps.

Please, pay close attention to the labelling to avoid confusing the switch with the four asynchronous ports.

Avalability depends on the model.

Fig. 7: Switch LAN connector: LEDs 100 and 10

DTE / DCE:

Multistandard serial interface to connect to an external modem, POS, or X.25 WAN, Frame Relay, PPP, etc.

Requires an insertable driver (V.24, V.35, V.36, X.21, RS-485) and software license for operating purposes.

Fig. 8: DTE/DCE connector

Fig. 9: DTE/DCE connector: Teldat C6

The Teldat C and Teldat S have an xDSL interface (ADSL over PSTN, ADSL over ISDN, SHDSL, etc.).

Model C6 has ADSL over PSTN.

Teldat A is equipped with a dial up modem interface.

Requires an xDSL plug-in card, or dial-up modem, and software license for operating purposes.

Fig. 10: ADSL Connector

Fig. 11: ADSL Connector: Teldat C6

ISDN:

Basic ISDN 2B+D interface. A switch (TERM.) is available to insert the S bus terminal load.

Teldat S.A. 1 Router Installation

Teldat C/S/G/A Routers Family Installation Manual 5

Requires a software license for operating purposes.

Fig. 12: ISDN connector and TERM pushbutton

Fig. 13: ISDN connector and TERM pushbutton: Teldat C6

PSTN:

RTC modem interface (V.92 bis or similar).

Available depending on the model.

Fig. 14: PSTN Connector

ANT.:

RF antenna connector.

Requires a GSM/GPRS plug-in card and software license for operating purposes.

Fig. 15: RF antenna connector

ASYNCHRONOUS SERIAL INTERFACES:

Asynchronous serial interfaces to connect POS modems (point of sale) etc.

Available depending on model.

Fig. 16: Specific asynchronous POS connectors

1.2.2.1 DSL Connection

The DSL interface has a female RJ11 connector with 4 wires. Only the central pair is used for data transmission/recep-

tion. SHDSL, however, uses 4 wires.

For connection purposes, use the telephone cable with male RJ11connectors (provided with the router).

1 Router Installation Teldat S.A.

6Teldat C/S/G/A Routers Family Installation Manual
