Teltonika FMB910 Installationsanleitung

Quick Manual

v1.1

Track & trace device

FMB910

FMB910 |

Wiki

Table of Contents

Know your device............................................................................... 3

Pinout................................................................................................. 4

Wiring scheme................................................................................... 5

Set up your device ............................................................................. 6

How to insert SIM card and connect the battery........................... 6

PC Connection (Windows)................................................................ 7

How to install USB drivers (Windows)............................................. 7

Configuration (Windows) ................................................................. 7

Quick SMS configuration.................................................................. 9

Mounting recommendations .......................................................... 10

LED indications................................................................................. 11

Characteristics.................................................................................. 11

Basic characteristics ....................................................................... 11

Electrical characteristics................................................................. 12

Safety information ........................................................................... 14

Certification and Approvals ............................................................. 15

Warranty........................................................................................... 16

Warranty Disclaimer........................................................................16

FMB910 |

Wiki

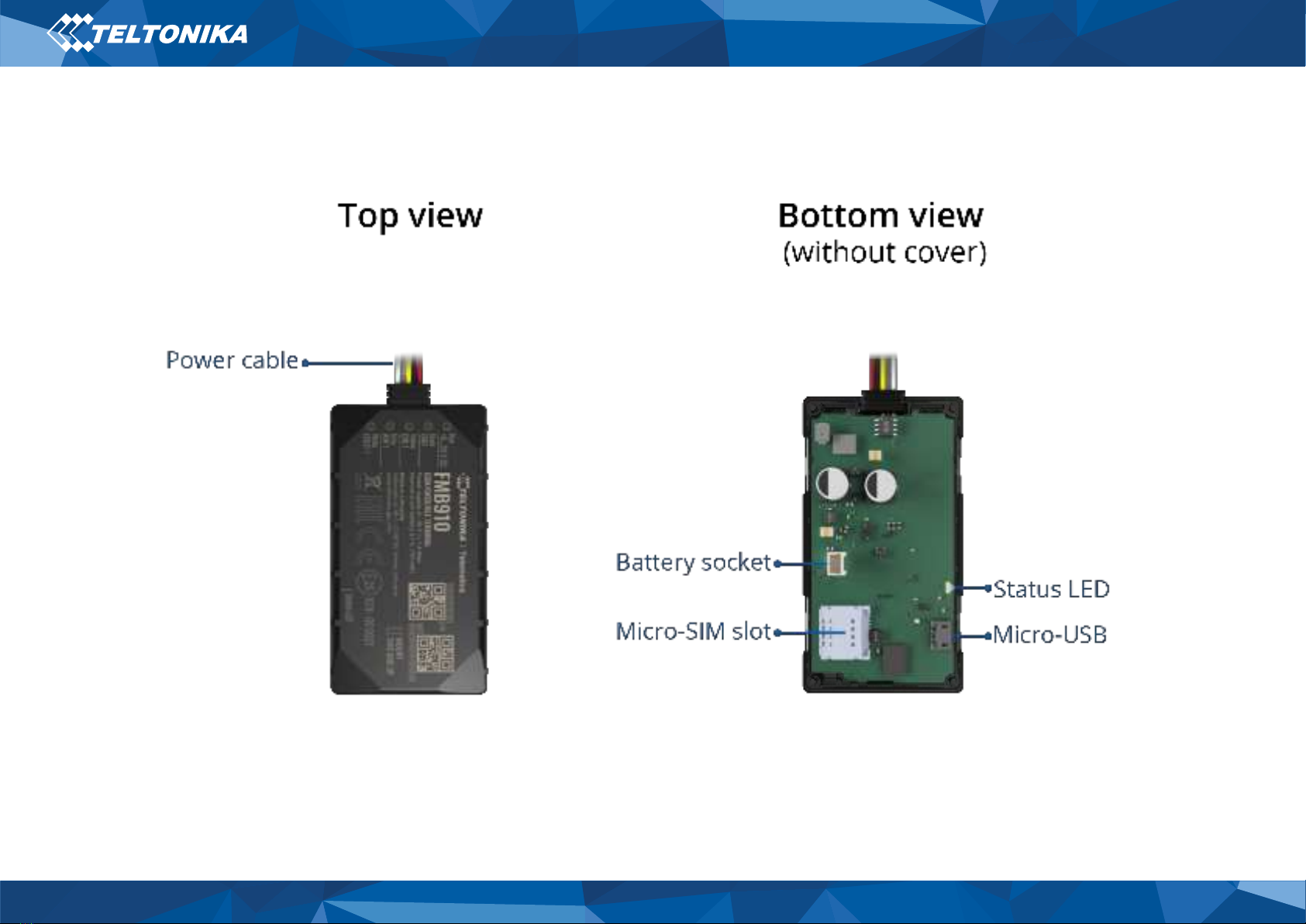

Know your device

Figure 1 FMB910 device view

FMB910 |

Wiki

Pinout

Table 1 FMB910 pinout

PIN NUMBER

PIN NAME

DESCRIPTION

VCC (6-30) V DC (+)

Power supply (6-30) V DC (+)

GND (-)

Ground pin

DIN 1

Digital input, channel 1. DEDICATED

FOR IGNITION INPUT

AIN 1

Analog input, channel 1. Input range: 0-

30 V DC

DOUT 1

Digital output, channel 1. Open

collector output. Max. 0,5 A DC

Figure 2 FMB910 pinout

FMB910 |

Wiki

Figure 3 FMB910 Wiring scheme

Wiring scheme

1Automotive relay

FMB910 |

Wiki

Set up your device

How to insert Micro SIM card and

connect the battery

1. Gently remove FMB910 cover using plastic pry

tool from both sides.

2. Separate PCB from plastic cover and connect power

supply cable.

3. Insert Micro-SIM card as shown with PIN request

disabled or read Security info how to enter it later in

Configurator. Make sure that Micro-SIM card cut-off

corner is pointing forward to slot.

4. Connect internal back-up battery.

5. Attach device cover back. (Do not forget to configure

the device before reassembling the device!)

6. Device ready to use!

Figure 4 Cover removal

Figure 5 Wiring harness connection

Figure 6 Micro SIM card insert

Figure 7 Battery connection

Figure 8 Attaching cover back

Figure 9 Device ready to use

FMB910 |

Wiki

PC Connection (Windows)

1. Power-up FMB910 with DC voltage 6-30 V power supply using

power cable. LED’s should start blinking, see “LED indications”.

2. Connect device to computer using Micro-USB cable or

Bluetooth connection:

•Using Micro-USB cable

▬You will need to install USB drivers, see "How to install

USB drivers (Windows)"

•Using Bluetooth

▬FMB910 Bluetooth is enabled by default. Turn on

Bluetooth on your PC, then select Add Bluetooth or other

device > Bluetooth. Choose your device named –

“FMB910_last_7_imei_digits”, without LE in the end. Enter

default password 5555, press Connect and then select

Done.

3. You are now ready to use the device on your computer.

How to install USB drivers

(Windows)

1. Please download COM port drivers from here.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

5. Setup will continue installing the driver and eventually the

confirmation window will appear. Click Finish to complete the

setup.

Configuration (Windows)

At first FMB910 device will have default factory settings set. These

settings should be changed according to the user's needs. Main

configuration can be performed via Teltonika Configurator

software. Get the latest FMB910 Configurator version from here.

Configurator operates on Microsoft Windows OS and uses

prerequisite MS .NET Framework. Make sure you have the correct

version installed.

Table 2 MS .NET requirements

MS .NET REQUIREMENTS

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework

4.6.2

32 and 64 bit

www.microsoft.com

Downloaded Configurator will be in compressed archive. Extract it

and launch Configurator.exe. After launch software language can

be changed by clicking in the right bottom corner (Figure 10

Language selection).

FMB910 |

Wiki

Configuration process begins by pressing on connected device

(Figure 11 Device connected via USB).

After connection to Configurator Status window will be displayed

(Figure 12 Configurator Status window).

Various Status window tabs display information about GNSS,GSM,

I/O, Maintenance and etc. FMB910 has one user editable profile,

which can be loaded and saved to the device. After any

modification of configuration the changes need to be saved to

device using Save to device button. Main buttons offer following

functionality:

1. Load from device –loads configuration from device.

2. Save to device –saves configuration to device.

3. Load from file –loads configuration from file.

4. Save to file –saves configuration to file.

5. Update firmware –updates firmware on device.

6. Read records –reads records from the device.

7. Reboot device –restarts device.

8. Reset configuration –sets device configuration to

default.

Most important configurator section is GPRS –where all your

server and GPRS settings can be configured and Data Acquisition –

where data acquiring parameters can be configured.

More details about FMB910 configuration using Configurator can

be found in our Wiki.

Figure 11 Device connected via USB

Figure 10 Language selection

Figure 12 Configurator Status window

FMB910 |

Wiki

Quick SMS configuration

Default configuration has optimal parameters present to ensure

best performance of track quality and data usage.

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS settings:

•

2001

–APN

•

2002

–APN username (if there

are no APN username, empty

field should be left)

•

2003

–APN password (if there

are no APN password, empty

field should be left)

Server settings:

•

2004

–Domain

•

2005

–Port

•

2006

–Data sending protocol

(0 –TCP, 1 –UDP)

Default configuration settings

Movement and ignition detection:

Vehicle movement will

be detected by

accelerometer

Ignition will be detected

by vehicle power voltage

between 13,2 –30 V

Device makes a record On Moving if one of these events happen:

300 seconds passes

Vehicle turns 10 degrees

Vehicle drives 100

meters

Speed difference

between last coordinate

and current position is

greater than 10 km/h

Device makes a record On Stop if:

1 hour passes while

vehicle is stationary

and ignition is off

Records sending to server:

If device has made a

record it is sent to the

server every 120

seconds

After successful SMS configuration, FMB910 device will synchronize

time and update records to configured server. Time intervals and

default I/O elements can be changed by using Teltonika

Configurator or SMS parameters

" setparam

2001

:APN;

2002

:APN_username;

2003

:APN_password;

2004

:Domain;

2005

:Port;

2006

:0;"

FMB910 |

Wiki

Mounting recommendations

•Connecting wires

▬Wires should be fastened to the other wires or non-moving

parts. Try to avoid heat emitting and moving objects near

the wires.

▬The connections should not be seen very clearly. If factory

isolation was removed while connecting wires, it should be

applied again.

▬If the wires are placed in the exterior or in places where they

can be damaged or exposed to heat, humidity, dirt, etc.,

additional isolation should be applied.

▬Wires cannot be connected to the board computers or

control units.

•Connecting power source

▬Be sure that after the car computer falls asleep, power is still

available on chosen wire. Depending on car, this may

happen in 5 to 30 minutes period.

▬When the module is connected, measure the voltage again

to make sure it did not decrease.

▬It is recommended to connect to the main power cable in

the fuse box.

▬3 A, 125 V external fuse shall be used.

•Connecting ignition wire

▬Be sure to check if it is a real ignition wire i.e. power does

not disappear after starting the engine.

▬Check if this is not an ACC wire (when key is in the first

position, most of the vehicle electronics are available).

▬Check if power is still available when you turn off any of

vehicles devices.

▬Ignition is connected to the ignition relay output. As

alternative, any other relay, which has power output when

ignition is on, may be chosen.

•Connecting ground wire

▬Ground wire is connected to the vehicle frame or metal

parts that are fixed to the frame.

▬If the wire is fixed with the bolt, the loop must be connected

to the end of the wire.

▬For better contact scrub paint from the spot where loop is

going to be connected.
