TESTO 881 Referenzhandbuch

Brief instructions en

testo 881 · Thermal imager

Contact

GREAT BRITAIN / IRELAND

Testo Ltd.

Alton, Hampshire GU34 2QJ

Tel. (14 20) 54 44 33, Fax (14 20) 54 44

E-mail: [email protected]

USA

Testo Inc.

Flanders, NJ. 07836

Tel. (973) 2 52 17 20, Fax (973) 2 52 17 29

E-mail: [email protected]

AUSTRALIA

Testo Pty Ltd

Croydon South VIC 3136

Tel. (3) 98 00 46 77, Fax (3) 98 00 46 99

E-mail: [email protected]

The most up-to-date address details of our subsidiaries and

agencies can be found in Internet at: www.testo.com

Changing assignment of the quick

select buttons

Change the left or right quick select button:

1Call up: Move Joystick to the left or right.

2Navigate: Move Joystick up / down.

3Confirm: Press [OK] .

or

Cancel: Press [Esc] .

Getting to know the quick select

buttons

Using the quick select buttons, the set functions are

called up directly. Factory settings:

Left quick select button : Adjust scaling.

Right quick select button :

testo 881-2: Change colour palette.

testo 881-1/3: Select image type.

Building inspection

Electrical maintenance work

Mechanical maintenance









Image type

Light

Palette

Emissivity...

Scale...

Adjustment

Scale… Image type

0970 8809 en 01 V01.00 en-US

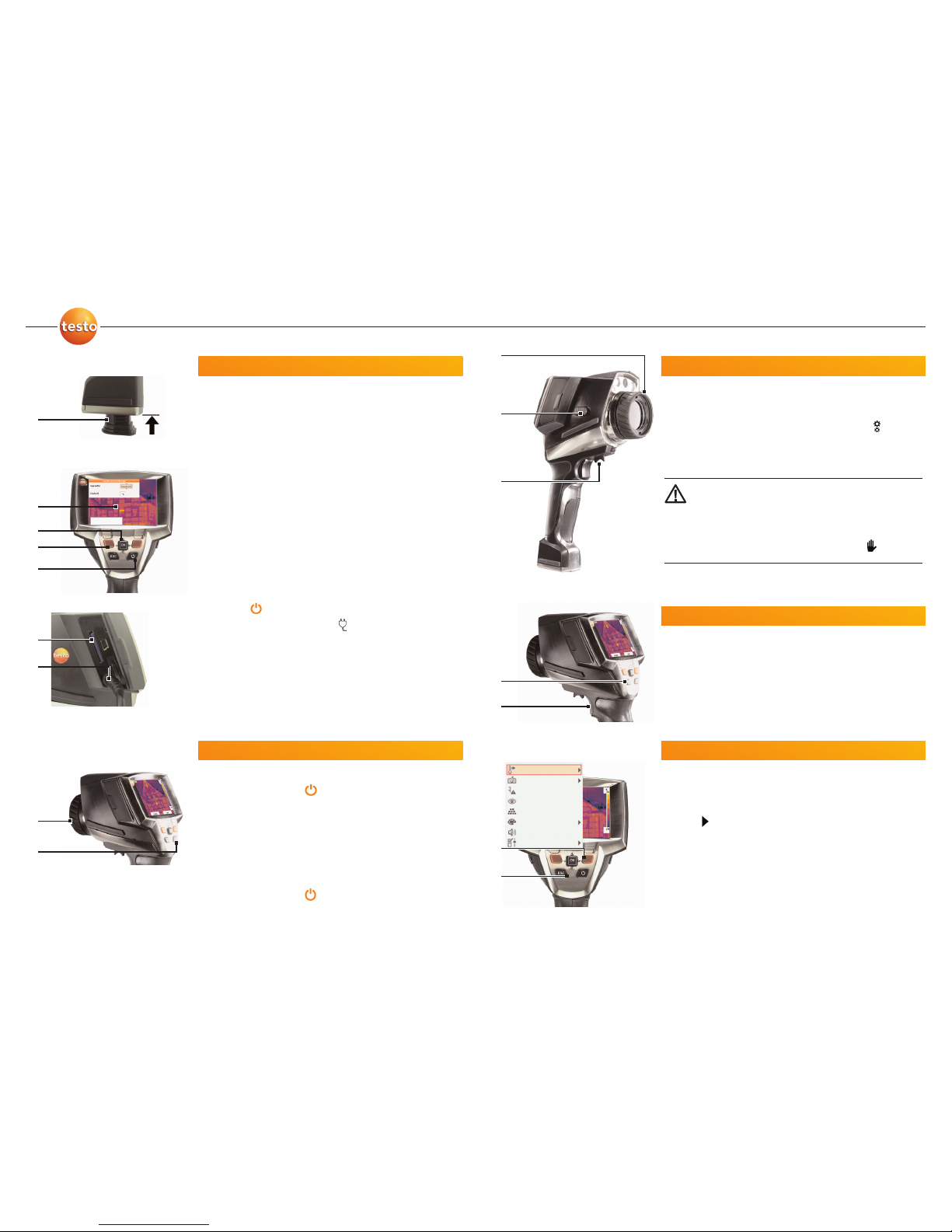

Commissioning

1Push the rechargeable battery all the way

into the rechargeable battery slot until this is flush

with the bottom of the handle.

- The thermal imager starts automatically.

2Remove protective film from the display .

- Instrument language (Language) and temperature

unit (Unit) can be set:

3Move Joystick up / down to select the desired

option.

4Press [OK] .

5Move Joystick up / down to change the setting.

6Press [OK].

7Press [Apply] function key to apply the

settings.

8Press [] to switch off the thermal imager.

9Connect power supply ().

10 Completely charge battery (3 hours).

11 Insert Memory card in the card slot (SD) .

- The camera is now ready for operation.

Recording the image

1Freeze image: Press trigger button once.

2Save image: Press trigger button again.

or

Discard image: Press [Esc] .

Getting to know the menu

1Open menu: Press [OK] .

2Navigate: Move Joystick up / down.

3Open submenu (only for menu points marked

with ): Move joystick to the right.

4Call up a function: Press [OK].

or

Exit menu: Press [Esc] .







Focusing the picture

With motor focus (testo 881-3 only)

1Switch on motor focus: Slide motor focus

switch towards the display (position ).

2Focus: Move motor focus control .

Manual

testo 881-3 only: Caution! Manually turning while

motor focus is switched on damages the auto

mechanism.

Switch off motor focus: Slide motor focus

switch towards the lens (position: ).

Turn lens by hand.











Apply

Switching on / off

Remove protection cap from the lens.

Switch on: Press [ ] .

- The measurement view is opened after the warm-

up period.

- The thermal imager performs an automatic

zeroing approx. every 60 sec. This can be

recognized by a “click”. The image is frozen

briefly when this occurs.

Switch off: Press [ ] again.













Measurement

Image gallery

Scale...

Display...

Emissivity...

Palette

Audio…

Configuration




