Texecom Impaq S Bedienungsanleitung

Installation Manual

Impaq S / Impaq SC & Impaq S Grade

INS877-4

10-03-2022 • Changed details for sensitivity settings description and tables inline with PCR01407

• PCR01350 updated PCB schematics and wiring details to accommodate PCB changes.

18-10-2022 • Impaq S Grade 3 added to the manual.

INS877-4 3/26

Content

1.0 Introduction 4 ............................................................................................................................

1.1 Impaq S 4 ...............................................................................................................................

1.2 Impaq SC 6 .............................................................................................................................

1.3 Impaq S Grade 3 8 ..................................................................................................................

2.0 Mounting 10 ................................................................................................................................

2.1 Device mounting 10 ...............................................................................................................

2.2 Magnet mounting (type SC only) 13 .......................................................................................

3.0 Impaq S and S Grade 3 wiring conﬁguration 16 ...................................................................

4.0 Impaq SC wiring conﬁguration 20 ...........................................................................................

5.0 LED functionality 22 ..................................................................................................................

6.0 Setting the shock sensitivity 23 ..............................................................................................

7.0 Speciﬁcations 24 ........................................................................................................................

8.0 Legal Information 25 .................................................................................................................

INS877-4 4/26

1.0 Introduction

The Impaq S is a Grade 2 wired shock sensor, the Impaq SC is a Grade 2 wired

shock sensor with the option for a magnetic contact, and the Impaq S Grade 3 is a

Grade 3 shock sensor.

Sections 1.1 and 1.2 and 1.3 show the key parts of the devices.

1.1 Impaq S

INS877-4 5/26

INS877-4 6/26

Icon Item

A LED function select DIP switch

B Sensitivity selection button

C Alarm resistance value selection DIP switch

D Tamper resistance value selection DIP switch

E Input terminal block

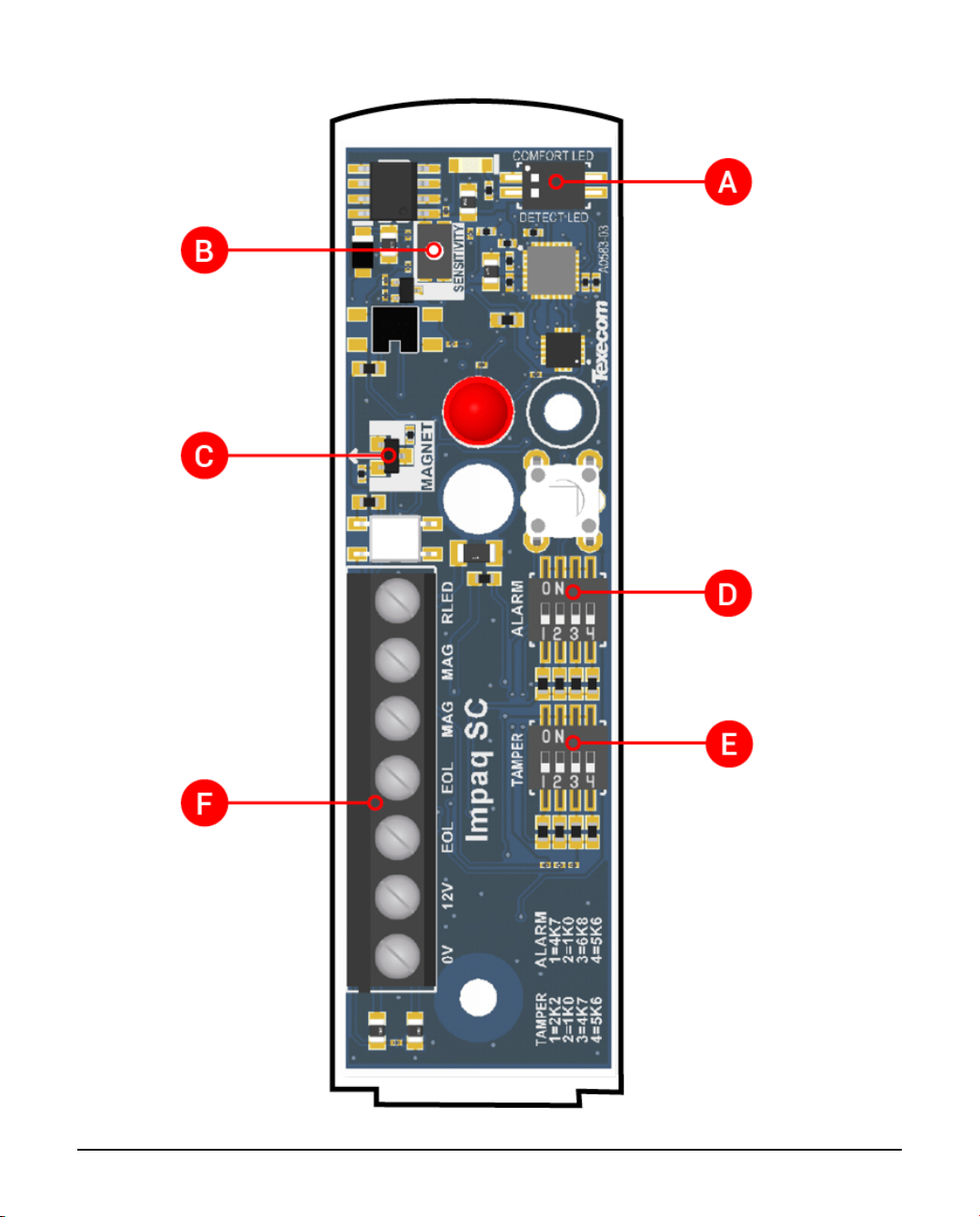

1.2 Impaq SC

INS877-4 7/26

INS877-4 8/26

Icon Item

A LED function select DIP switch

B Sensitivity selection button

C Magnet sensor

D Alarm resistance value selection DIP switch

E Tamper resistance value selection DIP switch

F Input terminal block

1.3 Impaq S Grade 3

INS877-4 9/26

INS877-4 10/26

Icon Item

ALED function select DIP switch

BSensitivity selection button

CAlarm resistance value selection DIP switch

DTamper resistance value selection DIP switch

EInput terminal block

FRemoval from mounting breakout

2.0 Mounting

2.1 Device mounting

Select the intended mounting position. The device can be installed in any

mounting orientation.

Open the device cover and remove the PCB using a screwdriver (see ﬁgure 1)

Remove the cable knockouts (see ﬁgure 2)

To ensure product compliance with EN50131, ﬁx the base onto the

mounting surface (see ﬁgure 3) using the following screw type:

Head Type: Counter Sunk ﬂat head

Head Diameter: 5.3-6.8mm

Screw Diameter 2.9-3.2mm

Screw length: 15.8-24.5mm

Impaq S Grade 3 MUST use the ﬁxing points shown in RED on Fig 3 for the

removal from mounting tamper to function correctly.

Care should be taken when screwing through the PCB for the rear

tamper breakout. Overtightening the screw could cause the PCB tracks

to break and leave the device permanently in tamper. This is not

reversible and the PCB will need to be replaced.

NOTE 1: If the product is mounted on concrete, suitable wall plugs should be used.

NOTE 2: If installing the Impaq SC the same screw types should be used to mount
