Thermo Scientific ModulyoD Bedienungsanleitung

)NSTRUCTION-ANUAL

.0%6-:0%

'SFF[F%SZFS

5HY'

Section Section Title — Technical Data Page

2.0 Technical Data 13

2.1 General 13

2.2 Refrigeration System 13

2.3 Electrical Data 13

2.4 Construction Details 14

2.4.1 Legislation and Standards 14

2.4.2 Constructions Materials 14

2.5 Vacuum Pump Requirements 14

Table of Contents

Section Section Title — Introduction Page

1.0 Introduction 4

1.1 Scope of the Manual 4

1.2 General Description 4

1.2.1 The ModulyoD 4

Figure 1-ModulyoD 5

Figure 2-ModulyoD Back view 5

1.2.1.1 The Accessory Flange & Condenser Chamber 6

1.2.1.2 The Refrigeration System 5

Figure 3-Inside ModulyoD 7

Figure 4- Refrigeration Circuit Diagram 7

1.2.1.3 User Interface 8

Table 1-Control Panel Description 8

Figure 5-ModulyoD Control Panel 9

Figure 6-Temperature Progress Bar 9

Figure 7-Vacuum Progress Bar 9

1.2.1.4 Front Fascia 9

1.2.1.5 Connections 10

Table 2-Drain Outlet Description 10

1.2.1.6 Condenser Extension Assembly 10

Figure 8-The Condenser Extension Tube 11

1.3 Protection Devices 11

1.4 Applications 11

1.4.1 Introduction 11

1.4.2 The Freezing Process 12

1.4.3 The Drying Process 12

1.4.4 Vapor Trapping 12

Table of Contents

Section Section Title — Installation Page

3.0 Installation 15

3.1 Unpack and Inspect 15

Table 3- Checklist of Components 15

3.2 Site Preparation 15

3.3 Connect the ModulyoD to the Electrical Supply 16

3.4 Connect the Vacuum Pump 16

3.5 Connect a Vacuum Pump to the ModulyoD 16

Figure 9-Connect a VLP195FD or VLP120 Pump to the ModulyoD 17

3.6 Pump Outlet Safety 17

3.7 Test After Installation 17-18

Section Section Title — Operation Page

4.0 Operation 19

4.1 Safety 19

4.2 Sequence of Operation 19

Table 4-Sequence of Operation 19

4.3 Prepare the ModulyoD 20

4.4. Fit the Sample Container and Other Accessories 20

4.5 Pre-Cool the ModulyoD 20-21

4.6 Drying 21-22

4.7 Shut Down 22

4.8 Defrost the ModulyoD 23

4.9 Operation With No Load 24

Section Section Title — Maintenance Page

5.0 Maintenance 24

5.1 Safety 24

5.2 Precautions 24

5.3 Refrigerant Leaks 25

Section Section Title — Accessories Page

6.0 Accessories/Drying Accessories 25

Section Section Title — Warranty & Appendices Page

7.0 Warranty and Liability 26

Appendix A - Using the ModulyoD as a Cold Trap 26

Appendix B - Decision Tree 27

Freeze Drying User’s Log28

Caution - refer to accompanying documents

Caution - risk of electric shock

Caution - hot surface

This manual provides installation and operation instructions for the Thermo Electron

ModulyoDFreeze Dryer, abbreviated to ModulyoD in the remainder of this manual. You

must use the ModulyoD as specified in this manual.

Read this manual before installing and operating the ModulyoD. Important safety infor-

mation is highlighted as WARNING and CAUTION instructions; you must obey these

instructions. The use of WARNINGS and CAUTIONS is defined below.

WARNING: Warnings are given where failure to observe the instruction could

result in injury or death to people.

CAUTION: Cautions are given where failure to observe the instruction could

result in damage to equipment, associated equipment and process.

In accordance with the recommendations of IEC1010, the following warning symbols

may appear on the freeze dryer:

1.0 INTRODUCTION

1.1 SCOPE OF THE MANUAL

The ModulyoD is the ice condenser section of a freeze drying system. It is designed

specifically for freeze drying biological samples and pharmaceutical preparations in a

laboratory environment. The ModulyoD, when used in conjunction with a vacuum source

and manifold or other sample container, forms a complete freeze drying system. The

ModulyoD may also be suitable for use as a low temperature (-50 °C.) vapor trap.

Please refer to Appendix A for specific limitations regarding the use of the ModulyoD as

a vapor trap.

The ModulyoD is used with a variety of optional accessories to freeze materials in bulk

trays, flasks, tubes, vials or ampules. These optional accessories are described in

Section 6.0 and depicted inAppendix B. The ModulyoD may also be used as a low tem-

perature vapor trap (cold trap) for a variety of devices. These include vacuum concen-

trators, rotary evaporators and vacuum ovens.

The ModulyoD itself is made of three basic parts, the condenser chamber, a refrigera-

tion system and the user interface. The refrigerant used in the ModulyoD is CFC free.

All ModulyoD components are housed in a steel cabinet that is designed for bench-top

use. The major components of the ModulyoD are described in the following sections.

(Please refer to Figures 1 and 2 on page 4 for the location of each component.)

1.2 GENERAL DESCRIPTION

1.2.1 THE MODULYOD

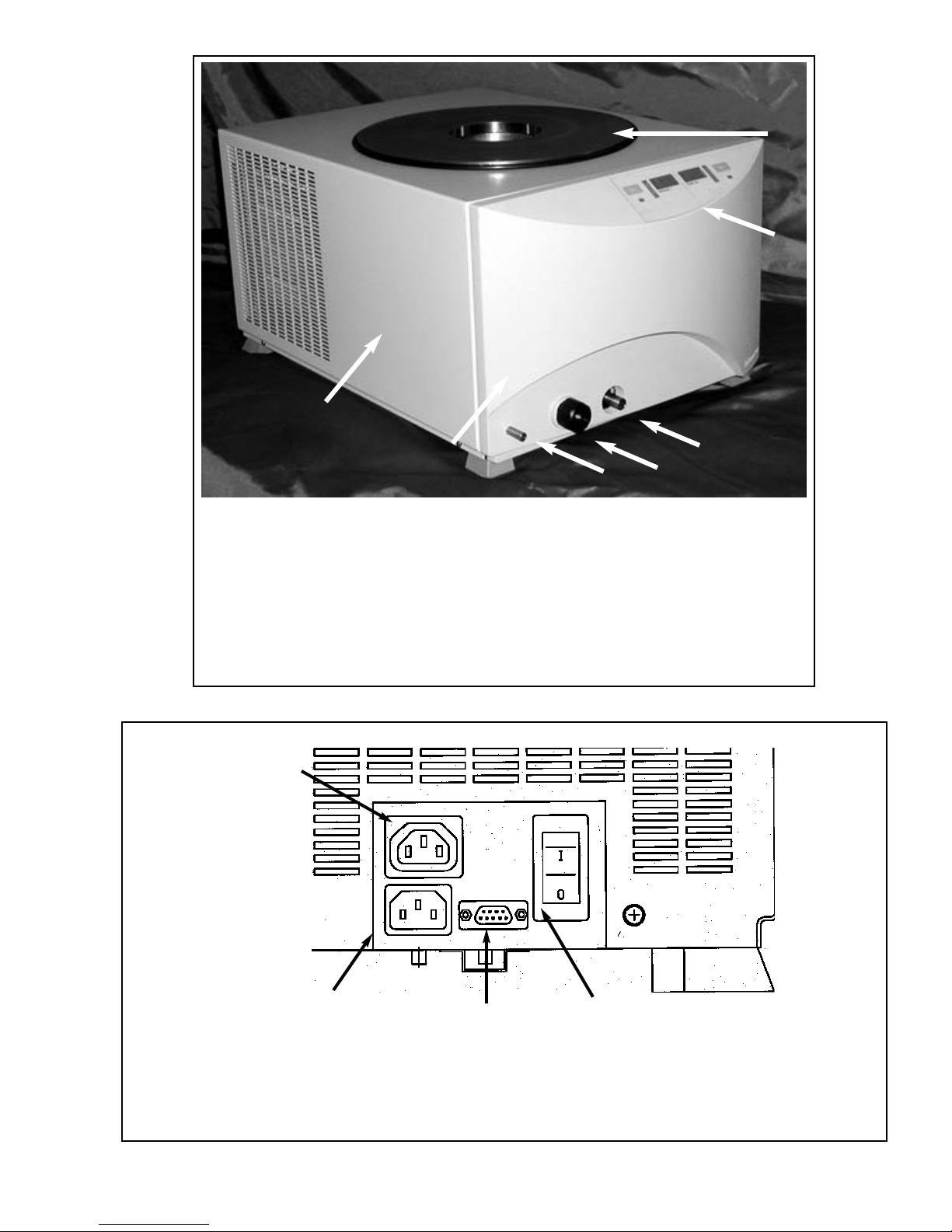

Figure 1 – MODULYOD

1. Condenser Chamber Accessory Flange & Condenser Chamber

2. Steel Cabinet with Refrigeration System

3. User Interface

4. Front Fascia

5. Drain Outlet

6. Drain Valve

7. Vacuum Port

Figure 2 – MODULYOD BACK VIEW

Power IEC Outlet

to Vacuum Pump

Power IEC Inlet 3

RS232 Port

Power Switch

with Circuit Breaker

Refer to Figure 3, on page 6 for the location of components of the refrigeration system

on the ModulyoD.

NOTE: There are no longer user-serviceable parts inside the ModulyoD refrigeration

system.

The condenser chamber is cooled by refrigerant, which evaporates in the copper cool-

ing coil wound externally around the chamber. The thermo expansion valve (item2) pro-

vides excellent performance to the system. The compressor (item1) is a high-capacity,

air-cooled, hermetically sealed unit.

A suction-line accumulator (item 3) in the return line from the cooling-coil to the com-

pressor prevents slugs of liquid refrigerant, which might cause damage, from reaching

the compressor.

A filter dryer (item 4) in the line between the liquid receiver (item 5) and the expansion

valve absorbs any residual particulate and water contamination in the system. The fil-

ter dryer does not need to be serviced or replaced.

The electrical fan (item 6) simultaneously cools down the condenser coil (item 7) and

the compressor.

See Section 2.2 on page 12 for refrigerant type and charge.

1.2.1.2 THE REFRIGERATION SYSTEM

The accessory flange and condenser chamber are made entirely of stainless steel.

The chamber itself is a thin walled cylinder with a dish shaped bottom. It has a total

capacity of 5 liters of ice. The accessory flange is a large diameter flat circular plate

located immediately above the chamber. The accessory flange is designed to accept

a wide variety of accessory items. A large opening in the center of the accessory

flange provides easy inspection, cleaning and defrosting of the condenser chamber. It

also facilitates high vacuum pumping rates. Acircular cooling coil wrapped around the

outside of the condenser chamber cools the walls of the chamber. This coil is cooled

to approximately -50 °C under normal operating conditions with no load applied. At

this temperature most water vapor will condense and freeze on the chamber walls.

1.2.1.1 THE ACCESSORY FLANGE & CONDENSER CHAMBER

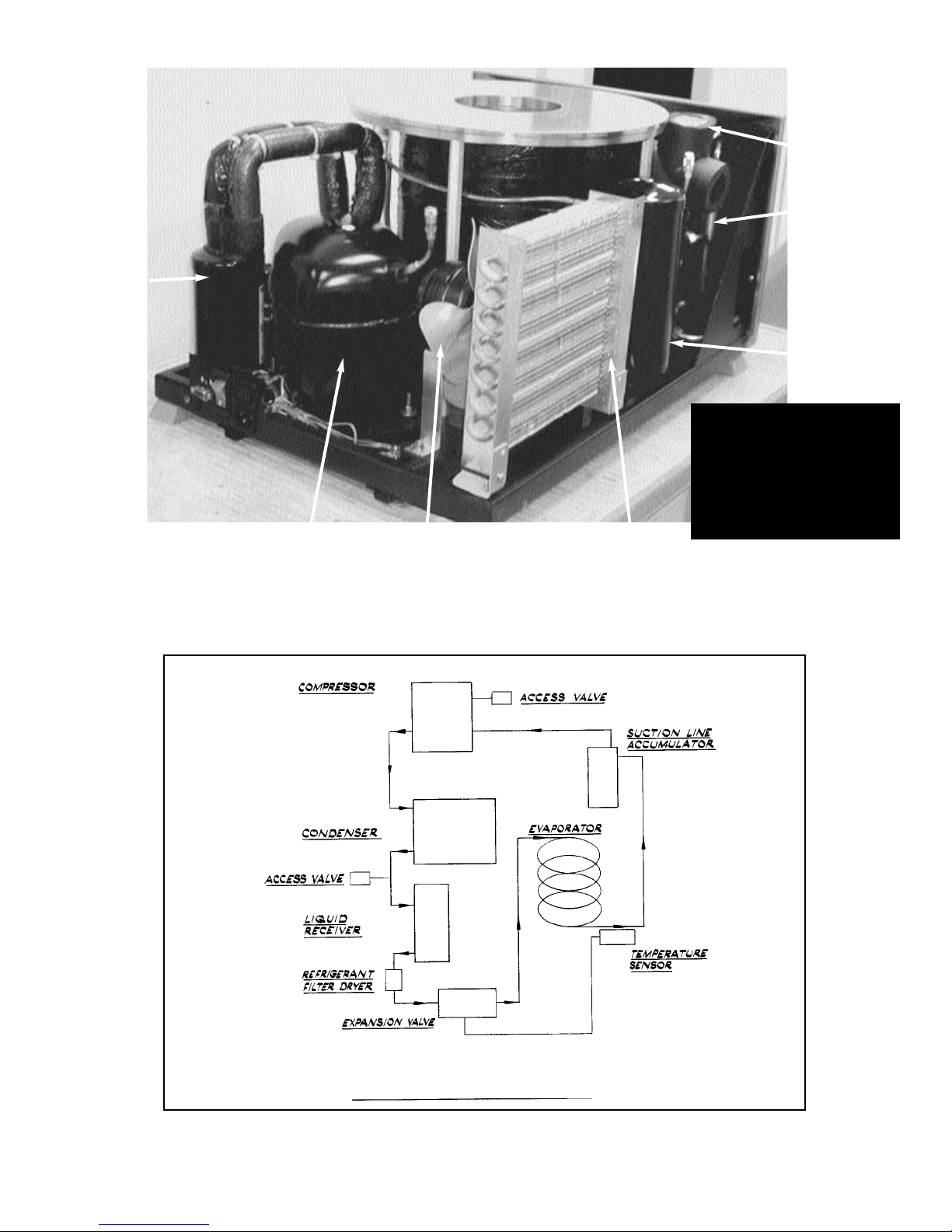

Figure 3 – INSIDE MODULYOD

1. Compressor

2. Thermo Expansion Valve

3. Suction-line Accumulator

4. Filter Dryer

5. Liquid Receiver

6. Fan

7. Condenser Coil

Figure 4 – REFRIGERATION CIRCUIT DIAGRAM

Table 1 – CONTROL PANEL DESCRIPTION

Control Figure # Item # Use

The user interface is a membrane panel with two indicator bars, two digital displays and

two pushbutton actuators. It is located on the upper sloping surface of the front fascia of

the ModulyoD. Through this interface the user will switch on and off and moving refrig-

eration and vacuum. Figure 5, Figure 2 and Table 1 (below) locate and describe, in

detail, the function of each item.

1.2.1.3 USER INTERFACE

To switch refrigeration system on and off.

To show temperature of the condenser chamber in °C.

When the temperature of the condenser chamber is equal to

or higher than ambient temperature, ‘rt’ is displayed, which

stands for ‘room temperature’.

The lamp is on when the refrigeration system is on.

The temperature indicator bar is a multicolored display

designed to indicate operating status from a distance. Green

indicates a temperature at or near minimum (approximately -

40 °C.). Amber bars indicate temperatures progressing from

approximately -40° to -7°. Red bars indicate temperatures pro-

gressing from -7° to ambient (see Figure 6, page 8).

To switch vacuum pump on and off if the pump is plugged

into auxiliary power outlet of the ModulyoD (see Section 3.5,

page 15).

The lamp is on when the vacuum pump is on.

To show absolute pressure in the condenser chamber.

Readings start when pressure is less then 50 mbar and are

in millibars down to 1.0 millibar. When the vacuum pressure

drops below 1.0 millibar, the pressure will then be displayed

in micro-bars. When pressure is above 50 mbar, ‘Hpr’ is dis-

played, which stands for ‘High pressure’.

The vacuum indicator bar is a multicolored display designed

to indicate operating status from a distance. Green indicates

a pressure at or below 1mbar. Amber bars indicate

pressures progressing from approximately 1 to 13 mbar.

Red bars indicate pressures progressing from 13 to 52

mbar, (see Figure 7, page 8).

To switch the ModulyoD on and off.

Fridge button 5 1

Fridge On lamp 5 2

Vacuum progress bar 5 8

Mains switch with 2 4

circuit breaker

Vacuum level display 5 7

Vacuum pump on lamp 5 6

Vacuum pump button 5 5

Temperature progress 5 4

Temperature display 5 3

4375

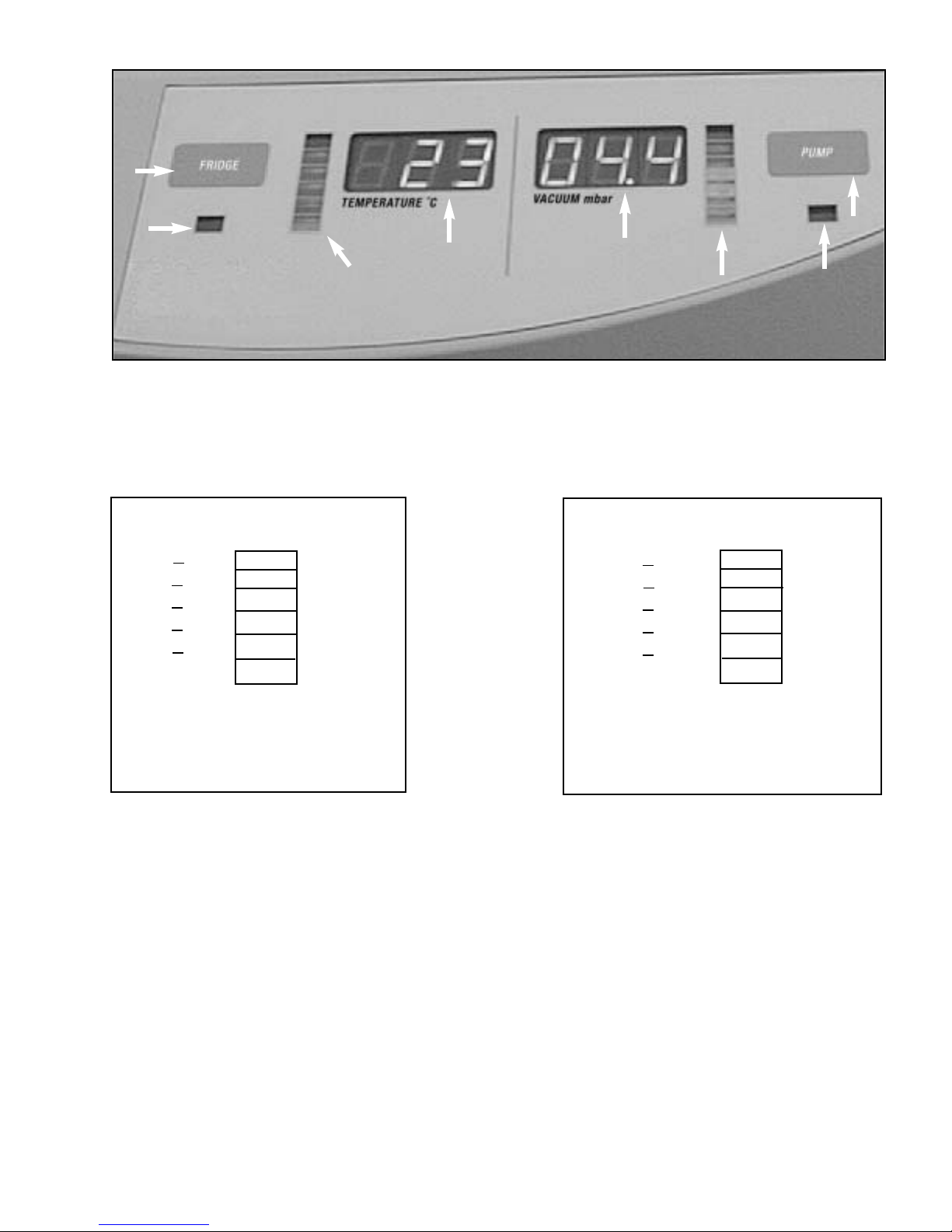

Figure 5 – MODULYOD CONTROL PANEL

See Table 1, page 7, for description of items.

The front fascia forms the front of the ModulyoD cabinet. The user interface is

located on the upper right-hand portion of this surface. The drain outlet, drain

valve and vacuum port are located on the lower left-hand portion.

1.2.1.4 FRONT FASCIA

Temperature Color

°C

Figure 6

TEMPERATURE

PROGRESS BAR

Pressure Color

mbar

Figure 7

VACUUM

PROGRESS BAR

T<-40

-40<T<-34

-34<T<-21

-21<T<-7

-7 <T<+7

7 <T

Green

Amber

Red

H<1.0

1 <H<3.95

3.95 <H<6.58

6.58 <H<13.16

13.16<H<52.6

52.6 <H

Green

Amber

Red

Figure 1 (Page 4) and Table 2 locate and describe, in detail, the function of the drain out-

let, drain valve and vacuum port. Figure 2 and Table 2 locate and describe the electrical

connections.

1.2.1.5 CONNECTIONS

The ModulyoDis shipped with the condenser extension assembly installed (see Figure 8).

This extension assembly is necessary to prevent the formation of ice in the vacuum pump

connection. The extension assembly should only be removed when working with the Spin

Freezer 96 freeze drying accessory (part numbers F05637000 or F05637115).

1.2.1.6 CONDENSER EXTENSION ASSEMBLY

Table 2 – DRAIN OUTLET DESCRIPTION

Connection Figure # Item # Use

Vacuum port 1 7 To connect your vacuum pump to the ModulyoD

Drain valve 1 6 Close the valve (turn it fully clockwise) to isolate the

condenser chamber from the drain outlet. Open the

valve (turn it anti-clockwise) to admit air into the

vacuum system, and to drain water from the condenser

chamber after it has been defrosted.

Drain outlet 1 5 This outlet is used to drain water from the ModulyoD

during defrosting of the condenser chamber. The outlet

is also used to admit air into the vacuum system.

Power IEC 320 inlet 2 1 To connect the ModulyoD to an external power source.

Auxiliary power 2 2 To connect your vacuum pump to the IEC 320 outlet

power supply which will enable the pump to be

operated directly from the ModulyoD.

RS232 port 2 3 To connect the ModulyoD to a computer or chart

recorder.

Inhaltsverzeichnis

Andere Thermo Scientific Laborausrüstung Handbücher

Thermo Scientific

Thermo Scientific 1300 Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific 88882013 Bedienungsanleitung

Thermo Scientific

Thermo Scientific 7470 Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific TSX Series Betriebsanleitung

Thermo Scientific

Thermo Scientific GenPure Standard Bedienungsanleitung

Thermo Scientific

Thermo Scientific Matrix MultiChannel EqualizerPipette Bedienungsanleitung

Thermo Scientific

Thermo Scientific Premium Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific EASY-Spray Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific Heraeus Multifuge X1 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Applied Biosystems VeritiPro Bedienungsanleitung

Thermo Scientific

Thermo Scientific Vitrobot Mk IV Bedienungsanleitung

Thermo Scientific

Thermo Scientific 1371 Bedienungsanleitung

Thermo Scientific

Thermo Scientific UltiMate Bedienungsanleitung

Thermo Scientific

Thermo Scientific Barnstead EASYpure RODI 1332 Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific Thermo Scientific Orion Star T900 Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific 1267 Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific Applied Biosystems QuantStudio Bedienungsanleitung

Thermo Scientific

Thermo Scientific Sorvall ST 16 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Heraeus Pico 21 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Fisher Scientific Fisherbrand GT1R... Bedienungsanleitung

Thermo Scientific

Thermo Scientific SHKE8000 Series Betriebsanleitung

Thermo Scientific

Thermo Scientific Dionex UltiMate 3000 Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific Finnpipette F3 Bedienungsanleitung

Thermo Scientific

Thermo Scientific SL40 Bedienungsanleitung

Beliebte Laborausrüstung Handbücher anderer Marken

Qiagen

Qiagen DML 3000 Bedienungsanleitung

Queensgate

Queensgate NANOSCAN OP400 Programmierhandbuch

Conviron

Conviron GEN1000-GE Bedienungsanleitung

Parr Instrument

Parr Instrument 4560 Bedienungsanleitung

IKA

IKA IC control Bedienungsanleitung

Integra

Integra DOSE IT Bedienungsanleitung

Agilent Technologies

Agilent Technologies 5800 ICP-OES Bedienungsanleitung

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Bedienungsanleitung

NI PXI-5422 Handbuch

Collomix

Collomix Aqix Bedienungsanleitung

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung

Ocean Insight

Ocean Insight FLAME-NIR+ Bedienungsanleitung

Parker

Parker ALIGN-MG-NA Bedienungsanleitung

BD 644787 Bedienungsanleitung

DENTAURUM

DENTAURUM Compact Megaplus Bedienungsanleitung

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Bedienungsanleitung

VWR

VWR SAS Super IAQ Bedienungsanleitung

illumina

illumina MiSeqDx Bedienungsanleitung
