Time Electronics User Manual
7006 Loop-Mate 1 Loop Simulator v1.1
7006 Loop-Mate 1 Loop Simulator Page 6 of 22
1.3 Specifications
Functions RxTest, TxSim, 10vSim.
Ranges 4 - 20mA, 0 - 10V DC (Max current 20mA).
Set Points 7 Points: 0% (4mA or 0V), 10% (5.6mA or 1V), 25% (8mA or 2.5V),
50% (12mA or 5V), 75% (16mA or 7.5V), 90% (18.4mA or 9V), 100% (20mA or 10V).
Accuracy 0.1% of span.
Indication High brightness LEDs.
Control UP/DOWN buttons, function select switch, auto-step select button.
Auto Step Automatic Up/Down step through the set points.
Step Rates Selectable 0.5, 1, 2, 4 or 8 steps per second.
Dwell Time At top (100%) and bottom (0%), twice the step time.
Beeping A beep is sounded with increasing frequency for each step.
This feature can be disabled if required.
Error Indicator for
faulty loop conditions
TxSim: Loop open circuit or loop resistance too high.
RxTest: Inadequate loop excitation supply.
10vSim: Loop short or loop resistance too low.
Connections Two 4mm recessed sockets.
Power PP3 battery. Note that an auto power down feature can be disabled if required.
Carrying Pouch Leatherette material. Includes compartment for leads and spare battery.
Leads 4mm gold plated connectors with crocodile clips.
Temperature Co-efficient The unit stays in specification over operating temperature range.
Operating Temperature -5 to 50 °C.
Storage Temperature -30 to 70 °C.
Operating Humidity 10 to 90% non-condensing, 25 °C.
Dimensions H 140 x W 65 x D 27 mm (6.0 ×2.5 ×1.0 in).
Weight 280 grams (10 oz).
Options
C145: Traceable calibration certificate (Factory).
C144: Accredited calibration certificate (ISO 17025).

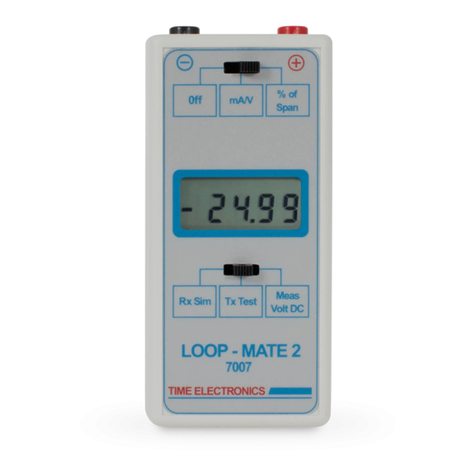

7007: Loop-Mate 2: Loop Signal Indicator (separate product).
