DESCRIPTION

The Tjernlund Cool Breeze™ Garage Fan ( odel CB14) pulls hot air from

the garage ceiling and exhausts it into the garage attic where it then can

flow out of the ridge, roof or gable vents. Outdoor air replaces the hot

exhausted air lowering air temperatures and reducing the thermal heat gain

of the garage’s floor, structure and contents. The fan can also be used to

exhaust non-combustible contaminants from the garage.

The CB14 comes with an adjustable temperature activation switch for sim-

ple, automatic operation. It can also be wired for manual or automatic oper-

ation. Other controls are available and sold separately.

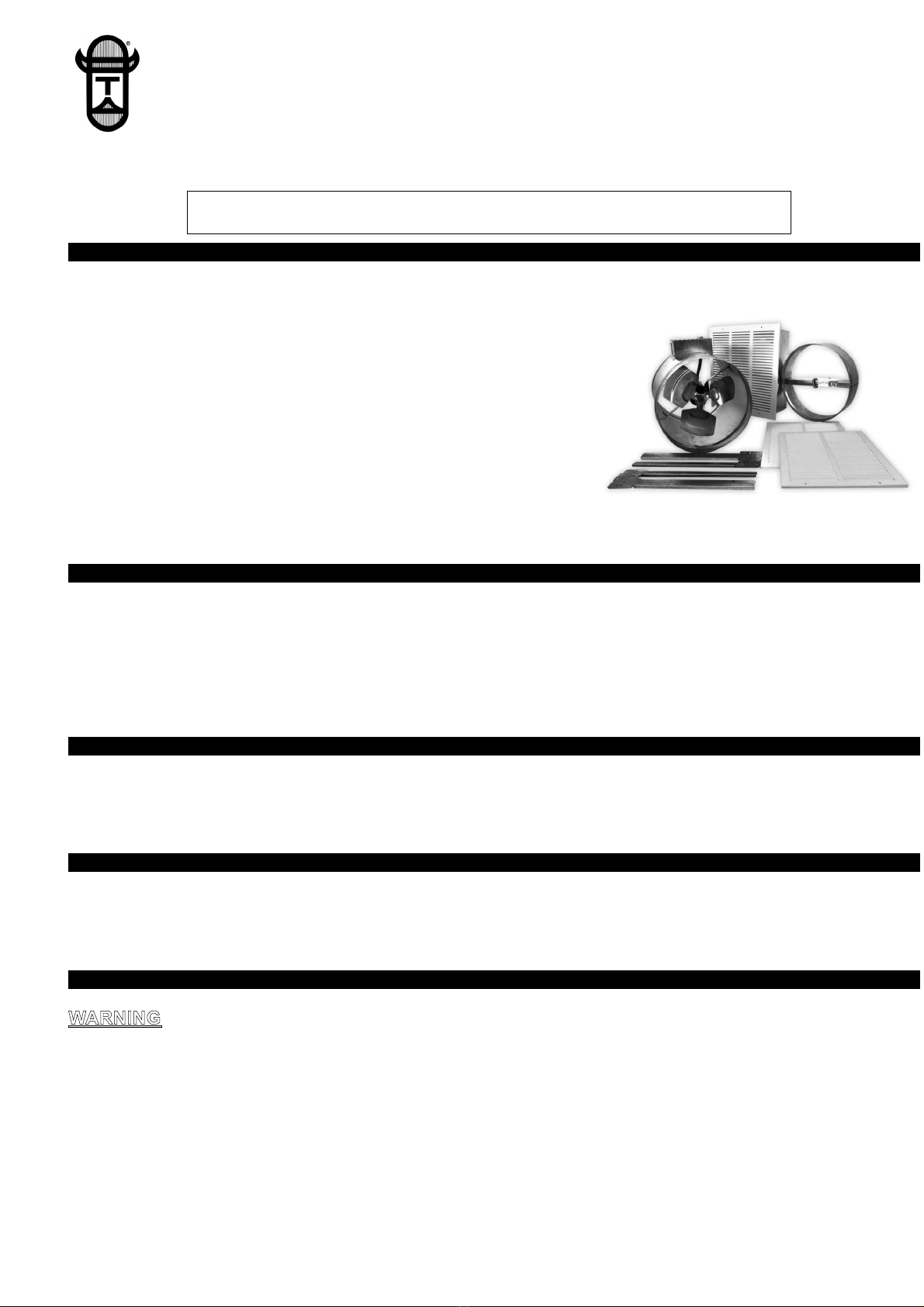

Included in the CB14 is the fan assembly, intake plenum, ceiling radiation

damper, fan intake grille, (2) outdoor intake grilles, mounting brackets and

hardware packet with instructions.

SPECIFICATIONS

Blower: 1200 CF Temperature Switch: Adjustable from 90F to 130F

otor: 120 VAC ~ 60 Hz Ceiling Radiation Damper: 3 Hour, 212F fusible link

2.17 Amps maximum

Grilles: (1) 18” x 18”

Impeller: 30 degree, steel (2) 12” x 12”

GENERAL INFORMATION

Each Cool Breeze™ Garage Fan is electrically factory line tested before shipment. After opening carton, inspect thoroughly

for shipment damage. Fan should rotate freely and all electrical wires and connections should be secure. If any damage is

found, notify freight carrier and your distributor immediately and file a concealed damage claim.

OPERATION

The CB14 can be wired to be controlled manually by a wall switch (not included), by the included temperature switch, or

both. Also available from Tjernlund are wall mount timers (P/N 950-9300) and wireless wall switches (P/N SWS). Contact

Tjernlund for more information on these controls.

INSTALLATION

WARNING

The CB14 must be installed by a qualified installer in accordance with these instructions and all local codes or in their

absence in accordance with the latest editions of the International Residential Code, International Electrical Code or prevail-

ing local codes. Improper installation can create a hazardous condition such as fire, electric shock or personal injury.

To reduce these risks significantly, use this unit only in the manner intended by the manufacturer. If you have questions,

contact Tjernlund Products. Always disconnect the unit from its power source before installation and servicing.

CAUTION: For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

Cool Breeze™ Gara e Fan Model CB14

TJERNLUND PRODUCTS, INC.

1601 Ninth Street • White Bear Lake, N 55110-6794

PHONE (800) 255-4208 • (651) 426-2993 • FAX (651) 426-9547

Visit our web site • www.tjernlund.com

READ OWNERS INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION.

THESE INSTRUCTIONS MUST REMAIN WITH EQUIPMENT. DO NOT DESTROY.

TOOLS REQUIRED

• Drywall Saw

• Drill with 1/4" Hexagonal Torque Bit, Flat Head Bit and 1/16” Drill Bit

• Flathead Screwdriver

• 6’ 2” x 4” Board

INSTALLATION

LOCATION WARNING

ount garage fan inside the attic keeping in mind the electrical and activation sources. Locating the CB14 away from the

intake vents may lead to more complete garage coverage and better results.

Locating rows of drywall screws may help identify the location of joists along the ceiling. ake sure the location you choose

is a suitable considering:

1) Electrical, gas, water lines or structurally critical areas of your home that may be located in your attic

2) The combined height of the fan, intake plenum and open radiation damper in relation to the roof pitch

3) Electrical access for the fan motor

4) Air flow paths to gable, ridge or roof vents

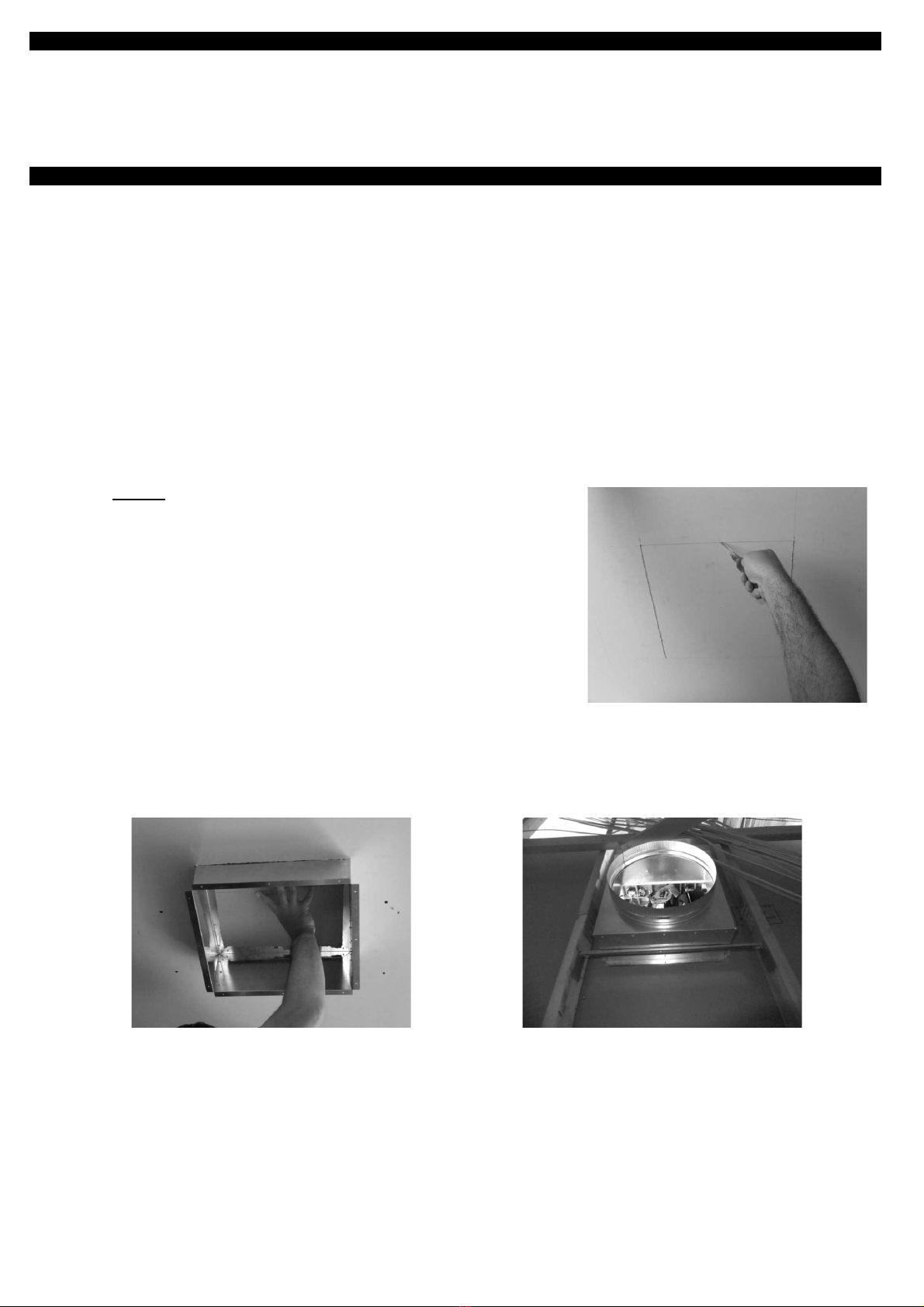

1. Outline a 16”x16” square on your garage ceiling at the desired fan location

considering the above points.

2. Cut along outline with drywall knife to create hole opening (Figure A).

3. Intake plenum can be pushed up into the hole and secured from the garage (Figure B) or placed on ceiling from attic and

secured from above (Figure C). Center the intake plenum along opening in the drywall and rotate so that the sides

with the three mounting holes (used later) are perpendicular to the joists/trusses.

3a. If mounting the intake plenum from the garage:

-Secure 2 2” x 4” boards between the joists and along edges of the hole. These can typically be cut to 22.5” and

secured with screws or nails if joists are 24” on center.

-Insert intake plenum into hole from garage and secure it by driving screws through the 3 mounting holes on each

side of the intake plenum and then through the drywall and into the secured 2” x 4” boards.

Figure A

Figure CFigure B

3b. If mounting the intake plenum from the attic:

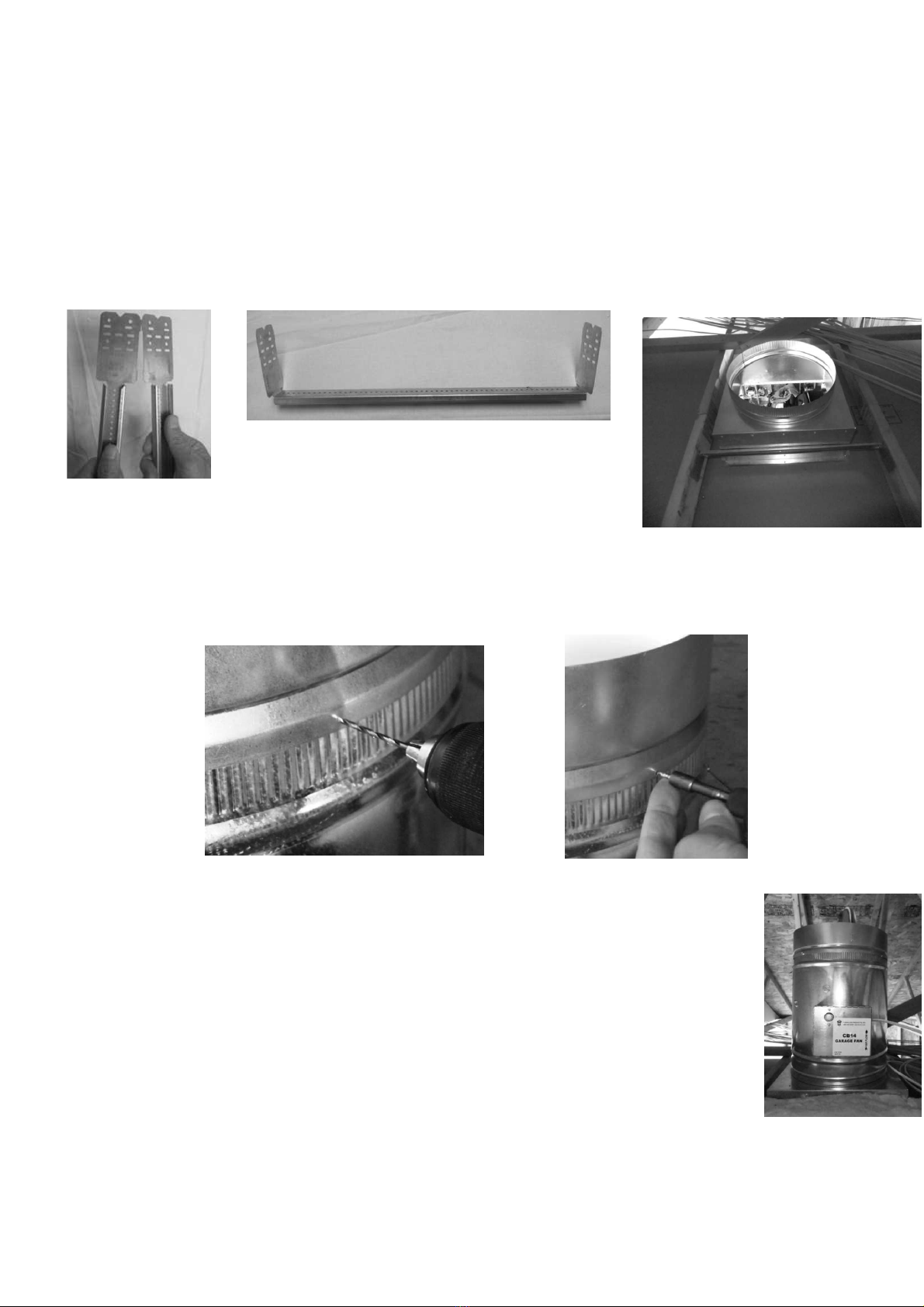

-Use the included mounting brackets. Break apart the mounting brackets as shown (Figure D).

- Bend the mounting bracket ends and insert one mounting bracket into the other to form a sliding mounting bracket

(Figure E). Repeat with the other set of brackets to form two separate sliding mounting brackets.

-Expand the mounting bracket to the full width of your trusses or joist (Figure F). Hold against intake plenum and

secure using provided screws the mounting bracket at each of the three mounting holes on the intake plenum.

-Repeat on the other side of the intake plenum.

-Secure both mounting bracket ends to the truss or joist. Repeat on the other side of the intake plenum.

4. anually insert crimped end of fan into the radiation damper. Drill 1/8” holes through both the radiation damper and fan

on the 4 sides of the fan assembly (damper and fan) (Figure G). Secure the radiation damper to the fan using the 4

included screws (Figure H).

5. Place fan assembly (damper and fan) onto the intake plenum with radiation damper up (Figure I).

Drill 1/8” holes through both the fan and plenum on the 4 sides of the fan. Secure the fan to the

plenum using the 4 included screws.

6. Pull the wings of the radiation dampers together and secure them together using the fusible link.

7. Wire the fan using the wiring diagrams listed in the Wiring section.

Figure I

Figure H

Figure G

Figure F

Figure E

Figure D

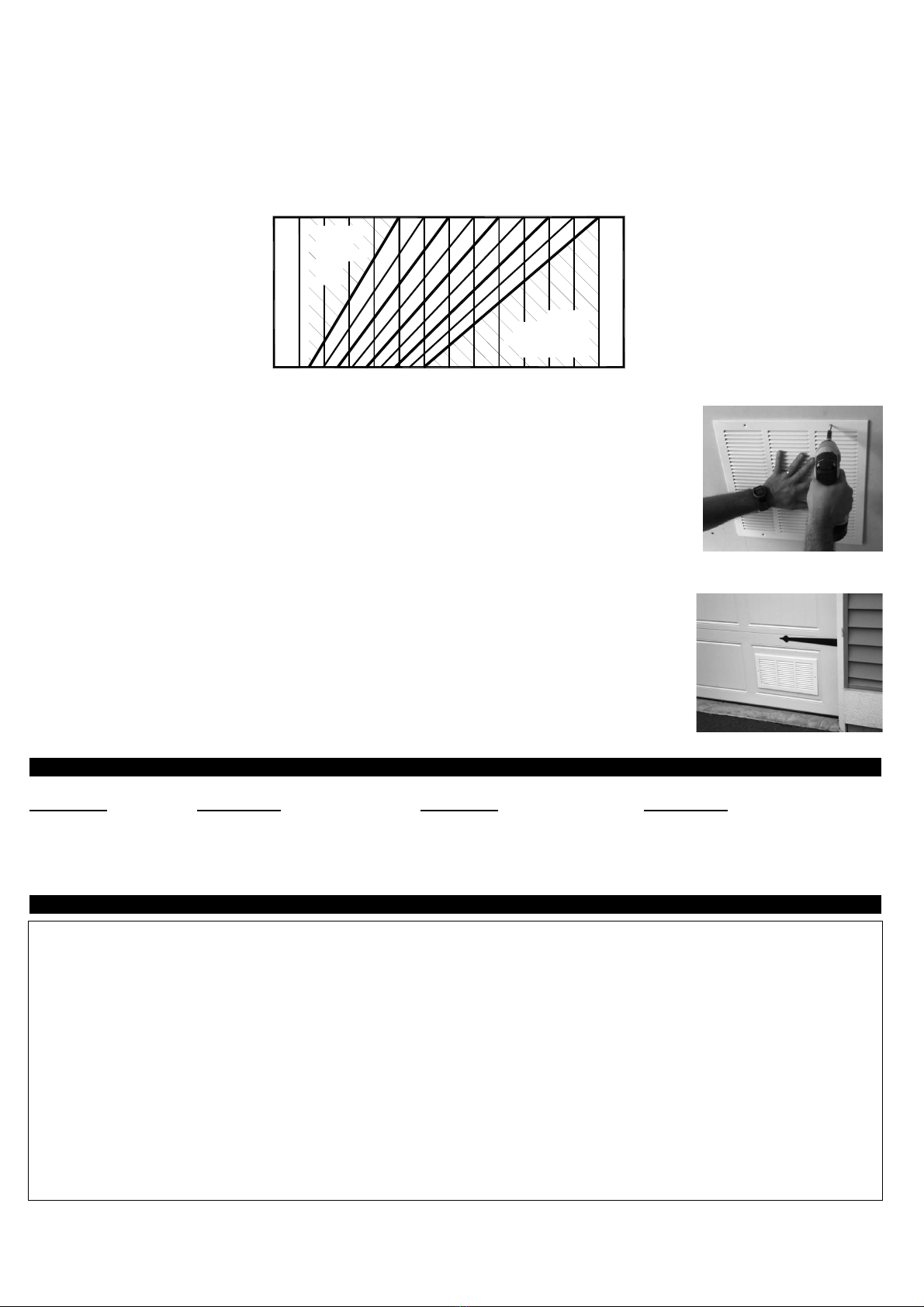

8. Use a flathead screw driver to adjust the temperature setting of the thermostat switch to the desired activation

temperature. The fan will operate once that temperature is reached and run until the garage is approximately 20F cooler

(see chart below).

Note: The switch is sensing the temperature at the location of the switch (the bottom part of the attic), so adjust the setting

slightly higher than the temperature you would like to maintain in your garage.

9. Secure the fan intake grille against the ceiling of the garage so the louvers face the intake

grilles. Align the holes of the grille and theholes of the intake plenum (Figure J).

10. Cut 12” x 12” holes in your garage door or garage walls and mount the included in fresh air

intake grilles to allow outdoor air to enter the garage space as the fan operates (Figure K).

ake sure the added depth of the grilles clears the top frame of the garage door

11. Position grilles over the opening ensuring the louvers face downward to prevent rain from

entering the garage. ark mounting holes and drill small pilot holes.

12. ount grilles with provided screws. Do not overtighten screws. Tighten just so the screw

head meets the grille.

REPLACEMENT PARTS

Component Part Number Component Part Number

otor Kit 950-0423 Ceiling Radiation Damper 950-3371

Impeller Kit 950-0421 Thermostat Switch 950-3372

Fan Intake Grille 950-3370 Garage Door Grille 950-3373

WARRANTY

70 80 90 100 110 120

CUTOFF TE PERATURE (BREAK)

130

CB14 PERFOR ANCE

75 85 95 105 115 125 135

70 80 90 100 110 120

SET TE PERATURE ( AKE)

130

75 85 95 105 115 125 135

S ALLER

RANGE

TOWARDS

LOW

LARGER

TE PERATURE

RANGE TOWARDS

THE HIGH END

END

TJERNLUND LIMITED ONE YEAR WARRANTY

Tjernlund Products, Inc. warrants to the original purchaser of this product that the product will be free from defects due to faulty material

or workmanship for a period of (1) year from the date of original purchase or delivery to the original purchaser, whichever is earlier.

Remedies under this warranty are limited to repairing or replacing, at our option, any product which shall, within the above stated war-

ranty period, be returned to Tjernlund Products, Inc. at the address listed below, postage prepaid. THERE ARE NO WARRANTIES

WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF, AND TJERNLUND PRODUCTS, INC. EXPRESSLY DIS-

CLAI S LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DA AGES ARISING FRO THE USE OF THIS PRODUCT. THIS

WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES AND NO AGENT IS AUTHORIZED TO ASSU E FOR US ANY

LIABILITY ADDITIONAL TO THOSE SET FORTH IN THIS LI ITED WARRANTY. I PLIED WARRANTIES ARE LI ITED TO THE

STATED DURATION OF THIS LI ITED WARRANTY. Some states do not allow limitation on how long an implied warranty lasts, so

that limitation may not apply to you. In addition, some states do not allow the exclusion or limitation of incidental or consequential dam-

ages, so that above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have

other rights which may vary from State to State. Send all inquiries regarding warranty work to Tjernlund Products, Inc. 1601 9th Street,

White Bear Lake, N 55110-6794. Phone (651) 426-2993 • (800) 255-4208 • Fax (651) 426-9547 • Email [email protected].

Figure J

Figure K

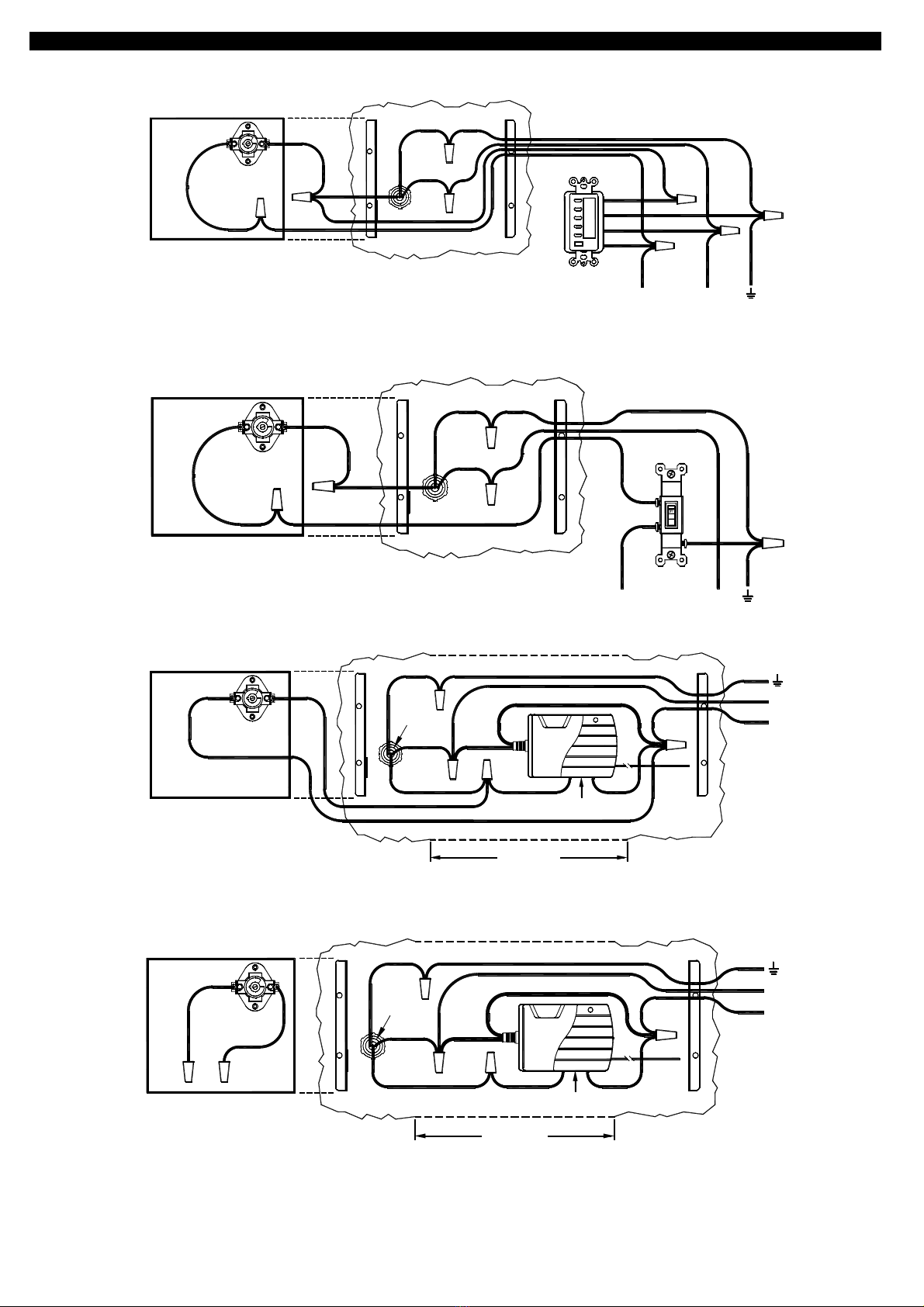

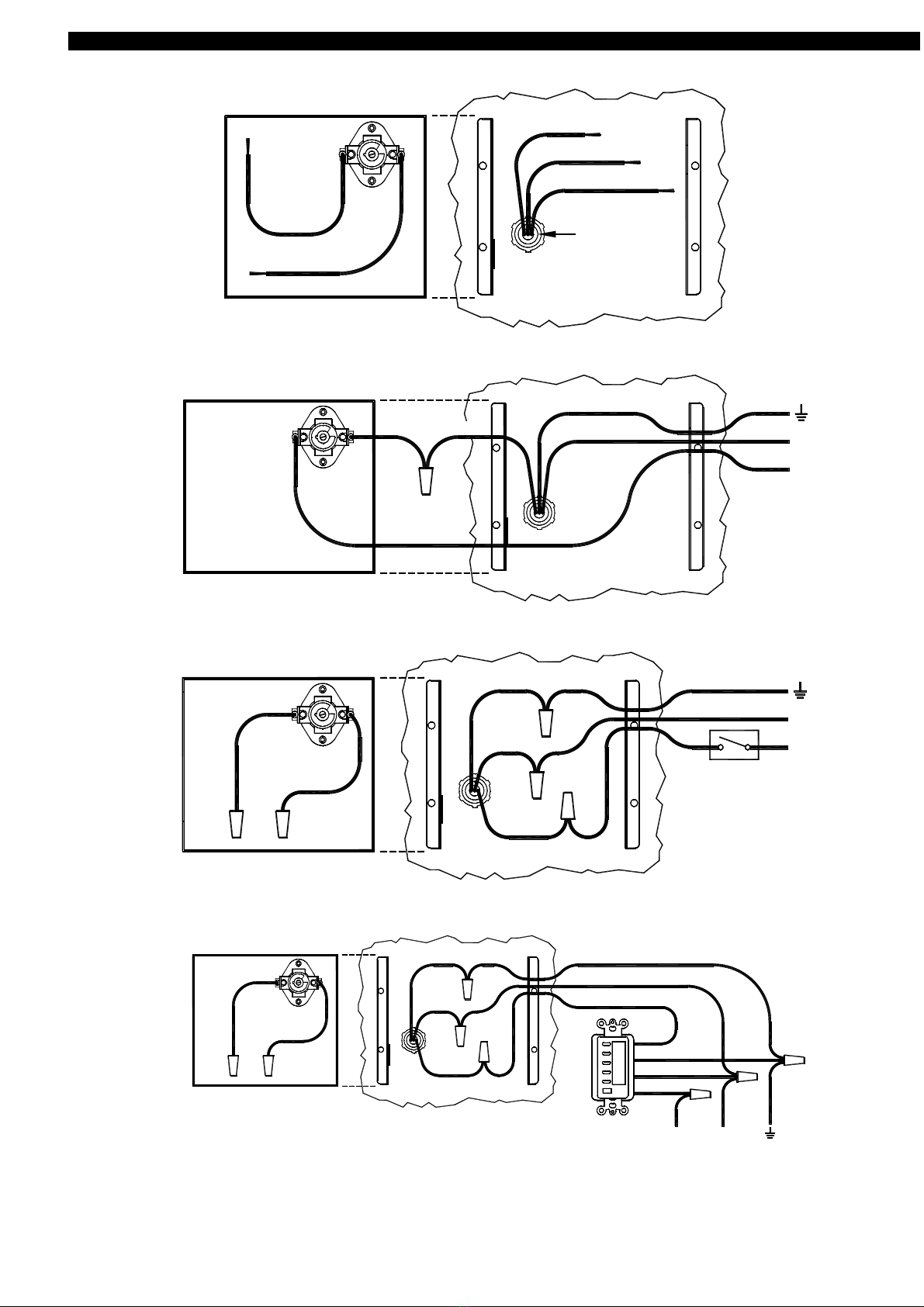

WIRING

T-STAT

RED

GREEN

WHITE

BLACK

TO OTOR

CB14 AS SHIPPED

FIGURE 8089017 6-5-13

T-STAT

CB14 TI ER SWITCH CONTROLLED

FIGURE 8089020 6-10-13

GREEN

NL1

RED

WHITE

BLACK

TI ER SWITCH

10 IN

20 IN

30 IN

60 IN

OFF

BLACK

WHITE

GREEN

RED

T-STAT

BLACK WHITE

CB14 TE PERATURE CONTROLLED

FIGURE 8089018 6-5-13

GREEN

RED

RED WHITE

GREEN

RED

T-STAT

CB14 CONTROLLED BY ANY SWITCH

FIGURE 8089019 6-17-13

GREEN

RED

WHITE

BLACK

SWITCH UST BE

RATED TO

5 A PS @ 115 VAC

WIRING

T-STAT

CB14 TE PERATURE OR TI ER SWITCH CONTROLLED

FIGURE 8089021 6-10-13

GREEN

NL1

WHITE

TI ER SWITCH

10 IN

20 IN

30 IN

60 IN

OFF

BLACK

WHITE

GREEN

RED

BLACK

T-STAT

CB14 TE PERATURE OR SWITCH-IT CONTROLLED

FIGURE 8089025 6-13-13

GREEN

RED RED

WHITE

BLACK

RE OTE

OFF

RED

S OOTH BLACK

RED

BLACK

RIBBED

ANTENNA

TO OTOR

STRETCHED VIEW

SWITCH-IT

WIRELESS RECEIVER

T-STAT

CB14 SWITCH-IT CONTROLLED

FIGURE 8089024 6-13-13

GREEN

RED

WHITE

BLACK

RE OTE

OFF

RED

S OOTH BLACK

RED

BLACK

RIBBED

ANTENNA

TO OTOR

STRETCHED VIEW

SWITCH-IT

WIRELESS RECEIVER

T-STAT

CB14 TE PERATURE AND ANUALLY CONTROLLED

FIGURE 8089023 6-17-13

GREEN

WHITE

WALL SWITCH

RED

BLACK
