TJERNLUND HSJ Benutzerhandbuch

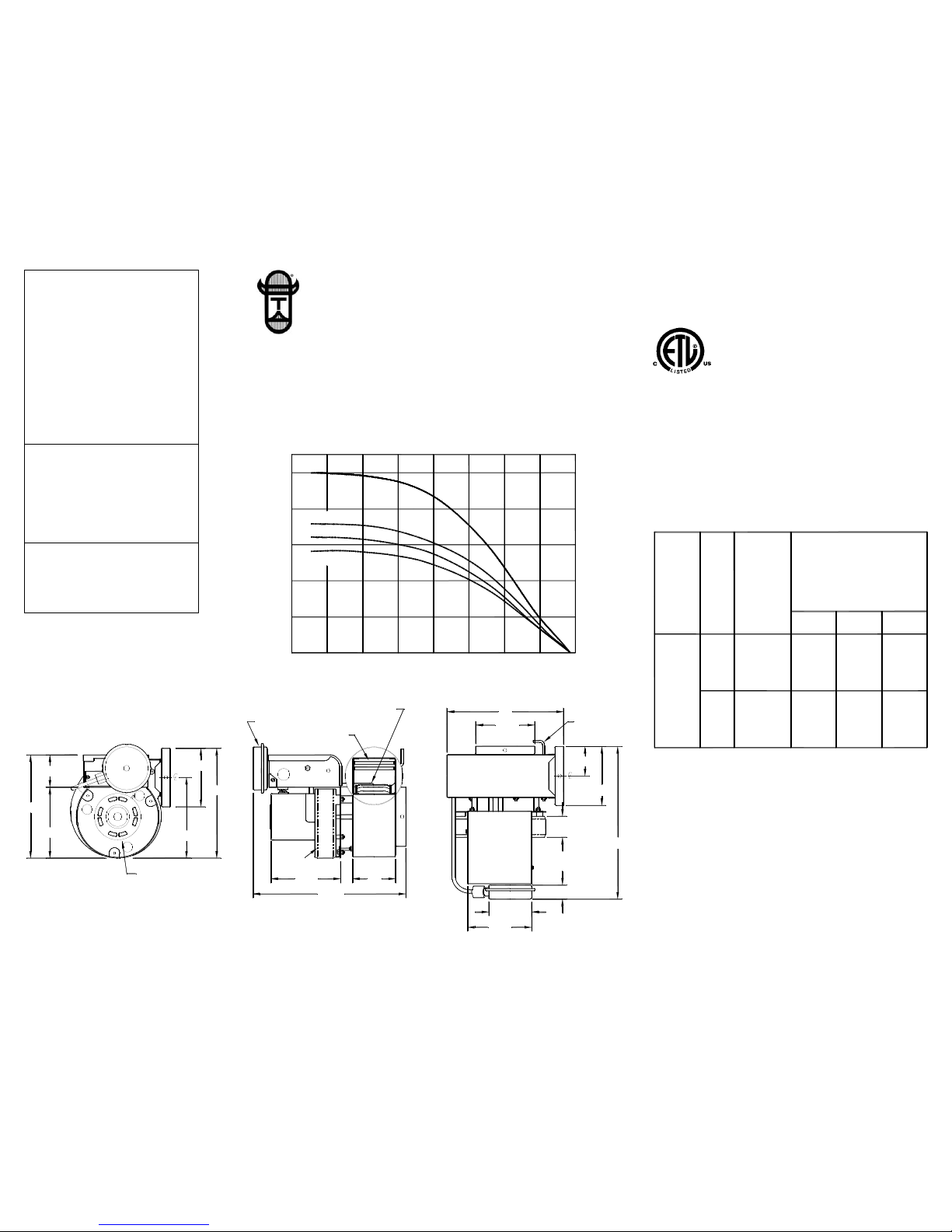

HSJ POWER VENTER SPECIFICATIONS

Performance curves

Static pressure (inches H2O) vs CFM (std. air) at selected flue gas temps.

NOTE: TO ARRIVE AT TOTAL SYSTEM STATIC PRESSURE REFER TO CURVE

AND ADD .38” TO COMPENSATE FOR VENT HOOD AND WIND RESISTANCE.

MOTOR ELECTRICAL DATA

Volts 115

Hertz 60

RPM 3000

Watts 95

Amps 1.26

Therm. Prot. Yes

MOTOR MECHANICAL DATA

DESCRIPTION

Shaded Pole Yes

Open Yes

Int. Fan Cooled Yes

BEARINGS

Type Sleeve

Material Sintered Iron

UC1 UNIVERSAL CONTROL

Maximum Power Consumption 1/2 Amp @

120 VAC 50/60 Hz + Venter motor load

Pre-Purge: Options (0,15,30,60 seconds)

Post-Purge: Factory set at 2 minutes

Options (0,30 seconds; 1,2,4,8,16 minutes)

Dimensions: 5” x 8” (2’ electrical whip inc.)

SAFETY / INTERLOCK

Fan Proving Switch

5 VDC UC1 board supplied power switched

through Fan Prover. UC1 burner / gas valve

interlock rated for 1 H.P. @ 120 VAC.

MODELS AND APPLICATION:

HSJ (Gas or Oil)

Used as a means of Side Wall Venting gas or

oil appliances which require a Post Purge cycle.

Used also to co-vent two gas heaters within

combined BTU/hr. input listed below (requires

accessory controls). Includes a Fan Proving

Switch and the UC1 Universal Control for 24V,

115V or “dry contact” actuation. LED diagnos-

tics and Pre / Post-purge options are standard

with the UC1.

HSUL-J (Discontinued 8/05)

HS115-J & HST-J (Discontinued 7/02)

Replace above models with HSJ.

Note: Tjernlund Products, Inc. reserves the

right to make changes to specifications without

notification.

ADJUSTMENT ROD

DAMPER

TOLERANCE: ±1/8" UNLESS OTHERWISE NOTED

SHADED POLE MOTOR

3,000 R.P.M.

ADJUSTABLE DAMPER

FAN PROVING PRESSURE SWITCH

4 5/8

3 1/8

9 5/8

4 I.D.

9 7/8

1 7/8

4 3/4

7 5/8

4 I.D.

5 5/8

7 1/2

2 1/4

5 1/4

FIGURE 2061000-3

1 1/2

FAN PROVER SENSOR

SHIELD

DRIP

1 1/8

-SIDE VIEW- -END VIEW- -PLAN VIEW-

P/N 8506001

REV. B 2/06

500°F

400°F

300°F

70°F

1.00

.80

.60

.20

.40

1601401208060 1004020CFM (std air)

DIA.

VENT BTU / HR

MAXIMUM PIPE LENGTH

OILGAS

23'

100'

35'

100'

125,000

100,000

75,000

50,000

4"HSJ

500° F400° F300° F

FIREDFIRED

AT STACK TEMPERATURE

(FT)

INPUT

PIPE

MODEL

TJERNLUND PRODUCTS, INC.

1601 Ninth Street • White Bear Lake, MN 55110-6794

PHONE (800) 255-4208 • (651) 426-2993 • FAX (651) 426-9547

Visit our web site • www.tjernlund.com

HS1 POWER VENTER SPECIFICATIONS

Performance curves

Static pressure (inches H2O) vs CFM (std. air) at selected flue gas temps.

NOTE: TO ARRIVE AT TOTAL SYSTEM STATIC PRESSURE REFER TO CURVE

AND ADD .38” TO COMPENSATE FOR VENT HOOD AND WIND RESISTANCE.

MODELS AND APPLICATION:

HS1 (Gas or Oil)

Used as a means of Side Wall Venting gas or

oil appliances which require a Post Purge cycle.

Used also to co-vent multiple heaters within

combined BTU/hr. input listed below (requires

accessory controls). Includes a Fan Proving

Switch and the UC1 Universal Control for 24V,

115V or “dry contact” actuation. LED diagnos-

tics and Pre / Post-purge options are standard

with the UC1.

HSUL-1 (Discontinued 8/05)

HS115-1 & HST-1 (Discontinued 7/02)

Replace above models with HS1.

Note: Tjernlund Products, Inc. reserves the

right to make changes to specifications without

notification.

70°F

300°F

400°F

500°F

1.00

.60

.20

.40

.80

16014010080 1206040CFM (std air) 20

FIGURE 2011038-3

1 1/2

SHIELD

DRIP

TOLERANCE: ±1/8" UNLESS OTHERWISE NOTED

SHADED POLE MOTOR

3,000 R.P.M.

7 5/8

4 I.D.

5 5/8

7 1/2

2 1/4

5 1/4

ADJUSTMENT ROD

DAMPER

4 5/8

3 1/8

1 1/8

10 3/4

2 1/16

4 I.D.

FAN PROVER SENSOR

134 3/4

FAN PROVING PRESSURE SWITCH

ADJUSTABLE DAMPER

DIA.

VENT BTU / HR

MAXIMUM PIPE LENGTH

OILGAS

35'

27'

100'

60'

57'

12'

100'

92'

100'

30'

100'

40'

87'

100'

150,000

200,000

250,000

300,000

250,000

200,000

150,000

HS1

500° F400° F300° F

FIREDFIRED

AT STACK TEMPERATURE

(FT)

INPUT

PIPE

MODEL

-SIDE VIEW- -END VIEW- -PLAN VIEW-

TJERNLUND PRODUCTS, INC.

1601 Ninth Street • White Bear Lake, MN 55110-6794

PHONE (800) 255-4208 • (651) 426-2993 • FAX (651) 426-9547

Visit our web site • www.tjernlund.com

MOTOR ELECTRICAL DATA

Volts 115

Hertz 60

RPM 3000

Watts 95

Amps 1.26

Therm. Prot. Yes

MOTOR MECHANICAL DATA

DESCRIPTION

Shaded Pole Yes

Open Yes

Int. Fan Cooled Yes

BEARINGS

Type Sleeve

Material Sintered Iron

UC1 UNIVERSAL CONTROL

Maximum Power Consumption 1/2 Amp @

120 VAC 50/60 Hz + Venter motor load

Pre-Purge: Options (0,15,30,60 seconds)

Post-Purge: Factory set at 2 minutes

Options (0,30 seconds; 1,2,4,8,16 minutes)

Dimensions: 5” x 8” (2’ electrical whip inc.)

SAFETY / INTERLOCK

Fan Proving Switch

5 VDC UC1 board supplied power switched

through Fan Prover. UC1 burner / gas valve

interlock rated for 1 H.P. @ 120 VAC.

HS2 POWER VENTER SPECIFICATIONS

Performance curves

Static pressure (inches H2O) vs CFM (std. air) at selected flue gas temps.

NOTE: TO ARRIVE AT TOTAL SYSTEM STATIC PRESSURE REFER TO CURVE

AND ADD .38” TO COMPENSATE FOR VENT HOOD AND WIND RESISTANCE.

MODELS AND APPLICATION:

HS2 (Gas or Oil)

Used as a means of Side Wall Venting gas or

oil appliances which require a Post Purge cycle.

Used also to co-vent multiple heaters within

combined BTU/hr. input listed below (requires

accessory controls). Includes a Fan Proving

Switch and the UC1 Universal Control for 24V,

115V or “dry contact” actuation. LED diagnos-

tics and Pre / Post-purge options are standard

with the UC1.

HSUL-2 (Discontinued 8/05)

HS115-2 & HST-2 (Discontinued 7/02)

Replace above models with HS2.

Note: Tjernlund Products, Inc. reserves the

right to make changes to specifications without

notification.

1.40

1.20

70°F

300°F

400°F

500°F

1.00

.60

.20

.40

.80

400350250200 300150100CFM (std air) 50

FIGURE 2102018-3

1 1/2

DRIP SHIELD

ADJUSTMENT ROD

DAMPER

4 5/8

3 1/8

1 1/8

11 5/8

6 I.D.

8 5/8

6 I.D.

PSC MOTOR

3,000 R.P.M.

FAN PROVER SENSOR

136 1/8

9 1/4

6 1/4

6 I.D.

5 5/8

7 7/8

2 1/4

FAN PROVING PRESSURE SWITCH

ADJUSTABLE DAMPER

TOLERANCE: ±1/8" UNLESS OTHERWISE NOTED

-SIDE VIEW- -END VIEW- -PLAN VIEW-

DIA.

VENT BTU / HR

MAXIMUM PIPE LENGTH

OILGAS

67'

100'

72'

100'

67'

100'

15'

94'

100'

450,000

500,000

550,000

600,000

550,000

500,000

450,000

HS2

500° F400° F300° F

FIREDFIRED

AT STACK TEMPERATURE

(FT)

INPUT

PIPE

MODEL

350,000

400,000

100'

100' 100'

100'

400,000

350,000

100'

TJERNLUND PRODUCTS, INC.

1601 Ninth Street • White Bear Lake, MN 55110-6794

PHONE (800) 255-4208 • (651) 426-2993 • FAX (651) 426-9547

Visit our web site • www.tjernlund.com

MOTOR ELECTRICAL DATA

Volts 115

Hertz 60

RPM 3300

Watts 224

Amps 1.51

Therm. Prot. Yes

MOTOR MECHANICAL DATA

DESCRIPTION

Perm. Split Cap Yes

Open Yes

Int. Fan Cooled Yes

BEARINGS

Type Sleeve

Material Sintered Iron

UC1 UNIVERSAL CONTROL

Maximum Power Consumption 1/2 Amp @

120 VAC 50/60 Hz + Venter motor load

Pre-Purge: Options (0,15,30,60 seconds)

Post-Purge: Factory set at 2 minutes

Options (0,30 seconds; 1,2,4,8,16 minutes)

Dimensions: 5” x 8” (2’ electrical whip inc.)

SAFETY / INTERLOCK

Fan Proving Switch

5 VDC UC1 board supplied power switched

through Fan Prover. UC1 burner / gas valve

interlock rated for 1 H.P. @ 120 VAC.
