Topdon Topscan Bedienungsanleitung
Bluetooth Vehicle Diagnostic Dongle I User Manual
Safety Is Always the First Priority!
Section 1 What's in the Box?
Section 2 Product Overview
Section 3 Getting Started
Section 4 Using the TopScan via the App
Section 5 Specications
Section 6 FAQ
Section 7 Warranty
Section 8 FCC
.......................................
.......................................
.......................................
.......................................
.......................................
.......................................
.......................................
.......................................
.......................................
4
5
6
8
14
45
46
47
48
Contents
4
For your safety, the safety of others, and to avoid any damage to
the product and your vehicle, CAREFULLY READ AND MAKE SURE
YOU FULLY UNDERSTAND ALL THE SAFETY INSTRUCTIONS AND
MESSAGES ON THIS MANUAL BEFORE OPERATING. You must also
read the vehicle's service manual, and observe the stated precautions
or instructions before and during any test or service procedure.
Keep yourself, your clothing and other objects away from moving or
hot engine parts and avoid contact with electrical connections.
ONLY OPERATE THE VEHICLE IN A WELL-VENTILATED AREA, as the
vehicle produces carbon monoxide, a toxic and poisonous gas, and
particulate matter when the engine is running.
ALWAYS WEAR APPROVED SAFETY GOGGLES to prevent damage
from sharp objects and caustic liquids.
DO NOT SMOKE OR HAVE ANY FLAMES NEAR THE VEHICLE when
testing. The fuel and battery vapors are highly ammable.
DO NOT ATTEMPT TO INTERACT WITH THE PROUDUCT WHILE
DRIVING. Any distraction may cause an accident.
TURN THE IGNITION OFF BEFORE CONNECTING OR
DISCONNECTING THE PRODUCT FROM THE DATA LINK
CONNECTOR (DLC) to prevent causing damage to the product or
vehicle's electronic components.
Safety Is Always the First Priority!
5
TopScan
Quick
User
Guide
Quick User Guide
Section 1

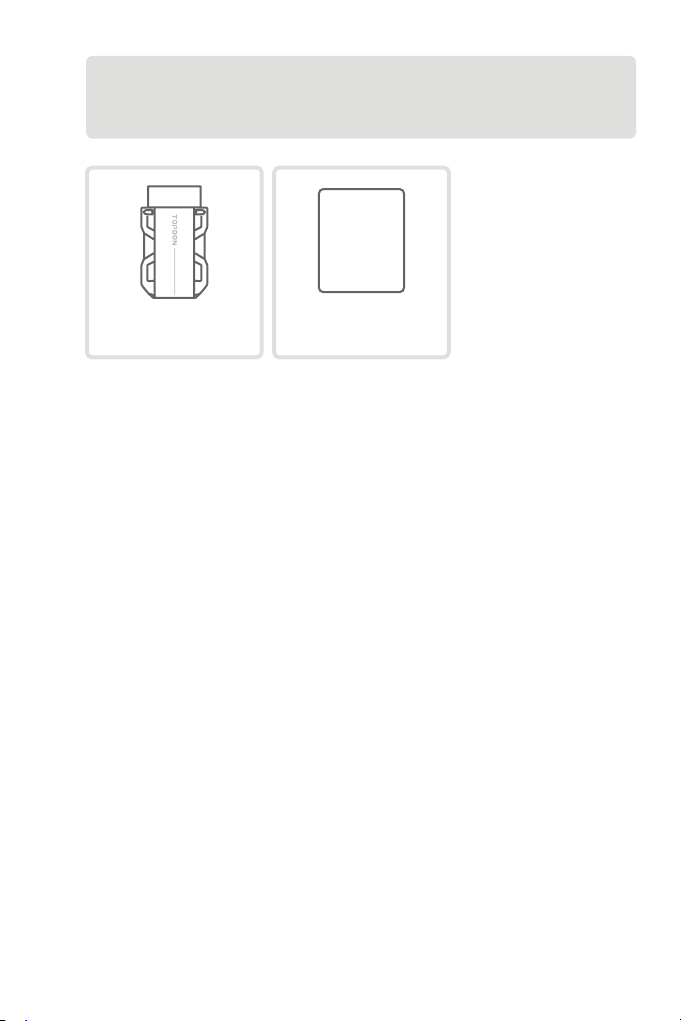

What's in the Box?
6
Section 2
Product Overview
1
3
2
7
1. Indicators
2. OBD-II 16 Pin Connector
Connects the TopScan to vehicle's DLC.
3. USB Type-C Port
Connects the TopScan to a computer for updates.
Solid Blue: Bluetooth
connected
Solid Red: power on
Flashing Green:
communicating with the
vehicle
Bluetooth Connection
Indicator
Power Indicator
Communication
Indicator
8
Section 3
Getting Started
3.1 Download the TopScan App
Search for the TopScan app in App Store or Google Play, download
and install it to your phone.
Figure 3-1
Note:
This app is compatible with iOS 10.0 or later / Android 7.0 or later.
TopScan
9
3.2 Register & Log In
Open the app and log in to your TOPDON account. (If you do not
have an account, please register with your email.)
Figure 3-2
10
3.3 Bind the VCI
①Tap Me > VCI Management > Add VCI.
②To get the serial number and activation code, please scan the QR
code on the product.
Alternatively, tap the icon at the top right of the activation
screen to establish a Bluetooth connection (see Figure 3-3). Once
the Bluetooth connection between the TopScan and your phone
is established, the serial number and activation code will be
automatically obtained.)
Note:
The TopScan should be properly plugged into the vehicle's DLC
before Bluetooth can be connected.
③ Then, tap Activate.
Figure 3-3
