Topfield TRF-7160 Service-Handbuch

TRF-7160

User Reference

High Deﬁnition

Digital Terrestrial Receiver

Personal Video Recorder

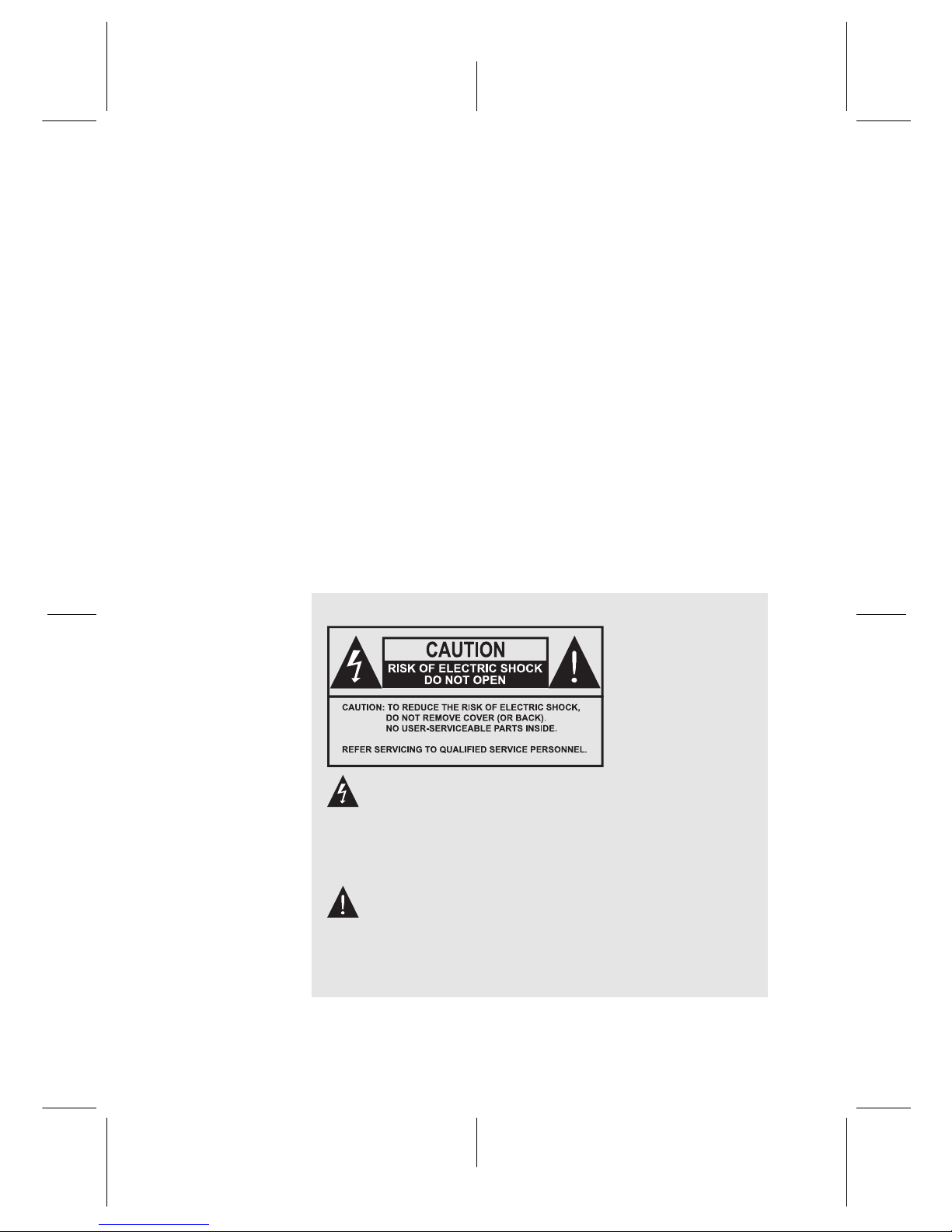

The lightning ﬂash with arrowhead symbol, in an equi-

lateral triangle, is intended to alert the user to the pres-

ence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of suﬃcient magnitude

to constitute a risk of electric shock to a person.

The exclamation point, in an equilateral triangle, is in-

tended to alert the user to the presence of important op-

eration and maintenance instructions in the literature

accompanying the product.

Quick Setup in ﬁve easy steps

1. Connect aerial antenna to ANT IN on back of Toppro unit.

2. Connect your desired audio-video cables from back of

Toppro to rear of television (Composite, Component,

HDMI).

3. Plug into power point and turn Toppro unit on using

on/oﬀ button on front face of unit.

4. Switch television on, then use the television remote to

select the correct video input channel for the Toppro (for

example, AV1, AV2, Component, HDMI, etc).

5. On the main menu go to Installation/Searching then

scroll to Start Search, press 







OK .

Wait till progress bar on bottom of screen reaches 100 %

then press 







OK to save and 







EXIT .

CONTENTS v

Contents

Contents v

1 Introduction 1

1.1 Features .............................. 1

1.2 Controlling the digital receiver . . . . . . . . . . . . . . . . . . 2

1.2.1 Frontpanel ........................ 3

1.2.2 Remote control . . . . . . . . . . . . . . . . . . . . . . 4

2 Setup 7

2.1 Unpacking ............................. 7

2.2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3 Rear panel connections . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Connecting up your digital receiver . . . . . . . . . . . . . . . 10

2.4.1 Connecting to the antenna . . . . . . . . . . . . . . . . 11

2.4.2 Connecting to your television set . . . . . . . . . . . . 11

2.5 Switching on for the ﬁrst time . . . . . . . . . . . . . . . . . . 14

3 Service Search 16

3.1 Searching for broadcasting services . . . . . . . . . . . . . . . 16

3.2 Resetting to factory settings . . . . . . . . . . . . . . . . . . . 17

3.3 Resetting to user settings . . . . . . . . . . . . . . . . . . . . . 18

3.4 Clearing the services list . . . . . . . . . . . . . . . . . . . . . 18

4 Preference Settings 19

4.1 Video and audio settings . . . . . . . . . . . . . . . . . . . . . 19

vi CONTENTS

4.1.1 High deﬁnition television . . . . . . . . . . . . . . . . 19

4.1.2 Television aspect ratio . . . . . . . . . . . . . . . . . . 20

4.1.3 Audiomode........................ 20

4.2 Local time setting . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.3 Parental control . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.4 Options for recording . . . . . . . . . . . . . . . . . . . . . . . 25

4.5 Options for playback . . . . . . . . . . . . . . . . . . . . . . . 26

4.6 Options for on-screen display . . . . . . . . . . . . . . . . . . 27

4.7 Options for the front display . . . . . . . . . . . . . . . . . . . 28

4.8 Options for Photo Album . . . . . . . . . . . . . . . . . . . . . 29

5 Every Day Use 30

5.1 Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.2 Watching television . . . . . . . . . . . . . . . . . . . . . . . . 30

5.2.1 The services list . . . . . . . . . . . . . . . . . . . . . . 30

5.2.2 The favourite service lists . . . . . . . . . . . . . . . . 32

5.2.3 Viewing programme information . . . . . . . . . . . . 33

5.2.4 Selecting audio tracks . . . . . . . . . . . . . . . . . . 33

5.2.5 Selecting subtitle tracks . . . . . . . . . . . . . . . . . 34

5.3 Viewing electronic programme guide . . . . . . . . . . . . . . 34

5.4 Using time-shift . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6 Organising Services 37

6.1 Editing the favourite lists . . . . . . . . . . . . . . . . . . . . . 37

6.2 How to use on-screen keyboard . . . . . . . . . . . . . . . . . 39

7 Recording and Playback 40

7.1 Recording a programme . . . . . . . . . . . . . . . . . . . . . 41

7.1.1 Instant recording . . . . . . . . . . . . . . . . . . . . . 42

7.1.2 Timer recording . . . . . . . . . . . . . . . . . . . . . . 43

7.1.3 Scheduling recordings using the programme guide . . 46

7.1.4 Recording a time-shifted programme . . . . . . . . . . 46

7.2 Filearchive............................. 47

7.2.1 To delete a recording . . . . . . . . . . . . . . . . . . . 47

7.2.2 To sort recordings . . . . . . . . . . . . . . . . . . . . . 47

7.2.3 To lock a recording . . . . . . . . . . . . . . . . . . . . 48

CONTENTS vii

7.2.4 To rename a recording . . . . . . . . . . . . . . . . . . 48

7.2.5 To make a new folder . . . . . . . . . . . . . . . . . . . 48

7.2.6 To move a recording to another folder . . . . . . . . . 49

7.3 Playing back a recording . . . . . . . . . . . . . . . . . . . . . 49

7.3.1 To navigate using the progress bar . . . . . . . . . . . 50

7.3.2 To play in slow motion . . . . . . . . . . . . . . . . . . 50

7.3.3 To play in fast motion . . . . . . . . . . . . . . . . . . . 50

7.3.4 To make a bookmark . . . . . . . . . . . . . . . . . . . 51

7.3.5 To play back a recording repeatedly . . . . . . . . . . 51

7.3.6 To play back recordings in sequence . . . . . . . . . . 52

7.4 Editing a recording . . . . . . . . . . . . . . . . . . . . . . . . 52

7.5 Copying a recording . . . . . . . . . . . . . . . . . . . . . . . 53

8 Entertainment 54

8.1 Copyingﬁles............................ 54

8.2 Playing back MP3 ﬁles . . . . . . . . . . . . . . . . . . . . . . 56

8.3 Viewing image ﬁles . . . . . . . . . . . . . . . . . . . . . . . . 56

8.3.1 How to move a ﬁle to the photo album . . . . . . . . . 56

8.4 Playing back a video ﬁle . . . . . . . . . . . . . . . . . . . . . 57

8.5 Networkgame........................... 58

8.5.1 Singlemode........................ 58

8.5.2 Network mode . . . . . . . . . . . . . . . . . . . . . . 63

9 Accessing via Network 64

9.1 Conﬁguring the router . . . . . . . . . . . . . . . . . . . . . . 65

9.1.1 To access within the local area network . . . . . . . . . 65

9.1.2 To access over the Internet . . . . . . . . . . . . . . . . 66

9.2 Networksetup........................... 67

9.3 Accessing the web server . . . . . . . . . . . . . . . . . . . . . 68

9.4 Accessing the FTP server . . . . . . . . . . . . . . . . . . . . . 70

10 Toppro Application Program 73

11 Firmware Update 76

11.1 From a memory stick . . . . . . . . . . . . . . . . . . . . . . . 76

11.2 From the ﬁrmware server via the Internet . . . . . . . . . . . 77

viii CONTENTS

A Troubleshooting 78

Chapter 1

Introduction

The TRF-7160 digital receiver is fully compliant with the inter-

national Digital Video Broadcasting (DVB) standard, and thus

is able to receive digital broadcasts of that standard. For its

operation you need an antenna, which must be installed ap-

propriately.

For the latest news and information, join the Toppro forum at

http://www.topfield.com.au.

NOTE

In general we equate a channel with a frequency. However,

unlike analogue broadcasts, digital broadcasts are not all

assigned to their own frequencies; instead, multiple televi-

sion broadcasts are transmitted through a single frequency.

The frequency in digital broadcasting is usually called trans-

ponder or multiplex. To reduce confusion in this manual,

the word service is preferably used than channel as a term

to indicate one television or radio broadcast.

1.1 Features

This digital receiver has the following features:

2 Introduction

• Can store up to 2,000 television and radio services.

• Can create lists of your favourite services.

• Can view information about the current television or ra-

dio programme.

• Has an electronic programme guide that provides an

overview of scheduled programmes.

• You can record one service while you are currently

watching another.

• You can record many programmes using a built-in hard

drive with large storage capacity.

• Time-shift is a special technical feature available on this

digital receiver. You can pause a programme you are

watching and resume it again at a later time. Then you

can quickly go to any part of the current programme by

fast forward or rewind search.

• You can play back video ﬁles of various formats includ-

ing DivX.

• You can play a built-in network game with other users

via the Internet.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control or

the buttons on the front panel.

NOTE

When the digital receiver is oﬀ but plugged into a wall

socket, we say that it is in standby mode; on the other hand,

when it is on, it is in active mode. Even when you are not

using the digital receiver, you should keep it plugged into

a wall socket to be in standby mode so that it can run timer

events at any time.
