Chapter 1

Introduction

The TF 600 PVRc digital receiver is fully compliant with the

international Digital Video Broadcasting (DVB) standard, and

thus is able to receive digital broadcasts of that standard.

NOTE

In general we equate a channel with a frequency. Unlike ana-

logue broadcasts, however, digital broadcasts are not all as-

signed to their own frequencies; instead, multiple television

broadcasts are transmitted through a single frequency. The fre-

quency in digital broadcasting is usually called transponder. To

reduce confusion in this manual, the word

service

is preferably

used than

channel

as a term to indicate one television or radio

broadcast.

1.1 Features

The TF 600 PVRc digital receiver has the following features:

• Can store up to 2000 television and radio services.

• You can create favourite lists of your favourite services.

2 Introduction

•

You can view information about the current television or

radio programme.

•

Has an electronic programme guide that provides an

overview of scheduled programmes.

•

You can update the ﬁrmware of the digital receiver to the

latest version which would be provided by the manufac-

turer.

•

You can record one broadcasting service while you are

currently watching another.

•

The large storage capacity of the built-in hard disk drive

allows you to record up to about 60 hours of television

—in case of 250 gigabytes— in excellent picture and sound

quality.

•

Time shift is a special technical feature available on the TF

600 PVRc. You can pause the programme you are watch-

ing and resume it again at a later time. Then you can

quickly go to whatever part of the current programme by

fast foward or backward search.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control

and the buttons on the front panel.

NOTE

When the digital receiver is off but plugged into a wall outlet,

we say that it is in standby mode; on the other hand, when it is

on, it is in operation mode. Even when you are not using the

digital receiver, you should keep it plugged into a wall outlet

to be in standby mode so that it can run timer events at any

time.

1.2 Controlling the digital receiver 3

1.2.1 The front panel

The front panel of the digital receiver has buttons to control the

digital receiver, and speciﬁc lamps and a display to indicate its

status. The following indicates what they mean.

CHANNEL VOLUME

STANDBY

button switches the digital receiver between

standby mode and operation mode.

Front display

displays the current time in standby mode,

and displays the current service in operation mode.

button displays the main menu. It is also used to

return to the previous menu from a submenu.

button displays the services list. See

5.2.1 for more

details. It is also used to select a menu item.

CHANNEL

buttons switch to previous or next service.

They are also used to navigate in menus and interactive

screens.

VOLUME

buttons decrease or increase the volume.

They are also used to change values for menu options.

Pull the right edge of the front panel to open the ﬂap. You have

to insert your subscription card into the front slot to watch pay

services.

4 Introduction

1.2.2 The remote control

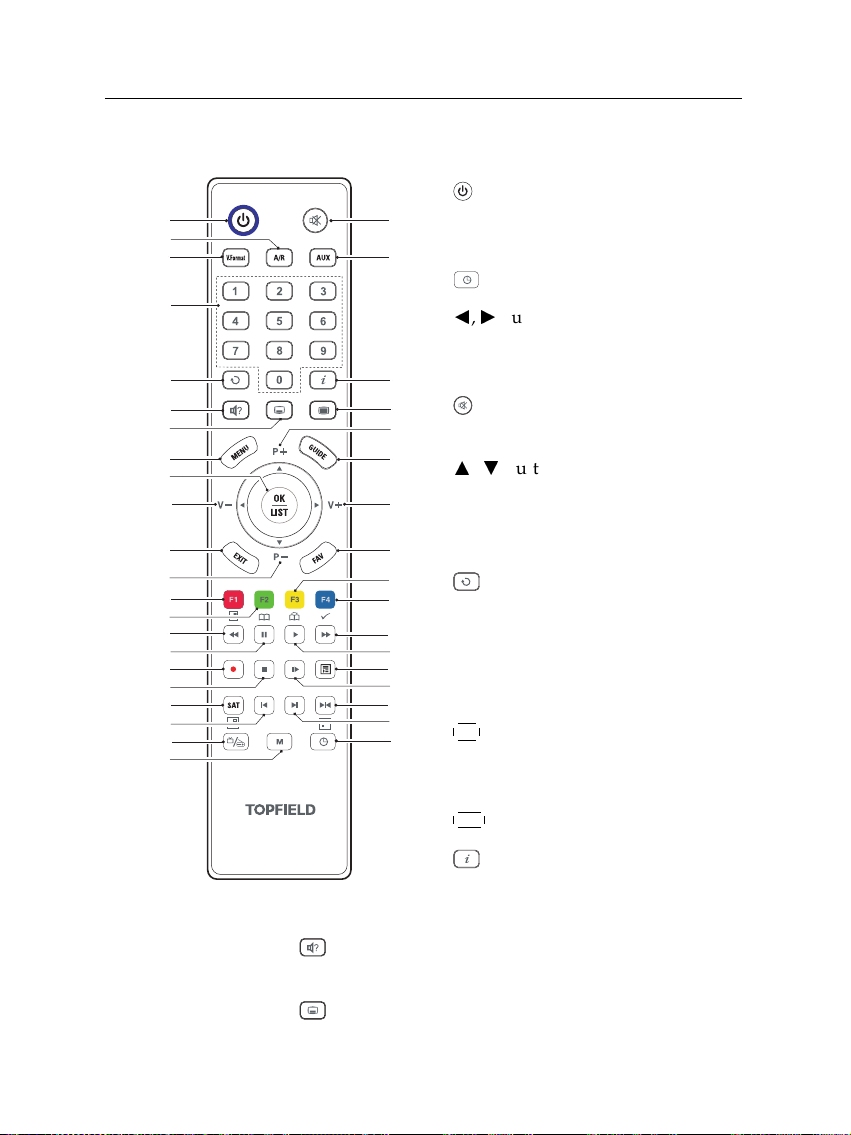

27 28

30 31



button switches the digital receiver

between standby mode and operation

mode.

is used to set a sleep timer.



buttons decrease or increase the

volume. They are also used to change

values for menu options.



mutes the sound. Press again to

switch it back on.



buttons switch to previous or

next service. They are also used to

navigate in menus and interactive

screens.

switches between the current ser-

vice and the previously viewed one.



Numeric buttons are used to enter a

service number for service change or

to specify values for menu options.









displays the services list. See

5.2.1 for more details. It is also used

to select a menu item.









FAV displays the favourite lists.



displays the service information

box. It is also used to display more

information about a programme.



is used to select an audio track and a sound mode, or

a video track of multifeed programme.

is used to select a subtitle track.
