FormNo.3378-567RevA

FinishDragKit

NailDragforSandPro®2040ZTractionUnit

ModelNo.08718

Operator'sManual

Introduction

Readthisinformationcarefullytolearnhowtooperateand

maintainyourproductproperlyandtoavoidinjuryand

productdamage.Youareresponsibleforoperatingthe

productproperlyandsafely.

YoumaycontactTorodirectlyatwww .Toro.comforproduct

andaccessoryinformation,helpndingadealer,ortoregister

yourproduct.

Wheneveryouneedservice,genuineToroparts,oradditional

information,contactanAuthorizedServiceDealerorToro

CustomerServiceandhavethemodelnumberofyour

productready.

Thismanualidentiespotentialhazardsandhassafety

messagesidentiedbythesafetyalertsymbol(Figure1),

whichsignalsahazardthatmaycauseseriousinjuryordeath

ifyoudonotfollowtherecommendedprecautions.

Figure1

1.Safetyalertsymbol

Thismanualuses2wordstohighlightinformation.

Importantcallsattentiontospecialmechanicalinformation

andNoteemphasizesgeneralinformationworthyofspecial

attention.

WARNING

CALIFORNIA

Proposition65Warning

Thisproductcontainsachemicalorchemicals

knowntotheStateofCaliforniatocausecancer,

birthdefects,orreproductiveharm.

Setup

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

DescriptionQty.Use

Chain2

Chainsleeve2

Bolt(3/8x1-1/4inch)4

Washer8

Locknut4

Installthechains.

Bolt(3/8x1-1/4inch)4

Washer8

Locknut4

Installthedragmat.

Carrier2

Bolt(3/8x3/4inch)4

Locknut4

Installthecarriers.

8111LyndaleAvenueSouth

Bloomington,MN55420

Registeratwww.Toro.com.OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved*3378-567*A

Note:Ifthetopplates,thenailplate,andthenailsare

currentlyinstalledonthenaildrag,removethem;referto

thenaildragOperator’sManual.

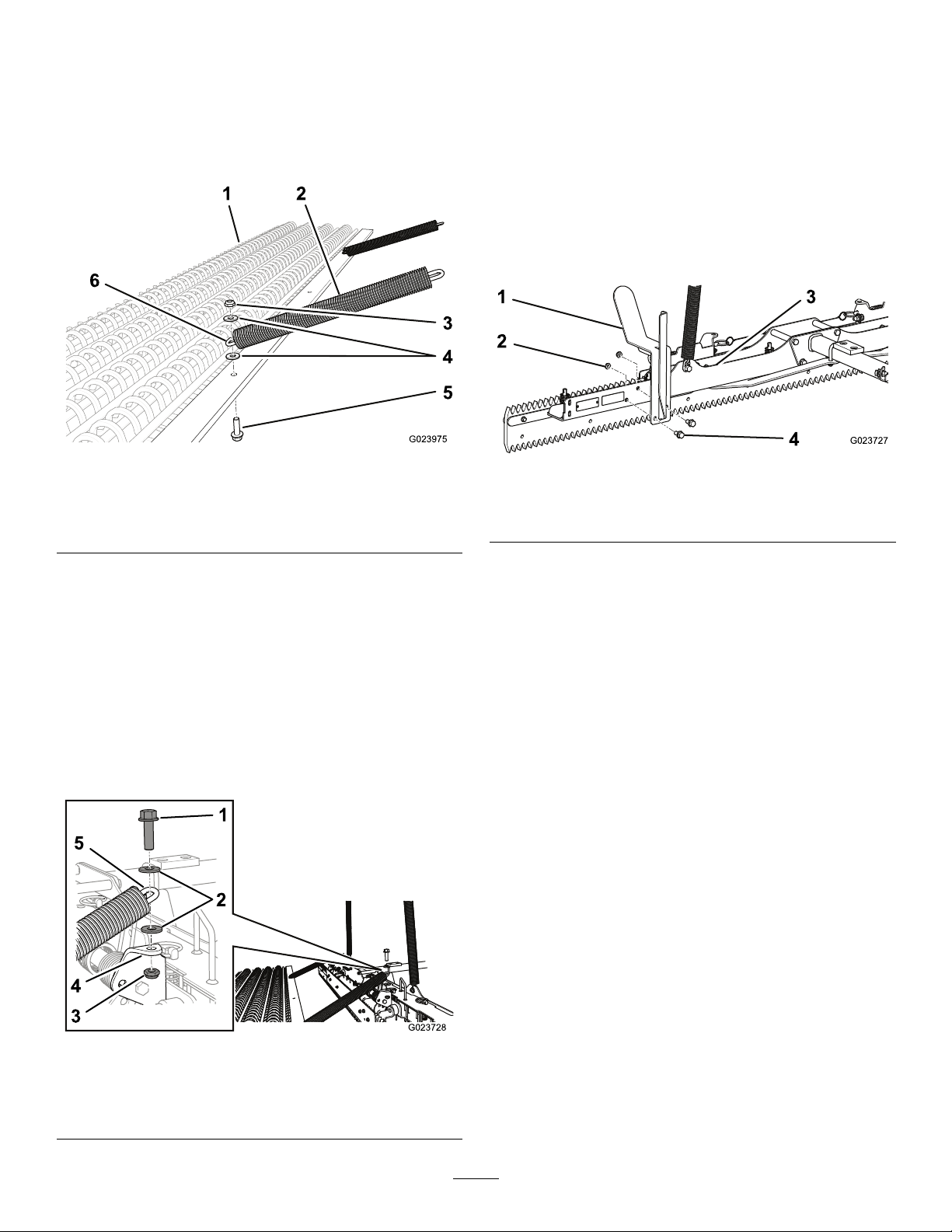

InstallingtheChains

1.Slideachainsleeveovereachchain(Figure2).

G023975

Figure2

1.Dragmat4.Washers

2.Chainsleeve5.Bolt(3/8x1-1/4inch)

3.Locknut6.Chain

2.Aligntheendofachainwith1oftheouter2holes

inthedragmat.

3.Securethechaintothedragmatwithabolt(3/8x

1-1/4inch),2washers,andalocknut,asshownin

Figure2.

4.Repeatsteps2and3fortheotherside.

InstallingtheDragMat

1.Aligntheendofachainwiththeholeinthebracketon

thatsamesideofthenaildrag(Figure3).

G023728

Figure3

1.Bolt(3/8x1-1/4inch)4.Bracket

2.Washers5.Chain

3.Locknut

2.Securethechaintothebracketwithabolt(3/8x1-1/4

inch),2washers,andalocknut,asshowninFigure3.

3.Repeatsteps1and2fortheotherside.

InstallingtheCarriers

1.Ifthetopplates,thenailplate,andthenailsare

currentlyinstalledonthenaildrag,removethem;refer

tothenaildragOperator’sManual.

2.Aligntheboltholesofacarrierwiththeholesonthe

frontofthebottomplateofthenaildrag(Figure4).

G023727

Figure4

1.Carrier3.Bottomplate

2.Locknut(2)4.Bolt(3/8x3/4inch),2

3.Install2bolts(3/8x3/4inch)throughtheboltholes

ofthecarrierandthebottomplate,andsecurethem

with2locknuts.

4.Repeatsteps2and3fortheotherside.

ProductOverview

G023726

Figure5

1.Frontweights(2included)3.Chainwithsleeve(2)

2.Carrier(2)4.Dragmat

Operation

InstallingandRemovingthe

Weights

Alwaysensurethatyourmachinehastheappropriatenumber

ofweights.

Refertothefollowingtableforhowmanyweightsare

requiredonthefrontofthemachine:

AttachmentNumberofweightsrequired

Flextoothrake4

Naildrag6

Naildragwithnishdragmat8

1.Removethe2boltsand2nutssecuringtheexisting

weightsonthefrontofthemachine(Figure6).

Note:Ifthemachineisequippedwiththelightkit,

removethenutandtheboltsecuringthefrontlightto

themachine.Retainalloftheparts;refertotheLight

KitInstallationInstructions.

G024018

Figure6

2.Addorremoveweightsasnecessary.

3.Securetheweightswiththe2boltsandthe2nuts.

TheFinishDragMatincludes2longerboltsto

accommodatetheadditionalweightsthatitrequires.

Note:Ifthemachineisequippedwiththelightkit,

installthefrontlightbyinsertingtheboltthroughthe

weightsandsecuringitwiththenut;refertotheLight

KitInstallationInstructions.

StowingtheDragMat

Wheneveryouarenotusingthedragmat,stowitinthe

carriers.

Tostowthedragmat,simplyrollitupandplaceitinthe

carriers.

UsingtheDragMat

Usecautionwhileoperatingthemachinewiththedragmat

installed.Keepoperatingspeedstoaminimumacceptable

level.Formaximummatlife,avoidareasandobjectsthatmay

snagorinterruptthetravelofthemat.

1.Withthedragmatstowedinthecarriers,drivethe

machinetoanareathatrequiresgrooming.

2.Removethedragmatfromthecarriers,andplaceit

ontheground.

3.Pullthedragmatoverthesurfacethatrequires

grooming.

4.Whenyouhavenishedorarereadytogrooma

differentarea,stowthedragmatinthecarriers.

CleaningtheDragMat

Keepthedragmatclean.Excessivesoilbuildupincreasesthe

attachmentweightandmayaffecthandlingofthemachine.

DeclarationofIncorporation

TheToroCompany,8111LyndaleAve.South,Bloomington,MN,USAdeclaresthatthefollowingunit(s)

conform(s)tothedirectiveslisted,wheninstalledinaccordancewiththeaccompanyinginstructionsontocertain

ToromodelsasindicatedontherelevantDeclarationsofConformity.

ModelNo.SerialNo.ProductDescriptionInvoiceDescriptionGeneralDescriptionDirective

08718andUpFinishDragKitSP2040ZFINISHDRAG

MATKITDragKit2006/42/EC

RelevanttechnicaldocumentationhasbeencompiledasrequiredperPartBofAnnexVIIof2006/42/EC.

Wewillundertaketotransmit,inresponsetorequestsbynationalauthorities,relevantinformationonthispartly

completedmachinery.Themethodoftransmissionshallbeelectronictransmittal.

ThismachineryshallnotbeputintoserviceuntilincorporatedintoapprovedT oromodelsasindicatedonthe

associatedDeclarationofConformityandinaccordancewithallinstructions,wherebyitcanbedeclaredin

conformitywithallrelevantDirectives.

Certied:EUT echnicalContact:

PeterTetteroo

ToroEuropeNV

B-2260Oevel-Westerloo

Belgium

DavidKlisTel.003214562960

Sr.EngineeringManagerFax003214581911

8111LyndaleAve.South

Bloomington,MN55044,USA

September26,2013
