Toro 41622 Bedienungsanleitung

FormNo.3413-915RevA

ChemicalPre-MixKit

2015andAfterMulti-Pro5800TurfSprayer

ModelNo.41622—SerialNo.400000000andUp

InstallationInstructions

Thiskitisdesignedtoaidinthemixingofchemicalsin

preparationforturfsprayapplicationsonwell-maintained

lawnsinparks,golfcourses,sportselds,andoncommercial

grounds.Itisadedicatedattachmentforaturfspray

applicationvehicleandisintendedtobeusedbyprofessional,

hiredoperatorsincommercialapplications.

ThisproductcomplieswithallrelevantEuropeandirectives;

fordetails,pleaseseetheseparateproductspecicDeclaration

ofConformity(DOC)sheet.

Readthismanualcarefullytolearnhowtooperateand

maintainyourproductproperly.Theinformationinthis

manualcanhelpyouandothersavoidinjuryandproduct

damage.AlthoughTorodesignsandproducessafeproducts,

youareresponsibleforoperatingtheproductproperlyand

safely.

YoumaycontactTorodirectlyatwww.Toro.comforproduct

safetyandoperationtrainingmaterials,accessoryinformation,

helpndingadealer,ortoregisteryourproduct.

Wheneveryouneedservice,genuineToroparts,oradditional

information,contactanAuthorizedServiceDealerorToro

CustomerServiceandhavethemodelandserialnumbersof

yourproductready.Figure1illustratesthelocationofthe

modelandserialnumbersontheproduct.

g028632

Figure1

1.Modelandserialnumberplate

ModelNo.

SerialNo.

WARNING

CALIFORNIA

Proposition65Warning

Thisproductcontainsachemicalorchemicals

knowntotheStateofCaliforniatocausecancer,

birthdefects,orreproductiveharm.

Useofthisproductmaycauseexposureto

chemicalsknowntotheStateofCalifornia

tocausecancer,birthdefects,orother

reproductiveharm.

8111LyndaleAvenueSouth

Bloomington,MN55420

Registeratwww.T oro.com.OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved*3413-915*A

Safety

Thismanualidentiespotentialhazardsandhassafety

messagesidentiedbythesafety-alertsymbol(Figure2),

whichsignalsahazardthatmaycauseseriousinjuryordeath

ifyoudonotfollowtherecommendedprecautions.

g000502

Figure2

1.Safety-alertsymbol

Thismanualuses2wordstohighlightinformation.

Importantcallsattentiontospecialmechanicalinformation

andNoteemphasizesgeneralinformationworthyofspecial

attention.

WARNING

Chemicalsubstancesusedinthespraysystemmay

behazardousandtoxictoyou,bystanders,animals,

plants,soils,orotherproperty.

•Carefullyreadandfollowthechemical

warninglabelsandmaterialsafetydata

sheets(MSDS)forallchemicalsused,and

protectyourselfaccordingtothechemical

manufacturer'srecommendations.Forexample,

useappropriatepersonalprotectiveequipment

(PPE),includingfaceandeyeprotection,gloves,

orotherequipmenttoguardagainstpersonal

contactwiththechemical.

•Keepinmindthattheremaybemorethan

1chemicalused,andyoushouldassess

informationoneachchemical.

•Refusetooperateorworkonthesprayerifthis

informationisnotavailable!

•Beforeworkingonaspraysystem,makesure

thatthesystemhasbeentriplerinsedand

neutralizedaccordingtotherecommendations

ofthechemicalmanufacturer(s).

•Verifythatthereisanadequatesupplyofclean

waterandsoapnearby,andimmediatelywash

offanychemicalsthatcontactyou.

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotential

danger.Replaceanydecalthatisdamagedormissing.

decal93-6674

93-6674

1.Crushinghazard,hand—readtheinstructionsbefore

servicingorperformingmaintenance.

decal119-4988

119-4988

1.Lock2.Unlock

Installation

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

ProcedureDescriptionQty.Use

1Nopartsrequired–Preparetoinstallthekit.

Eductorvalvebracket(Thebracketmay

alreadybeinstalledfromapreviouskit

installation)

Flange-headbolt(5/16x3/4inch)2

Flangelocknut(5/16inch)2

Washer(5/16inch)2

Eductorvalveassembly1

Flangenut(1/4inch)2

Agitationbypass-hoseassembly25x

305mm(1x12inches)1

Pressurerelief-hose1

Supply-hoseassembly1

Installtheeductorvalveandhoses.

Eductormount1

Flangelocknut(5/16inch)1

Backplateassembly1

Rightcradlearm1

Leftcradlearm1

Bushing2

Pivotpin2

Jamnut(3/8inch)2

Handle2

Bolt(3/8x1-1/4inches)2

Setscrew2

Hairpin2

Flatwasher2

Assembletheframe.

4Spring2Installthelatchingcomponents.

Handle1

Socket-headscrew(#10-24x1/2inch)2

Latchpost1

Springclip1

Bolt(#10-24x1/2inch)2

Locknut(#10-24)2

Eductor1

Flange-headbolt(5/16x3/4inch)2

Flanged-locknut(5/16inch)2

Latchhandle1

Bolt(3/8x1inch)4

Flanged-serratednut(3/8inch)4

T-ttinganddrainvalve1

Gasket1

Flangeclamp1

Installtheeductor.

ProcedureDescriptionQty.Use

Bulkheadtting1

Seal1

Lockingring1

Carriagebolt(5/16x1inch)1

Eductorhoseassembly1

Flangelocknut(5/16inch)1

Retainer1

R-clamp(5/16inch)1

Gasket1

Flangeclamp1

Installtheforwardhose.

Eductorsupplyhose1

Flangeclamp1

Gasket1

7Retainer1

Installthesupplyhose.

Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.

PreparingtoInstalltheKit

NoPartsRequired

Procedure

1.Cleanthesprayer;refertoCleaningtheSprayerinthe

Operator’sManualforthemachine.

2.Parkthemachineonalevelsurface,engagetheparking

brake,shutofftheengine,andremovethekey;referto

theOperator’sManual.

InstallingtheEductorValve

andHoses

Partsneededforthisprocedure:

1Eductorvalvebracket(Thebracketmayalreadybe

installedfromapreviouskitinstallation)

2Flange-headbolt(5/16x3/4inch)

2Flangelocknut(5/16inch)

2Washer(5/16inch)

1Eductorvalveassembly

2Flangenut(1/4inch)

1Agitationbypass-hoseassembly25x305mm(1x

12inches)

1Pressurerelief-hose

1Supply-hoseassembly

RemovingtheHoses

1.Movetotherearofthemachineandlocatethe

valve-mountbracket.

2.Removethe3hosesshowninFigure3.

Note:Retainthehoseclamps,gaskets,andretainers

forinstallationinInstallingtheBracketandEductor

ValveAssembly(page6),InstallingtheAgitation

BypassHose(page7)andInstallingthePressure

Relief-HoseAssembly(page7);discardthe3hoses.

g204657

Figure3

1.Hoses

RepositioningthePressureRelief

ValveandUpperT-Fitting

1.Removetheretainerthatsecuresthepressure-relief

valvetotheT-ttingatthesprayerpump,andremove

thereliefvalve(Figure4).

g031627

Figure4

1.Retainer4.Rotatethepressure-relief

valve

2.T-tting5.Down

3.Pressure-reliefvalve

2.RotatethepressurereliefvalveupasshowninFigure4.

Note:Alignoutletofthepressure-reliefvalve

rearward.

3.Insertthepressure-reliefvalveintothetopofthe

T-ttinguntilthevalveisfullyseated(Figure4).

4.Securethepressure-reliefvalvetotheT-ttingwiththe

retainerthatyouremovedinstep1.

5.RotatetheupperT-ttingapproximately45°clockwise

(Figure5).

g204682

Figure5

1.UpperT-tting2.LowerT-tting

InstallingtheBracketandEductor

ValveAssembly

1.Assemblethevalvemountbrackettothefrontofthe

valvesupport(Figure6)withthe4ange-headbolts

(5/16x3/4inch),4angelocknuts(5/16inch),and4

washers(5/16inch).

g204705

Figure6

1.Flangelocknut(5/16inch)4.Valvesupport

2.Washer(5/16inch)5.Flange-headbolt(5/16x

3/4inch)

3.Valvemountbracket

2.Aligntheangeofthereduceradapter(eductorvalve)

totheangeofthepressure-lterhead(Figure7)with

thegasketthatyouremovedinstep2ofRemoving

theHoses(page4).

g204708

Figure7

1.Flangelocknut(1/4inch)5.Reduceradapter

2.Valvemountbracket6.Gasket

3.Flange(pressurelter

head)

7.Flangeclamp

4.Stud(eductorvalve)

3.Alignthestudsofthepressure-lterheadthroughthe

holesinthevalvemountbracket(Figure7).

4.Assembletheangeofthereduceradaptertothe

angeofthepressure-lterhead(Figure7)withthe

angeclampthatyouremovedinstep2ofRemoving

theHoses(page4).

5.Securetheeductorvalvetopthevalvemountbracket

withthe2angelocknuts(1/4inch),andtorquethe

nutsto1017to1243N∙cm(90to110in-lb).

6.Tightentheangeclampbyhand.

InstallingtheAgitationBypass

Hose

1.Alignthe90°barbedttingofthenewagitation

bypass-hoseassemblywiththeopenportintheupper

T-ttingandinsertthe90°ttinguntilitisseatedin

theT-tting(Figure8).

g206975

Figure8

1.Retainer6.90°barbedtting

2.Port(upperT-tting)7.Hose25x305mm(1

x12inches—agitation

bypass-hoseassembly)

3.Uppersuctionhose

(sprayertank)

8.Straightangetting

4.Gasket9.Flangeclamp

5.Flange(agitationvalve)

2.Securethe90°barbedttingtotheT-ttingwith

theretainer(Figure8)thatyouremovedinstep2of

RemovingtheHoses(page4).

3.Alignthestraightangettingofthenewagitation

bypass-hoseassemblyandthegasketwiththeangeof

thebypassvalve(Figure8).

4.Securethestraightangettingandgaskettothe

bypassvalvewiththeangeclamp(Figure8)thatyou

removedinstep2ofRemovingtheHoses(page4).

InstallingthePressureRelief-Hose

Assembly

1.Alignthe90°ttingofthepressurerelief-hose

assemblywiththeopenportintheupperT-tting

(locatedbelowthepressure-reliefvalve),andinsertthe

90°ttinguntilitisfullyseated(Figure9).

g206976

Figure9

1.UpperT-tting(belowthe

pressure-reliefvalve)

4.LowerT-tting

2.Retainer5.90°barbedtting(

3.UpperT-tting6.Pressurerelief-hose

2.Securethe90°T-ttingwiththeretainer(Figure9)that

youremovedinstep2ofRemovingtheHoses(page4).

3.Aligntheother90°ttingofthepressurerelief-hose

assemblywiththeopenportofthelowerT-tting

(securetothevalvemount)andinsertthe90°tting

untilitisfullyseated(Figure9).

4.Securethe90°ttingtotheupperT-ttingwiththe

retainer(Figure9)thatyouremovedinstep2of

RemovingtheHoses(page4).

InstallingtheSupply-Hose

Assembly

1.Aligntheother90°ttingofthesupply-hoseassembly

withtheopenportofthelowerT-ttingatthesprayer

pumpandinsertthe90°ttinguntilitisseated(Figure

10).

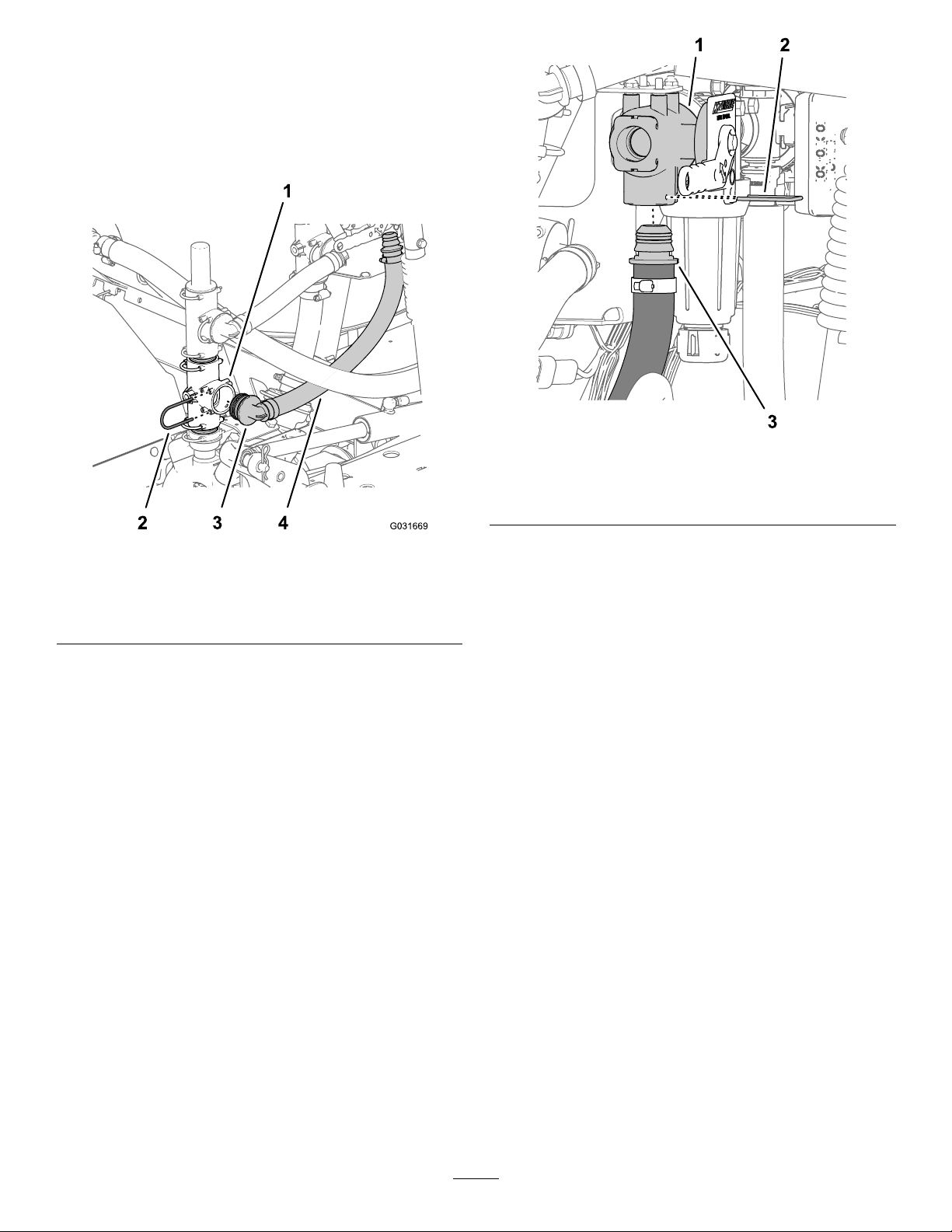

g031669

Figure10

1.LowerT-tting(sprayer

pump)

3.90°barbedtting

2.Retainer4.Supply-hoseassembly

2.Securethe90°ttingtotheT-ttingatthesprayer

pumpwiththeretainer(Figure10)thatyouremovedin

step1ofRepositioningthePressureReliefValveand

UpperT-Fitting(page5).

3.Alignthestraight-barbedttingofthepressure-hose

assemblywiththebottomportoftheeductorvalveand

insertthestraightttinguntilitisseated(Figure11).

g204731

Figure11

1.Eductorvalve3.Supply-hoseassembly

2.Retainer

4.Securethestraight-barbedttingtotheeductorvalve

(Figure9)witharetainer.

AssemblingtheFrame

Partsneededforthisprocedure:

1Eductormount

1Flangelocknut(5/16inch)

1Backplateassembly

1Rightcradlearm

1Leftcradlearm

2Bushing

2Pivotpin

2Jamnut(3/8inch)

2Handle

2Bolt(3/8x1-1/4inches)

2Setscrew

2Hairpin

2Flatwasher

InstallingtheSupportFrameto

theTank

1.Removethe2angelocknutssecuringthetank-lidstop

tothe2carriageboltsattherearstrapofthesprayer

tank,andremovethetank-lidstop(Figure12).

Note:Retainthetank-lidstopandangelocknut.

g204770

Figure12

1.Tank-lidstop3.Carriagebolt

2.Flangelocknut

2.Aligntheslotsintheeductormounttothe2lower

carriageboltsofthereartankstrapasshowninFigure

13.

g204768

Figure13

1.Slots(eductormount)3.Carriagebolt

2.Flangelocknut(5/16inch)

3.Looselyassembletheangelocknut(5/16inch)onto

thelowercarriagebolt(Figure13).

4.Assemblethetank-lidstopand2angelocknutthat

youremovedinstep1ontothe2uppercarriagebolts

(Figure14).

g204769

Figure14

1.Flangelocknut(5/16inch)3.Tank-lidstop

2.Carriagebolt4.Eductormount

5.Torquethe3angelocknutsto1978to2542N∙cm

(175to225in-lb).

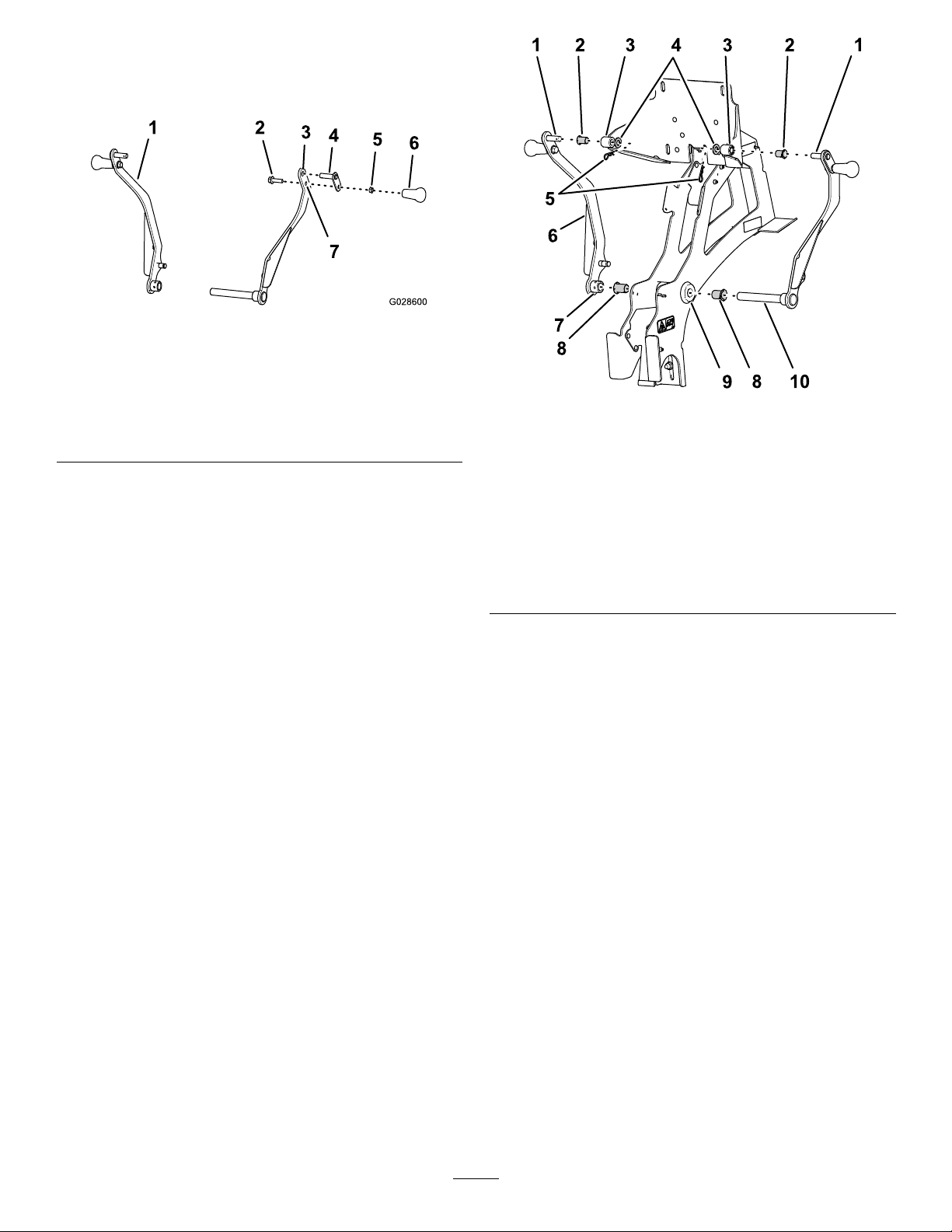

PreparingtheCradleArms

1.Assemblethepivotpinthroughtheupperholeinthe

cradlearm(Figure15).

g028600

Figure15

1.Cradlearm(left)5.Jamnut(3/8inch)

2.Bolt(3/8x1-1/4inches)6.Handle

3.Upperhole(Cradle

arm—left)

7.Lowerhole(Cradle

arm—left)

4.Pivotpin

2.Applymedium-grade,thread-lockingcompoundtothe

threadsofthebolt(3/8x1-1/4inch).

3.Assemblethebolt(3/8x1-1/4inch)throughthelower

holeinthecradlearmandtheretainerofthepivotpin

(Figure15)withthejamnut(3/8inch),andtightenthe

jamnutto15to17N∙m(11to13ft-lb).

4.Threadthehandleontothebolt(3/8x1-1/4inch)and

tightenthehandleagainstthejamnutandtightenthe

handlebyhand(Figure15).

5.Repeatsteps1through4totheothercradlearm

(Figure15).

AssemblingtheCradleArmsto

theSupportFrame

1.Insertaangedbushing(3/4inchinsidediameter)into

eachendofthepivottubeinthemain-supportframe

(Figure16).

g206977

Figure16

1.Upperpivotpins(1/2inch)6.Cradlearm(left)

2.Flangedbushings(1/2

inchinsidediameter)

7.Hub(leftcradlearm)

3.Hubs(backplate—leftand

right)

8.Flangedbushings(3/4

inchinsidediameter)

4.Washers(1/2inch)9.Pivottube(main-support

frame)

5.Hairpins10.Lowerpivotpin(3/4

inch—rightcradlearm)

2.Insertaangedbushing(1/2inchinsidediameter)into

theleftandrighthubsofthebackplate(Figure16).

Note:Ensurethattheangeofthebushingsare

alignedtotheoutwardsideofthehubs.

3.Assemblethelowerpivotpinoftherightcradlearm

throughtheangedbushingattherightsideofthe

pivottubeandthepivot(Figure16).

Note:Aligntheupperpivotpinofthearmwiththe

righthubofthebackplate.

4.Assembletheupperpivotpinoftherightcradlearm

throughtherighthubofthebackplate(Figure16).

5.Securetheupperpivotpintothebackplatewitha

washers(1/2inch)andhairpin(Figure16).

6.Assemblethehuboftheleftcradlearmovertheend

ofthelowerpivotpinoftherightcradlearmthatis

protrudingtotheleftoftheleftangedbushingin

pivottube(Figure16).

Note:Aligntheupperpivotpinofthearmwiththe

lefthubofthebackplate.

7.Assembletheupperpivotpinoftheleftcradlearm

throughthelefthubofthebackplate(Figure16).

8.Securetheupperpivotpinoftheleftcradlearmto

thebackplatewithawasher(1/2inch)andhairpin

(Figure16).

Inhaltsverzeichnis

Andere Toro Landwirtschaftliche Geräte Handbücher

Toro

Toro 22586 Bedienungsanleitung

Toro

Toro ProLine 30139 Bedienungsanleitung

Toro

Toro ProCore SR Series Bedienungsanleitung

Toro

Toro Greensmaster Flex 1820 Bedienungsanleitung

Toro

Toro Sand Pro 140-0274 Bedienungsanleitung

Toro

Toro Groundsmaster 328-D Bedienungsanleitung

Toro

Toro Sand Pro 2040Z Bedienungsanleitung

Toro

Toro 41245 Bedienungsanleitung

Toro

Toro MB-1600 Bedienungsanleitung

Toro

Toro Workman 3000 Series Bedienungsanleitung

Toro

Toro 2226 Kurzanleitung

Toro

Toro Groundsmaster 5900 ROPS Bedienungsanleitung

Toro

Toro 23175 Bedienungsanleitung

Toro

Toro Sitework 22447 Bedienungsanleitung

Toro

Toro 138-2998 Bedienungsanleitung

Toro

Toro 22472 Bedienungsanleitung

Toro

Toro Multi Pro 5800 Bedienungsanleitung

Toro

Toro 04482 200000001 Bedienungsanleitung

Toro

Toro 25531E Bedienungsanleitung

Toro

Toro Dingo TX 22306 Bedienungsanleitung

Toro

Toro Reelmaster 33455 Bedienungsanleitung

Toro

Toro 03621 Bedienungsanleitung

Toro

Toro Outcross 9060 Series Bedienungsanleitung

Toro

Toro Sand Pro 2040Z Bedienungsanleitung

Beliebte Landwirtschaftliche Geräte Handbücher anderer Marken

GSi

GSi PNEG-2314 Bedienungsanleitung

Checchi & Magli

Checchi & Magli TEXDRIVE Bedienungsanleitung

Amazone

Amazone Cenius 4003-2TX Bedienungsanleitung

MASSEY FERGUSON

MASSEY FERGUSON MF 9313S Bedienungsanleitung

Cima

Cima BLITZ Bedienungs- und Wartungsanleitung

Amazone

Amazone CombiDisc 3000 Montageanleitung

HE-VA

HE-VA Disc-Roller XL Contour Bedienungsanleitung

AGT

AGT AGT-SSFM Bedienungsanleitung

Milestone

Milestone 72-84 Bedienungsanleitung

KUHN

KUHN Hector 3000 Bedienungsanleitung

Krone

Krone X-Disc 6200 Bedienungsanleitung

Eliet

Eliet DZC450 Bedienungsanleitung

Taarup

Taarup BIO+ B4000 Bedienungsanleitung

Garland

Garland SHAKER 310 DPG Bedienungsanleitung

stable comfort

stable comfort StableWall System Bedienungsanleitung

Raven

Raven AccuBoom Bedienungsanleitung

International

International 710 Bedienungsanleitung

Ashland

Ashland HDW-3217-14 Bedienungsanleitung
