TP-Link TL-WN851N Bedienungsanleitung

TL-WN851N

300Mbps Wireless N PCI Adapter

Rev: 1.0.4

1910010335

Specifications are subject to change without notice. is a registered trademark of

TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or

registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make

any derivative such as translation, transformation, or adaptation without permission from

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or tv interference caused by

unauthorized modifications to this equipment. Such modifications could void the user’s authority

to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This device and its antenna must not be co-located or operating in conjunction

with any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to only

Mobile Configurations. The antennas used for this transmitter must be installed to provide a

separation distance of at least 20 cm from all persons and must not be co-located or operating

in conjunction with any other antenna or transmitter.”

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference,

in which case the user may be required to take adequate measures.

National Restrictions

2400.0-2483.5 MHz

Country Restriction Reason/remark

Bulgaria General authorization required for outdoor use and

public service

France

Outdoor use limited to 10 mW

e.i.r.p. within the band

2454-2483.5 MHz

Military Radiolocation use. Refarming of the 2.4 GHz

band has been ongoing in recent years to allow current

relaxed regulation. Full implementation planned 2012

Italy If used outside of own premises, general authorization

is required

Luxembourg None General authorization required for network and service

supply(not for spectrum)

Norway Implemented

This subsection does not apply for the geographical

area within a radius of 20 km from the centre of

Ny-Ålesund

Russian Federation Only for indoor applications

Note: Please don’t use the product outdoors in France.

This device has been designed to operate with the antennas listed below, and having a

maximum gain of 2 dBi. Antennas not included in this list or having a gain greater than 2 dBi are

strictly prohibited for use with this device. The required antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be so

chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted

for successful communication.

TP-LINK TECHNOLOGIES CO., LTD

TP-LINK TECHNOLOGIES CO., LTD.

South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan,

Shenzhen, P. R. China

DECLARATION OF CONFORMITY

For the following equipment:

Product Description: 300Mbps Wireless N PCI Adapter

Model No.: TL-WN851N

Trademark: TP-LINK

We declare under our own responsibility that the above products satisfy all the technical

regulations applicable to the product within the scope of Council Directives:

Directives 1999/5/EC

The above product is in conformity with the following standards or other normative documents:

ETSI EN 300 328 V1.7.1: 2006

ETSI EN 301 489-1 V1.8.1:2008 & ETSI EN 301 489-17 V1.3.2:2008

EN60950-1:2006

EN62311:2008

Person is responsible for marking this declaration:

Yang Hongliang

Product Manager of International Business

CONTENTS

Package Contents .................................................................................................... 1

Chapter 1 Introduction........................................................................................... 2

1.1 Overview of the Product.......................................................................................... 2

1.2 Features.................................................................................................................. 2

1.3 LED Status.............................................................................................................. 3

Chapter 2 Installation Guide.................................................................................. 4

2.1 Hardware Installation .............................................................................................. 4

2.2 Software Installation................................................................................................ 4

2.2.1 Overview .................................................................................................... 4

2.2.2 For Windows XP......................................................................................... 4

2.2.3 For Windows Vista ..................................................................................... 9

2.2.4 For Windows 7 ......................................................................................... 13

Chapter 3 Configuration Guide ........................................................................... 17

3.1 For Windows XP ................................................................................................... 17

3.1.1 Current Status.......................................................................................... 17

3.1.2 Profile Management................................................................................. 19

3.1.3 Diagnostics............................................................................................... 27

3.2 For Windows Vista................................................................................................ 29

3.3 For Windows 7...................................................................................................... 31

Chapter 4 QSS Configuration.............................................................................. 34

4.1 PBC (Push Button Configuration) method............................................................. 35

4.2 PIN method........................................................................................................... 37

4.2.1 Enter a PIN into your AP device............................................................... 37

4.2.2 Enter the PIN from your AP device........................................................... 38

Appendix A: Specifications................................................................................... 40

Appendix B: Glossary............................................................................................ 41

Package Contents

The following items should be found in your package:

¾One TL-WN851N 300Mbps Wireless N PCI Adapter

¾Quick Installation Guide

¾One resource CD for TL-WN851N, including:

•TP-LINK Wireless Client Utility (TWCU) and Drivers

•User Guide

•Other Helpful Information

)Note:

Make sure that the package contains the above items. If any of the listed items are damaged or

missing, please contact with your distributor.

Conventions:

The ‘Adapter’ mentioned in this User Guide stands for TL-WN851N 300Mbps Wireless N PCI

Adapter without any explanations.

TL-WN851N 300Mbps Wireless N PCI Adapter

Chapter 1 Introduction

Thank you for choosing the TL-WN851N 300Mbps Wireless N PCI Adapter!

1.1 Overview of the Product

The adapter is a 802.11n client device; it is designed to provide a high-speed and unrivaled

wireless performance for your notebook. With a faster wireless connection, you can get a better

Internet experience, such as downloading, gaming, video streaming and so on.

With the 802.11n technology, higher throughput improvements using MIMO (multiple input,

multiple output antennas), the TL-WN851N’s auto-sensing capability allows high packet transfer

rate of up to 300Mbps for maximum throughput. It has good capability on anti-jamming, and it can

also interoperate with other wireless (802.11b) products. The adapter supports WEP, WPA and

WPA2 encryption to prevent outside intrusion and protect your personal information from being

exposed.

The adapter is easy to install and manage. The Quick Setup Wizard guides you step-by-step

through the installation process; the TP-LINK Wireless Client Utility helps you create a wireless

connection immediately.

With unmatched wireless performance, reception, and security protection, the TL-WN851N is the

best choice for easily adding or upgrading wireless connectivity to your notebook computer.

1.2 Features

¾Complies with IEEE802.11n, IEEE802.11g, IEEE802.11b standards

¾Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption,

64/128/152-bit WEP encryption

¾Supports high rate of up to 300Mbps for maximum throughput, supports automatically

adjust to lower speeds due to distance or other operating limitations

¾Provides 32-bit PCI interface

¾Supports Ad-Hoc and Infrastructure modes

¾Good capability on anti-jamming

¾Supports roaming between access points when configured in Infrastructure mode

¾Ease to configure and provides monitoring information

¾Supports Windows 2000, Windows XP, Windows Vista, Windows 7

¾Built-in two internal antennas which are listed in a format of 2x2 for two receivers and two

transmitters.

TL-WN851N 300Mbps Wireless N PCI Adapter

1.3 LED Status

LED Indications Status Working Status

Status Solid Light The adapter is inserted in the slot and the power is on.

Flashing slowly

The adapter is trying to scan a networking connection;

The adapter is already connected but is not

transmitting or receiving data.

Activity

Flashing Quickly The adapter is transmitting or receiving data.

TL-WN851N 300Mbps Wireless N PCI Adapter

Chapter 2 Installation Guide

2.1 Hardware Installation

To install the adapter, follow these steps listed below:

1. Turn off your desktop PC and disconnect the power.

2. Remove your PC case and locate an available PCI slot on the mianboard. Remove the metal

slot cover on the back of the PC. Check with your computer manufacturer for instructions if

needed.

3. Slide the PCI Adapter into the PCI slot. Make sure that all of its pins are touching the slot's

contacts. Once the adapter is firmly in place, secure its fastening tab to your PC's chassis

with a mounting screw. Then, close your PC case.

4. Reconnect your PC’s power and turn on your desktop PC.

2.2 Software Installation

2.2.1 Overview

The Adapter’s Setup Wizard will guide you through the Installation procedure for Windows 2000,

XP, Vista and Windows 7. The Setup Wizard will install the TP-LINK Wireless Client Utility

(TWCU) and drivers.

When you install the hardware prior to before installing the software, the system will prompt

“Found New Hardware Wizard”, click Cancel, and run the Setup Wizard program on the

CD-ROM.

2.2.2 For Windows XP

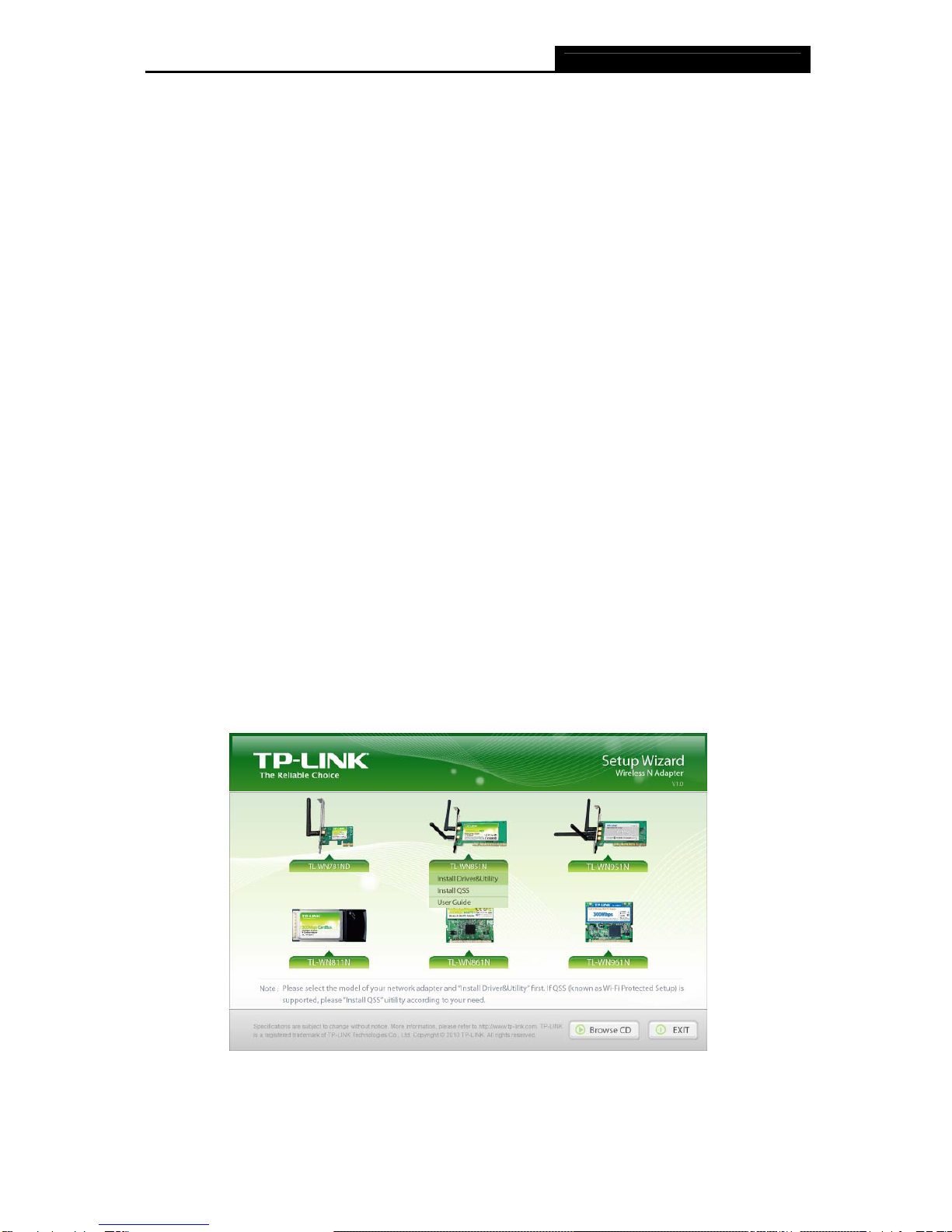

1. Insert the Resource CD into your CD-ROM drive, and the Figure 2-1 will appear. To

continue, select the TL-WN851N.There will be a menu including: Install Driver & Utility,

Install QSS and User Guide.

Figure 2-1

2. Click Install Driver & Utility to load the following screen.

Inhaltsverzeichnis

Andere TP-Link Adapter Handbücher

TP-Link

TP-Link TL-PA4010 Bedienungsanleitung

TP-Link

TP-Link TL-WN951N - IEEE 802.11b/g 802.11n Draft 2.0 PCI Wireless... Bedienungsanleitung

TP-Link

TP-Link TL-WN851ND Bedienungsanleitung

TP-Link

TP-Link TG-3468 Bedienungsanleitung

TP-Link

TP-Link TL-PA2010 Bedienungsanleitung

TP-Link

TP-Link TL-WN822N Bedienungsanleitung

TP-Link

TP-Link TL-WN823N Bedienungsanleitung

TP-Link

TP-Link TL-PA210 Bedienungsanleitung

TP-Link

TP-Link Archer TX20UH Bedienungsanleitung

TP-Link

TP-Link Powerline 1XRJ45 Bedienungsanleitung

TP-Link

TP-Link TL-PA4025P Kit Bedienungsanleitung

TP-Link

TP-Link TL-WN821N Bedienungsanleitung

TP-Link

TP-Link TL-PA4030 Bedienungsanleitung

TP-Link

TP-Link TL-WN821N - NT WIRELESS N USB ADAPTERATHEROS2T2R 2.4GHZ 802.11G B ND... Bedienungsanleitung

TP-Link

TP-Link TG-3468 Bedienungsanleitung

TP-Link

TP-Link TL-PA7017P Bedienungsanleitung

TP-Link

TP-Link TL-PA4010P KIT EU Bedienungsanleitung

TP-Link

TP-Link TL-WN725N Bedienungsanleitung

TP-Link

TP-Link TL-WN7200ND Bedienungsanleitung

TP-Link

TP-Link TL-PA251 Bedienungsanleitung

TP-Link

TP-Link AV1000 Bedienungsanleitung

TP-Link

TP-Link UE200 V2 Bedienungsanleitung

TP-Link

TP-Link TL-WN910N Bedienungsanleitung

TP-Link

TP-Link TL-UE300 Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung
