Business Networking Solution

Installation Guide

Unmanaged PoE+ Switch

About this Installation Guide

This Installation Guide describes the hardware characteristics, installation methods and the

points that should be attended to during installation.

This Installation Guide is structured as follows:

Chapter 1 Introduction

This chapter describes the external components of the switch.

Chapter 2 Installation

This chapter illustrates how to install the switch.

Chapter 3 Connection

This chapter illustrates how to do the physical connection of the switch.

Appendix A Troubleshooting

Appendix B Hardware Specifications

Audience

This Installation Guide is for:

Network Engineer Network Administrator

Conventions

• Some models featured in this guide may be unavailable in your country or region. For local

sales information, visit https://www.tp-link.com.

• The speed of the ports in Extend Mode will downgrade to 10 Mbps. The actual transmission

distance may vary due to power consumption of PoE-powered devices or the cable quality

and type.

• PoE budget calculations are based on laboratory testing. Actual PoE power budget is not

guaranteed and will vary as a result of client limitations and environmental factors.

• The figures in Chapter 2 and Chapter 3 are for demonstration purposes only. Your switch may

differ in appearance from that depicted.

• This guide uses the specific formats to highlight special messages. The following table lists

the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in device damage.

Remind to take notice. The note contains the helpful information for a better use of the

product.

Related Document

This Installation Guide is also available in PDF on our website. To obtain the latest

documentation and product information, visit the official website: https://www.tp-link.com.

Contents

Chapter 1 Introduction ——————————— 1

1.1 Product Overview ...........................................................1

1.2 Appearance.......................................................................1

Chapter 2 Installation ——————————— 6

2.1 Package Contents ..........................................................6

2.2 Safety Precautions .........................................................6

2.3 Installation Tools..............................................................8

2.4 Product Installation ........................................................8

Chapter 3 Connection ——————————— 10

3.1 Ethernet Port ....................................................................10

3.2 SFP Port..............................................................................10

3.3 Verify Installation.............................................................10

3.4 Power On............................................................................11

3.5 Initialization........................................................................11

Appendix A Troubleshooting ———————— 12

Appendix B Specications ————————— 13

Unmanaged PoE+ Switch

Introduction

Chapter 1 Introduction

1.1 Product Overview

TL-SL1218P, TL-SL1218MP, and TL-SL1226P are Power Sourcing Equipment (PSE*) which require

no configurations. The 10/100 Mbps RJ45 ports on the switch support the Power over Ethernet

(PoE*) function, which can automatically detect and supply power to those powered devices (PDs*)

complying with IEEE 802.3af and IEEE 802.3at.

Note:

■*PSE is a device (switch or hub for instance) that will provide power in a PoE setup.

■*PoE is a technology that describes a system to transmit electrical power, along with data, to

remote devices over standard twisted-pair cable in an Ethernet network.

■*PD is a device powered by a PSE and thus consumes energy. Examples include powering

IP telephones, wireless LAN access points, network cameras, network hubs, embedded

computers and so on.

1.2 Appearance

■Front Panel

The front panels of TL-SL1218P and TL-SL1218MP are shown as the following figure.

Figure 1-1 Front Panel of TL-SL1218P

10/100 Mbps

RJ45 Port (Port 1-16)

LEDs Switches 10/100/1000 Mbps

RJ45 Port (Port 17-18)

SFP Port

(Port 18F)

Figure 1-2 Front Panel of TL-SL1218MP

10/100 Mbps

RJ45 Port (Port 1-16)

LEDs Switches 10/100/1000 Mbps

RJ45 Port (Port 17-18)

SFP Port

(Port 17F-18F)

LEDs

LED Indication

PWR On: The switch is powered on.

Off: The switch is powered off.

Unmanaged PoE+ Switch

Introduction

LED Indication

Link/Act

Port 1–16

On: Running at 10/100 Mbps but no activity.

Flashing: Running at 10/100 Mbps and is transmitting or receiving data.

Off: No device is linked to the corresponding port.

Port 17–18/18F (for TL-SL1218P)

Port 17–18/17F–18F (for TL-SL1218MP)

Green On: Running at 1000 Mbps but no activity.

Green Flashing: Running at 1000 Mbps and is transmitting or receiving data.

Yellow On: Running at 10/100 Mbps but no activity.

Yellow Flashing: Running at 10/100 Mbps and is transmitting or receiving data.

Off: No device is linked to the corresponding port.

PoE Status

On: The port is connecting to a PD and supplying power for it.

Flashing: The PoE power circuit may be in short or the power current may be overloaded.

Off: No PD is connected to the corresponding port, or no power is supplied according to

the power limits of the port.

PoE Max

For TL-SL1218P

On: Total power supply ≥ 143 W.

Flashing: Total power supply ≥ 143 W and lasts for more than 2 minutes.

Off: Total power supply ≤ 143 W.

For TL-SL1218MP

On: Total power supply ≥ 243 W.

Flashing: Total power supply ≥ 243 W and lasts for more than 2 minutes.

Off: Total power supply ≤ 243 W.

Switches

Switch Indication

Extend Mode

Extend Mode switch 1–8 and 9 –16 can control the rate and power supply distance of

corresponding ports.

Off: The corresponding ports (1–8/9–16) run at 10/100 Mbps and support PoE power

supply up to 100 m away.

On: The corresponding ports (1–8/9–16) run at 10 Mbps and support PoE power supply up

to 250 m away.

Priority Mode

(1–8)

Off: All the ports transmit data with the same priority.

On: Port 1–8 transmit data with a higher priority than Port 9–18. When congestion occurs,

packets which are transmitted by the ports with a higher priority occupy the whole

bandwidth.

Isolation

(1–16)

Off: Port 1–16 can transmit data with every port.

On: Port 1–16 cannot transmit data with each other. They can transmit data only with port

17–18.

Unmanaged PoE+ Switch

Introduction

10/100 Mbps RJ45 Port (Port 1–16)

The ports are designed to connect to devices with a bandwidth of 10 Mbps or 100 Mbps. The ports

can provide power and transmit data for PDs. The maximum PoE power for each PoE port is 30 W. The

maximum PoE power for all PoE ports is 150 W (for TL-SL1218P)/250 W (for TL-SL1218MP). The ports

can also connect to non-PoE devices, but only transmit data.

10/100/1000 Mbps RJ45 Port (Port 17–18)

The ports are designed to connect to devices with a bandwidth of 10 Mbps, 100 Mbps or 1000 Mbps.

SFP Port (Port 18F for TL-SL1218P/Port 17F–18F for TL-SL1218MP)

The ports are designed to install the SFP module. An SFP Port (port 17F/port 18F) and the associated

10/100/1000 Mbps RJ45 Port (port 17/port 18) are called a “Combo” port, which means they cannot be

used simultaneously; otherwise, only the SFP port works.

The front panel of TL-SL1226P is shown as the following figure.

Figure 1-3 Front Panel of TL-SL1226P

10/100 Mbps

RJ45 Port (Port 1-24)

LEDs Switches 10/100/1000 Mbps

RJ45 Port (Port 25-26)

SFP Port

(Port 25F-26F)

LEDs

LED Indication

PWR On: The switch is powered on.

Off: The switch is powered off.

Link/Act

For Port 1–24:

On: Running at 10/100 Mbps but no activity.

Flashing: Running at 10/100 Mbps and is transmitting or receiving data.

Off: No device is linked to the corresponding port.

For Port 25–26/25F–26F:

Green On: Running at 1000 Mbps but no activity.

Green Flashing: Running at 1000 Mbps and is transmitting or receiving data.

Yellow On: Running at 10/100 Mbps but no activity.

Yellow Flashing: Running at 10/100 Mbps and is transmitting or receiving data.

Off: No device is linked to the corresponding port.

PoE Status

On: The port is connecting to a PD and supplying power for it.

Flashing: The PoE power circuit may be in short or the power current may be overloaded.

Off: No PD is connected to the corresponding port, or no power is supplied according to

the power limits of the port.

Unmanaged PoE+ Switch

Introduction

LED Indication

PoE Max

On: Total power supply ≥ 243 W.

Flashing: Total power supply ≥ 243 W and lasts for more than 2 minutes.

Off: Total power supply ≤ 243 W.

Switches

Switch Indication

Extend Mode

Extend Mode switch 1–8, 9–16 and 17–24 can control the rate and power supply distance

of corresponding ports.

Off: The corresponding ports (1–8/9–16/17–24) run at 10/100 Mbps and support PoE

power supply up to 100 m away.

On: The corresponding ports (1–8/9–16/17–24) run at 10 Mbps and support PoE power

supply up to 250 m away.

Priority Mode

(1–8)

Off: All the ports transmit data with the same priority.

On: Port 1–8 transmit data with a higher priority than Port 9–24. When congestion occurs,

packets which are transmitted by the ports with a higher priority occupy the whole

bandwidth.

Isolation

(1–24)

Off: Port 1–24 can transmit data with every port.

On: Port 1–24 cannot transmit data with each other. They can transmit data only with port

25–26.

10/100 Mbps RJ45 Port (Port 1–24)

The ports are designed to connect to devices with a bandwidth of 10 Mbps or 100 Mbps. The ports can

provide power and transmit data for PDs. The maximum PoE power is 30 W for each PoE port and 250 W

for all the PoE ports. The ports can also connect to non-PoE devices, but only transmit data.

10/100/1000 Mbps RJ45 Port (Port 25–26)

The ports are designed to connect to devices with a bandwidth of 10 Mbps, 100 Mbps or 1000 Mbps.

SFP Port (Port 25F–26F)

The ports are designed to install the SFP module. An SFP Port (Port 25F–26F) and the associated

10/100/1000 Mbps RJ45 Port (Port 25–26) are called a “Combo” port, which means they cannot be used

simultaneously; otherwise, only the SFP port works.

■Rear Panel

The rear panel is shown as the following figure. Here we take TL-SL1218MP as an example.

Figure 1-4 Rear Panel

Kensington Security Slot Power Socket Grounding Terminal

Unmanaged PoE+ Switch

Introduction

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device from being stolen.

Power Socket

Connect the female connector of the power cord here, and the male connector to the AC power outlet.

Make sure the voltage of the power supply meets the requirement of the input voltage (100–240 V~

50/60 Hz).

Caution:

You should use the provided power cord.

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground the switch

through the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning

protection, go to https://www.tp-link.com/support, search the model number of your switch and go to

the product Support web page, refer to the Lightning Protection Guide from the Related Documents:

https://www.tp-link.com/us/conguration-guides/lightning_protection_guide/.

Unmanaged PoE+ Switch

Installation

Chapter 2 Installation

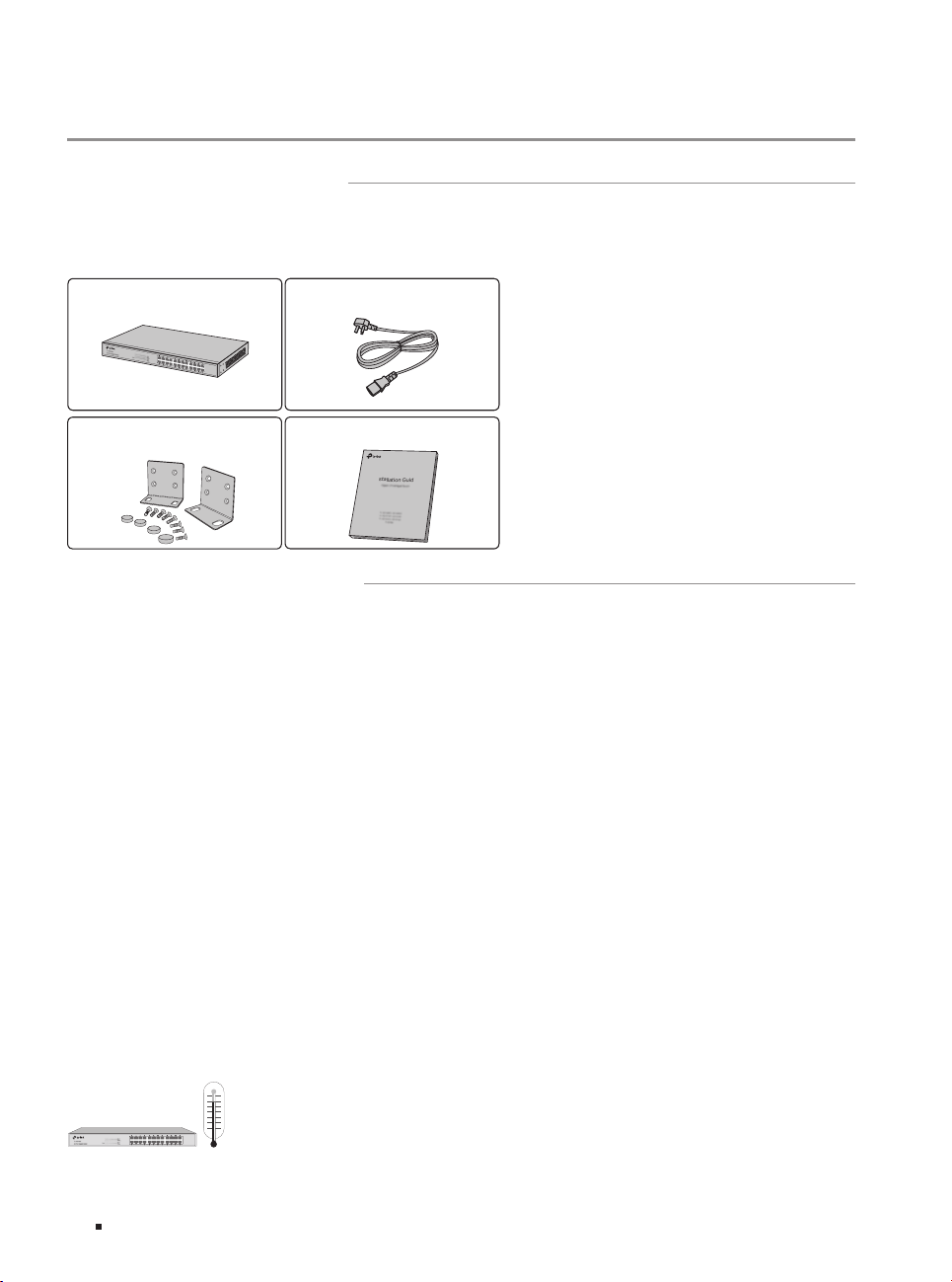

2.1 Package Contents

Make sure that the package contains the following items. If any of the listed items is damaged or

missing, contact your distributor.

One Power Cord

One Switch

This Installation Guide

Installation Guide

BusinessNetworking Solution

Two mounting brackets, eight

screws and four rubber feet

2.2 Safety Precautions

To avoid any device damage and bodily injury caused by improper use, you should observe the

following rules.

■Safety Precautions

■Keep the power off during the installation.

■Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin contact and is

well grounded.

■Use only the power cord provided with the switch.

■Make sure that the supply voltage matches the specifications indicated on the rear panel of the

switch.

■Ensure that the switch is installed in a well-ventilated environment and its ventilation hole is not

blocked.

■Do not open or remove the cover of the switch.

■Before cleaning the device, cut off the power supply. Do not clean it by the waterish cloth, and never

use any other liquid cleaning method.

■Place the device with its bottom surface downward.

■Site Requirements

Temperature/Humidity

40°C

0°C

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TP-Link Schalten Handbücher

TP-Link

TP-Link JetStream T1600G-52TS Bedienungsanleitung

TP-Link

TP-Link TL-SG1016PE Bedienungsanleitung

TP-Link

TP-Link UH720 Bedienungsanleitung

TP-Link

TP-Link TL-SF1008D - 10/100M FAST ETHERNET SWITCH Bedienungsanleitung

TP-Link

TP-Link TL-SF1008P Bedienungsanleitung

TP-Link

TP-Link TL-SG105E Bedienungsanleitung

TP-Link

TP-Link TL-SX3206HPP Bedienungsanleitung

TP-Link

TP-Link JetStream TL-SL3428 Bedienungsanleitung

TP-Link

TP-Link JetStream L2+ Bedienungsanleitung

TP-Link

TP-Link TL-SF1008P Bedienungsanleitung

TP-Link

TP-Link JetStream T1600G-28TS Bedienungsanleitung

TP-Link

TP-Link TL-SG1008PE Bedienungsanleitung

TP-Link

TP-Link DS108GE Bedienungsanleitung

TP-Link

TP-Link TL-SG1005D - 5 PORT GIGABIT DESKTOP SWITCH Bedienungsanleitung

TP-Link

TP-Link TL-SG108E Bedienungsanleitung

TP-Link

TP-Link TL-SG108PE Bedienungsanleitung

TP-Link

TP-Link tapo S505 Bedienungsanleitung

TP-Link

TP-Link JetStream T2700G-28TQ Bedienungsanleitung

TP-Link

TP-Link JetStream T3700G-52TQ Bedienungsanleitung

TP-Link

TP-Link JetStream L2 Bedienungsanleitung

TP-Link

TP-Link Omada DS1016G Bedienungsanleitung

TP-Link

TP-Link TL-SG1008P Bedienungsanleitung

TP-Link

TP-Link HS220 Bedienungsanleitung

TP-Link

TP-Link POE150S Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
