TRENDnet TEW-229UB Bedienungsanleitung

Regulatory notes and statements

Wireless LAN, Health and Authorization for use

Radio frequency electromagnetic energy is emitted from Wireless LAN devices.

The energy levels of these emissions however are far much less than the

electromagnetic energy emissions from wireless devices like for example mobile

phones. Wireless LAN devices are safe for use frequency safety standards and

recommendations. The use of Wireless LAN devices may be restricted in some

situations or environments for example:

·On board of airplanes, or

·In an explosive environment, or

·In case the interference risk to other devices or services is perceived or identified

as harmful

In case the policy regarding the use of Wireless LAN devices in specific

organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial

plants, private buildings etc.) is not clear, please ask for authorization to use these

devices prior to operating the equipment.

Regulatory Information/disclaimers

Installation and use of this Wireless LAN device must be in strict accordance with

the instructions included in the user documentation provided with the product. Any

changes or modifications made to this device that are not expressly approved by the

manufacturer may void the user’s authority to operate the equipment. The

Manufacturer is not responsible for any radio or television interference caused by

unauthorized modification of this device, of the substitution or attachment.

Manufacturer and its authorized resellers or distributors will assume no liability for

any damage or violation of government regulations arising from failing to comply

with these guidelines.

USA-FCC (Federal Communications Commission) statement

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause

undesired operation of this device.

FCC Radio Frequency Exposure statement

This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65

and found compliant to the requirements as set forth in CFR 47 Sections 2.1091,

2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices.

The radiated output power of this Wireless LAN device is far below the FCC radio

frequency exposure limits. Nevertheless, this device shall be used in such a manner

that the potential for human contact during normal operation is minimized.

When nearby persons has to be kept to ensure RF exposure compliance, in order to

comply with RF exposure limits established in the ANSI C95.1 standards, the

distance between the antennas and the user should not be less than 20 cm.

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation.

This equipment generates, uses, and can radiate radio frequency energy. If not

installed and used in accordance with the instructions, it may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try and correct the interference by one or more of the following

measures:

1. Reorient or relocate the receiving antenna.

2. Increase the distance between the equipment and the receiver.

3. Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Export restrictions

This product or software contains encryption code that may not be exported or

transferred from the US of Canada without an approved US Department of

Commerce export license.

Safety Information

Your device contains a low power transmitter. When device is transmitted it sends

out radio frequency (RF) signal.

CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this

equipment should be installed and operated with minimum distance 20cm between

the radiator and your body. Use on the supplied antenna. Unauthorized antenna,

modification, or attachments could damage the transmitter and may violate FCC

regulations.

iii

The antenna(s) used for this transmitter must be installed to provide a separation

distance of at least 20 cm from all persons and must not be co-located or operating

in conjunction with any other antenna or transmitter.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

Protection requirements for health and safety – Article 3.1a

Testing for electric safety according to EN 60950 has been conducted. These are

considered relevant and sufficient.

Protection requirements for electromagnetic compatibility – Article

3.1b

Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-

17 and EN 55024 has been conducted. These are considered relevant and sufficient.

Effective use of the radio spectrum – Article 3.2

Testing for radio test suites according to EN 300 328-2 has been conducted. These

are considered relevant and sufficient.

CE in which Countries where the product may be used freely:

Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland,

Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland.

France: The use of other channels that the channel 10 through 13 is prohibited by

law.

TABLE OF CONTENT

Introduction ................................................................................................ 1

Overview of this User’s Guide................................................................. 1

Unpacking and Setup.................................................................................. 2

Unpacking ................................................................................................ 2

Setup......................................................................................................... 2

Connecting the USB Extension Cable...................................................... 2

Hardware Installation ................................................................................. 3

LED Indicator........................................................................................... 3

Check the installation............................................................................... 3

Software Installation................................................................................... 4

Windows 98se/ME/2000/XP Utility and Driver Installation................... 4

Wireless Utility Setting............................................................................ 6

Technical Specifications........................................................................... 15

INTRODUCTION

Congratulations on your purchase of this IEEE 802.11b Pen Size Wireless USB 2.0

Adapter.

This manual helps to get familiar with the Pen Size Wireless USB 2.0 Adapter. This

manual contains detailed instructions in operation of this product. Please keep this

manual for future reference.

The Pen Size Wireless USB 2.0 Adapter are tremendous advantages for notebook

users. Take the pen-sized Adapter wherever you go. The Adapter draws power from

the PC, so you don’t need an external power supply.

With a Wireless LAN (IEEE 802.11b) USB 2.0 Adapter, a desktop or laptop

computer can communicate with another computer in a wireless way. Easy-to-use

utilities are bundled with Wireless USB Adapter for configuration, monitoring, and

diagnosis purposes.

Pen Size Wireless USB 2.0 Adapter can wirelessly transmit and receive data,

minimizing the need for wired connections, at a speed of up to eleven megabit per

second. With Wireless USB Adapter, you can locate your PC wherever you want

without wires and cables.

Wireless USB 2.0 Adapter provides users with an access to real-time information

anywhere in their organization. The mobility provides productivity and service,

which are not available under wired networks. The Wireless USB 2.0 Adapter

configuration is easy to change from peer-to-peer networks, suitable for a small

number of users, to full infrastructure networks of thousands of users that allow

roaming around a broad area.

Overview of this User’s Guide

Introduction. Describes the Wireless USB 2.0 Adapter and its features.

Unpacking and Setup. Helps you get started with the basic installation of the

Wireless USB 2.0 Adapter.

Hardware Installation. Describes the LED indicators of the Adapter.

Software Installation. Tells how to setup the driver and the utility setting.

Technical Specifications. Lists the technical (general, physical and environmental)

specifications of the Wireless USB 2.0 Adapter.

UNPACKING AND SETUP

This chapter provides unpacking and setup information for the Wireless USB 2.0

Adapter.

Unpacking

Open the box of the Pen Size Wireless USB 2.0 Adapter and carefully unpack it.

The box should contain the following items:

One TEW-229UB 54Mbps 802.11b Wireless USB Adapter

One Driver & Utility CD-ROM

One A-type USB male to female extension cable

If any item is found missing or damaged, please contact your local reseller for

replacement.

Setup

The setup of the Wireless USB 2.0 Adapter can be performed using the following

steps:

Visually inspect the USB connector and make sure that it is fully plugged in to

the system’s USB port.

Make sure that there is a well environment that there is no much intrusion to

have a better connection.

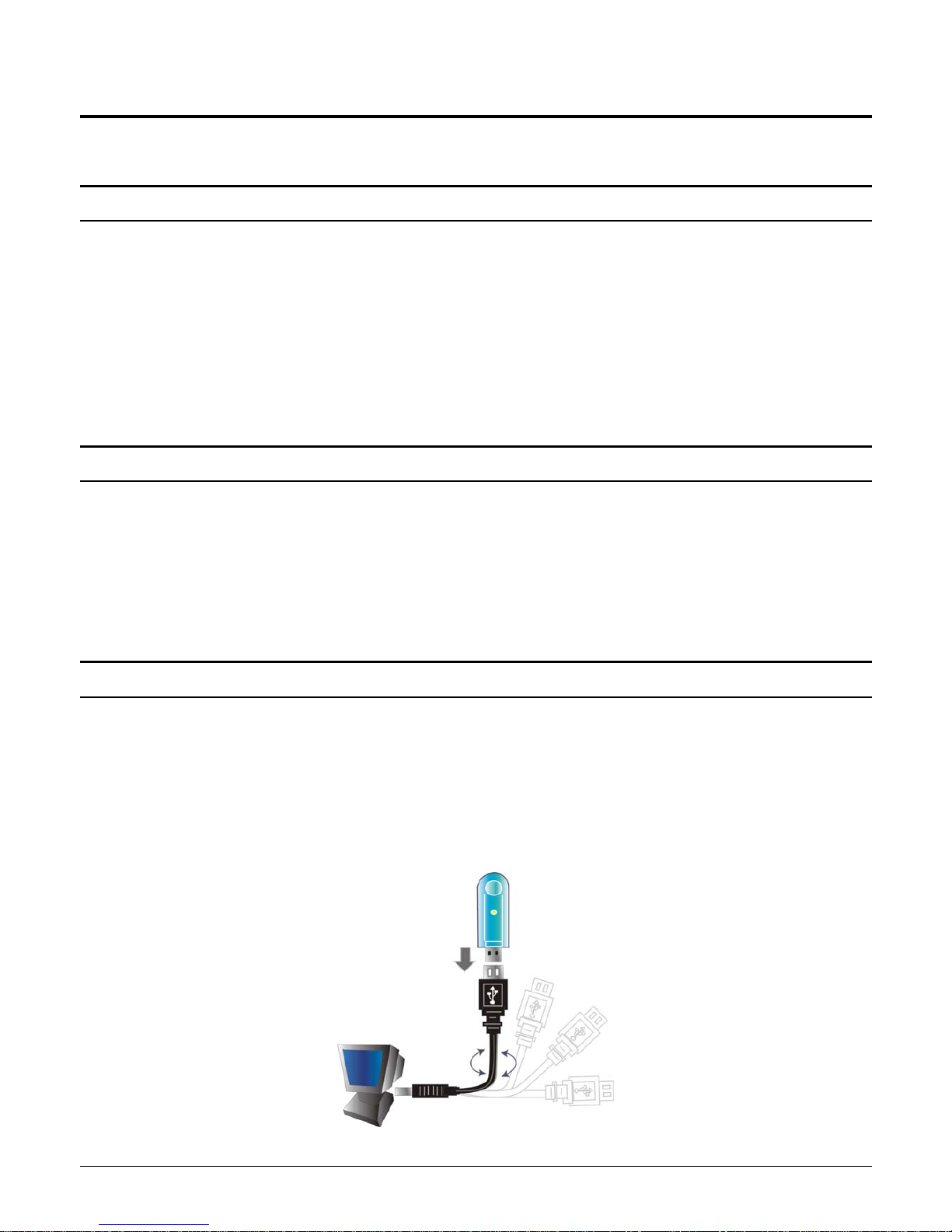

Connecting the USB Extension Cable

The USB extension cable that comes with the Adapter has Type A connectors on

both ends. One is a male Type A connector that plugs into the PC’s USB port, and

the other is a female Type A connector that plugs into the Adapter.

This USB extension cable have a special function, it can be twist to any direction to

have the best connection in the air. It is recommended that the Pen Size Wireless

USB Adapter was vertically plane with the ground.

HARDWARE INSTALLATION

LED Indicator

LNK (LINK)

The LNK indicator lights green when the Wireless LAN is connected to a network

successfully. Otherwise the LNK indicator blinks green while the Wireless USB

Adapter is scanning the wireless device.

Check the installation

The LEDs of the Wireless USB 2.0 Adapter are clearly visible and the status of the

network link can be seen instantly:

1. When connected to the USB port and the driver was installed, the LNK LED will

start blinking, it means that the device is starting to scanning a 802.11b wireless

device near the Wireless USB 2.0 Adapter.

2. While the Wireless USB 2.0 Adapter linked up to the Access Point or to other

Wireless LAN station, the LNK LED will always light up.

SOFTWARE INSTALLATION

This section will lead you to install the driver and utility of the Wireless USB 2.0

Adapter.

Windows 98se/ME/2000/XP Utility and Driver Installation

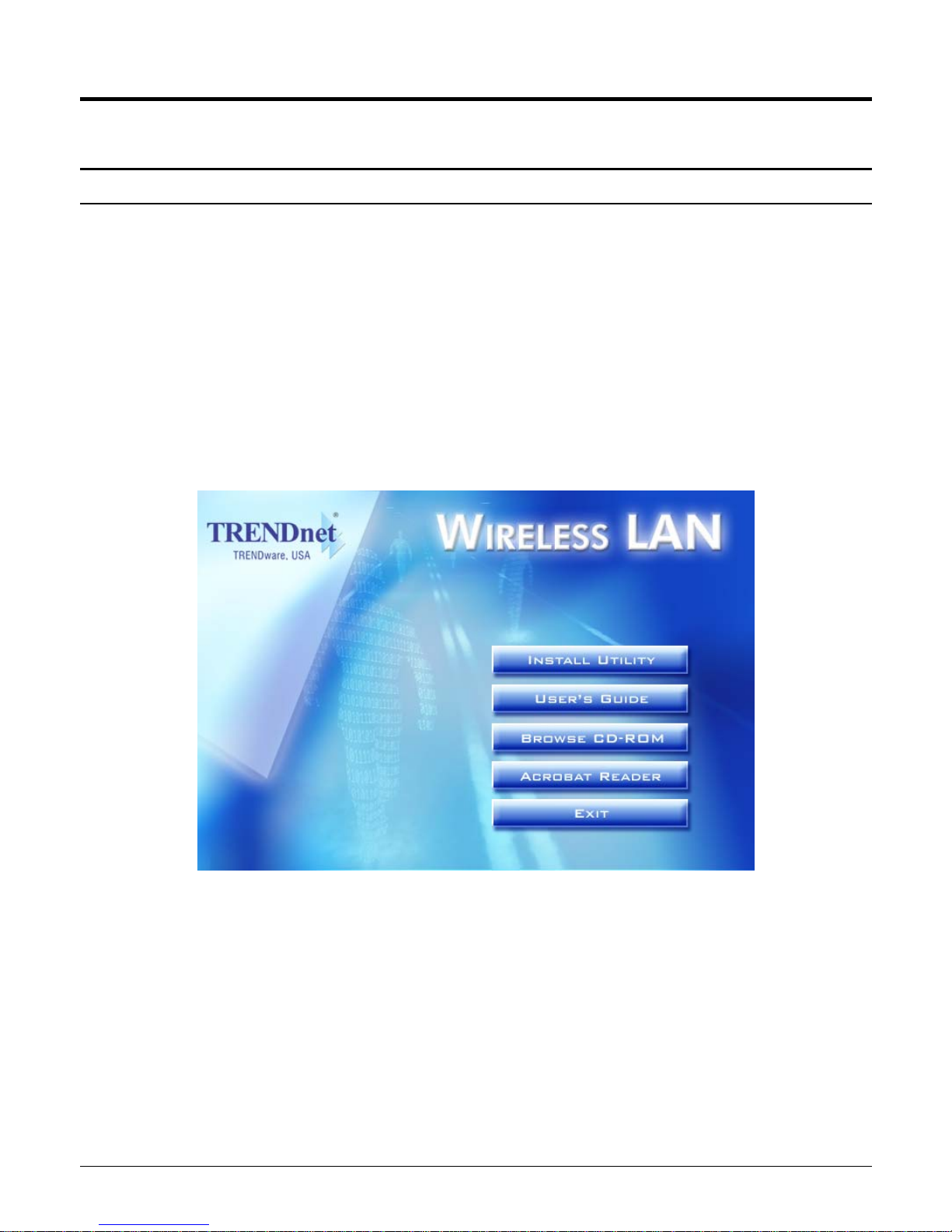

1. Insert the Wireless LAN USB 2.0 Adapter Driver & Utility CD-ROM into

computer’s CD-ROM Drive and it will automatically run a setup menu and

install the driver and the utility. In some specific setting on Windows system,

you may need to proceed the software manually, go to your Windows Start

menu and choose Run, type “D:\Utility\Setup.exe” in the dialog box (D:\ will

depend on where your CD-ROM drive is located) and click OK.

2. If you need to install the driver manually, refer each Windows OS to the

following CD-Rom directory path: D:\Drivers\<Windows OS>\SIS162U.INF.

Note: (D:\ will depends on where the CD-ROM drive is located and

<Windows OS> will depend on the Windows Operating System you are using).

3. The InstallShield Wizard screen will appear. Click Next to continue.

4. The installation program will help you to setup the Wireless Utility.

Be noted that the Windows XP have its own Wireless Utility; you can either

use the utility of Windows XP or the provided utility.

5. After finish the installation, plugged in the Wireless USB 2.0 Adapter, you will

see the icon on the Windows task bar.

When the icon in the toolbar represent in green color, it is properly connected to

the network and if it represent in red color, then it is not connected to the

network.

Andere Handbücher für TEW-229UB

Inhaltsverzeichnis

Andere TRENDnet Adapter Handbücher

TRENDnet

TRENDnet TPL-302E Bedienungsanleitung

TRENDnet

TRENDnet TU2-ETG Bedienungsanleitung

TRENDnet

TRENDnet HotFlash TEW-429UF Bedienungsanleitung

TRENDnet

TRENDnet TPL-302E Bedienungsanleitung

TRENDnet

TRENDnet HotFlash TEW-429UF Bedienungsanleitung

TRENDnet

TRENDnet TEW-644UB Bedienungsanleitung

TRENDnet

TRENDnet TPL-302E2K - Powerline AV Fast EN Adapter Bedienungsanleitung

TRENDnet

TRENDnet TPL-306E Bedienungsanleitung

TRENDnet

TRENDnet TPL-4052E Bedienungsanleitung

TRENDnet

TRENDnet TEW-429UB Bedienungsanleitung

TRENDnet

TRENDnet TPL-406E V1.0R Installations- und Betriebshandbuch

TRENDnet

TRENDnet TEW-646UBH Bedienungsanleitung

TRENDnet

TRENDnet TPE-101I Bedienungsanleitung

TRENDnet

TRENDnet HotFlash TEW-429UF Bedienungsanleitung

TRENDnet

TRENDnet TU-ET100C - Bedienungsanleitung

TRENDnet

TRENDnet TEW-664UB Bedienungsanleitung

TRENDnet

TRENDnet TEW-649UB - Mini Wireless N Speed USB 2.0... Bedienungsanleitung

TRENDnet

TRENDnet TE-PCIW Bedienungsanleitung

TRENDnet

TRENDnet TEW-224UB Bedienungsanleitung

TRENDnet

TRENDnet TEW-444UB Bedienungsanleitung

TRENDnet

TRENDnet TE-16PNP Bedienungsanleitung

TRENDnet

TRENDnet TEW-604UB Bedienungsanleitung

TRENDnet

TRENDnet TU-ET100C - Bedienungsanleitung

TRENDnet

TRENDnet TEW-424UBK Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung
