Quick Installation Guide

TEW-684UB

1.01

Table of Contents

Version 03.30.2011

English 1

1. Before You Start

2. How to Install 2

3. Using the Wireless Adapter 5

Troubleshooting 7

Wireless Tips 8

1. Before You Start

port, the maximum speed is 12Mbps)

ŸCD-ROM Drive

USB port: 2.0 or 1.1 (Disclaimer: When connecting the TEW-684UB to a USB 1.1

Package Contents

ŸCD-ROM (Utility and User’s Guide)

ŸMulti-Language Quick Installation Guide

ŸUSB cable (100 cm / 3.28 ft)

TEW-684UB

System Requirements

Supported Operating Systems CPU Memory

Windows 7 (32/64-bit)

Windows Vista (32/64-bit)

Windows XP

1GHz or above

800MHz or above

300MHz or above

1GB RAM or above

512MB RAM or above

256MB RAM or above

Software Utility Requirements

2. How to Install

1. Insert the Utility & User's Guide CD-ROM into

your computer's CD-ROM Drive.

Important! DO NOT install the TEW-684UB in the computer until instructed to do so.

2. Click Run Autorun.exe (Windows 7/Vista only).

4. Click I accept the terms of the license

agreement and then click Next.

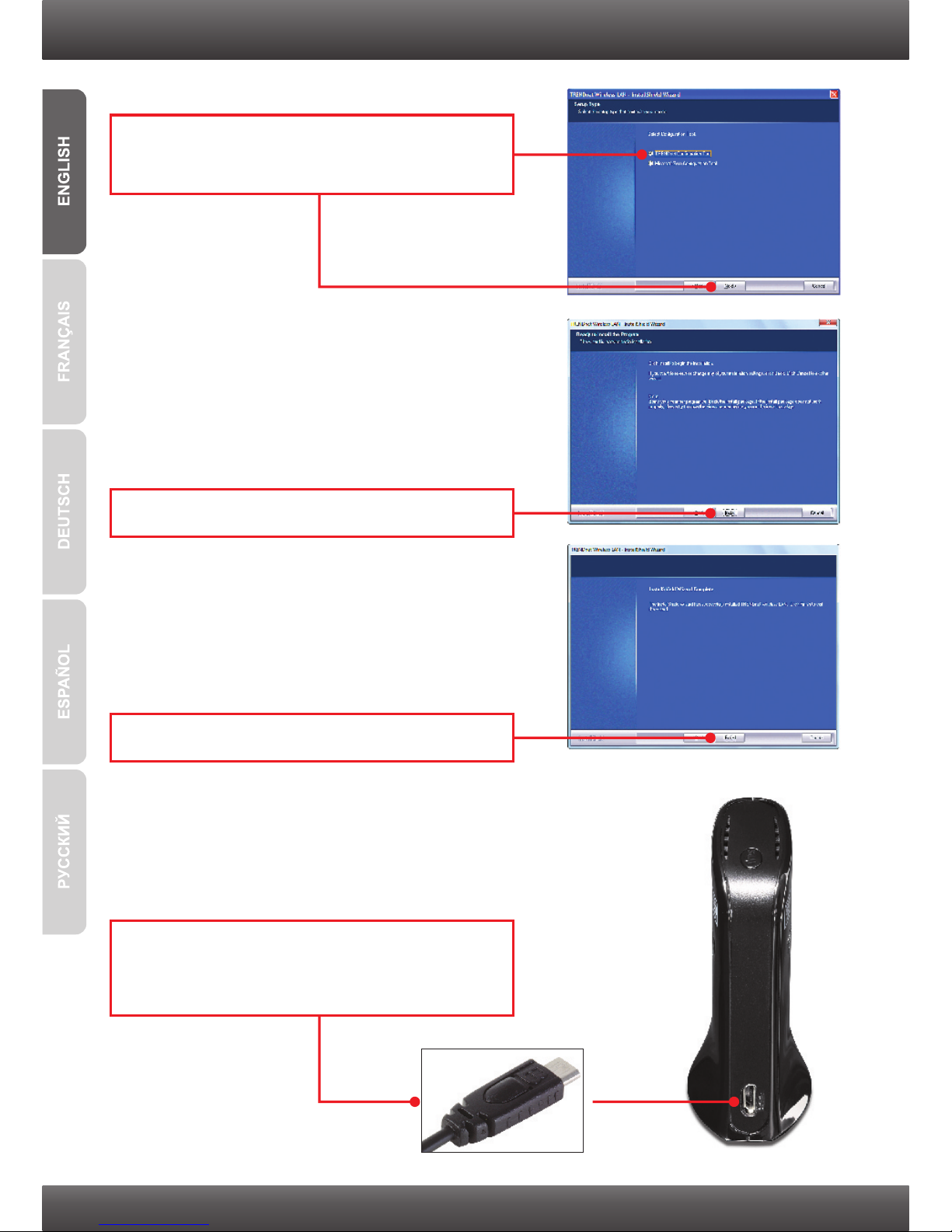

5. Select Install driver and TRENDnet WLAN

utility and then click Next.

3. Click Install Utility.

6. Select TRENDnet Configuration Tool and

then click Next (Windows XP).

7. Click Install.

8. Click Finish.

9. With the provided USB cable, connect the

Micro-B end of the USB cable into the

TEW-684UB.

10. Connect the Type A end (the other end of the

USB cable) to an available USB port on your

computer.

11. The computer will automatically detect and

install the drivers.

Your installation is now complete

For detailed information regarding the TEW-684UB configuration and advanced settings,

please refer to User's Guide included on the Utility & Driver CD-ROM or TRENDnet's website

at http://www.trendnet.com.

3. Using the Wireless Adapter

1. On the bottom right-hand corner of the screen,

double-click on the TRENDnet Wireless Utility

icon. On Windows 7, if the icon does not

appear, click the Show hidden icons arrow.

2. Click the Site Survey icon.

3. Select a SSID and then click the connect icon.

The SSID is the wireless network name of your

wireless network (e.g. wireless router or access

point).

4. If Encryption is enabled on your wireless

network (e.g. access point or wireless router),

the correct Authentication and Encryption type

should be selected. Click the Next icon.

Wireless configuration is now complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet.

For detailed information regarding the TEW-684UB configuration and advanced settings,

please refer to User's Guide included on the Utility CD-ROM, or TRENDnet's website at

http://www.trendnet.com.

5. Enter the Preshared Key (wireless network

password) and then click the Next icon to

save the wireless settings.

I inserted the Utility & User’s Guide CD-ROM into my computer's CD-ROM Drive and the

installation menu does not appear automatically. What should I do?

1. For Windows 7, if the installation menu does not appear automatically, click on the Windows Icon

on the bottom left hand corner of the screen, click the “Search programs and files” box, and type

D:\Autorun.exe, where “D” in “D:\Autorun.exe” is the letter assigned to your CD-ROM Drive, and

then press the ENTER key on your keyboard.

2. For Windows Vista, if the installation menu does not appear automatically, click on the Windows

Icon on the bottom left hand corner of the screen, click on the “Start Search” box, and type

D:\Autorun.exe, where “D” in “D:\Autorun.exe” is the letter assigned to your CD-ROM Drive, and

then press the ENTER key on your keyboard.

3. For Windows XP, if the window does not appear automatically, click Start, click Run and type

D:\Autorun.exe where “D” in “D:\Autorun.exe” is the letter assigned to your CD-ROM Drive, and

then press the ENTER key on your keyboard.

2. I completed all the steps in the quick installation guide, but my Wireless USB Adapter is not

connecting to my wireless network (e.g. wireless router or access point). What should I do?

Verify that the SSID (Network Name) matches your wireless router or access point's SSID

(Network Name).

2. Please check with your network administrator for the security key in order to access the secured

wireless access point or router. Please refer to the User's Guide for more information regarding

wireless network security.

3. Check your TCP/IP properties to ensure that Obtain an IP address automatically is selected.

4. Double-click the TRENDnet Wireless Utility icon, click the Site Survey icon ( ) and then click

the Rescan icon ( ) to check if your SSID (Network Name) for your wireless network is

listed.

5. Please refer to the Wireless tips section if you continue to have wireless connectivity problems.

Troubleshooting

3. Windows is unable to recognize my hardware. What should I do?

1. Make sure your computer meets the minimum requirements as specified in Section 1 of this

quick installation guide.

2. You must complete the installation installation of the TRENDnet Wireless Utility (as described in

Section 2) before connecting the Wireless USB Adapter to your computer.

3. Connect the Wireless USB Adapter to a different USB port on your computer.

4. Verify the USB Adapter's LEDs are working properly. Please see the table below:

4. I cannot open the TRENDnet Wireless Utility. What should I do?

Access your device manager to make sure the adapter is installed properly.

1. To access the device manager on Windows 7, click on the Windows icon on the bottom left-hand

corner, click Computer, click System Properties and then click Device Manager.

2. To access the device manager on Windows Vista, right-click Computer, click Properties and

then click Device Manager.

3. To access the device manager on Windows XP, right-click My Computer, click Properties, click

the Hardware tab, and then click Device Manager.

If you see a networking device with a yellow question mark or exclamation point:

1. Uninstall the device from device manager

2. Remove the adapter from the computer

3. Click the Windows / Start icon, click All Programs, click TRENDnet and then click Uninstall.

4. Reinstall the adapter. See Section 2. How to Install.

If you still encounter problems or have any questions regarding the TEW-684UB, please refer to the

User's Guide included on the Utility & User’s Guide CD-ROM or contact TRENDnet's Technical Support

Department.

LED/Button Color Sequence Definition

Power

Wireless Link/Act LED

WPS LED

WPS Button

Green

N/A

Green

Blinking

Device is on

Off

Device is off

N/A

Wireless LAN is on or enabled

Wireless data transmission

Wireless LAN is off or disabled

WPS authentication process is complete

WPA authentication prociess is ongoing

WPS is not activated or disabled

Hold 3 seconds to activate WPS

WPS
