TRENDnet TEW-401PC Bedienungsanleitung

TEW401_403

Wireless LAN 802.11g NIC Series

User’s Guide

Version 1.1

User’s Guide 0

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form

or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the

prior writing of the publisher.

July. 2003

User’s Guide 1

Contents

1. Introduction............................................................................................................... 3

2. Wireless LAN Basics ................................................................................................ 4

3. Installation for Windows platform ........................................................................... 5

3.1. Installation Overview…………………………………………………………………………………..6

3.2. Install Procedure for Windows XP……………………………………………………….7

3.3. Install Procedure for Windows 98/ME/2000…………………………………………….9

4. Configuration Utility ............................................................................................... 17

4.1 Link Information…………………………………………………………………………………………19

4.2 Availiable Network…………………………………………………………………………21

4.3 Profile Setting……………………………………………………………………………………………22

4.4 About………………………………………………………………………………………………………26

5. Troubleshooting...................................................................................................... 27

User’s Guide 2

1. Introduction

Thank you for purchasing your Wireless LAN 802.11g Adapter. This Quick Installation Guide will assist

you with the installation procedure.

The package you have received should contain the following items:

•Wireless LAN 802.11g Adapter

•Quick Installation Guide

•CD containing Wireless LAN Management utility, drivers and Multi-lingual User’s Guide

Note: if anything is missing, please contact your vendor

The CD contains drivers and Configuration Utility program that is used for managing the Wireless LAN

Adapters and establishing the wireless connection with your Local Area Network.

Note: This manual is valid for all Wireless LAN 11g Series products, such as PC Card, USB, mini-USB,

PCI adapter, mini-PCI…etc.

User’s Guide 3

2. Wireless LAN Basics

Wireless LAN (Local Area Networks) systems offer a great number of advantages over a traditional,

wired system. Wireless LANs (WLANs) are more flexible, easier to setup and manage and often more

cost effective than their wired equivalence.

Using radio frequency (RF) technology, WLANs transmit and receive data over the air, minimizing the

need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through

simplified configuration, enable movable LANs.

With wireless LANs, users can access shared information without looking for a place to plug in and

network managers can set up or augment networks without installing or moving wires. Wireless LANs

offer the following productivity, convenience and cost advantages over traditional wired networks:

•Mobility - Wireless LAN systems can provide LAN users with access to real-time information

anywhere in their organization. This mobility supports productivity and service opportunities not

possible with wired networks.

•Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can

eliminate the need to pull cable through walls and ceilings.

•Installation Flexibility - Wireless technology allows the network to go where wires cannot go.

•Reduced Cost-of-Ownership - While the initial investment required for wireless LAN hardware

might be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle

costs will be significantly lower. Long-term cost benefits are greatest in dynamic environments

requiring frequent moves, adds, and changes.

•Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs

of specific applications and installations. Configurations are easily changed and range from peer-

to-peer to full infrastructure networks, also allow roaming over a broad area.

User’s Guide 4

3. Installation for Windows platform

The following section will assist you in installing wireless LAN Adapter successfully. You will first install

software (Utility) and then insert / attach the Wireless LAN Adapter to your system, and finally set the

network properties to accommodate resource sharing and select the type of wireless network that you

wish to install. The Wireless LAN card can easily be installed and used, without bothering to connect

cables for keeping your computer to use network resources.

User’s Guide 5

3.1. Installation Overview

Here are some steps you will perform in establishing your wireless network connection:

zInstall the Access Point at first. AP is needed in case of Infrastructure network mode.

zInstall the software using the Install CD.

zInstall the Wireless LAN Card (WIRELESS LAN 802.11g Adapter).

zInstall the network protocol(s) required to communicate on your network. Most likely you will need

the TCP/IP protocol.

User’s Guide 6

3.2. Install Procedure for Windows XP

Important Notice

In order to make right use of WPA, please ensure that your current Wireless Adapter’s driver, and

Wireless Utility can support it, WPA needs 802.1x authentication (when RADIUS mode is chosen),

though the Operating System must also support 802.1x protocol. For Microsoft’s OS family, only

Windows XP has incorporated this by default. The rest of the OS must installed 3er party’s client

software such as Funk ODySSey.

Note: Do not insert the WLAN Adapte

until you are asked to do so, failure of which may result in unsuccessful

installation of your WLAN device.

1. Insert the given Installation CD in the CD-ROM and then click on the Install Config Utilities.

Follow the instruction to finish the installation.

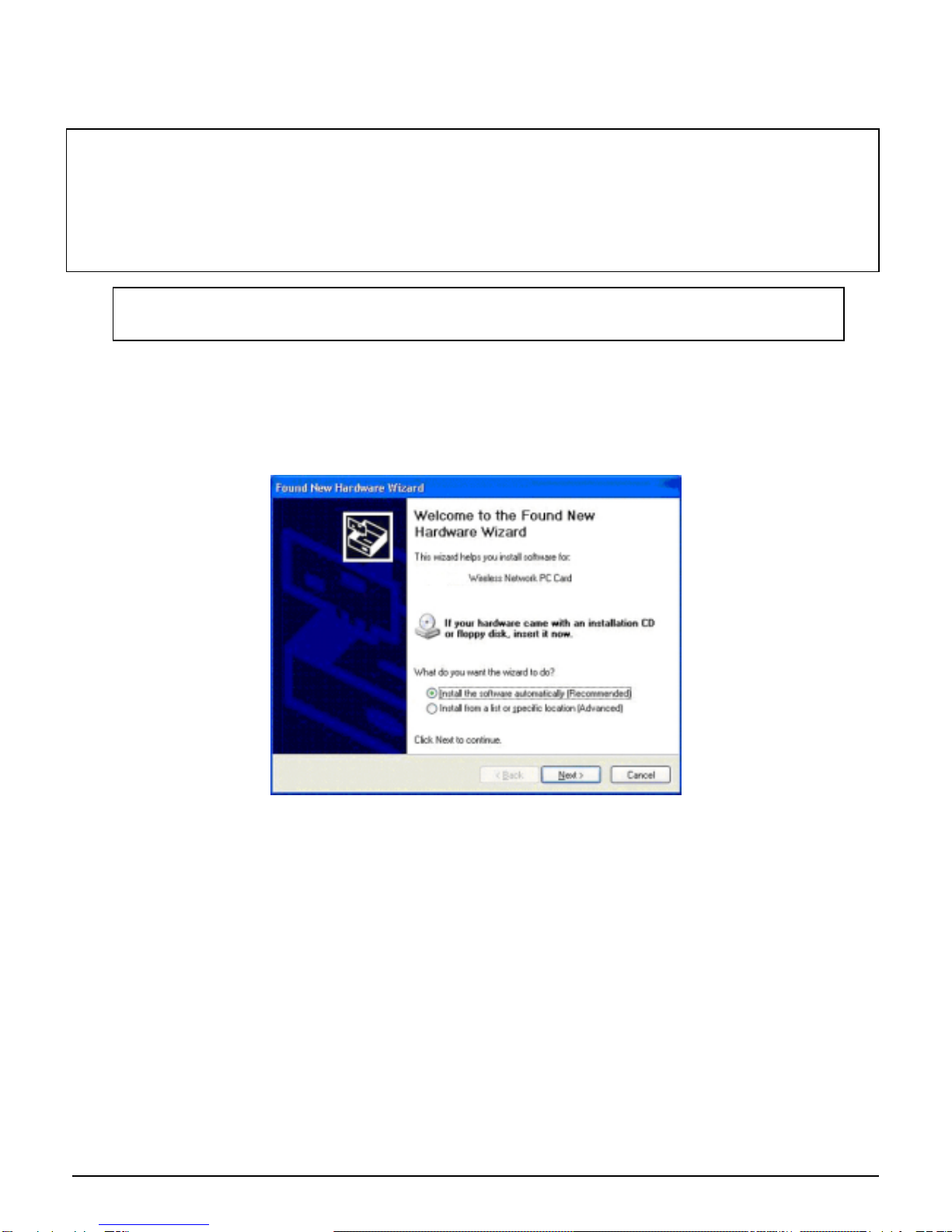

2. Insert your WLAN card into PCMCIA/PCI slot or USB connector of your system, and then system

will detect new hardware.

Select “Install the software automatically (Recommended) ”, and then click Next to continue.

User’s Guide 7

Once your system detected the driver, Microsoft will show a warning message as below.

Click “ Continue Anyway ” for next step.

After copy the file to your system, then the setup is finish.

User’s Guide 8

3.3. Install Procedure for Windows 98/ME/2000

Note: Do not insert the WLAN Adapte

until you are asked to do so, failure of which may result in unsuccessful

installation of your WLAN device.

Please follow the following steps one by one in order to install the WLAN

Adapter successfully.

1.Power on your computer and allow Windows 98/ME/2000 to load fully.

2.Be sure that the Wireless LAN 802.11g Adapter is not inserted yet.

3. Insert the given Installation CD in the CD-ROM and then click on the Install Config Utilities.

At the “ Welcome” window, click Next.

User’s Guide 9
