TRENDnet TPL-406E V1.0R Installations- und Betriebshandbuch

TPL-406E

rev: 06.12.2012

500 Mbps Compact Powerline AV Adapter

TPL-406E (V1.0R)

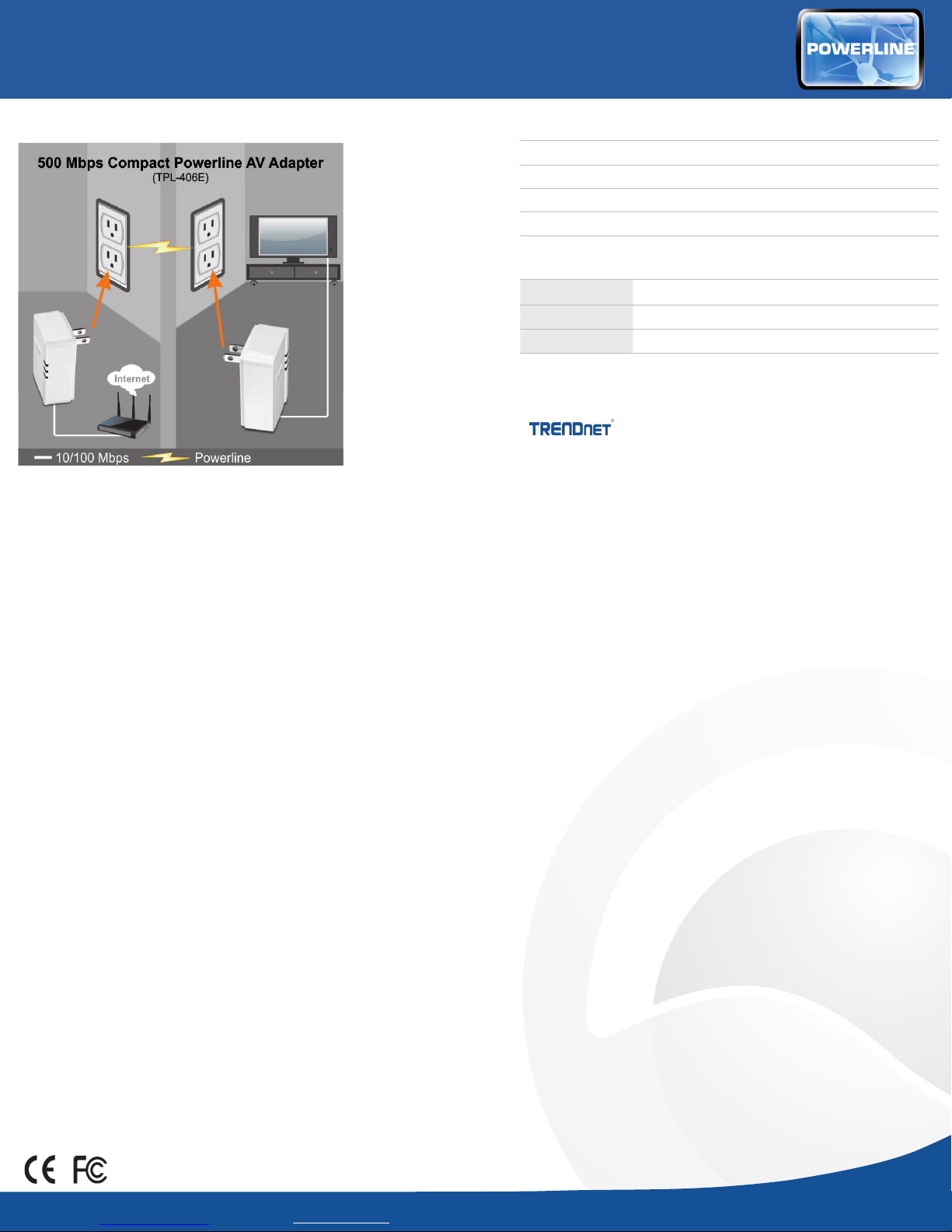

The 500 Mbps Compact Powerline AV Adapter, model TPL-406E,

uses any electrical outlet to create a secure high speed network. Two

adapters are needed to start a network. Connect one adapter to your

router and plug another adapter into any outlet on your electrical system

for instant high speed network access. The compact form factor saves

space around crowded electrical outlets. This adapter automatically

connects to other TRENDnet Powerline AV adapters with no installation

required—TRENDnet recommends pressing the ‘Sync’ button to

automatically change default encryption keys.

Use up to 8 adapters to network devices in different rooms without

running new cabling. Power Save mode reduces power consumption

by up to 80%. Quality of Service (QoS) technology prioritizes video,

audio, and online gaming. LED displays convey device status for

easy troubleshooting. Advanced 128-bit AES encryption secures your

network. This adapter is ideal for use in buildings that interfere with

wireless networking signals.

PRODUCT OVERVIEW

• 500 Mbps networking from an electrical outlet

• Two adapters are needed to start a network

• Compact form factor saves space

• Up to 80% power savings

• Use one unit to transmit, and up to 7 additional TPL-406Es to receive a network signal*

• Advanced AES data encryption

TPL-406E

rev: 06.12.2012

500 Mbps Compact Powerline AV Adapter

TPL-406E (v1.0R)

FEATURES

• Compliant with IEEE1901 and HomePlug AV standards

• High speed networking over an existing electrical system

• 1 x 10/100 Mbps Auto-MDIX Ethernet port

• Adapters automatically connect using an encrypted Powerline signal

• One-touch Sync button networks changes encryption keys

• Three LED indicators:

• Power (on / off)

• Powerline Connection: green (best), amber (better), red (good), off (no connection)

• Ethernet Connection: solid (connection), blinking (transfer activity), off (no connection)

• Connect one 500 Mbps** Powerline AV Adapter to the Internet and then plug in up to 7* additional 500 Mbps** Powerline AV

adapters for instant connectivity

• Share data intensive ﬁ les, play games, download music and more at faster data transfer rates

• Advanced 128-bit AES encryption to ensure total network security

• Support for IPv6

• Supports up to 16** IGMP based IPTV streams

• Power Save mode reduces electrical consumption by up to 80%

• Neighbor network support for up to 4 overlapping networks

• Network signal transmits up to 300 meters (984ft.)

• Auto QoS support through trafﬁ c classiﬁ cation and multiple priority queuing

• Optional management utility compatible with Windows 7 (32/64-bit), Vista (32/64-bit), and XP (32/64-bit) operating systems

• 3-year limited warranty

* Maximum of 8 adapters (nodes) recommended for streaming video across your network.

** 500 Mbps is the maximum theoretical Powerline data rate. Actual throughput will vary depending on environment.

*** Networked Powerline devices need to be plugged into power outlets that are on the same electrical system.

**** GFCI outlets and AFCI circuit breakers may degrade Powerline network signals.

TPL-406E

rev: 06.12.2012

500 Mbps Compact Powerline AV Adapter

TPL-406E (v1.0R)

SPECIFICATIONS

HARDWARE

Standards • IEEE 1901, HomePlug® AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u

Interface • 1 x 10/100 Mbps Auto-MDIX RJ-45 port

• Power prong

• A: North America Type B (NEMA 5–15)

• EU: Euro Type C (CEE 7/16)

• UK: United Kingdom Type G (BS 1363)

Frequency Band • 2 ~ 68 MHz

Modulation • OFDM Symbol Modulation on link synchronization

• 1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier

Protocol • TDMA, and CSMA/CA

Speed • Powerline: up to 500 Mbps**

• Ethernet: up to 200 Mbps (Full Duplex mode)

Utility OS Compatibility • Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)

Nodes • Up to 8 (max)

Overlapping Powerline

Networks

• Up to 4 (per electrical system)

Coverage • Up to 300 m (984 ft.)

Security • 128-Bit AES (Advanced Encryption Standard)

LED • Power (PWR)

• Powerline (PL) Connection

• Best (Green)

• Better (Amber)

• Good (Red)

• No connection (Off)

• Ethernet (ETH) Connection

• Solid

• Blinking

• Off

Buttons • Sync (3 sec.) / Reset (20 sec.)

Dimension (L x W x H) • A: 70 x 50 x 43 mm (2.76 x 1.97 x 1.69 in.)

• EU: 70 x 50 x 63 mm (2.76 x 1.97 x 2.48 in.)

• UK: 70 x 50 x 58 mm (2.76 x 1.97 x 2.28 in.)

Weight • A: 51 g (1.8 oz.)

• EU: 56.7 g (2.0 oz.)

• UK: 68 g (2.4 oz.)

Power Source • 100~240V AC, 50~60Hz

Consumption • Active mode: 2.2 Watts (max)

• Standby mode: 0.5 Watts (max)

Temperature • Operating: 0° ~ 40°C (32° ~ 104°F)

• Storage: -10° ~ 55°C (14° ~ 131°F)

Humidity • Max 95% (non-condensing)

Certiﬁ cations • CE, FCC

500 Mbps Compact Powerline AV Adapter

TPL-406E (v1.0R)

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at any time,

CONTACT INFORMATION

Contact info China

Tel: 010-5128 6606

Fax: 010-8011 5555 ext 733906

Web: www.trendnet.com.cn

Email: lin@trendware.cc

PACKAGE CONTENTS

TPL-406E

Quick Installation Guide

CD-ROM (Utility & User’s Guide)

Network cable (1.5 m / 5 ft.)
