TRENDnet TEW-647GA Bedienungsanleitung

TEW-647GA

2.01

Quick Installation Guide

Table of Contents

English ...................................................................................................... 1

1. Before You Start

2. Hardware Installation ..........................................................................

.................................................................................

Table of Contents

Version 06.16.2009

Troubleshooting ........................................................................................ 10

Installation Requirements

Application

Package Contents

1. Before You Start

English

?Multi-Language Quick Installation

Guide

TEW-647GA

User's Guide CD-ROM

1 x Cat. 5 Ethernet Cable

(60cm/ 2ft)

PowerAdapter (12V, 0.5A)

?Wireless router (e.g. TEW-639GR).

?An available DHCP Server –wireless routers usually have a built-in

DHCP server.

?Agame console with an Ethernet port.

Acomputer with a network adapter installed.

300Mbps Wireless N

Gigabit Router

(TEW-639GR)

Cable/DSL

Modem

Internet

Wireless N Gaming Adapter

(TEW-647GA)

OR XYB

XYB

USB to 10/100Mbps Adapter

(TU2-ET100) OR

2. Hardware Installation

English

Note: There are two methods for configuring the gaming adapter: Wi-Fi

Protected Setup (WPS) Push Button Setup or Manual Setup. If your wireless

router does not support WPS, go to section 2.2 Manual Setup. If your wireless

router does support WPS, please follow the directions in section 2.1 Wi-Fi

Protected Setup (WPS) Push Button Setup.

2.1. Wi-Fi Protected Setup (WPS) Push Button Setup

2. Press the WPS button on your

wireless router. The example

shows a TEW-639GR.

3. Press the WPS button on the

TEW-647GA.The WPS button will

start to blink.

4. Once the WPS button becomes

steady, theTEW-647GAhas been

successfully configured.

1. Plug the power adapter into the

TEW-647GAand then into an

available power outlet.

English

6. Congratulations, the installation is

now complete.

1. Insert Utility CD-ROM into your

computer's CD-ROM drive.

2. Click Run Setup.exe (Windows

Vista only)

2.2. Manual Setup (For Windows Users)

Note: Manual Setup requires a Windows PC.

5. Connect an Ethernet cable from

the LAN port on the TEW-647GAto

an Ethernet port on your game

console.

English

4. Click I accept the terms in the

LicenseAgreement and then click

Next.

5. Connect the provided RJ-45 cable

from the Ethernet port on your

computer to the Ethernet port on

the TEW-647GA. Then click Next.

6. Connect theAC PowerAdapter to

theAccess Point and then to a

power outlet and then click Next.

3. Click Setup Wizard.

English

10. Select Manual Setup and then

click Next.

9. Enter a new password, retype the

new password and then click

Change.

8. Enter your password and then click

password.

7. Select the TEW-647GAfrom the

list and then click Configure.

English

14. Click Next.

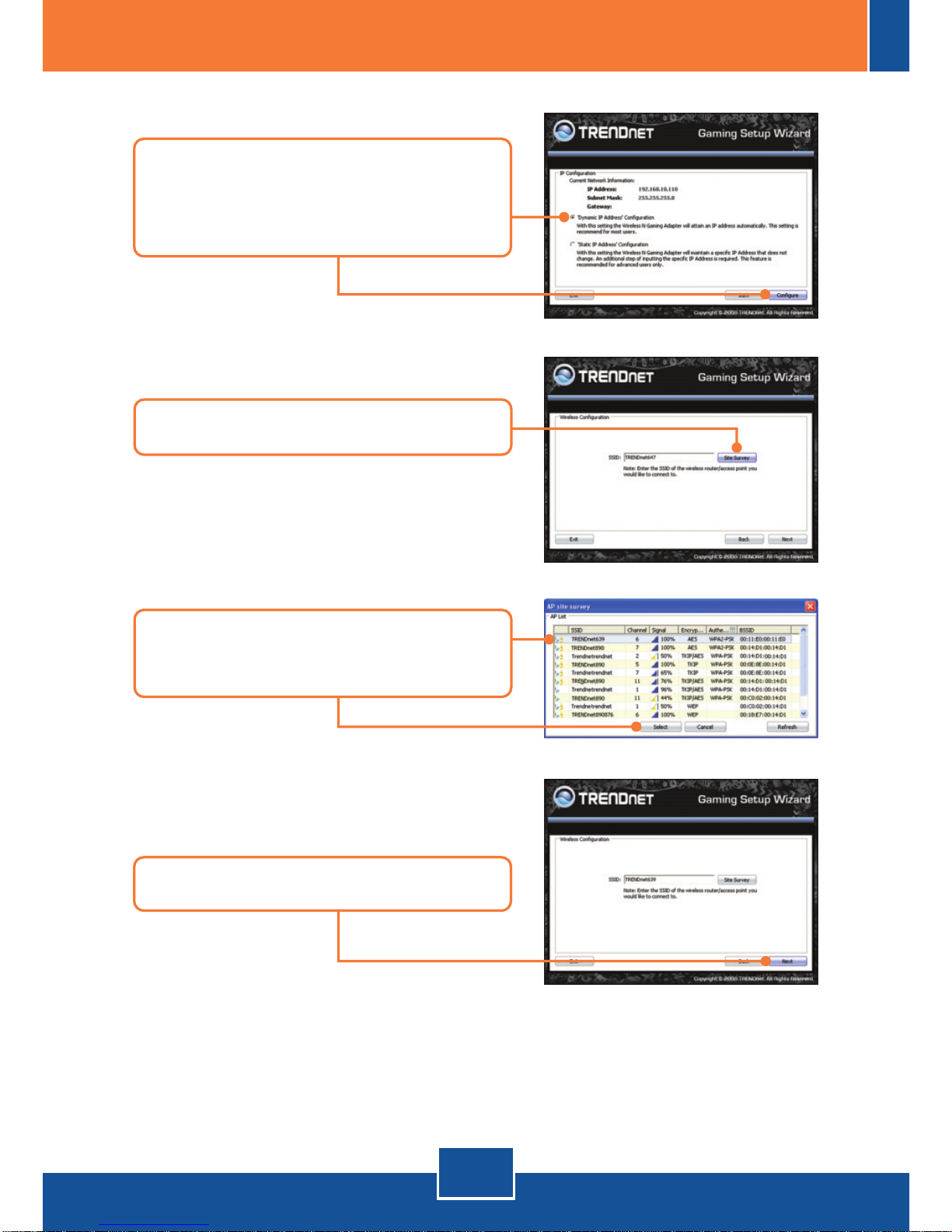

11. Select 'Dynamic IPAddress'

Configuration and then click

Next.

12. Click Site Survey.

13. Select the SSID for your wireless

router and then click Select.

English

18. Click Apply.

16. Click Save (Optional).

15. If encryption is enabled on your

wireless network, the correct

Wireless Mode, Security Mode,

WPAMode and CipherType will

be selected. Enter your

Pre-Shared key and then click

Next. This example shows

WPA-PSK.

17. Give the file a name, then click

Save (optional).

English

21. Click Yes to exit.

20. Click Exit.

19. Connect the RJ-45 cable from the

Ethernet port on the TEW-647GA

to the Ethernet port on your game

console. Then Click Next.
