TV-IP312WN

rev: 04.21.2011

FEATURES

•Wi-FicompliantwithIEEE802.11b/g/nnetworks

•3xdigitalzoom

•1x10/100MbpsFastEthernetport

•1xWi-FiProtectedSetupbutton

•1xUSBporttostorestillimagestoaUSBashdrive*

•HighqualityMPEG-4andMJPEGvideorecordingwithupto30framespersecond

•Resolutionupto640x480pixels

•PowerandactivityLEDindicators(canbedisabled)

•Infrarednightvisionforupto5meters(16feet)

•DynamicDNSsupport

•Imagecontrol:brightness,contrast,saturation,andmirror(horizontally/vertical)

•SupportsTCP/IPnetworking,SMTPEmail,HTTP,Samba,andotherInternetprotocols

•RecordstreamingvideotoyourcomputerandNetworkStorageServer

•MotiondetectiontriggeredemailalertsandimageuploadviaFTP

•StreamInternetcameravideotoa3GPPcompatiblemobiledevice

•Supports64/128-bitWEPandWPA/WPA2-PSKwirelessencryption

•Hearandtalktopeopleinyourcamera'sviewingareathroughyourcomputer

•Twoadjustablemotiondetectionwindowswithjust-in-timesnapshot

•QuickUniversalPlugandPlayinstallation

•ComplimentarySecurViewProsoftware:manageupofupto32camera**

•3-yearlimitedwarranty

*USBportsupportsupto500mApowereddevicewithFAT16/32format

**MonitoringmultiplecamerasmayrequireahighperformanceCPU

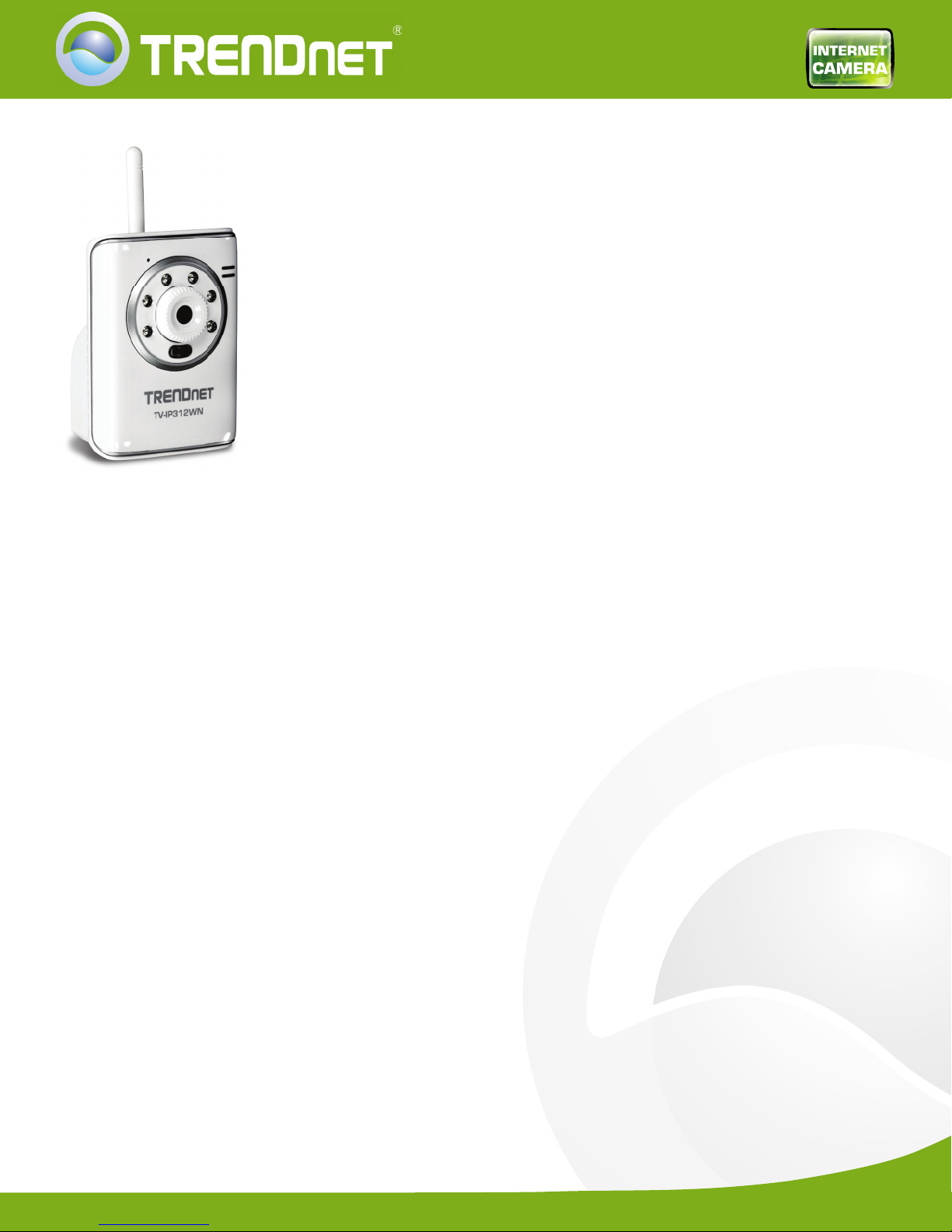

SecurView Wireless N Day/Night Internet

Camera

TV-IP312WN(V1.0R)

The SecurView Wireless N Day/Night Internet Camera, transmits high

quality video and audio over the Internet. Wireless n technology pro-

vides unsurpassed wireless coverage and improved streaming video

quality.

Add this camera to your wireless network at the touch of a button with

Wi-Fi Protected Setup (WPS). Infrared bulbs provide night vision for

distances of up to ﬁ ve meters (16 feet) in complete darkness. A built-in

microphone and optional speakers accommodate 2-way audio com-

munications. Manage up to 32 SecurView cameras with the included

complimentary camera management software.

Advanced features include motion detection recording, email alerts,

scheduled recording sessions, MPEG-4 / MJPEG image compression,

and digital zoom. A wall/ceiling mounting kit is included and the off-

white camera housing blends into most environments.

TV-IP312WN

rev: 04.21.2011

SPECIFICATIONS

Camera

General • Sensor:1/4”colorCMOSsensor•Resolution:640x480pixels•BoardLens•FocalLength:4.5mm

• Aperture(F/No):F2.8•IRLEDwithlightsensorcontrol•Minimumillumination:0.5Lux

• Diagonalviewingangle:60degree

Image & Video • Compression:MPEG-4/MJPEGdualstreaming•Exposure/whitebalance/gaincontrol:automatic

• Resolution:upto30fpsforVGA(640x480),30fpsforQVGA(320x240),30fpsforQQVGA(160x120)

Audio • Audioin:internalomni-directionalmicrophone•Sensitivity:-48dB+/-3dB•Frequencyresponse:50~16000Hz

• Audioout:externaloutputtoactivespeaker(mono)•EchoCancellation:hardwarevoiceprocessor•Audiocodec:PCM/AMR

Hardware

Network • IEEE802.3u10/100MbpsFastEthernet,Auto-MDIX

LED • Power,Link

USB Port • TypeAUSB1.1hostport

Reset Button • Restoretofactorydefault

WPS Button • PushbuttonforWi-FiProtectedSetup

Power Consumption • 8wattsmax.

Power • 5V,2.5Aexternalpoweradapter

Dimension • 70x100x57mm(2.67x3.94x2.95in.)

Weight • 155g(5.4oz)

Temperature • Operating:0°C~45°C(32°F~113°F)•Storage:-15°C~60°C(5°F~140°F)

Humidity • Max.90%(non-condensing)

Certications • CE,FCC

Requirement

Management Interface • InternetExplorer6.0orabove

To Run SecurView Pro • Windows7(32/64bit),Vista(32/64bit),XP(32/64bit)

SecurView Pro • Channel:supportsupto32cameras•Record/Playback/MotionDetection

Network Protocols • TCP/IP,UDP,ICMP,DHCP,NTP,DNS,DDNS,SMTP,FTP,HTTP,Samba,PPPoEandUPnP

Wireless

Standard • BasedonIEEE802.11ntechnology•IEEE802.11g/bcompliant

Frequency • 2.4~2.4835GHz

Antenna • 1x2dBidipoleantenna(Reverse-SMAconnector)

Data Rate (auto fallback) • 802.11n:upto150Mbps•802.11g:upto54Mbps•802.11b:upto11Mbps

Security • 64/128-bitWEP,WPA/WPA2-PSK

Output Power • 802.11n:15+1dBm

• 802.11b:15+1dBm

• 802.11g:18+1dBm

Receiving Sensitivity • 802.11nHT20:-67dBm

• 802.11nHT40:-64dBm

• 802.11g:-70dBm

• 802.11b:-87dBm

Channel • 1~11(FCC),1~13(ETSI)

Management

Remote • Remotemanagementsupported

Backup / Restore • Save/retrievecongurationles

SecurView Wireless N Internet Camera

TV-IP312WN(V1.0R)
