TV-IP345PI (V1)

Quick Installation Guide

Table of Content

1 English

1. Before You Start

2. Hardware Installation and Configuration

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

1. Before You Start

Package Contents

ŸTV-IP345PI

ŸCD-ROM (Utility, Software and User's Guide)

ŸQuick Installation Guide

ŸNetwork cable (1.5m / 5ft.)

ŸRJ-45 coupler

ŸCamera Mounting hardware

Minimum Requirements

ŸPower over Ethernet (PoE) switch (e.g. TPE-S50) or PoE Injector (e.g. TPE-113GI)

ŸA networked computer and web browser

ŸWired network

Note:

ŸThe TV-IP345PI only works with Power over Ethernet (PoE) devices that follow the IEEE

802.3af standard.

ŸThe TV-IP345PI has a 5.5 mm barrel connector for an optional 12 V DC 1A power adapter.

ŸOptional Power Supply (not included).

TRENDnetVIEW Pro Requirements

Supported Operating

Systems

1-8 Cameras

CPU CPU

9-32 Cameras

Memory Memory

Windows 10 /

Windows 8.1 /

Windows 8 /

Windows 7 /

Windows Server 2008 /

Windows Server 2012

2 GHz 2 GHz2 GB RAM

or above

4 GB RAM

or above

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

2. Hardware Installation and Configuration

1. Do not install or mount the IP camera until after you complete the installation steps below.

Temporarily place the IP camera next to your computer.

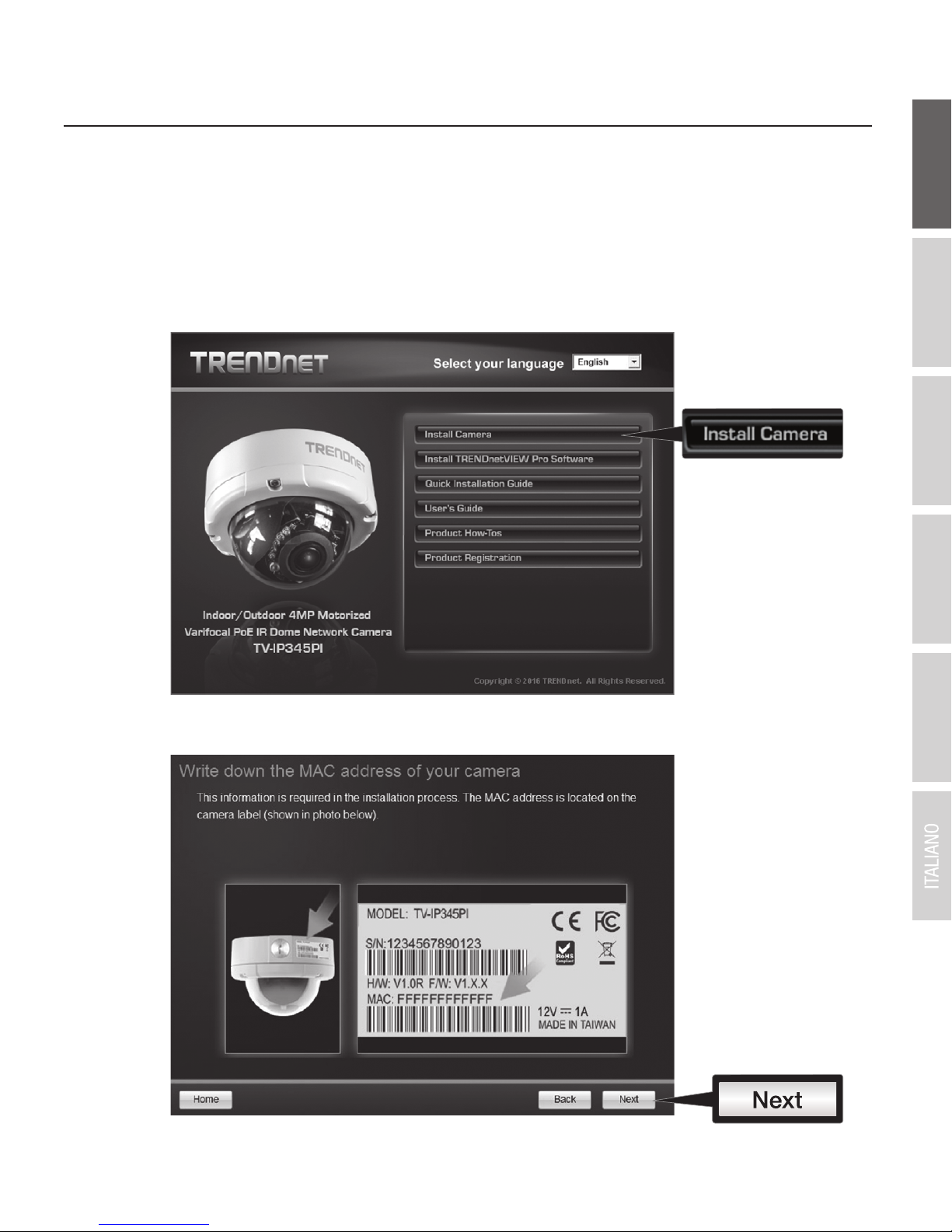

2. Insert the Utility CD-ROM into your CD-ROM drive.

3. Select language from the drop down menu.

4. Click Install Camera.

5. Write down the MAC address of your camera. Then click Next.

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

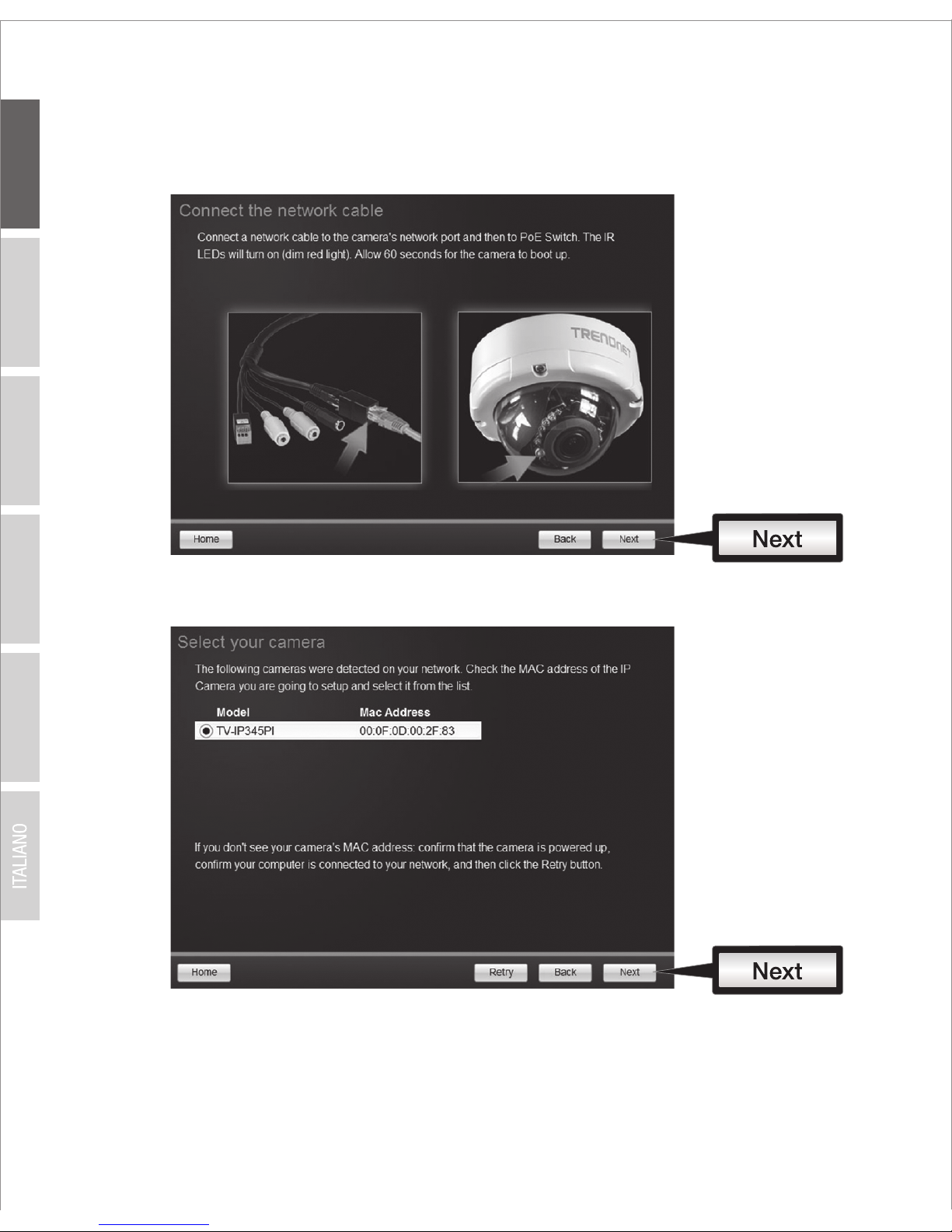

6. Connect a network cable from the camera's network port to your PoE source The IR LEDs will

turn on and show a dim visible red light. Allow 60 seconds for the camera to boot up. Then

click Next.

7. Select your camera. Click Next and follow the instructions.

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

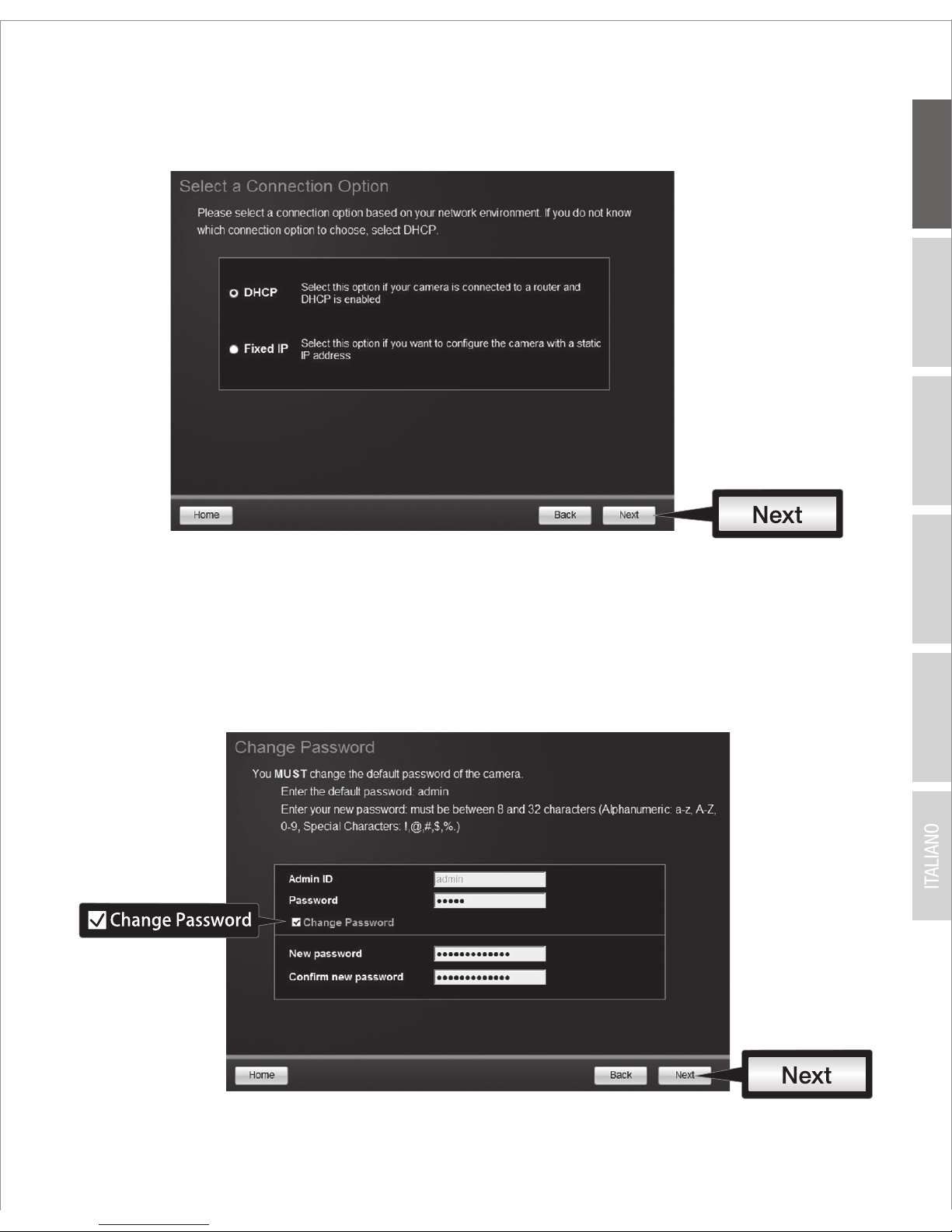

8. Select DHCP option to assign an IP by DHCP server, select “Fixed IP” to set IP address

manually. Click Next.

9. If you select “Fixed IP”, fill out the IP address, subnet mask, default gateway, and DNS server.

Please ensure that the IP address of the camera and the computer must be within the same

network. Click Next.

10. Select Change Password. Enter a new password, confirm the new password and then click

Next.

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

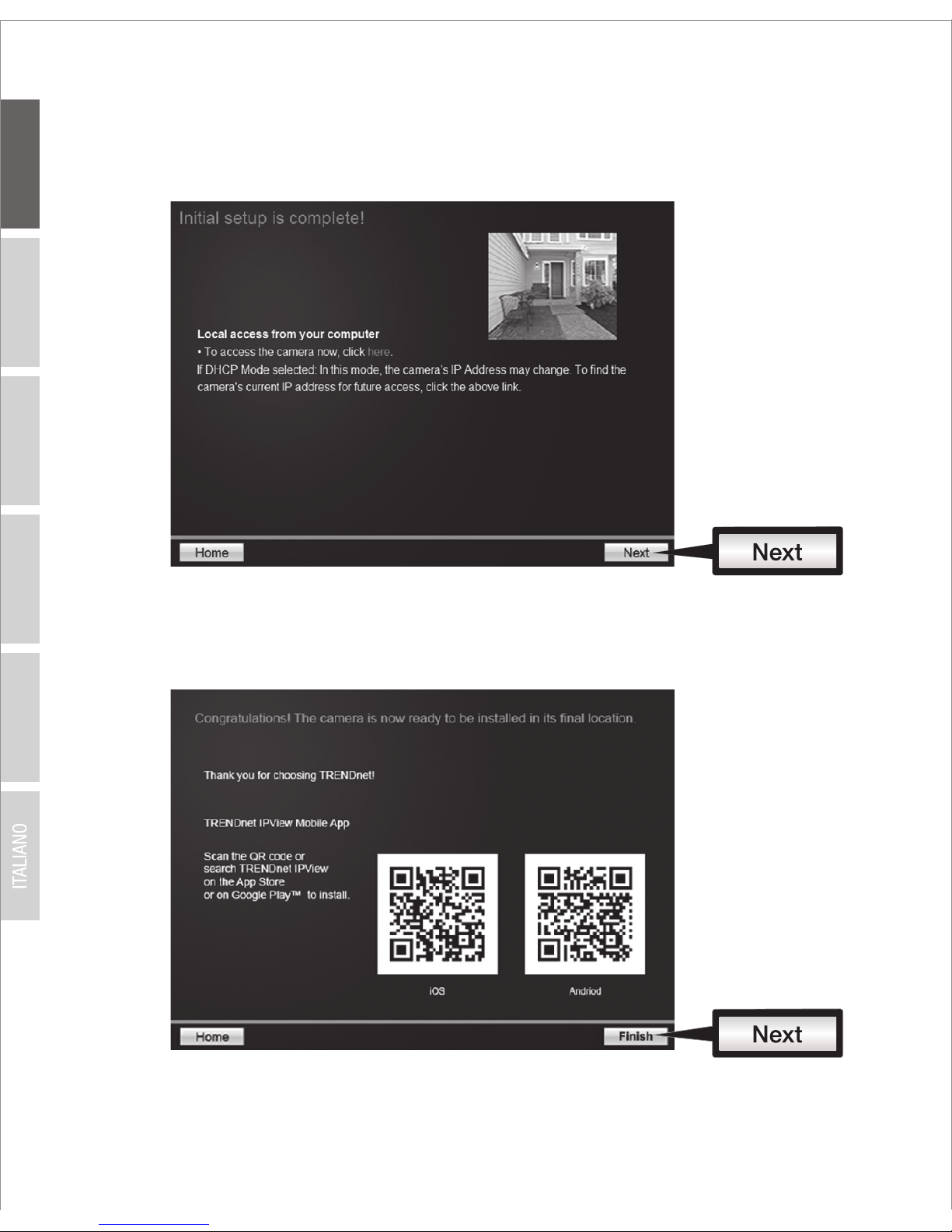

12. Congratulations! Your camera is now ready to be installed in its final location. Scan the QR

code to download a free mobile app to view the camera from your mobile device. Click Finish

to exit the installation wizard.

11. Initial Setup is complete! Your camera is now connected to your network. Click the hyperlink

to confirm access to the management page. This will open up a web browser. To resume

installation, minimize the web browser and then click Next.

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

13. To managemultiple cameras and for more advanced features, please install the

TRENDnetVIEW Pro software. Install the software by clicking Install TRENDnetVIEW Pro

Software in the Autorun window and refer to the TRENDnetVIEW Pro User's Guide on the CD

for more information.

Note

ŸSee User's Guide for advanced management functions

ŸTwo User's Guides are included – one for the camera and one for the complimentary

management software.

ŸWhen viewing through Chrome, please follow the steps in the User’s Guide.

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

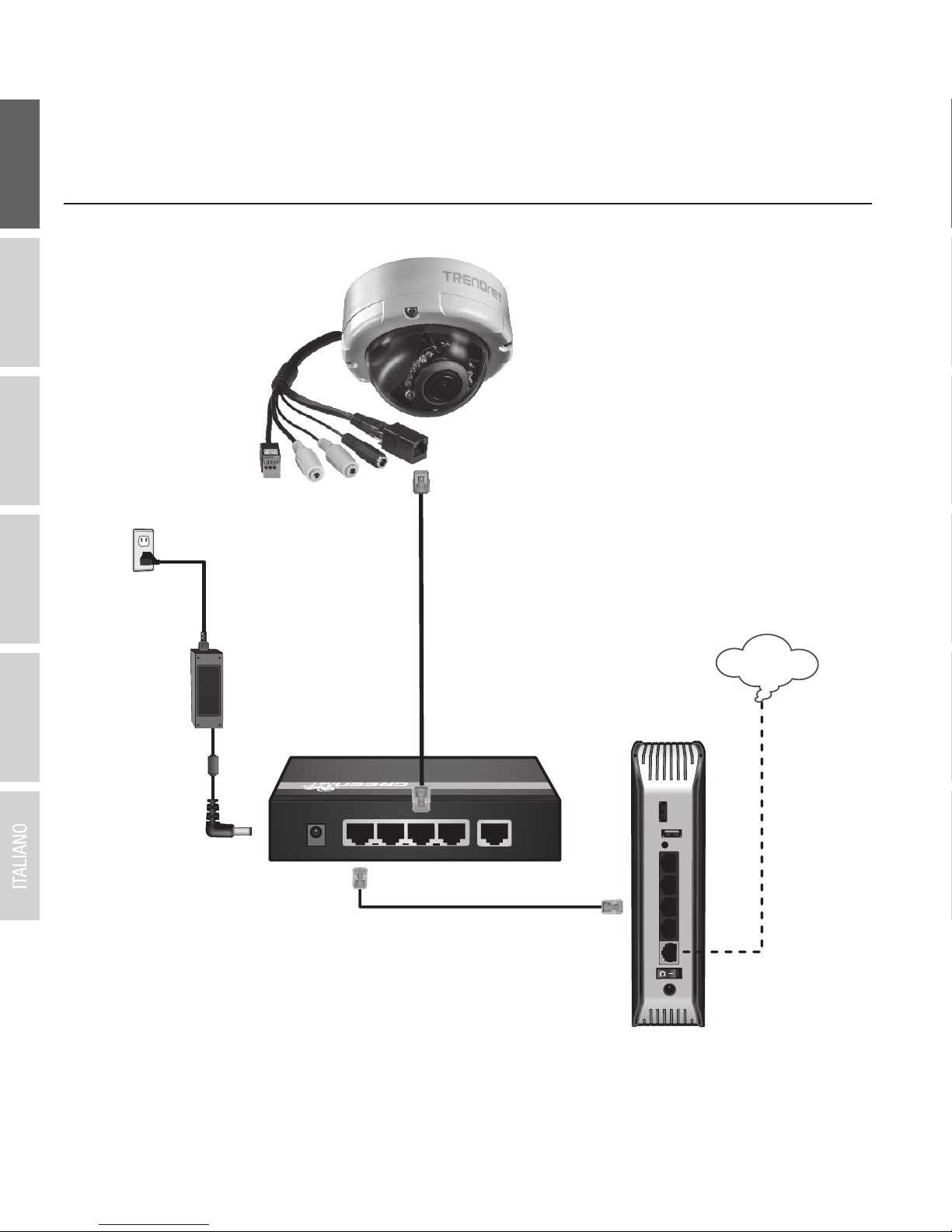

Using the TV-IP345PI with a PoE switch (TPE-S50)

ŸConnect the provided network cable from the Power over Ethernet switch (e.g. TPE-S50) to

the network port on the IP Camera.

ŸConnect the switch to your network.

14. Install the camera in your desired location. To connect the IP camera to your network with

PoE, please use either of the following examples:

TV-IP-345PI

PoE

Internet

Non-PoE

TPE-S50

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

TPE-113GI

DATA

PWR+DATA

OUT

Non-PoE

PoE

ŸConnect the power adapter to the TPE-113GI and then to a power outlet.

ŸConnect a network cable from the TV-IP345PI to the TPE-113GI's PWR+DATA OUT (PoE)

port.

ŸConnect a network cable from a switch or router (e.g. TEW-818DRU) to the TPE-113GI's

DATA IN (Non-PoE) port.

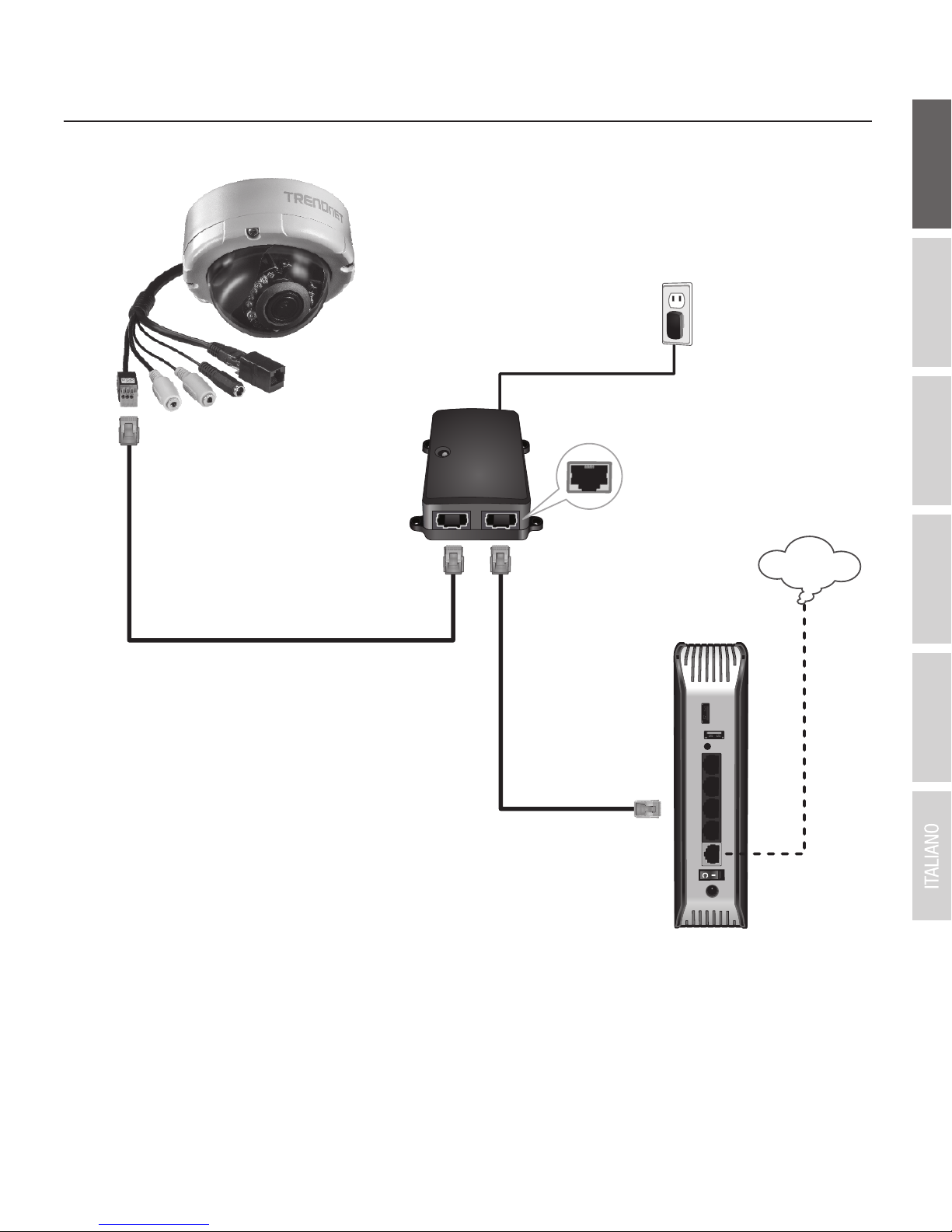

Using the TV-IP345PI with an Injector (TPE-113GI)

Internet

TV-IP-345PI
