TW100-BRV204

Quick Installation Guide

Table of Contents

Version 08.07.2007

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. Hardware Installation .........................................................................

.................................................................................

Configure the Router .........................................................................

Installation Requirements

Application

Package Contents

1. Before You Start

English

?User's Guide CD-ROM

?1 x RJ-45 Ethernet Cable

?Power Adapter (5V, 2.5A)

Quick Installation Guide

W100-BRV204

?Web Browser: Internet Explorer (5.0 or higher) or Netscape Navigator

(4.7 or higher)

?Broadband Internet

?Installed Cable or DSL Modem

A computer with a wired network adapter properly installed.

10/100Mbps

Cable/DSL 4-Port

VPN Firewall Router

(TW100-BRV204)

Cable / DSL 4-Port Advanced

VPN Firewall Router

(TW100-BRV304)

Home

Office

Corporate

Office Notebook with

PC Card

Workstations with

PCI Adapter

INTERNET

Virtual Private Network

English

2. Hardware Installation

4. Connect the AC Power Adapter to

the TW100-BRV204 and then to a

power outlet.

5. Verify that the following panel lights

are on: Power, LINK/Act and

WAN.

Note: Gather all information related to your Internet Connection before you

start. If necessary, contact your Internet Service Provider (ISP).

1. Verify that you have an Internet

connection when connecting your

computer directly to the Cable or

DSL modem.

Cable/DSL Modem

Internet

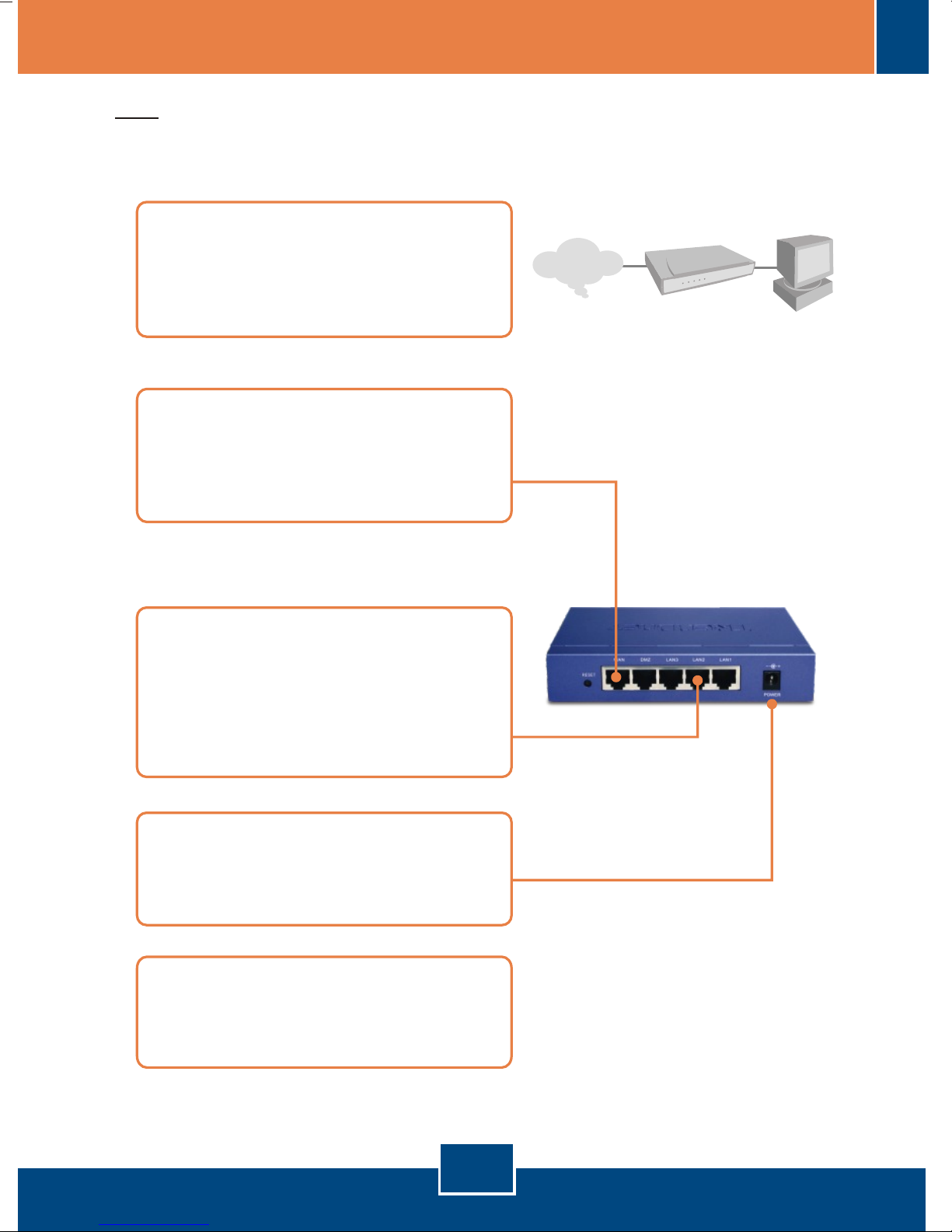

2. Connect one end of a RJ-45 cable

to the TW100-BRV204's WAN

port. Connect the other end of the

cable to your modem.

3. Connect one end of a RJ-45 cable

to one of the TW100-BRV204's

LAN ports. Connect the other end

of the cable to the computer's

Ethernet port.

English

3. Configure the Router

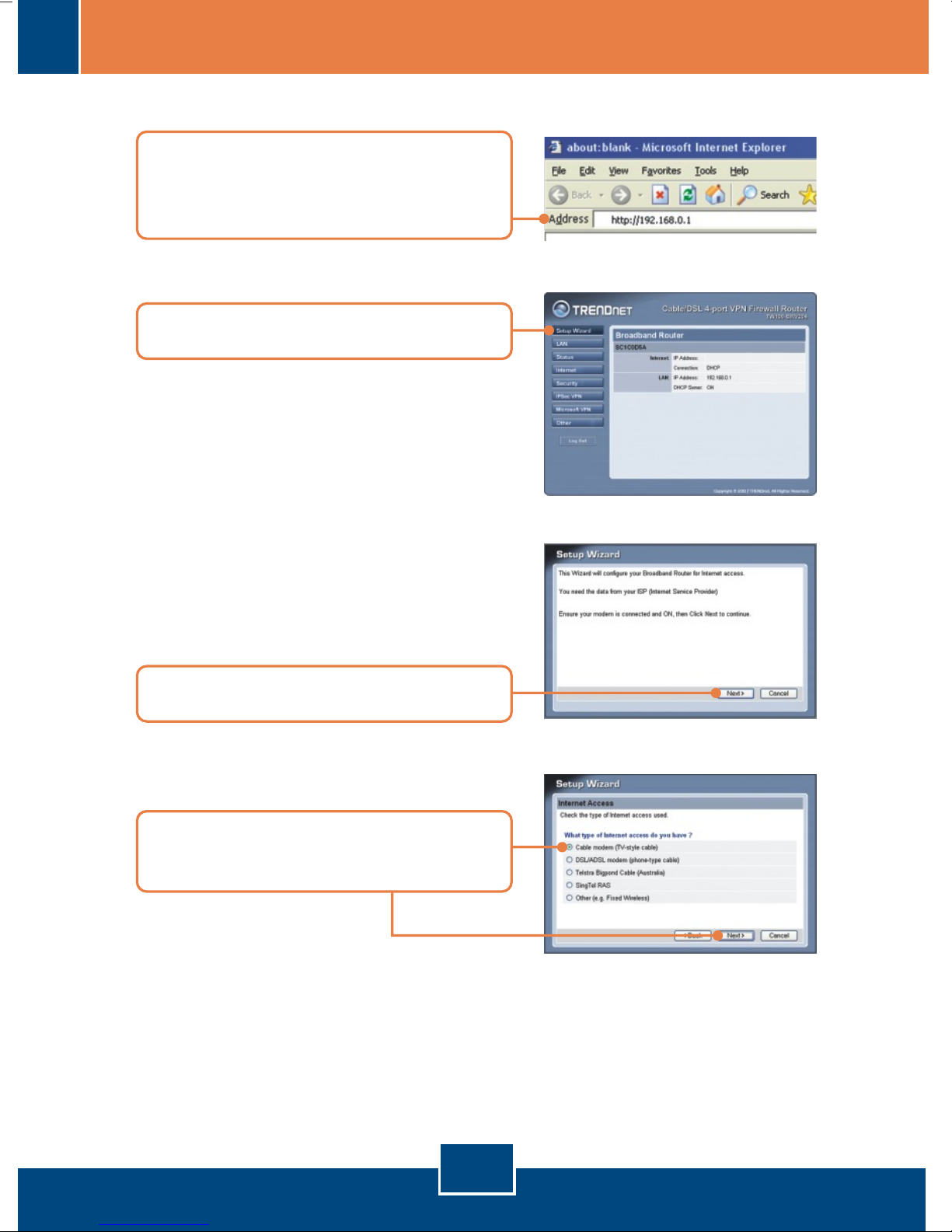

1. Open your web browser, type

http://192.168.0.1 in the

Address bar, and press Enter.

4. Select the type of Internet access

that you have and then click Next.

2. Click Setup Wizard.

3. Click Next.

English

Your configuration is now complete.

For detailed information regarding the TW100-BRV204's configuration and

advanced settings, please refer to the Troubleshooting section, User's Guide

CD-ROM, or TRENDnet's website at http://www.trendnet.com.

5. Configure the settings based on

information provided by your ISP.

Follow the wizard instructions to

complete the configuration.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

Troubleshooting

Q1:

A1:

I typed http://192.168.0.1 in my Internet Browser's Address Bar, but an error message

says “The page cannot be displayed.” How can I get into the TW100-BRV204's web

configuration page?

First, check your hardware settings again by following the instructions in Section 2.

Second, make sure the LINK/ACT light for the LAN port is lit. Third, make sure your TCP/IP

settings are set to Obtain an IP address automatically (see the steps below).

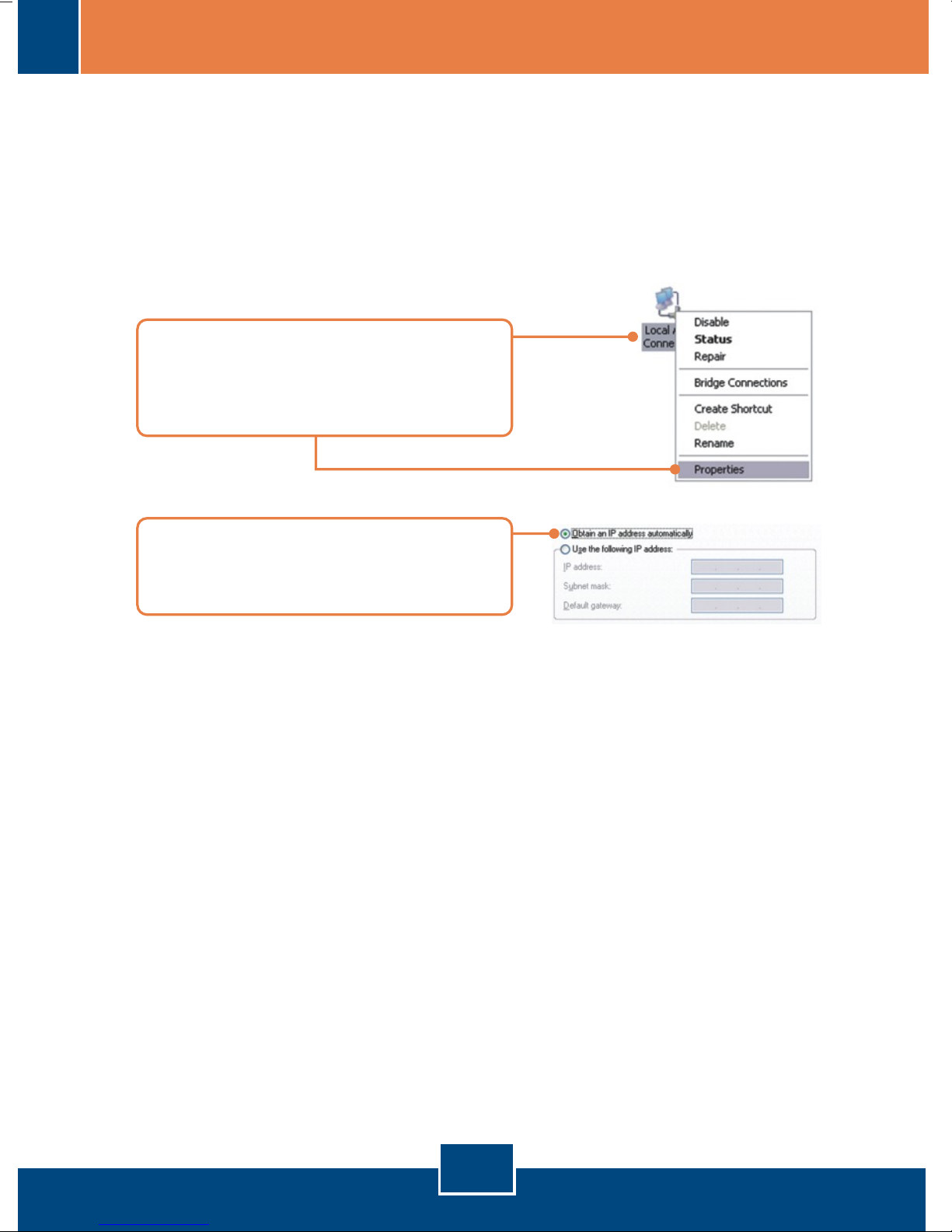

1. Go into the Control Panel and double-click

the Network Connections icon, right-click

the Local Area Connection icon and then

click Properties.

2. Click Internet Protocol (TCP/IP) and then

click Properties. Then click on Obtain an

IP address automatically.

Fourth, press on the factory reset button for 15 seconds.

I am not sure what type of Internet Account Type I have for my Cable/DSL connection.

How do I find out?

Contact your Internet Service Provider's (ISP) support service for the correct

information.

I went through the Setup Wizard, but I can not get onto the Internet. What should I do?

First, verify that you can get onto the Internet with a direct connection into your modem.

Second, contact your ISP and verify all the information that you have in regards to your

Internet connection settings is correct. Third, power cycle your modem and router. Unplug

the power to the modem and router. Wait 30 seconds, and then reconnect the power to the

modem. Wait for the modem to fully boot up, and then reconnect the power to the router.

If you still encounter problems or have any questions regarding the TW100-BRV204, please

contact TRENDnet’s Technical Support Department.

Q2:

A2:

Q3:

A3:

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

( 01) 07898431241160

20675 Manhattan Place

Torrance, CA 90501

USA

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com/register

TRENDnet Technical Support

US Canada

24/7 Tech Support

Toll Free Telephone: 1(866) 845-3673

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

Worldwide

Telephone: +(31) (0) 20 504 05 35

Toll Free Telephone: +00800 60 76 76 67

. . . . .
