Q: How do I configure the TW100-BRF114 for a DSL, PPPoE connection?
A:Open your web browser and type the IP address of the TW100-BRF114 in the address bar. The
default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank).
Click on Advanced then WAN Port on the left hand side.
Step 1. Choose PPPoE for the Login Method in the Login section.
Step 2. Enter your Username and Password provided by your ISP (Internet Service Provider).
Step 3. Click on the down arrow for the Connection behavior and select “keepalive”.
Step 4. Click Save.
NOTE: If the Setup Wizard starts, click on Cancel.
TW100-BRF114 F.A.Q.
Note: After you save the settings you may need to power cycle the modem and router.
Disconnect the power cycle from the modem and router.
Wait approximately 15 seconds.
Reconnect the modem first and wait for it to boot up.
After the modem has booted up reconnect the router.
Open your web browser and type the IP address of the TW100-BRF114 in the address
bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and
password (blank).
Step 1.
Step 2.
Step 3.
Step 4.
Step 5.
NOTE: If the Setup Wizard starts, click on Cancel.
TW100-BRF114 F.A.Q.
Step 6. Go to Status on the left hand side of the screen and then click on Connection Details.
This will open a new window.
Step 7. Click on Connect, wait a few seconds and see if it gets an IP address from your ISP.
Q: How do I configure the TW100-BRF114 for a Cable connection using a Dynamic IP
Address?
A:Note: The default setting of the router is configured for a Cable connection using a Dynamic IP
Address.
NOTE: If the Setup Wizard starts, click on Cancel.
Step 1. Open your web browser and type the IP address of the TW100-BRF114 in the address
bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and
password (blank).
Step 2. Click on Advanced then WAN Port on the left hand side
TW100-BRF114 F.A.Q.
Step 3. If your ISP has registered the MAC address of your computer that you are managing the
router from click on Copy From PC under the WAN PORT MAC Address field. This
will copy your computers MAC address to the router. If you are not managing the
computer from the computer with the registered MAC address make sure you enter the
registered MAC address manually.
Step 4. Choose None (Direct Connection) in the Login Method field in the Login section.
Step 5. Click Save.
Note: After you save the settings you may need to power cycle the modem and router.
Disconnect the power cycle from the modem and router.
Wait approximately 15 seconds.
Reconnect the modem first and wait for it to boot up.
After the modem has booted up reconnect the router.
Open your web browser and type the IP address of the TW100-BRF114 in the address
bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and
password (blank).
Step 1.
Step 2.
Step 3.
Step 4.
Step 5.
NOTE: If the Setup Wizard starts, click on Cancel.
TW100-BRF114 F.A.Q.
Step 5. Go to Status on the left hand side of the screen and then click on Connection Details.
This will open a new window.
Step 7. Click on Renew, wait a few seconds and see if it gets an IP address from your ISP.
Q: How do I change the username & password on my TW100-BRF114?
A:Open your web browser and type the IP address of the TW100-BRF114 in the address bar. The
default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank).
NOTE: If the Setup Wizard starts, click on Cancel.
Step 1. Click on Password on the left hand side.
Step 2. Enter in the desired username and password.
Step 3. Click Save.
Q: What can I do if I forgot my password or want to reset back to factory
defaults?
A:
Q: What is the default IP address of my TW100-BRF114?
A:
Q: What is the default username and password for the TW100-BRF114?
A:
Step 1. Locate the reset button on the back of the TW100-BRF114.
Step 2. Press and hold in the reset button for approximately 15 seconds. This will reset the unit
back to its default configuration.
The default IP address for the TW100-BRF114 is 192.168.0.1.
The default username & password for the TW100-BRF114 are both (blank). There is no username
and password set by default.
TW100-BRF114 F.A.Q.
TW100-BRF114 F.A.Q.
Q: How do I change the IP Address of my TW100-BRF114?
A:Step 1. Open your web browser and type the IP address of the TW100-BRF114 in the address
bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and
password (blank).
Step 2. Click on LAN on the left hand side.
Step 3. Change the IP address in the IP Address field.
Step 4. Click Save.
NOTE: If the Setup Wizard starts, click on Cancel.
TW100-BRF114 F.A.Q.
Q: How do I configure the TW100-BRF114?
A:Click Start then click on the Control Panel. For Windows 2000 click on Start, highlight settings
then click on the Control Panel.
Step 1. Double-Click on the Network Connection icon.
Step 2. Right-Click on the Local Area Connection icon then click on Properties.
TW100-BRF114 F.A.Q.
Step 3. Highlight the Internet Protocol (TCP/IP) by single clicking on it then click on P
roperties.
Step 4. Select Obtain an IP address automatically and Obtain DNS server address
automatically then click OK.
TW100-BRF114 F.A.Q.

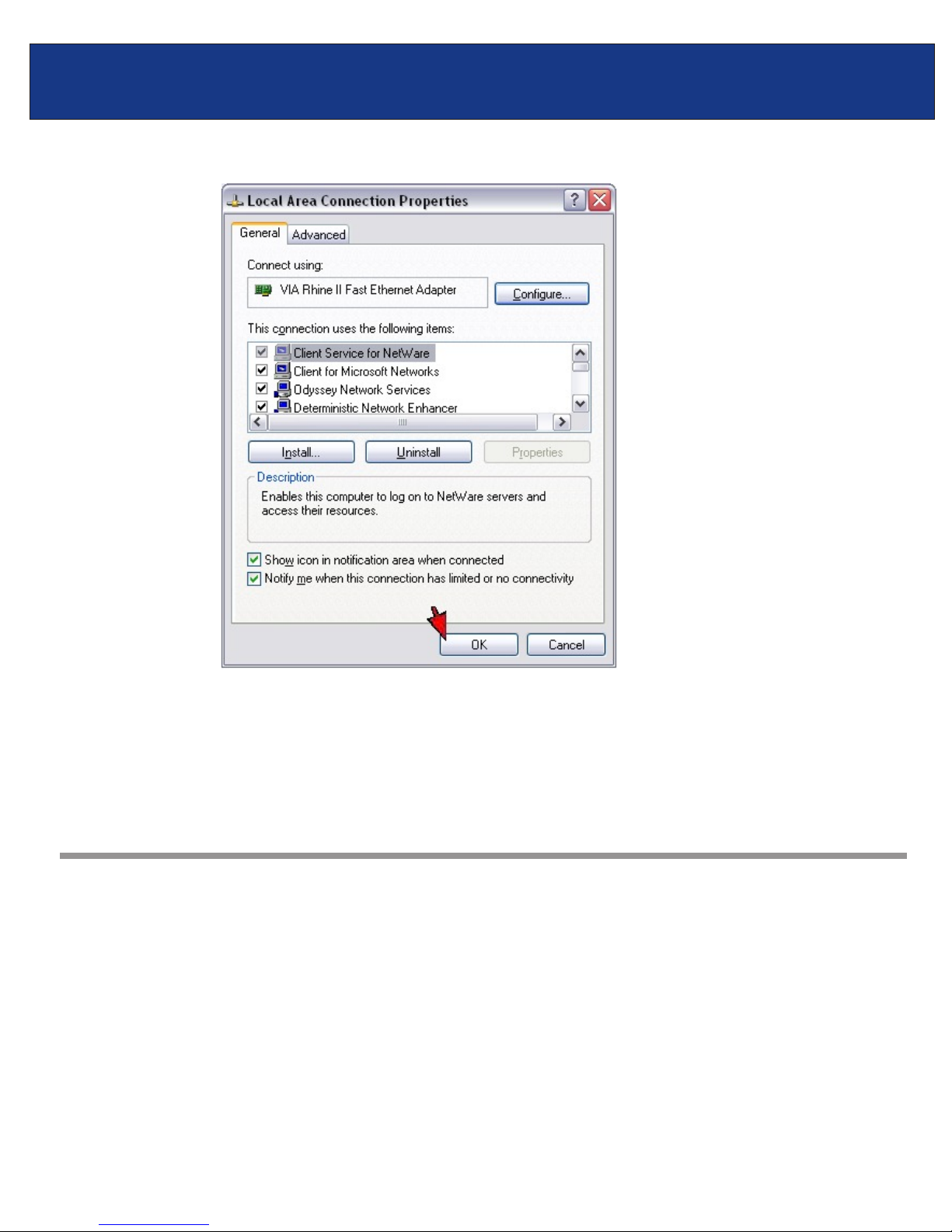

Step 5. Click OK again.
Step 6. Your computer is now ready to access and configure the TW100-BRF114.
Step 7. Open your web browser and type the IP address of the TW100-BRF114 in the address
bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and
password (blank).
NOTE: If the Setup Wizard starts, click on Cancel.

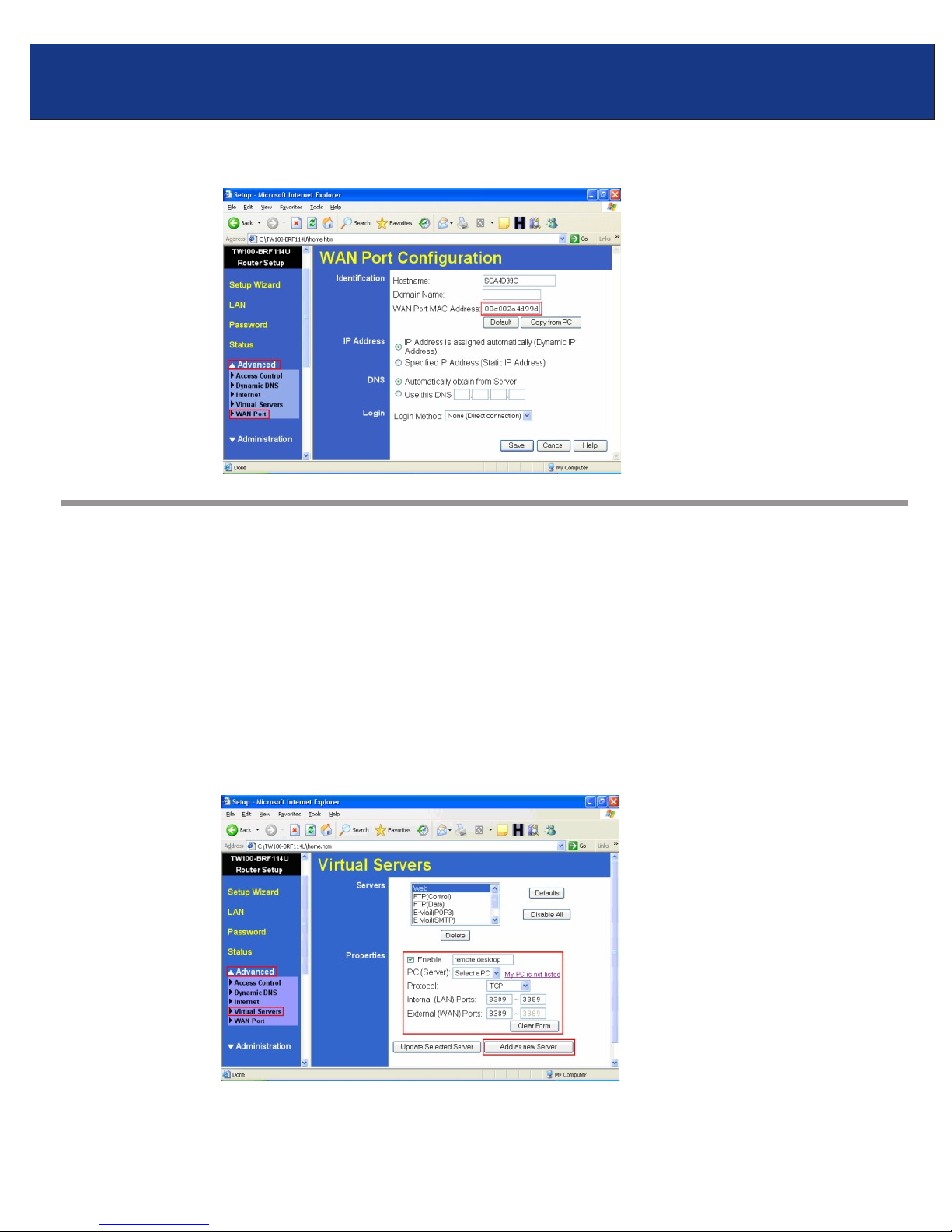

Q: Where can I find the MAC Address of my TW100-BRF114?
A:The MAC Address can be found on a label on the bottom of the router. You can alternately find it
by doing the following:
Step 1. Open your web browser and type the IP address of the TW100-BRF114 in the address
bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and
password (blank).
Step 2. Click on LAN at the top of the page.
NOTE: If the Setup Wizard starts, click on Cancel.
Step 3. The MAC address is listed next to the WAN Port MAC Address field.
Q: How do I forward ports in my TW100-BRF114?
A:Open your web browser and type the IP address of the TW100-BRF114 in the address bar. The
default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank).
Step 1. Put a check mark in the Enable box. Rename the service, select the PC that you want
the port forwarded too, select TCP, UDP or both TPC/UDP for the protocol, then input
the port (if it’s a single port, enter the port in both box’s and the port range in the Internal
LAN Ports or input the port if in a range), input the port needed on the External WAN
Port (this port is usually the same port as the LAN port), then click Add as new Server.
NOTE: If the Setup Wizard starts, click on Cancel.
TW100-BRF114 F.A.Q.
