F.A.Q for TW100-BRF114U

Q: How do I configure the TW100-BRF114U for a DSL, PPPoE connection?

A: Open your web browser and type the IP address of the TW100-BRF114U in the address bar.

The default IP address is 192.168.0.1. At the login, enter your username (blank) and password

(blank). NOTE: If the Setup Wizard starts, click on Cancel.

Click on Advanced then WAN Port on the left hand side.

1) Choose PPPoE for the Login Method in the Login section.

2) Enter your Username and Password provided by your ISP (Internet Service Provider).

3) Click on the down arrow for the Connection behavior and select “keepalive”.

4) Click Save.

Note: After you save the settings you may need to power cycle the modem and router.

1) Disconnect the power cycle from the modem and router.

2) Wait approximately 15 seconds.

3) Reconnect the modem first and wait for it to boot up.

4) After the modem has booted up reconnect the router.

04/03/2006

5) Open your web browser and type the IP address of the TW100-BRF114U in the address

bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and

password (blank). NOTE: If the Setup Wizard starts, click on Cancel.

6) Go to Status on the left hand side of the screen and then click on Connection Details.

This will open a new window.

04/03/2006

7) Click on Connect, wait a few seconds and see if it gets an IP address from your ISP.

Q: How do I configure the TW100-BRF114U for a Cable connection using a Dynamic IP

Address?

A: Note: The default setting of the router is configured for a Cable connection using a Dynamic

IP Address.

1) Open your web browser and type the IP address of the TW100-BRF114U in the address

bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and

password (blank). NOTE: If the Setup Wizard starts, click on Cancel.

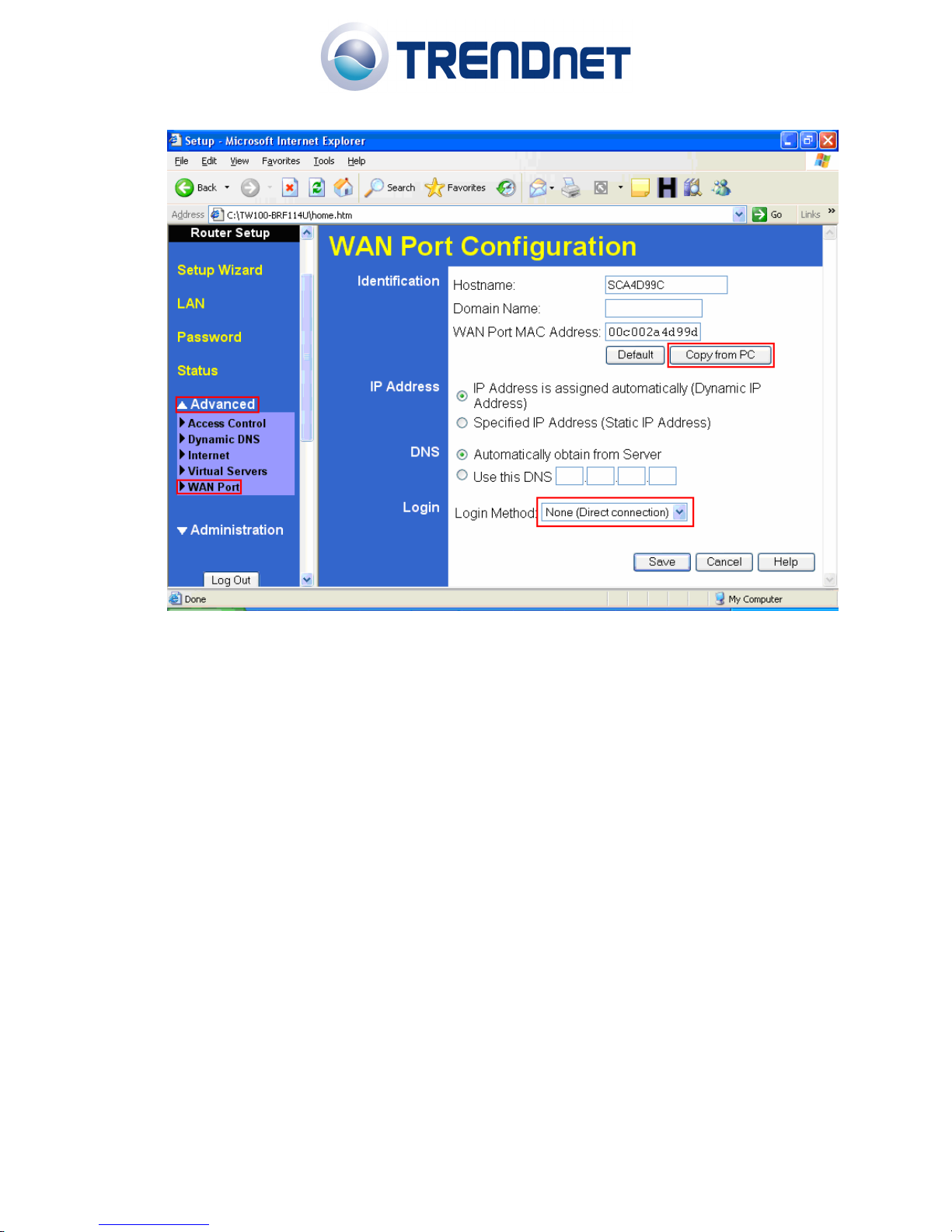

2) Click on Advanced then WAN Port on the left hand side

3) If your ISP has registered the MAC address of your computer that you are managing the

router from click on Copy From PC under the WAN PORT MAC Address field. This

will copy your computers MAC address to the router. If you are not managing the

computer from the computer with the registered MAC address make sure you enter the

registered MAC address manually.

4) Choose None (Direct Connection) in the Login Method field in the Login section.

5) Click Save.

04/03/2006

Note: After you save the settings you may need to power cycle the modem and router.

1) Disconnect the power cycle from the modem and router.

2) Wait approximately 15 seconds.

3) Reconnect the modem first and wait for it to boot up.

4) After the modem has booted up reconnect the router. Open your web browser and type

the IP address of the TW100-BRF114U in the address bar. The default IP address is

192.168.0.1. At the login, enter your username (blank) and password (blank). NOTE: If

the Setup Wizard starts, click on Cancel.

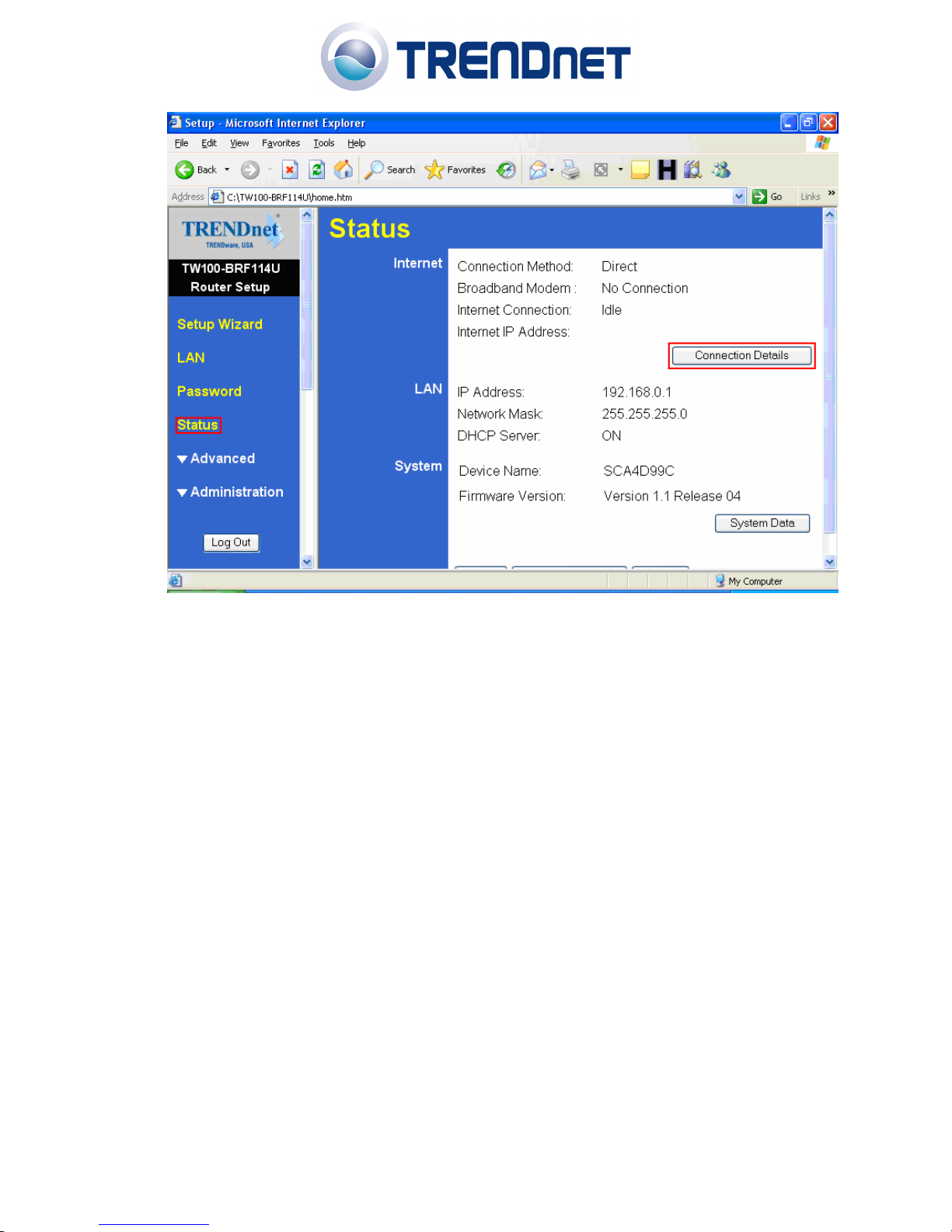

5) Go to Status on the left hand side of the screen and then click on Connection Details. This

will open a new window.

04/03/2006

7) Click on Renew, wait a few seconds and see if it gets an IP address from your ISP.

Q: How do I change the username & password on my TW100-BRF114U?

A: Open your web browser and type the IP address of the TW100-BRF114U in the address bar.

The default IP address is 192.168.0.1. At the login, enter your username (blank) and password

(blank). NOTE: If the Setup Wizard starts, click on Cancel.

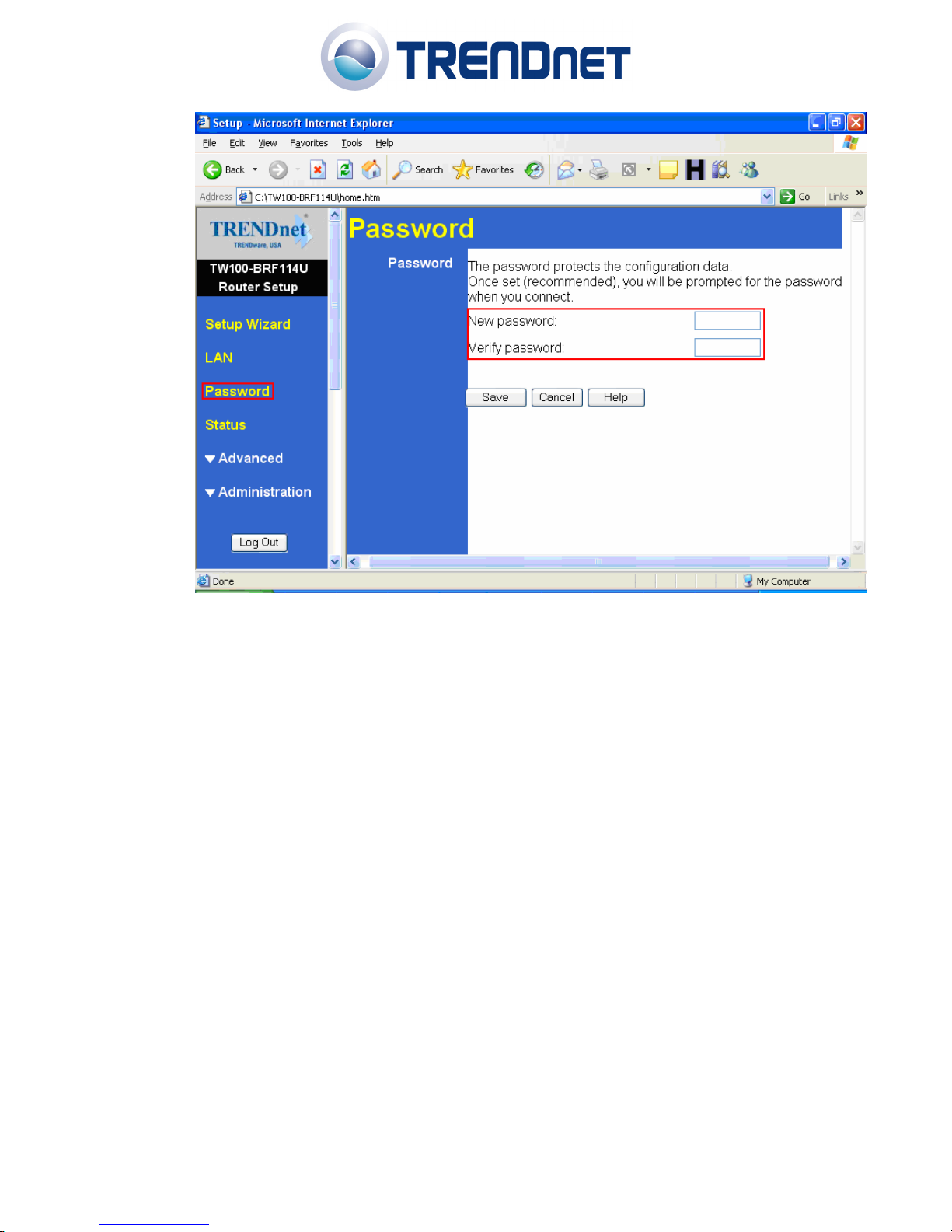

1) Click on Password on the left hand side.

04/03/2006

2) Enter in the desired username and password.

3) Click Save.

Q: What can I do if I forgot my password or want to reset back to factory defaults?

1) Locate the reset button on the back of the TW100-BRF114U.

2) Press and hold in the reset button for approximately 15 seconds. This will reset

the unit back to its default configuration.

Q: What is the default IP address of my TW100-BRF114U?

A: The default IP address for the TW100-BRF114U is 192.168.0.1.

Q: What is the default username and password for the TW100-BRF114U?

A: The default username & password for the TW100-BRF114U are both (blank). There is no

username and password set by default.

04/03/2006

Q: How do I change the IP Address of my TW100-BRF114U?

1) Open your web browser and type the IP address of the TW100-BRF114U in the address

bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and

password (blank). NOTE: If the Setup Wizard starts, click on Cancel.

2) Click on LAN on the left hand side.

3) Change the IP address in the IP Address field.

4) Click Save.

Q: How do I configure the TW100-BRF114U?

A: Click Start then click on the Control Panel. For Windows 2000 click on Start, highlight

settings then click on the Control Panel.

1) Double-Click on the Network Connection icon.

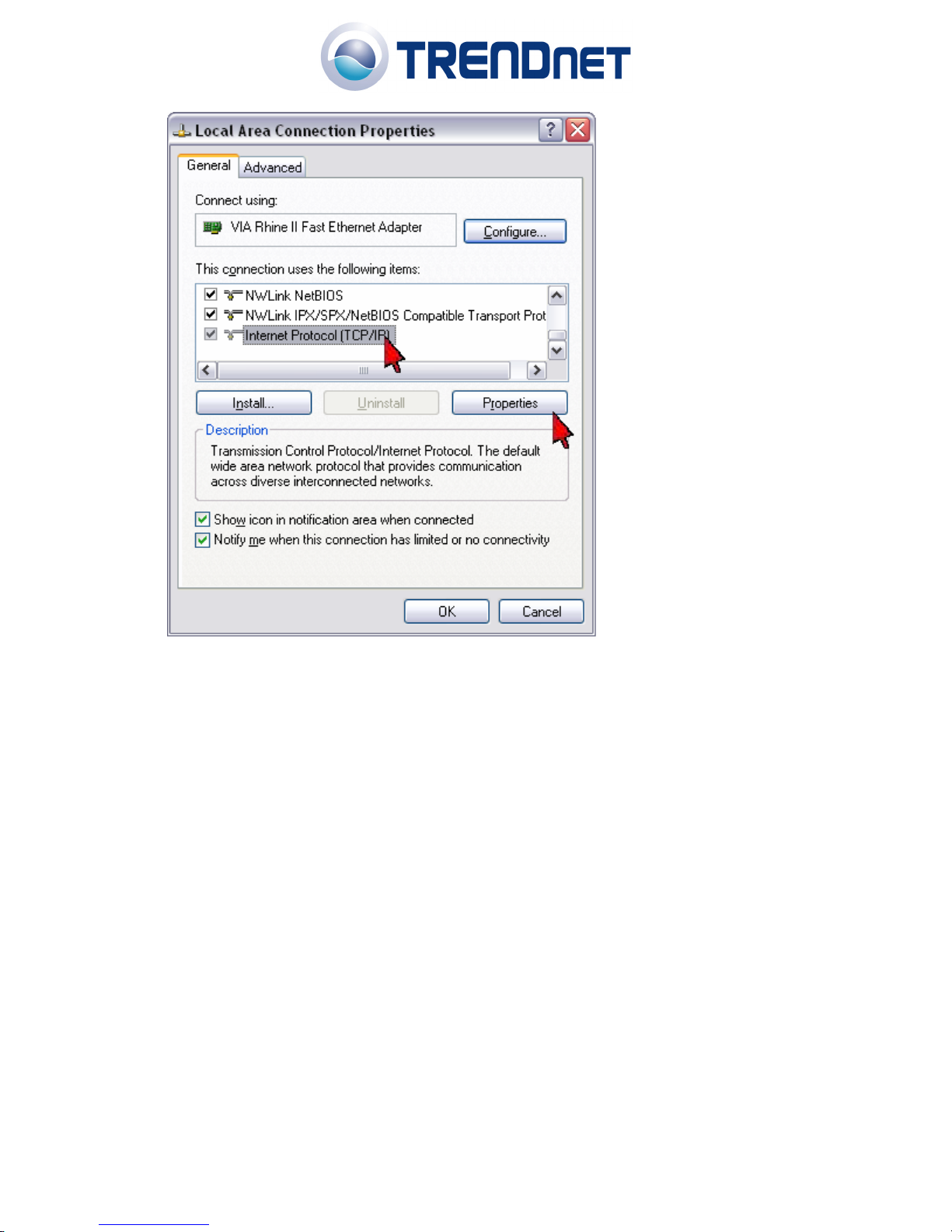

2) Right-Click on the Local Area Connection icon then click on Properties.

3) Highlight the Internet Protocol (TCP/IP) by single clicking on it then click on

Properties.

04/03/2006

4) Select Obtain an IP address automatically and Obtain DNS server address

automatically then click OK.

04/03/2006

5) Click OK again.

04/03/2006
