TRENDnet's TE100-S24 is a high performance, auto-sensing

24-port NWay rack-mountable Fast Ethernet Switch. It is

designed to eliminate unnecessary traffic and relieve

congestion on critical network paths. With 10/100Mbps NWay

technology, the TE100-S24 automatically negotiates between

10Base-T and 100Base-TX network speeds, as well as half

and full duplex modes. The auto MDI-II/MDI-X detection on

each port automatically detects and corrects for crossover

connection and allows direct switch-to-switch or switch-to-

hub connection for your networking needs.

TE100-S24

24-Port 10/100Mbps NWay Fast Ethernet Switch

BENEFITSFEATURES

Performance:

Easy Upgrade:

Flexibility:

Cost Effective:

Top performance at an affordable

price.

Current Ethernet workgroups are able

to upgrade to Fast Ethernet by

changing adapters and hubs without

changing switches.

All ports automatically negotiate

10/100Mbps network speed, half/full-

duplex mode, and MDI-II/MDI-X

connector type.

Provide 10/100Mbps network

connection at an affordable rate.

24 10/100Mbps NWay Auto MDI-II/MDI-X ports

Integrate address Look-Up Engine, supports up to 8K absolute

MAC address

2.5Mb internal RAM for frame buffering

Full/half duplex transfer mode for each port

Wire-speed filtering/forwarding rates

IEEE 802.3x flow control for full-duplex mode

Back pressure flow control for half-duplex mode

Store-and-forward switching method

Extensive front-panel diagnostic LEDs

No cooling fan, for quite operation

5-Year Warranty

TE100-S24 (03-09-2005)

TRENDnet

TRENDware, USA

What's Next in Networking

RELATED PRODUCT

To Order Please Call:

1-888-326-6061

TE100-S24:

24-port 10/100Mbps NWay Switch (Rack Mount)

TE100-S16:

16-port 10/100Mbps NWay Switch (Rack Mount)

NETWORKING SOLUTIONS

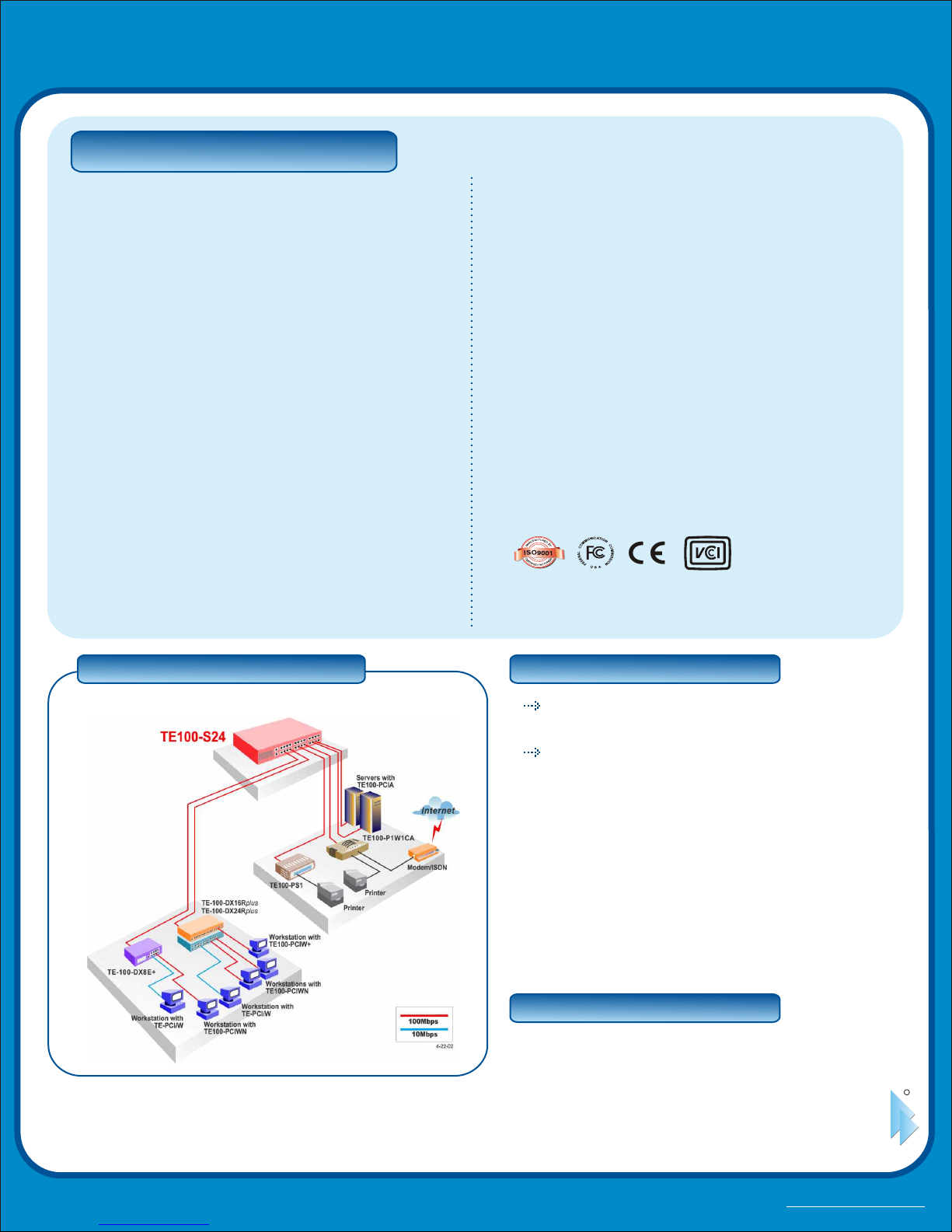

SPECIFICATIONS

Standards:

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, ANSI/IEEE

802.3 NWay auto-negotiation

Connectors:

24 10/100Mbps shielded RJ45 Auto MDI-II/MDI-X ports

Network Cables:

Cat. 3, 4, 5 UTP/STP for 10Base-T; Cat. 5 UTP/STP for 100Base-TX

Protocols:

CSMA/CD

Data Transfer Rate:

Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex)

Fast Ethernet: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex

Data RAM Buffers:

2.5MB per device

Filtering Address Table:

8K entries per device

•

Internal Power Adapter:

100~240 VAC, 10 watts max. Diagnostic LEDs: Power,

Link/Activity, 100Mbps

Weight:

appr. 2.0 Kg (4.4 lb.)

Dimensions:

440 x 140 x 44 mm (17.3 x 5.51 x 1.73 inch) (W x H x D)

Temperature:

Operating: 0° ~ 40°C (32° ~ 104°F),

Storage: -10° ~ 70°C (14° ~ 158°F)

Humidity:

Operating: 10% ~ 90% RH,

Storage: 5% ~ 90% RH

Emission:

FCC Class A, CE Mark A, VCCI-A

•

TE100-S24

24-Port 10/100Mbps NWay Fast Ethernet Switch

TE100-S24

24-Port 10/100Mbps NWay Fast Ethernet Switch

TRENDnet is a registered trademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this

document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit

____________________

http://www.TRENDNET.com.

TRENDware International, Inc.

3135 Kashiwa Street

Torrance, CA. 90505. USA

Tel: 310-891-1100

Fax: 310-891-1111

Web:

Email: [email protected]

www.TRENDNET.com

ORDERING INFORMATION

TRENDnet
